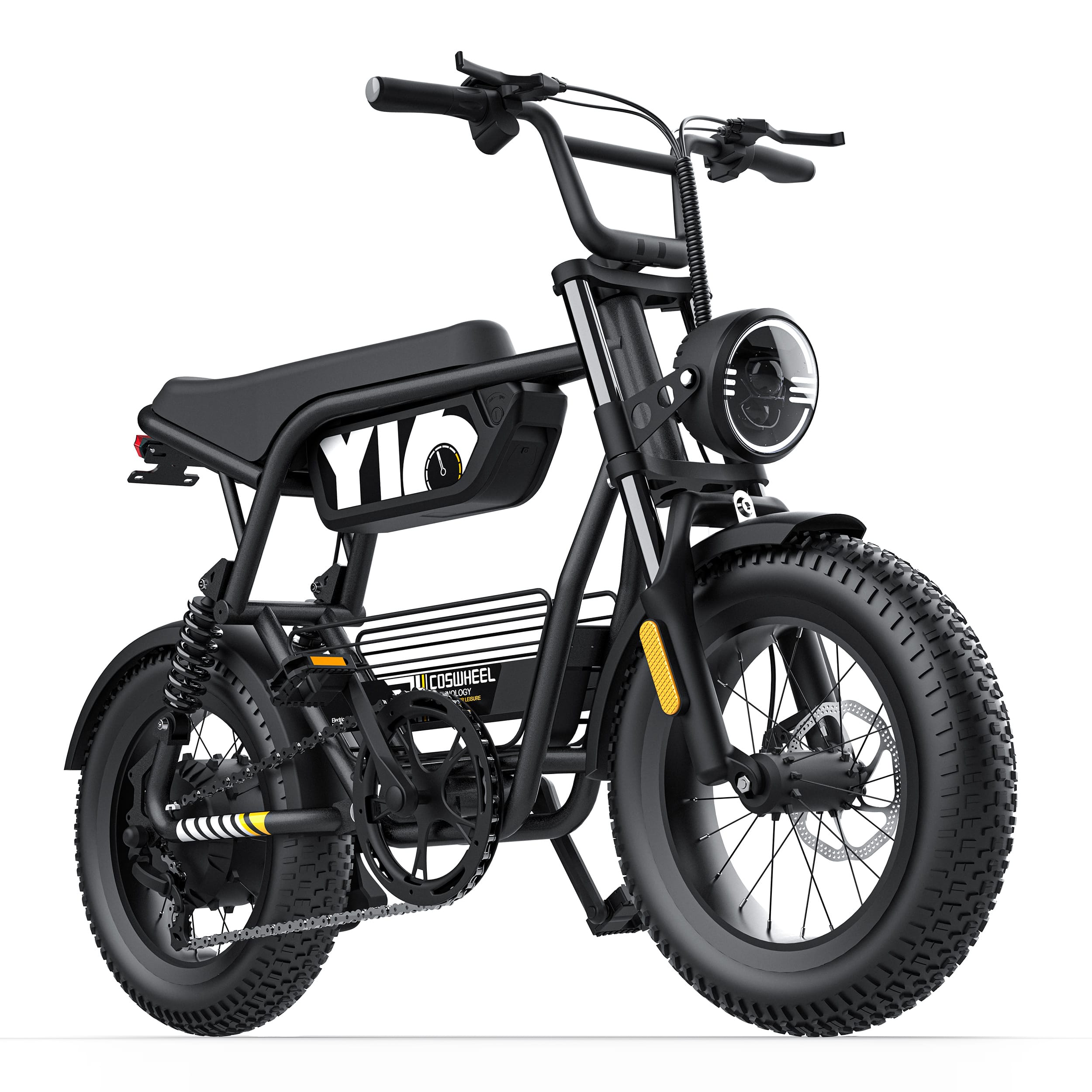

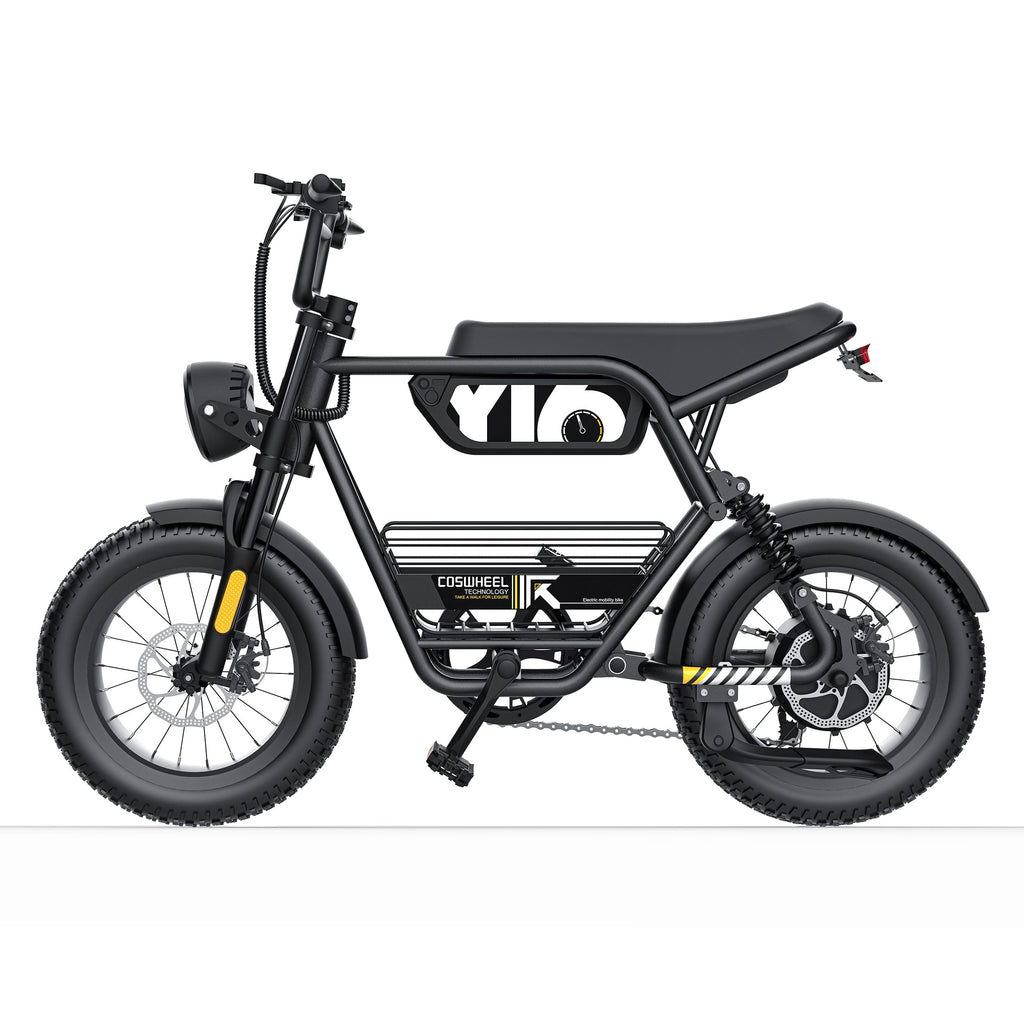

COSWHEEL Y16 Ebike – Official Specifications
Performance
-
Top Speed: Class 2/3 – up to 28 mph (45 km/h)
-
Range: ~30+ miles (48 km) in throttle-only mode; ~52+ miles (84 km) with pedal assist
-
Motor: 48 V Peak 1000 W (Rated 750 W) brushless rear hub motor with 50 N·m torque
-
Battery: 48 V 15 Ah removable lithium battery (18650 cells), 720 Wh
Suspension & Brakes
-

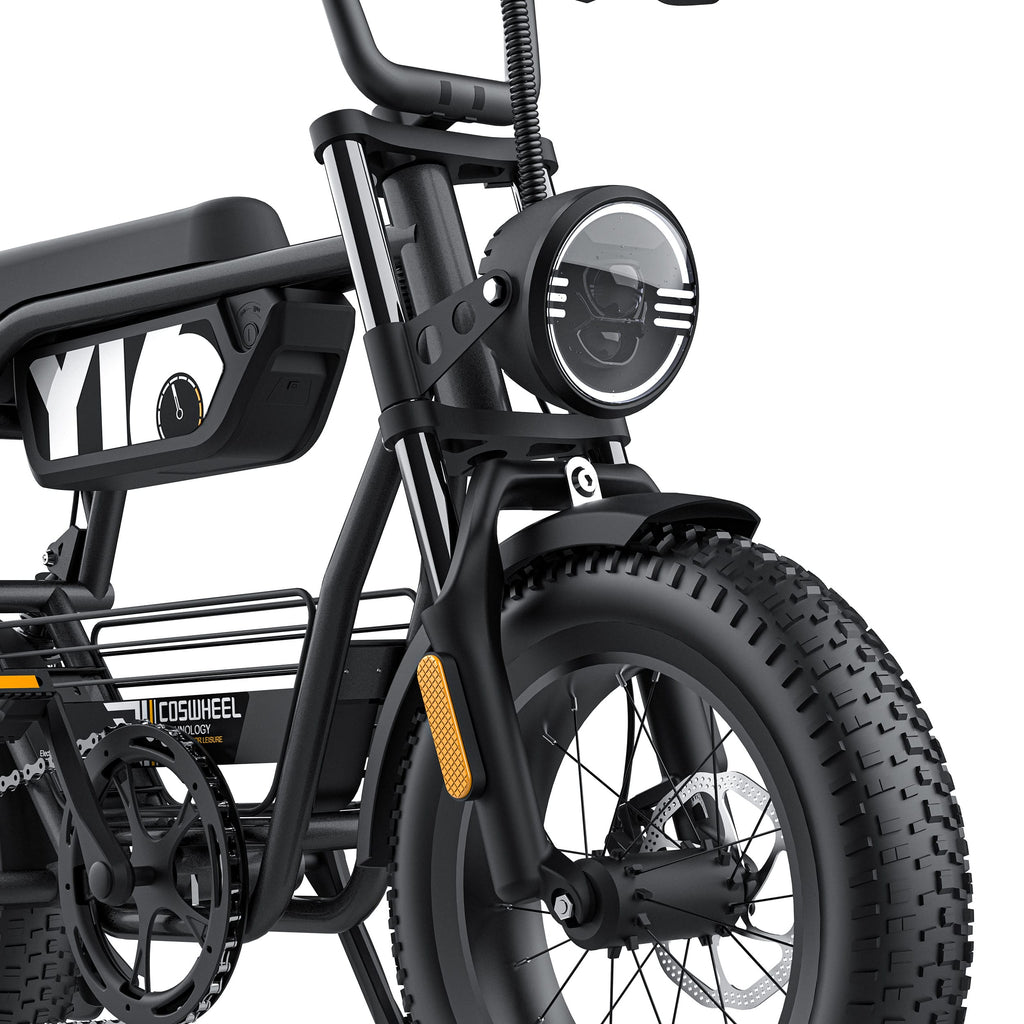

Front Suspension: Double-crown front fork — 80 mm travel
-

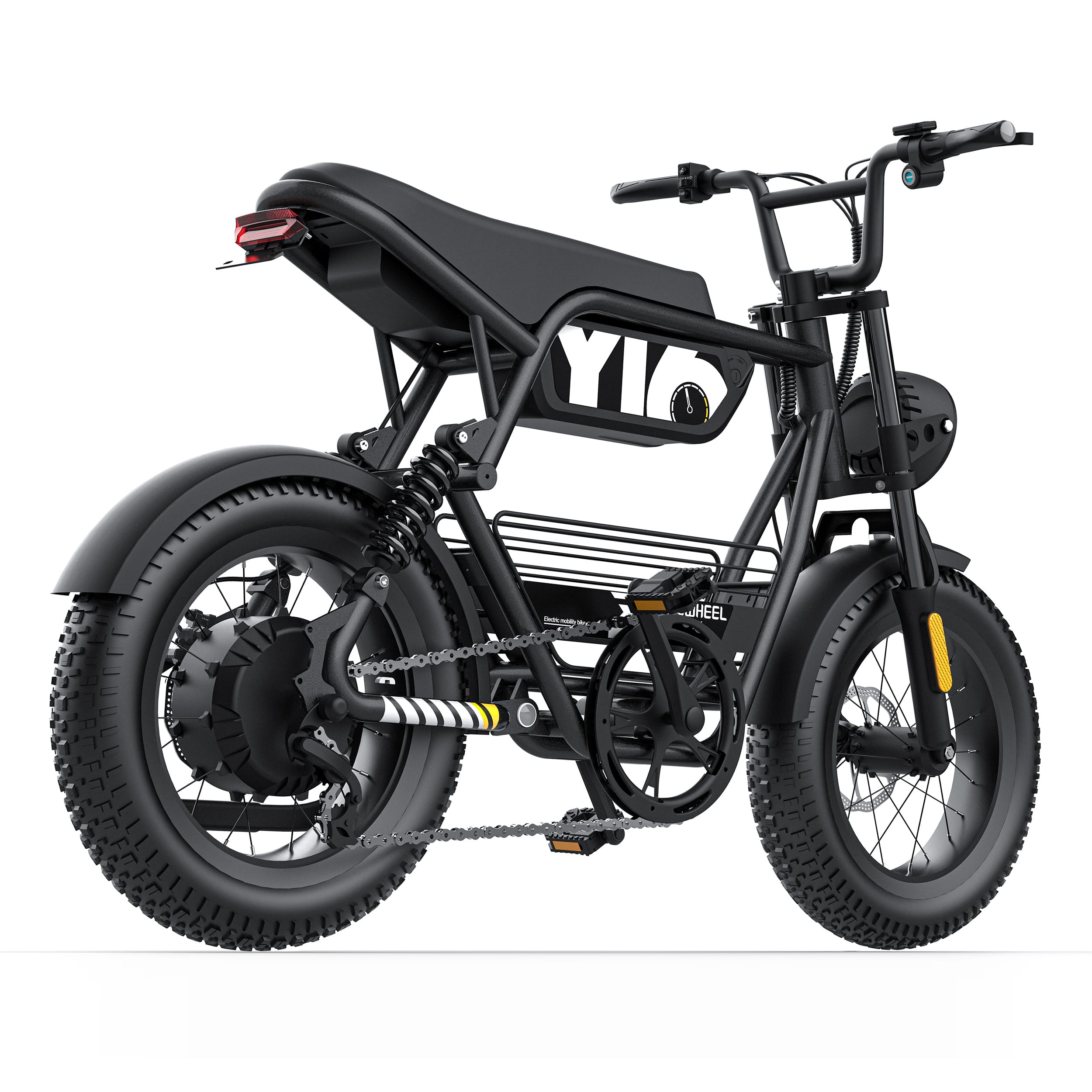

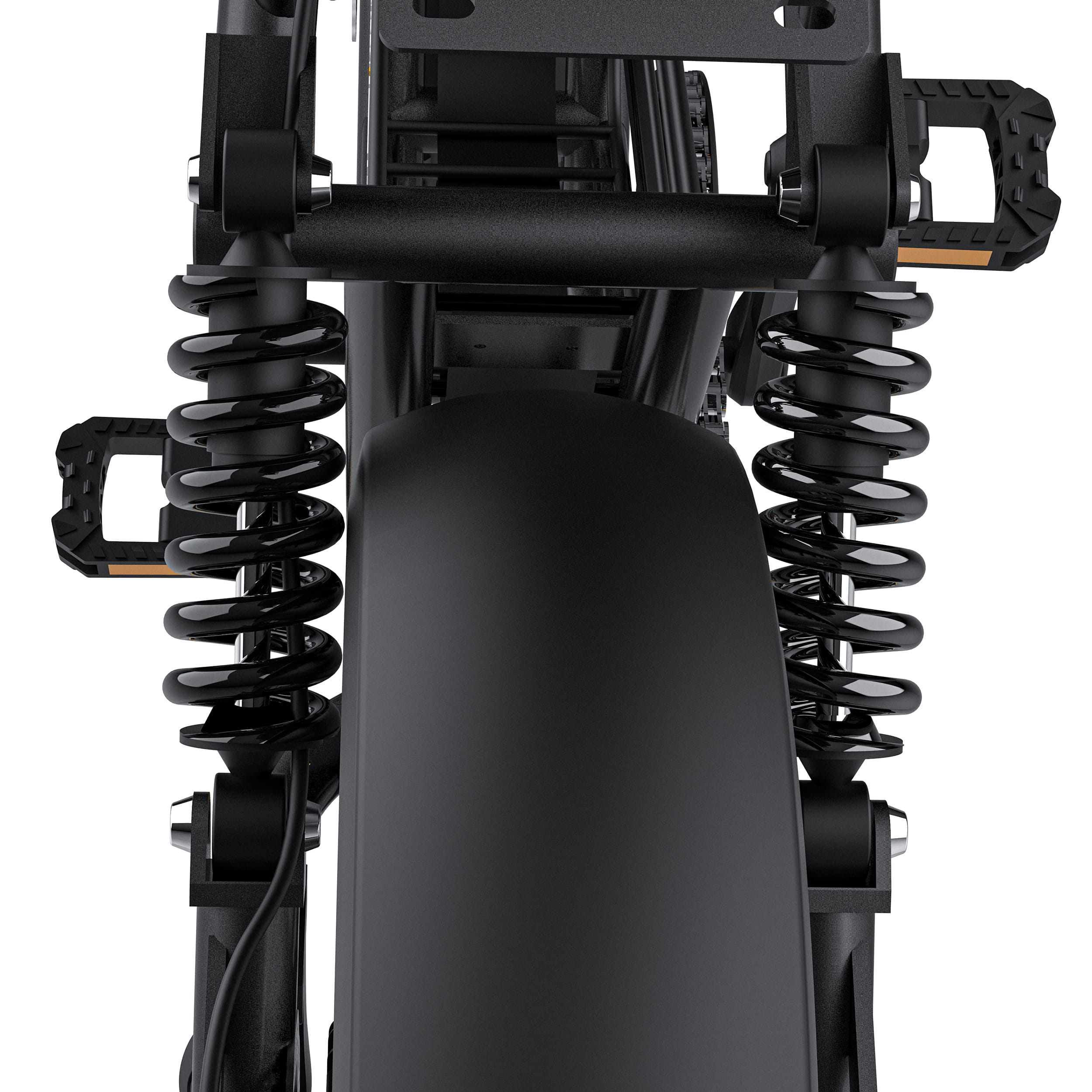

Rear Suspension: Dual shock absorbers
-

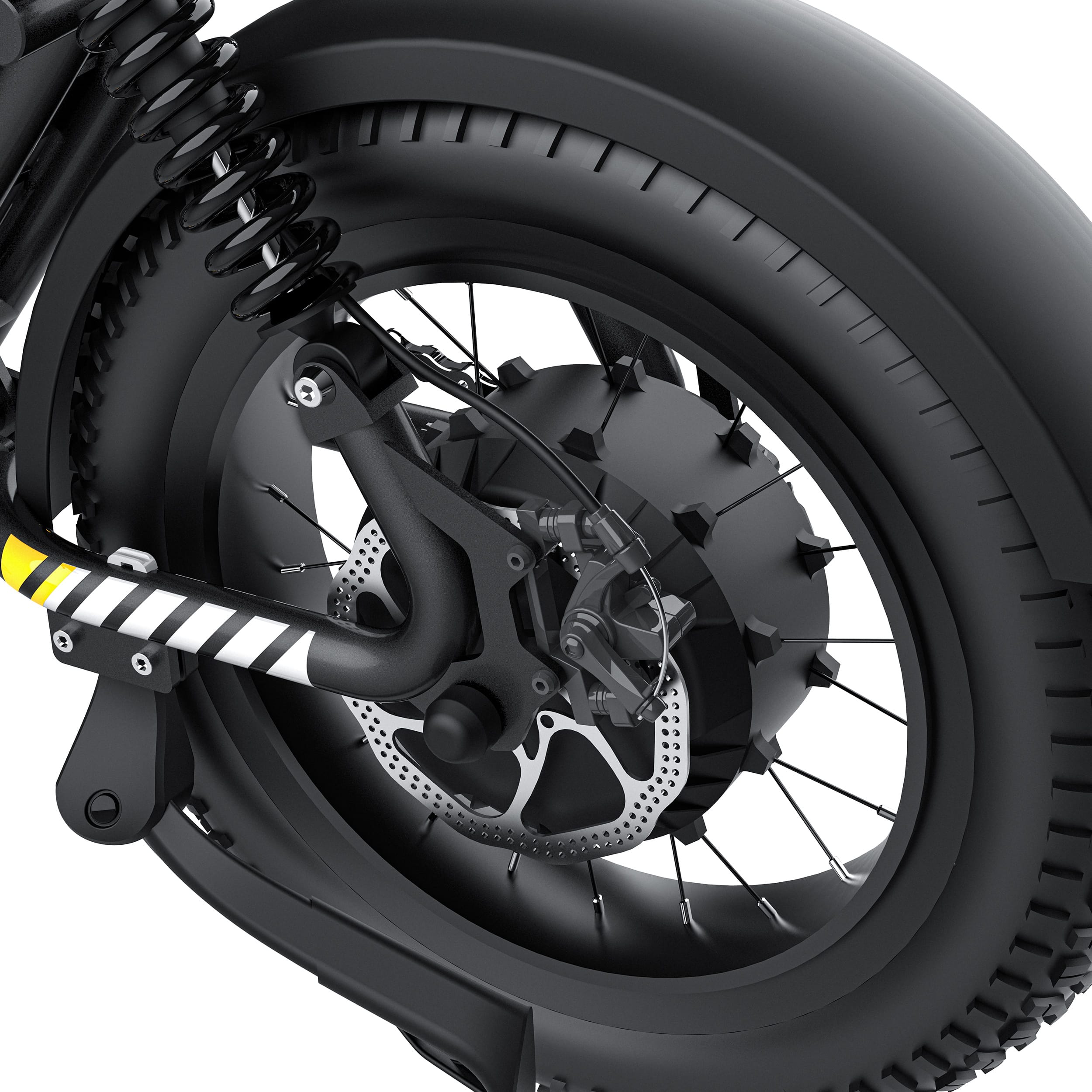

Brakes: Double disc brakes with 160 mm stainless steel brake discs
-
Throttle: Grip twist throttle
Electronics
-
Charger: 48 V 3 A
-
Charging Time: ~3.5–8.0 hours
-

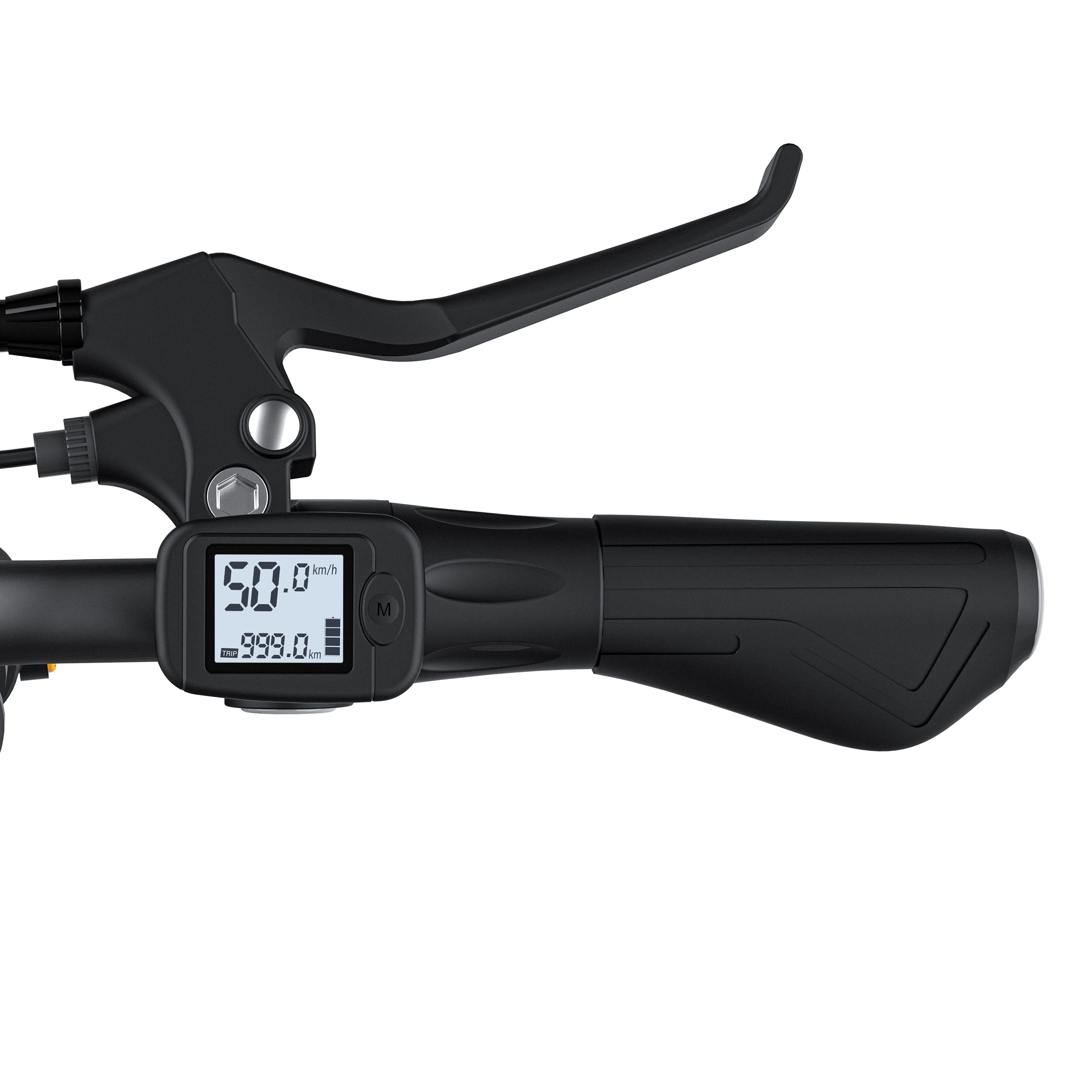

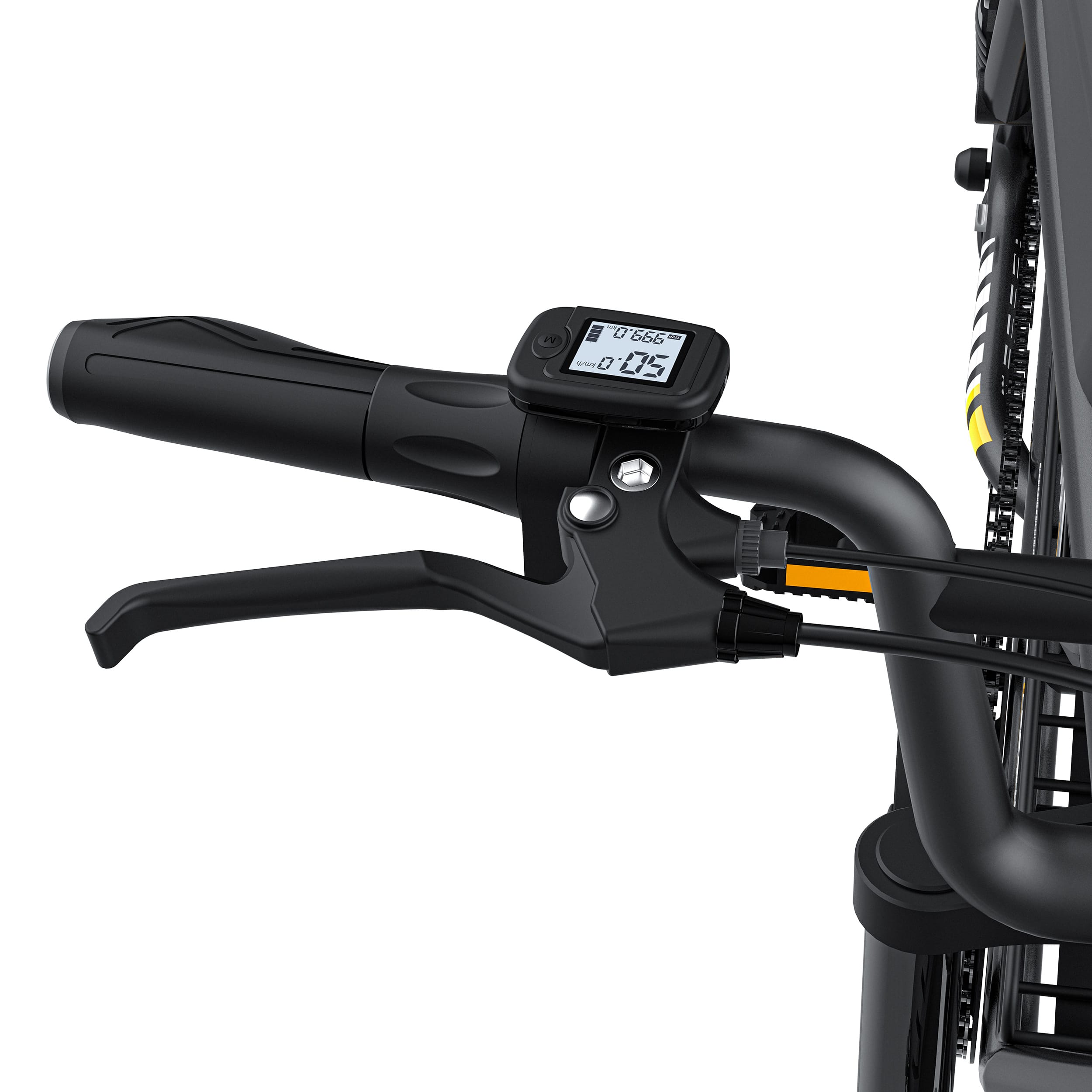

Display: Easy-read LCD display
-
Controller: 48 V 22 A
-

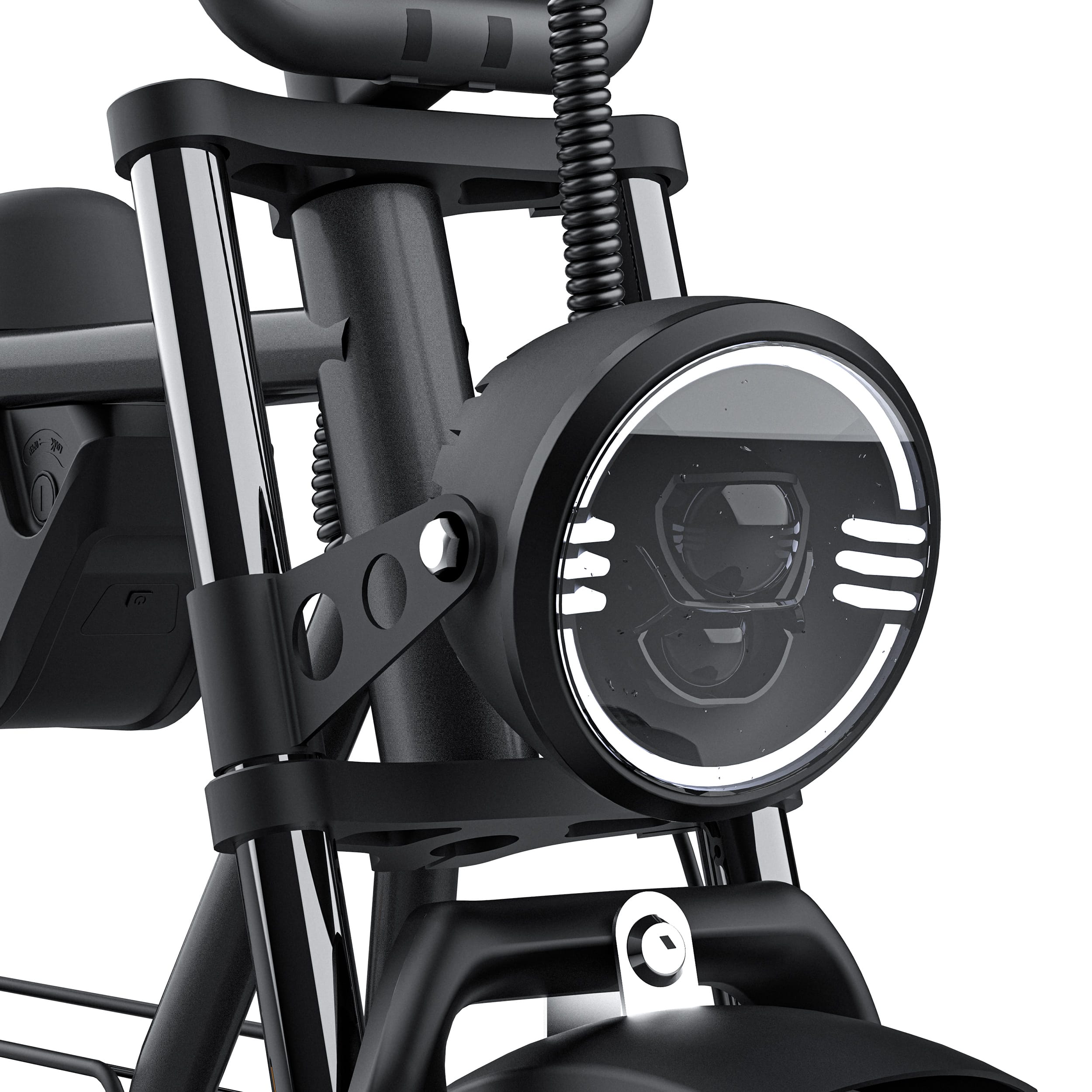

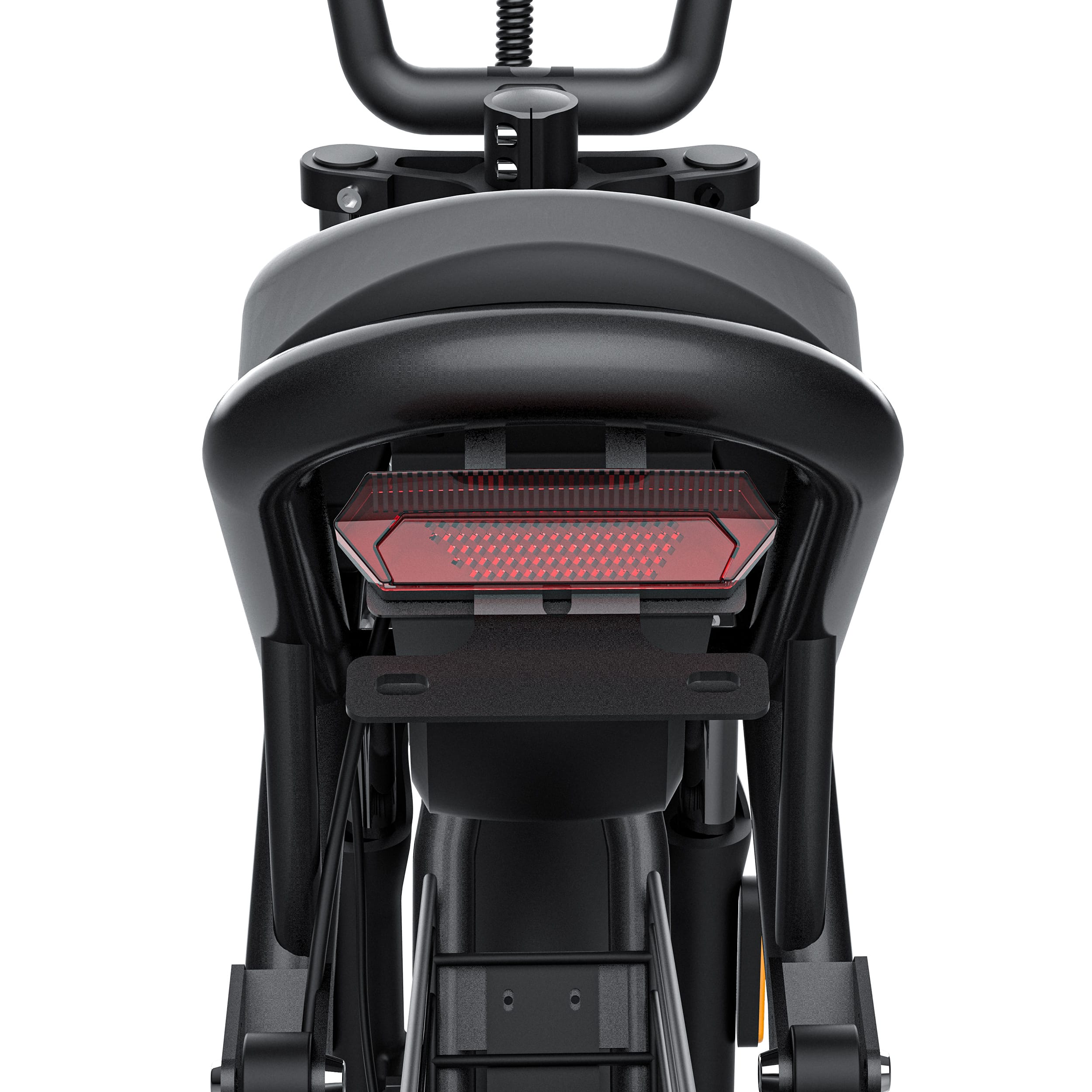

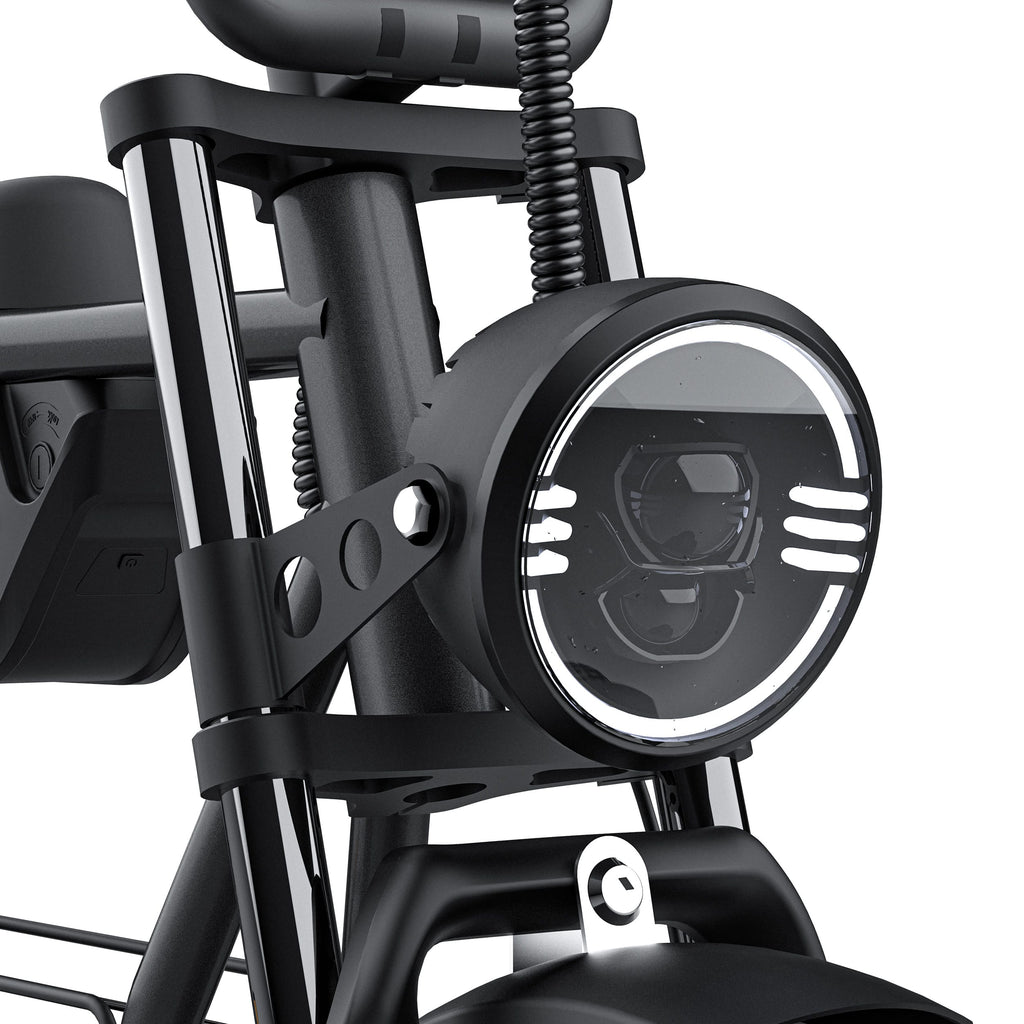

Lights: Classic angel eye front headlight (120 LUX), LED rear light
-
Pedal Assist: 3 levels
-
Sensors: Speed sensor
Tires & Frame
-
Tires: Chaoyang all-terrain 16" × 4.0" (30 TPI)
-
Frame: Iron frame
Components
-
Pedals: Black
-
Crank: 46T double cover “fish shape”
-
Rear Derailleur: Single speed
-
Chain: Anti-rust, 116 mesh
-

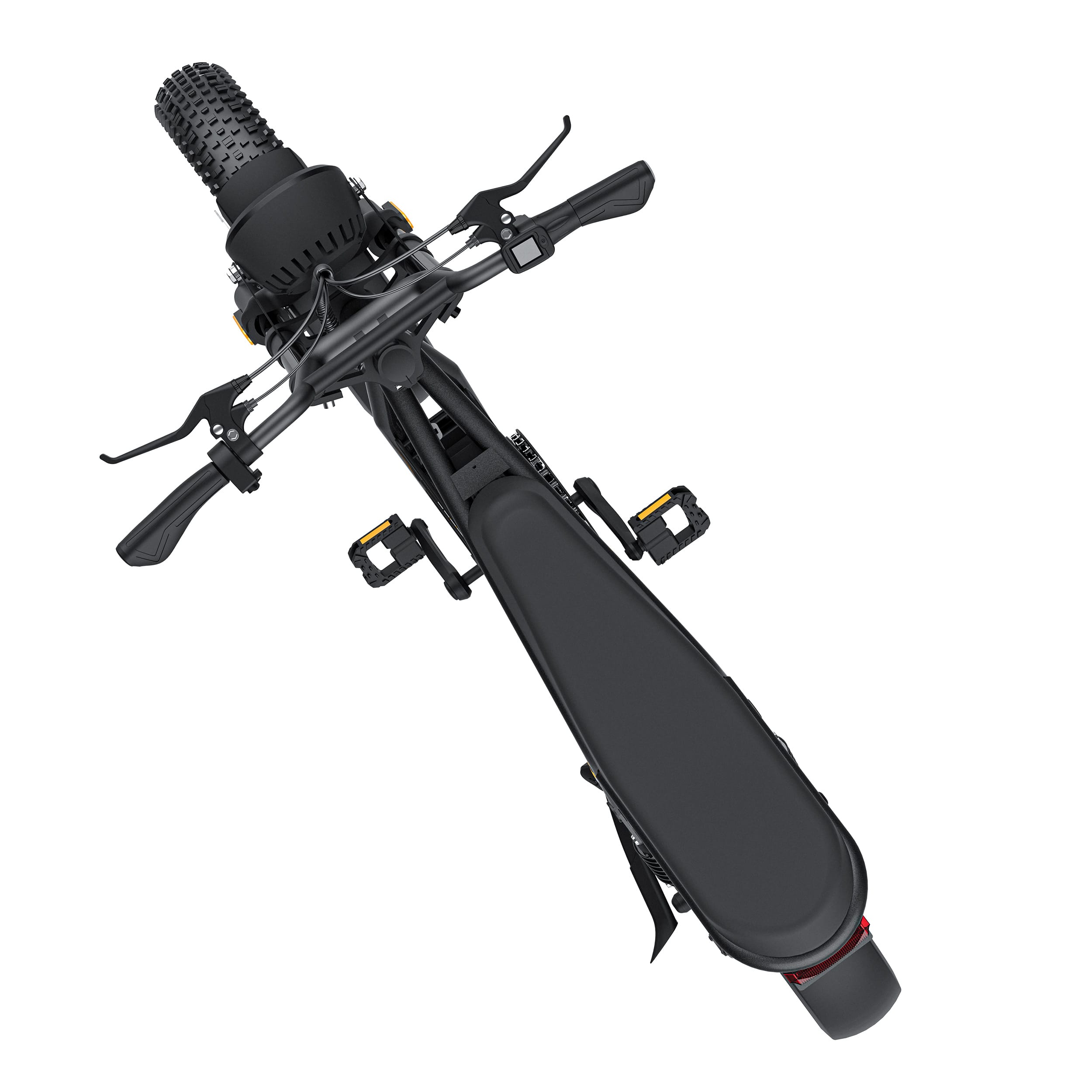

Handlebars: Black, 25.4 mm × 640 mm length × 180 mm height
Geometry & Capacity
-
Suitable Rider Height: 4’11" – 5’11" (4.9 ft – 5.9 ft)
-
Seat Height: 29.53" (75 cm)
-
Bike Height: 39.37" (100 cm)
-
Wheelbase: 38.58" (98 cm)
-
Handlebar Width: 25.59" (65 cm)
-
Bike Weight: ≥97 lbs (≥44 kg) with battery
-
Max Load: 330 lbs (150 kg)
-
Safe Load: 265 lbs (120 kg)
-
Overall Size: 60.24" × 25.59" × 39.37" (153 × 65 × 100 cm)
