Description

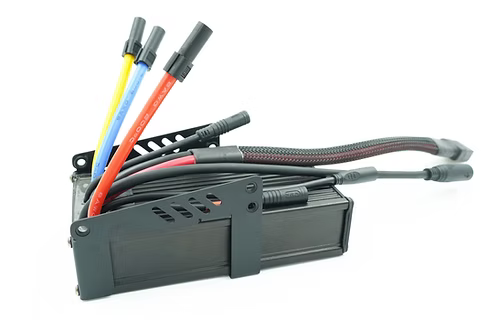

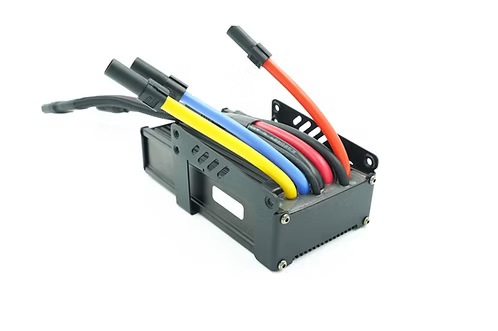

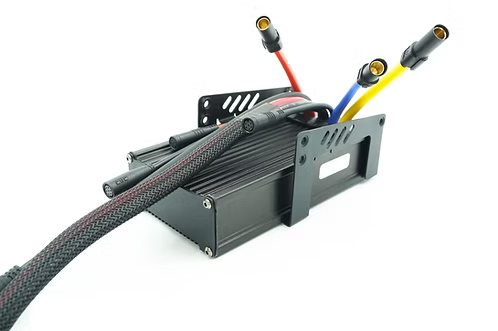

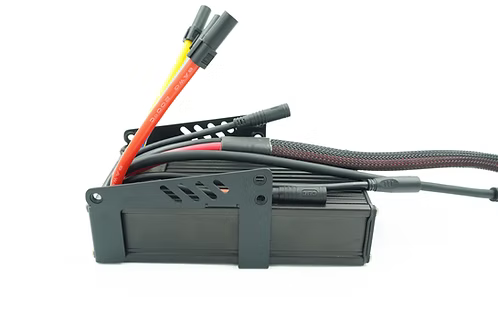

The CYC X12 Controller is part of the new X-Series of high-performance controllers, designed for precision, durability, and efficiency.
With a nominal voltage range of 36–72V, peak phase current of 180A, and peak battery current of 100A, the X12 delivers robust and responsive power output.
Built with an IP66 waterproof rating, the controller ensures reliable performance even in challenging riding conditions. It supports Bluetooth mobile app connectivity, allowing real-time monitoring and tuning, and is fully compatible with Gen 2 and Gen 3 torque sensors for accurate pedal-assist control.
The X12 controller is the direct replacement for the previous CYC X6 Controller, featuring double the capacity for improved performance and thermal efficiency.
It powers the CYC X1 Pro Gen 4 mid-drive system, enabling up to 5000W rated power and 250N·m of peak torque for serious off-road and high-performance e-bike builds.
Compatiblity:
-
Compatible with the X1 Pro Gen 4 mid-drive conversion kit
-
Compatible with 36V–72V eBike batteries
Inclusions:
- X12 controller
Specifications
-
Nominal Voltage: 36–72V
-
Peak Phase Current: 180A
-
Peak Battery Current: 100A
-
Waterproof Rating: IP66
-
Connectivity: Bluetooth mobile app support
