Description

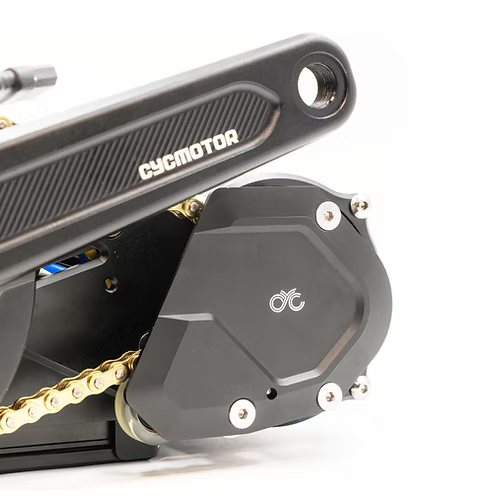

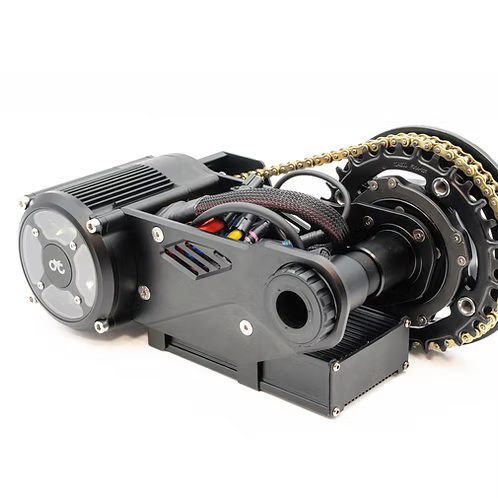

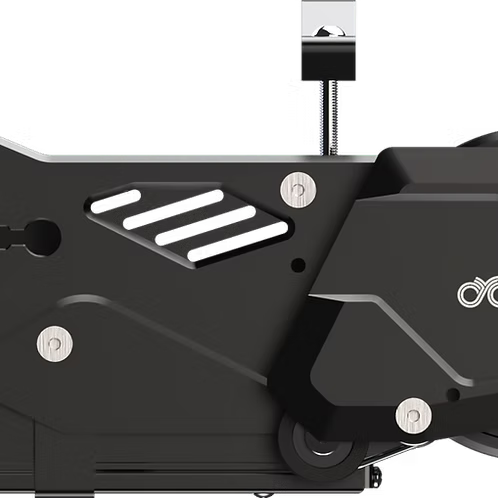

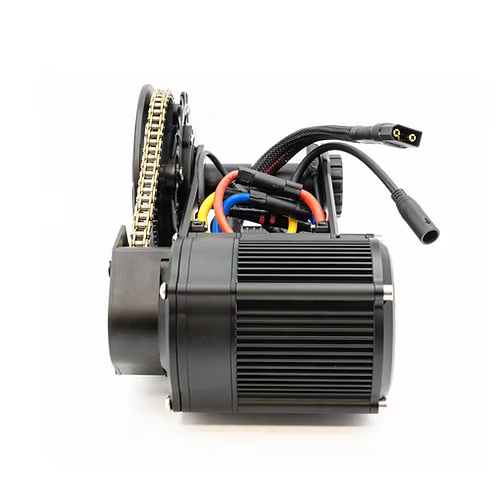

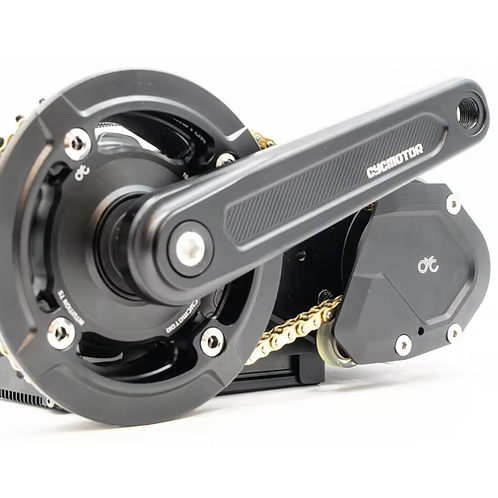

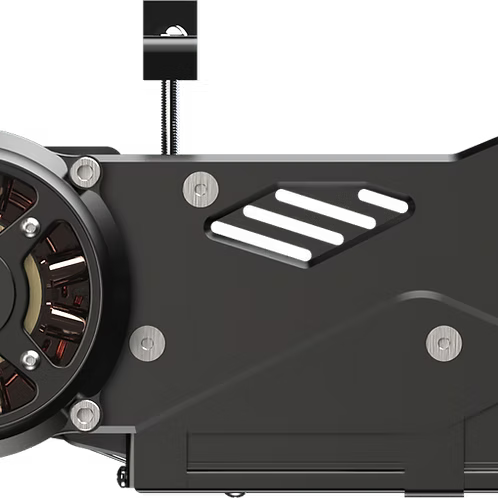

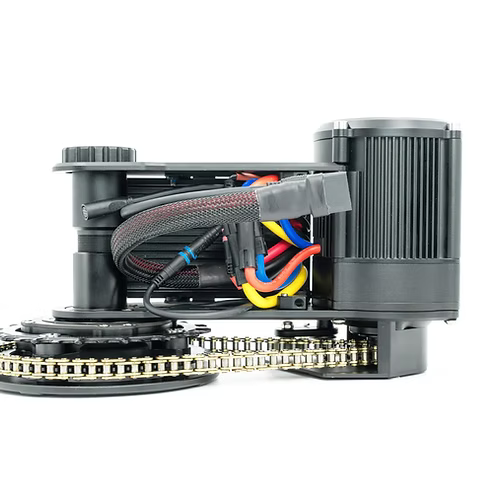

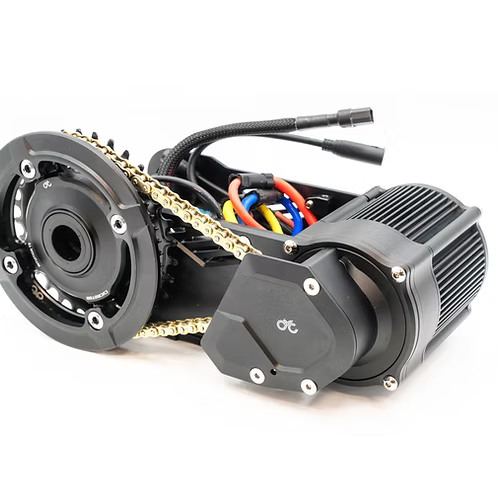

The X1 Pro Gen 4 is a high-powered mid-drive electric bike conversion kit made for extreme power, off-road, and utility use. Rated at 5000W & 250N.m.
The package includes everything you need to convert your bike except the battery:
- Motor-reduction assembly
- 219H chainring-reduction assembly
- Bicycle chainring with chainring cover
- 219H golden KMC chain
- ISIS splined bottom bracket & spindle
- 165mm/ 175mm crank arm set
- Gen 4 torque sensor
- X12 controller (5000W)
- Built-in bashguard
- Waterproof wire harness
1T2 wiring harness will be provided by default
1T4 wiring harness will be provided if the brake sensor option is selected
Alternatively, request via email for 1T4 wiring harness - Motor hanger
- 3, 5, & 7mm spacers for BSA threaded 68/73/83mm version / 2x 2mm spacers for BB92 version
- SW102 / DS103
- Thumb throttle/ Half-twist throttle/ Full twist throttle
- Magnetic speed sensor
- Magnetic brake sensors (optional)
- User manual (ecopy)
Specifications:
- 36V to 72V compatible
