Description

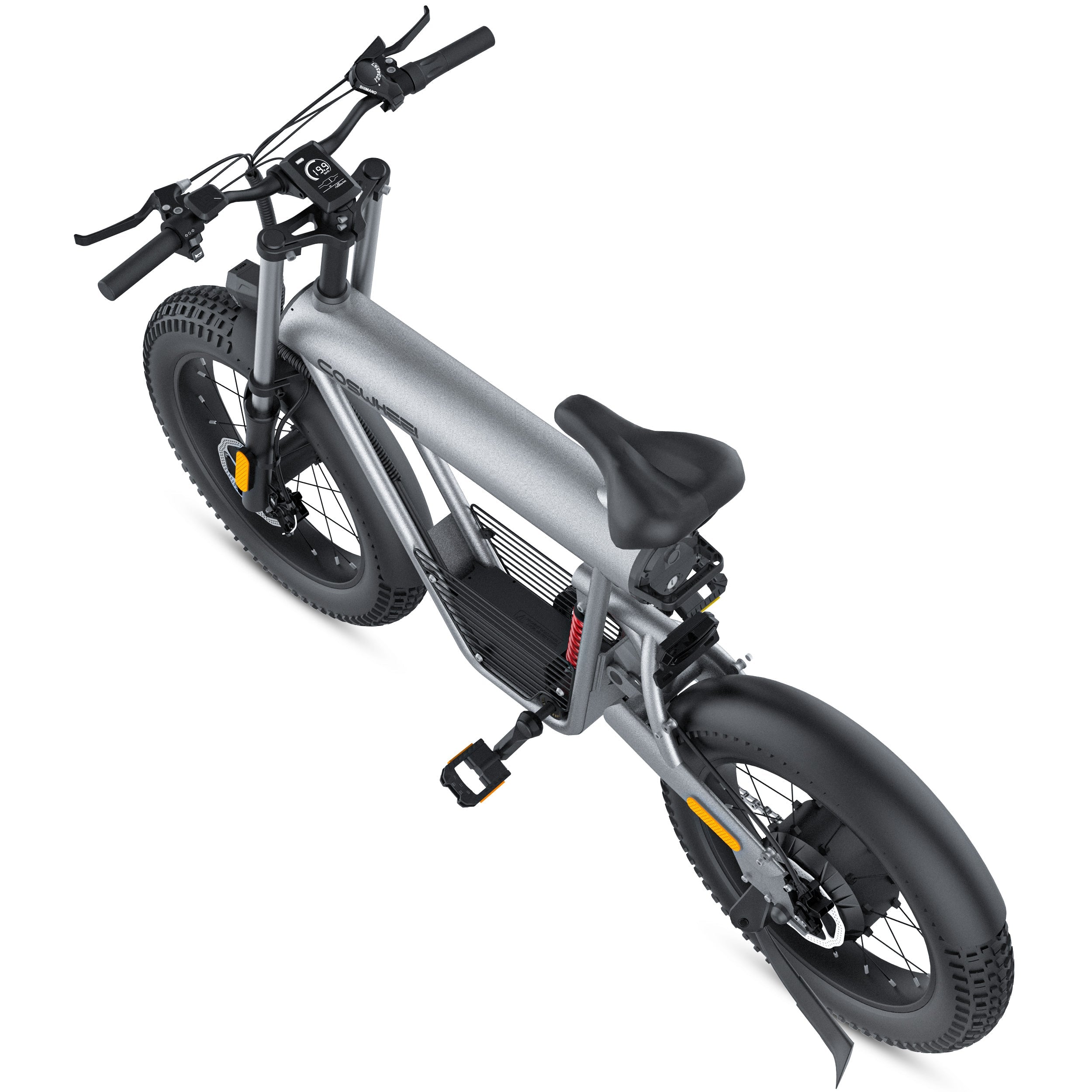

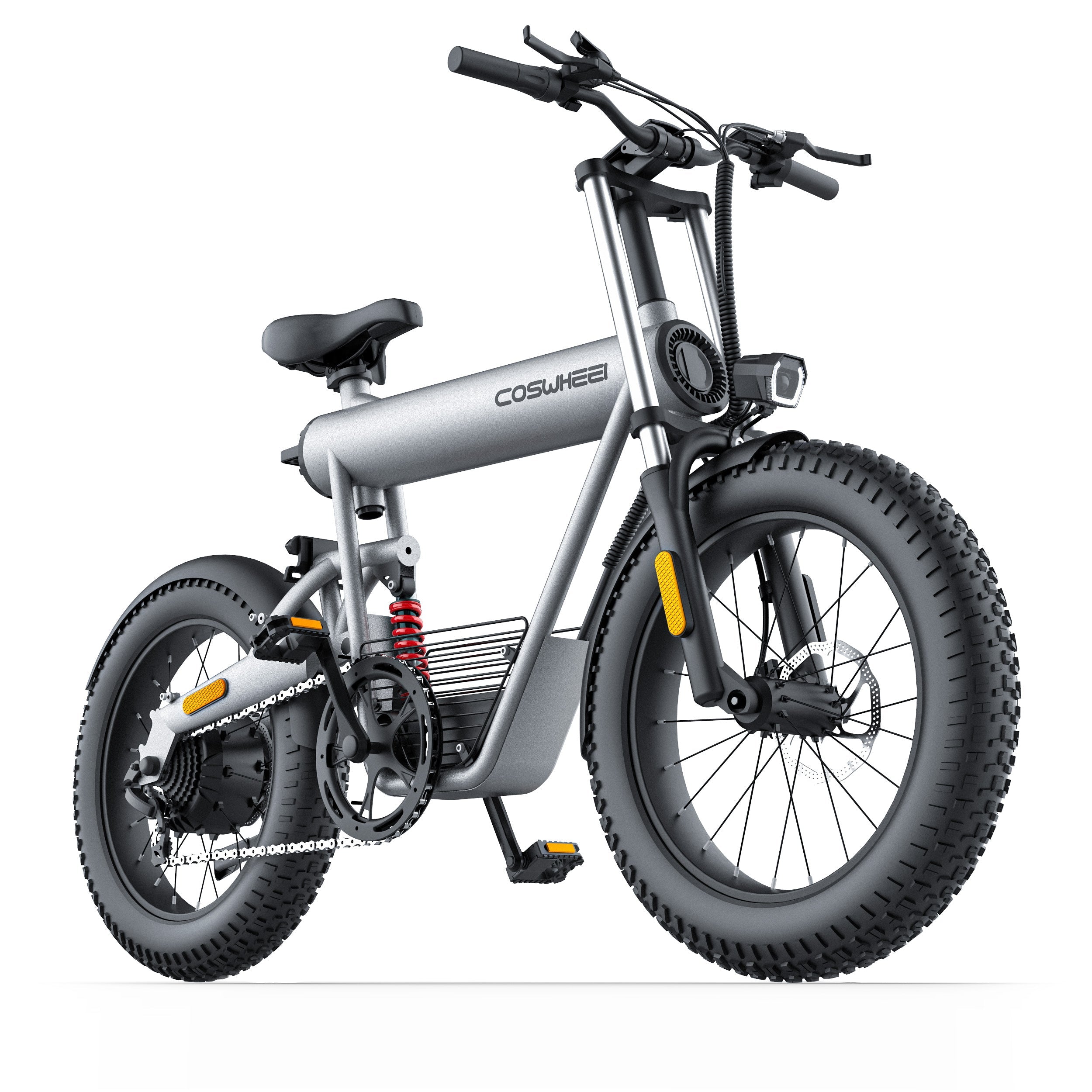

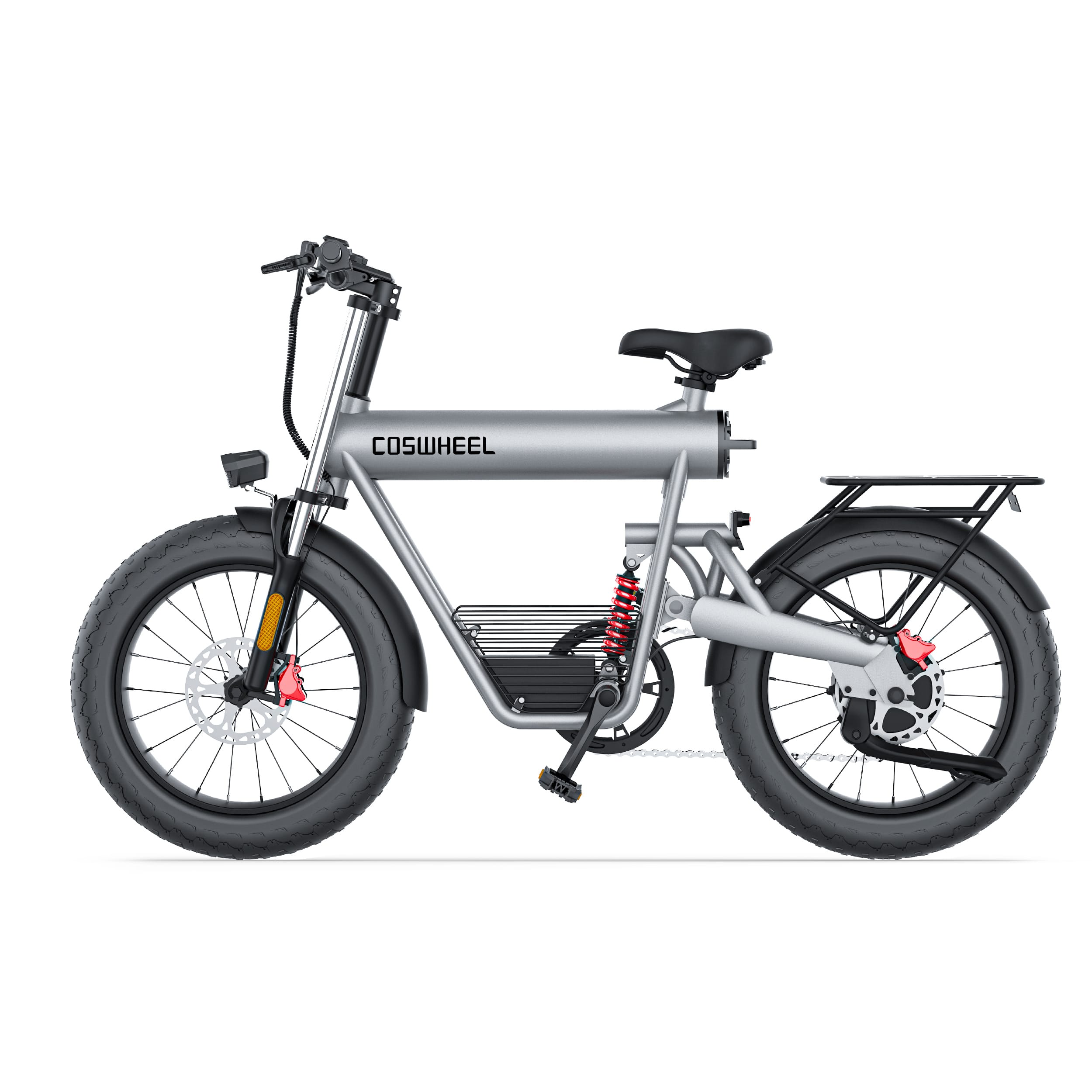

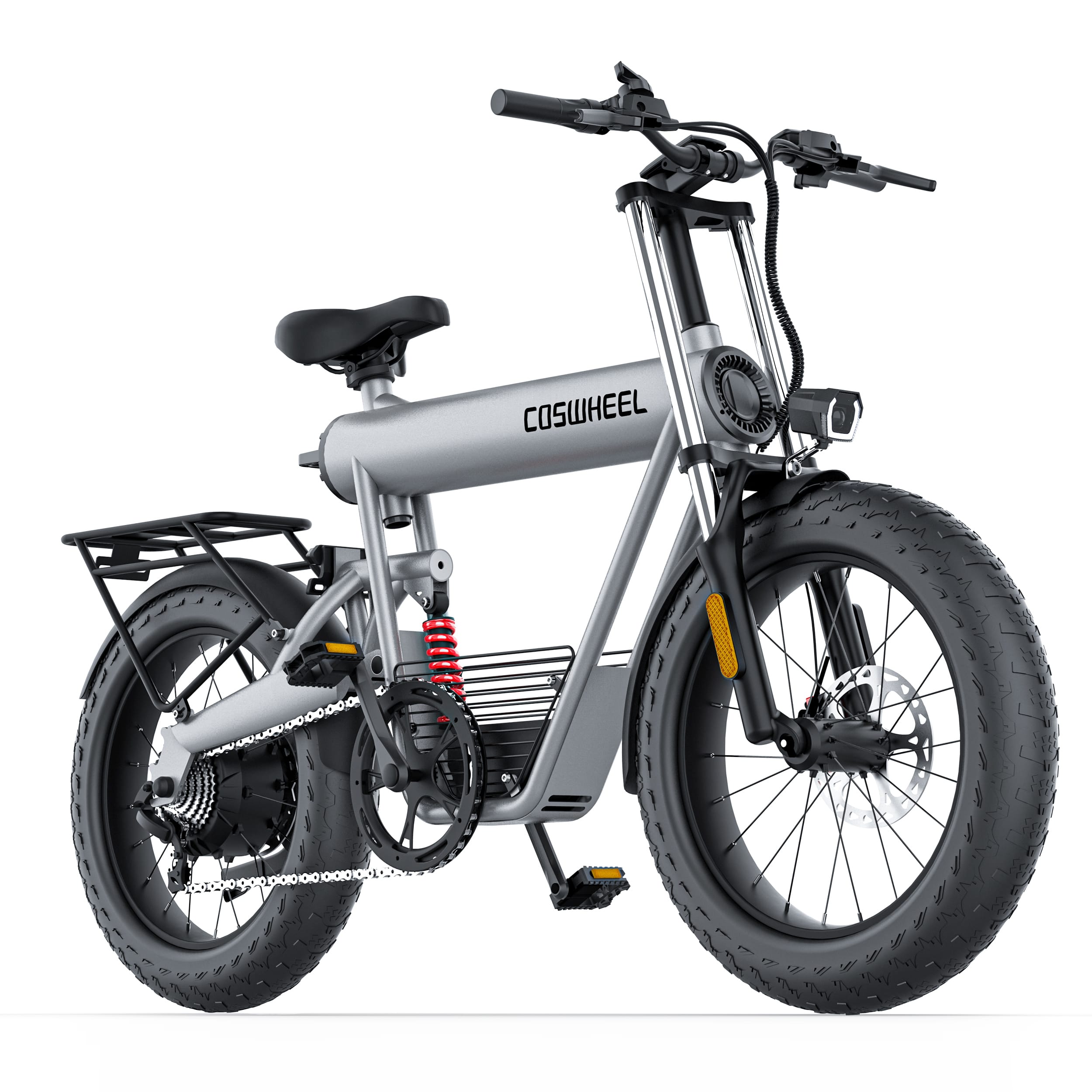

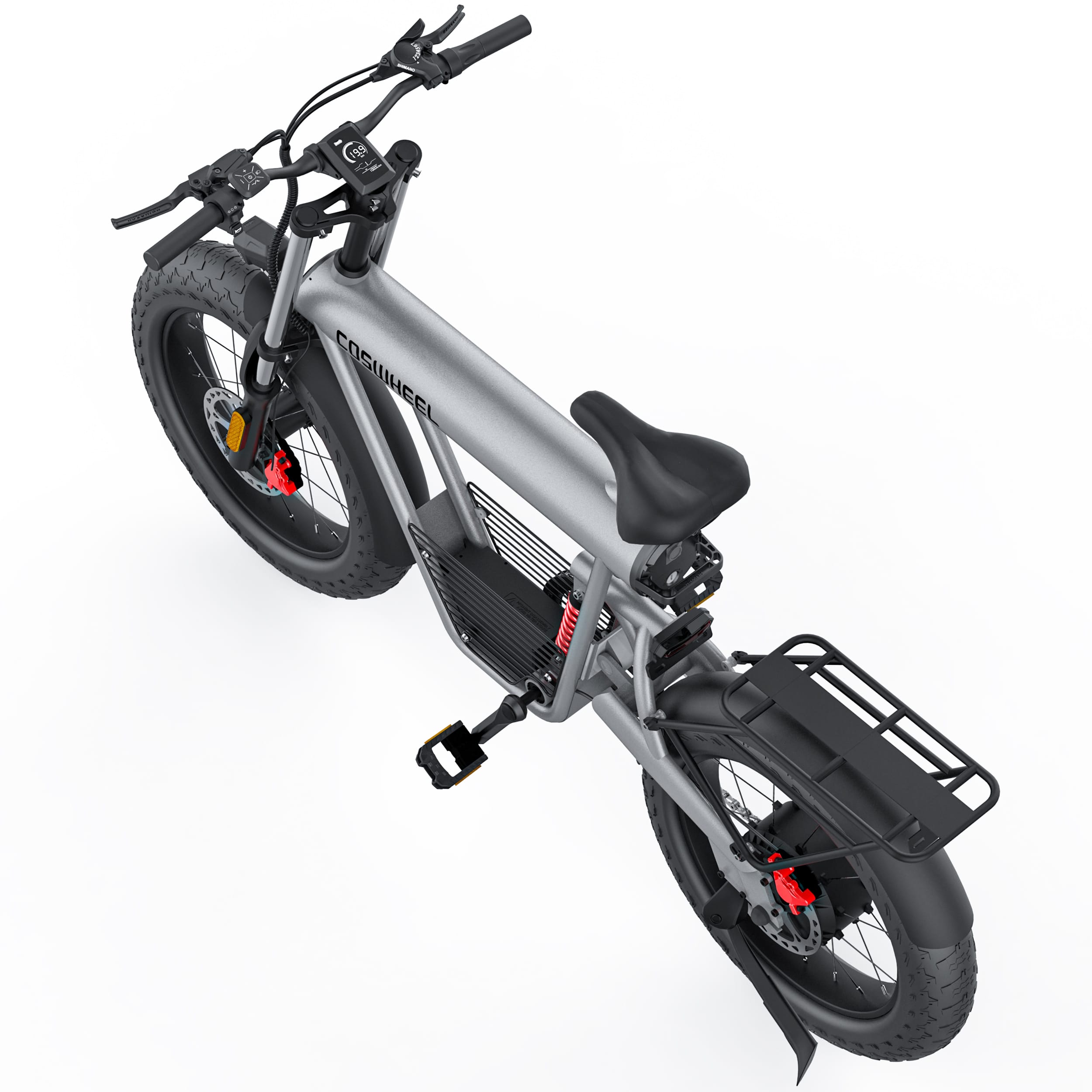

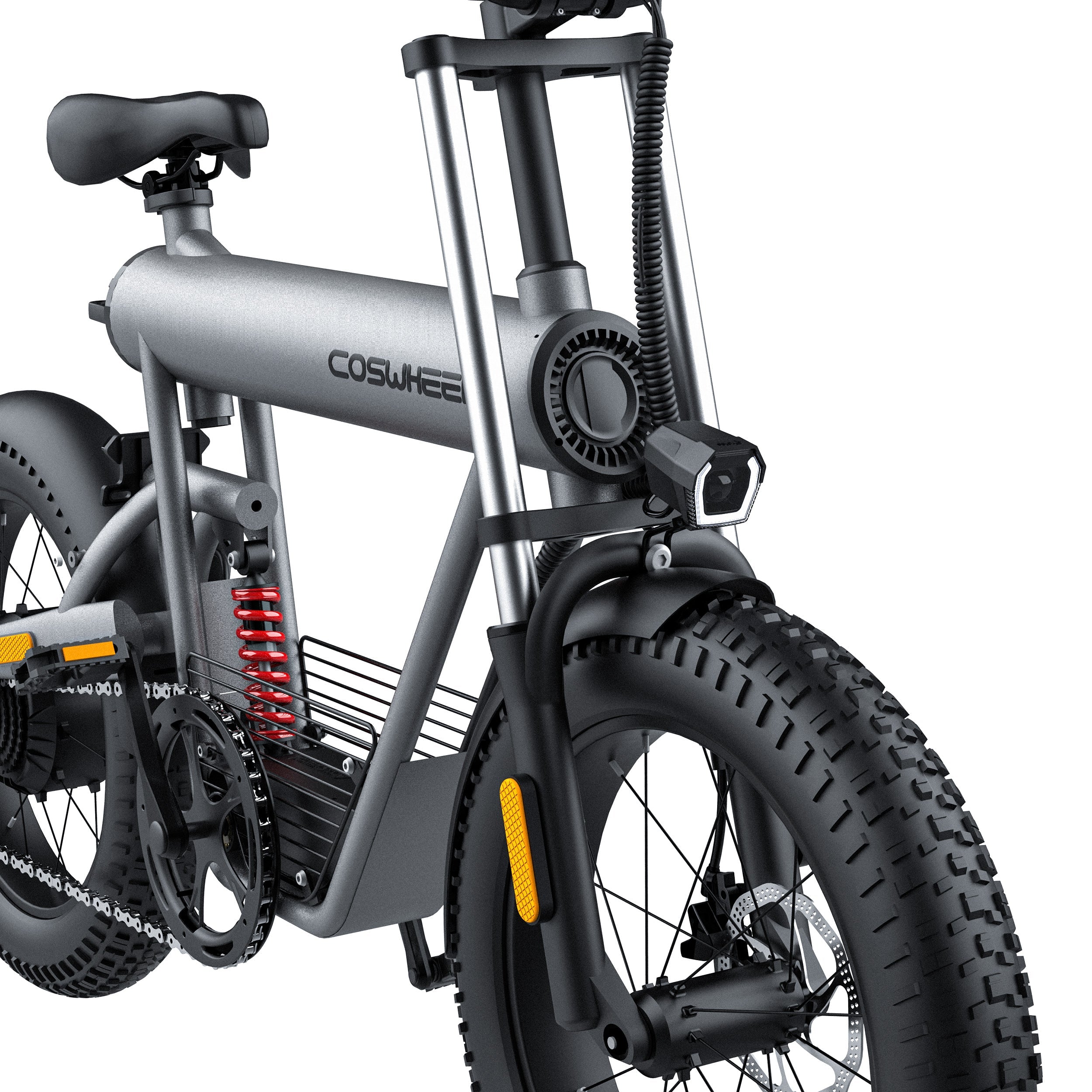

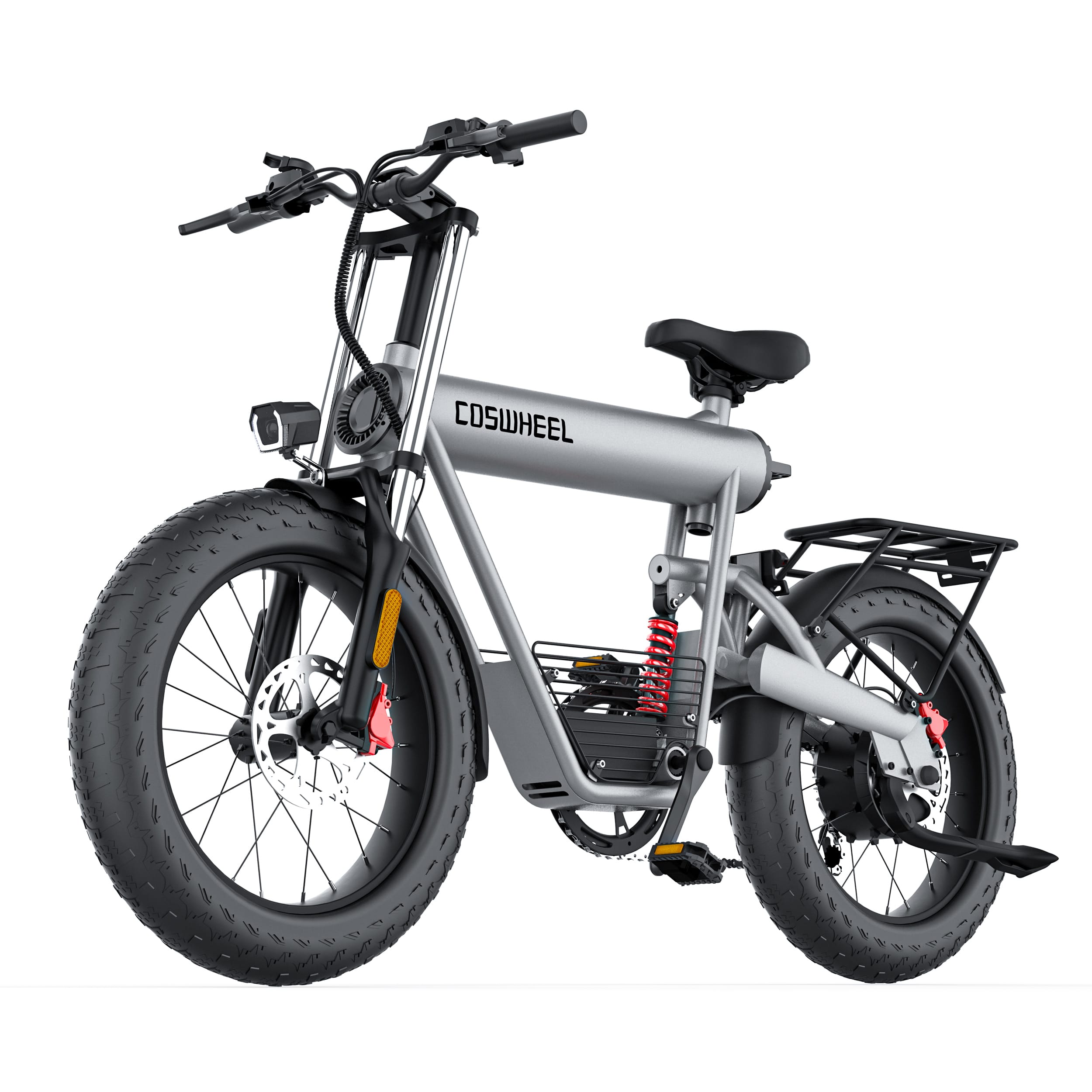

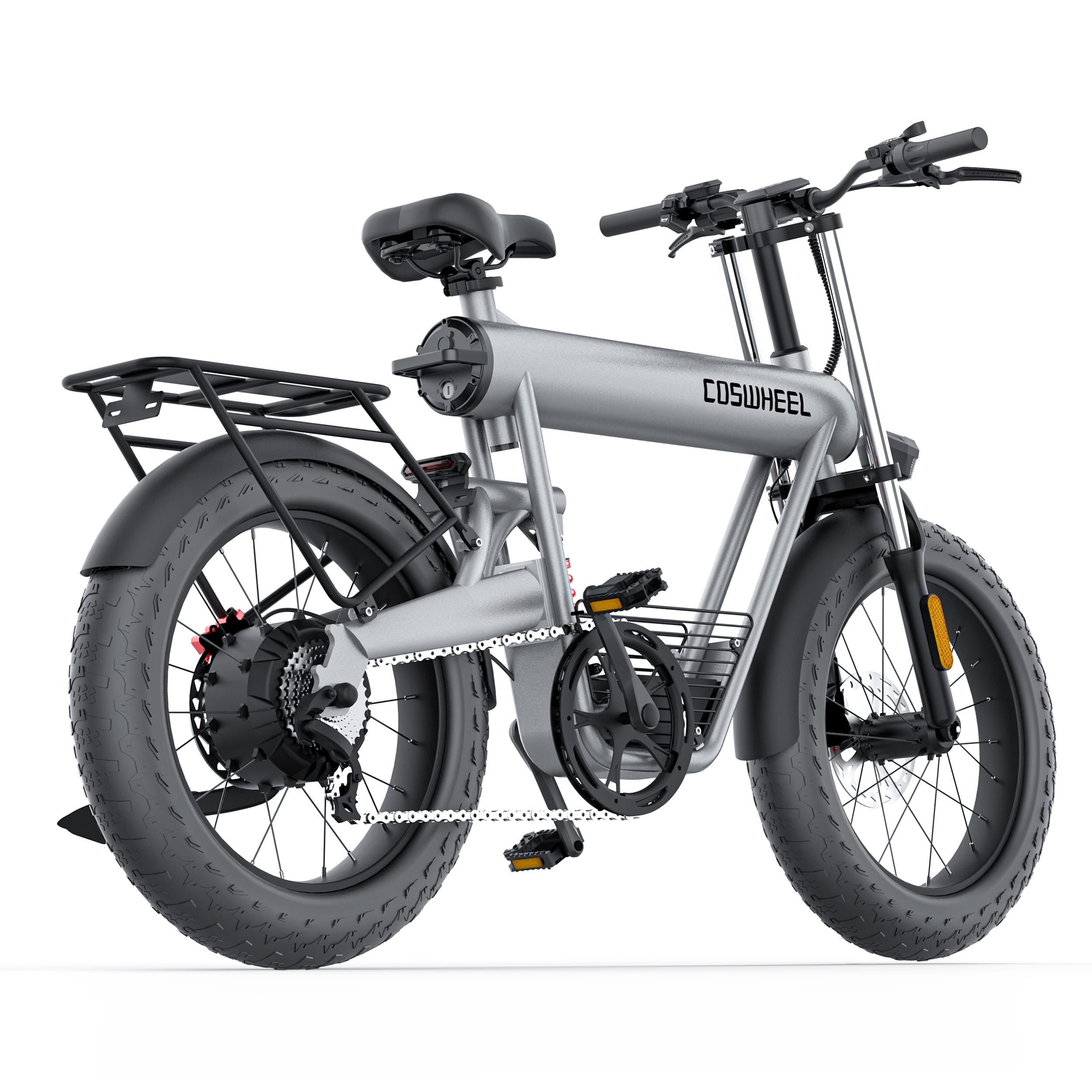

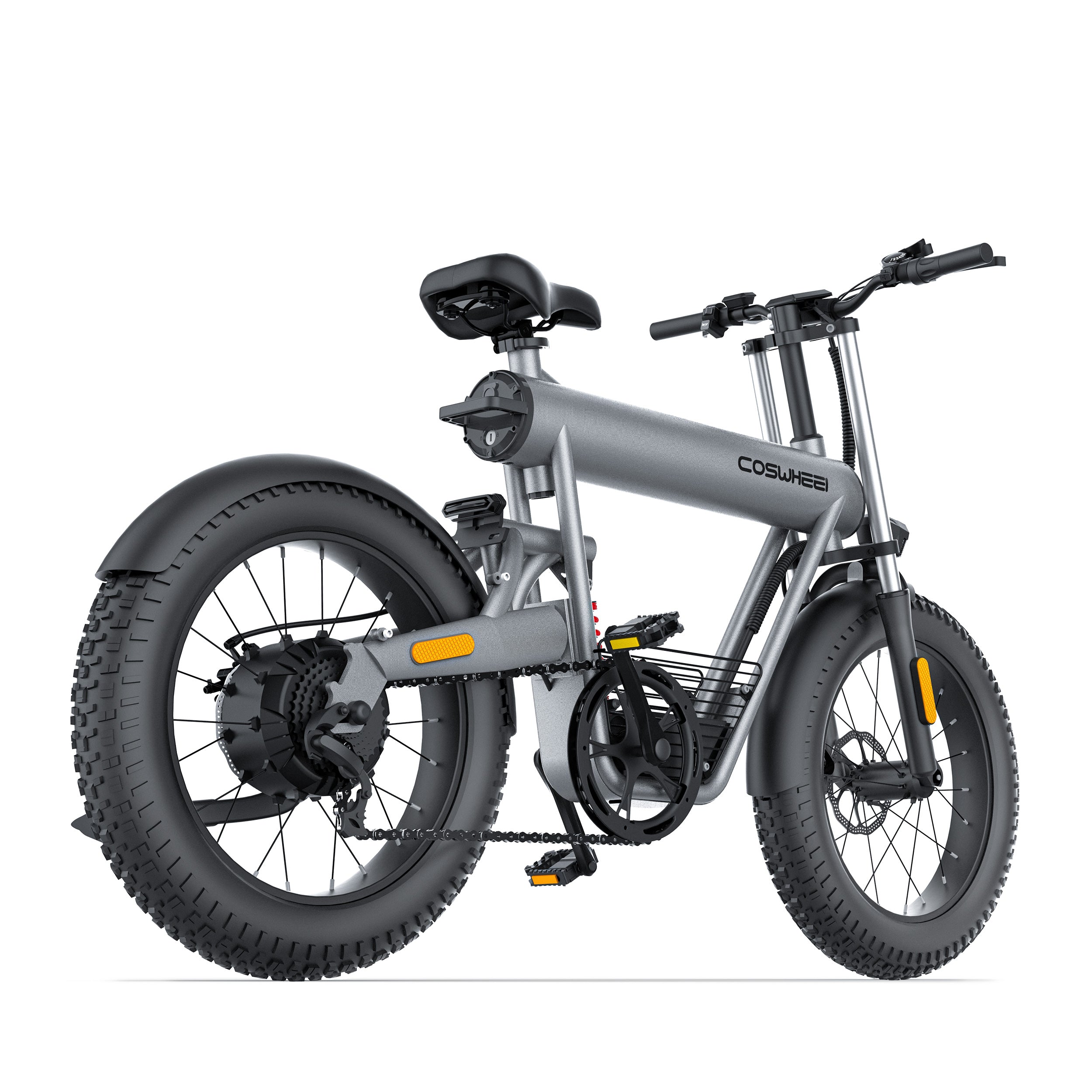

COSWHEEL T20 Ebike – Official Specifications
Performance
-
Top Speed: Class 2/3, 28 mph (45 km/h)
-
Range: 40+ miles (64 km) in Class-2 throttle-only mode; 70+ miles (113 km) in Class-1 pedal assist (PAS)
-

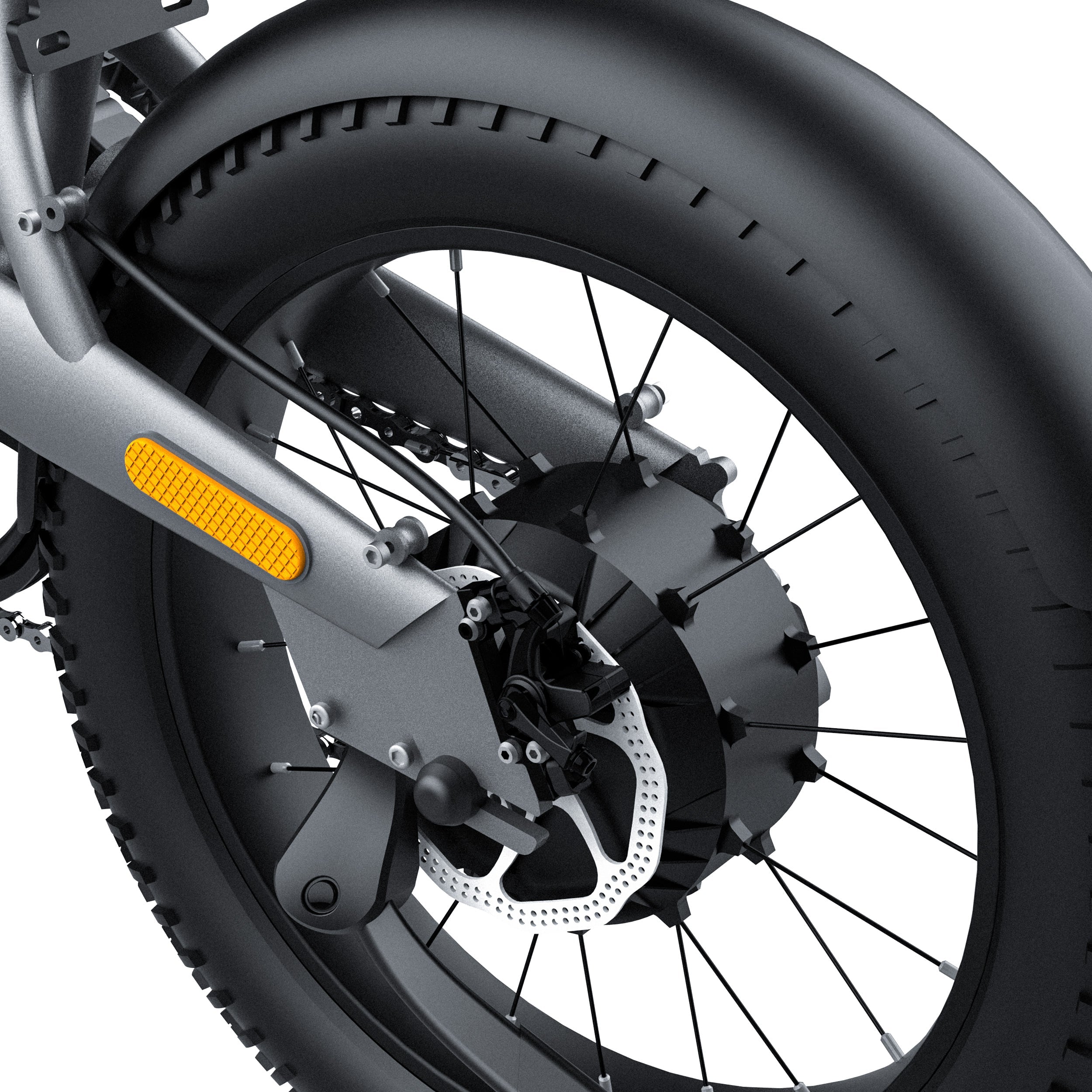

Motor: Peak 1500 W (Rated 1000 W) brushless rear hub motor with 60 Nm torque
-
Battery: 48 V 20 Ah battery (Lithium 18650 cells)
-
Battery Energy: 960 Wh
-
Front Suspension: 20" shoulder shock absorbing fork with 80 mm travel
-

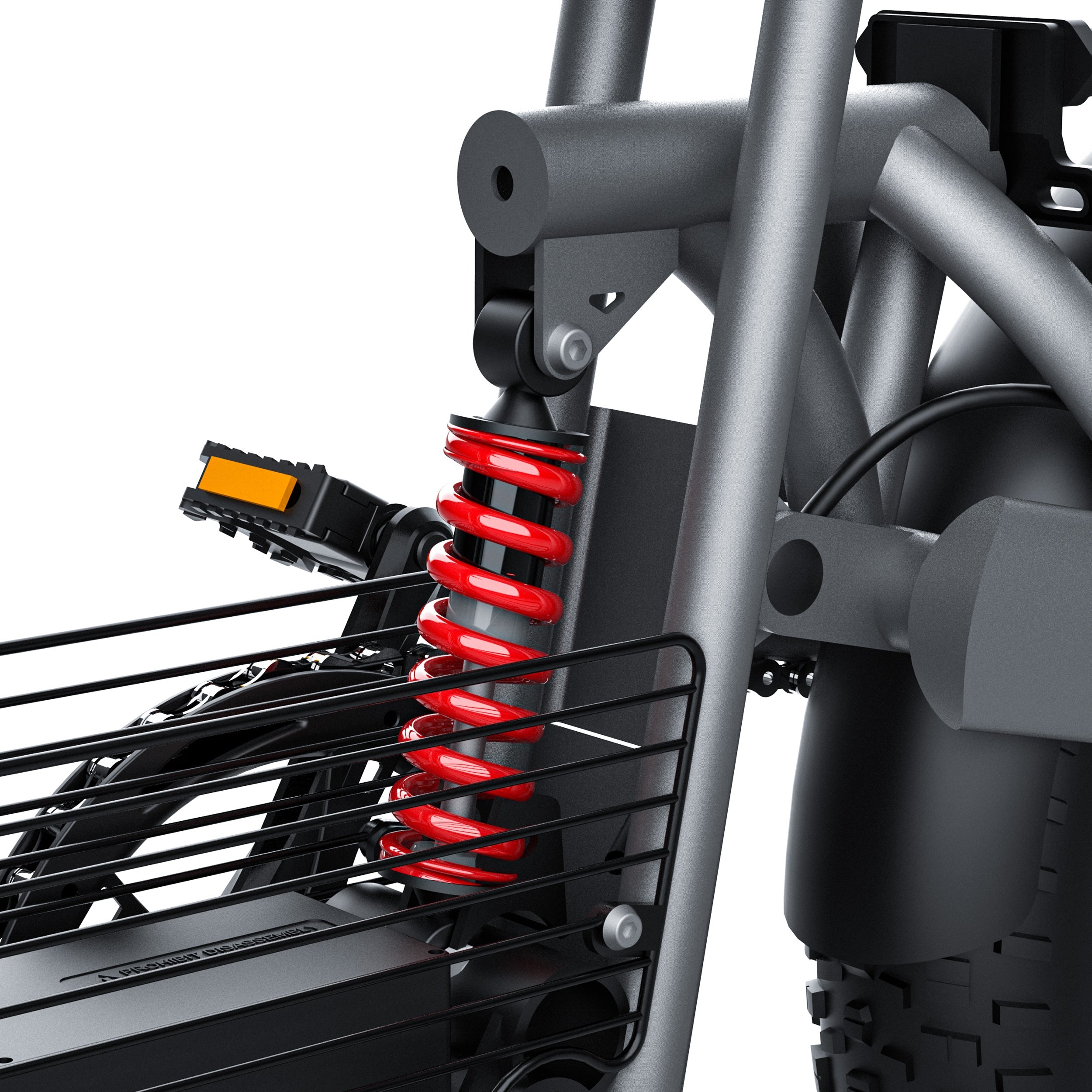

Rear Suspension: Rear shock, 180 mm travel
-
Brakes: Oil hydraulic brakes with 180 mm stainless brake discs
-
Tires: Chaoyang Sunny Road 20" × 4" tires
-

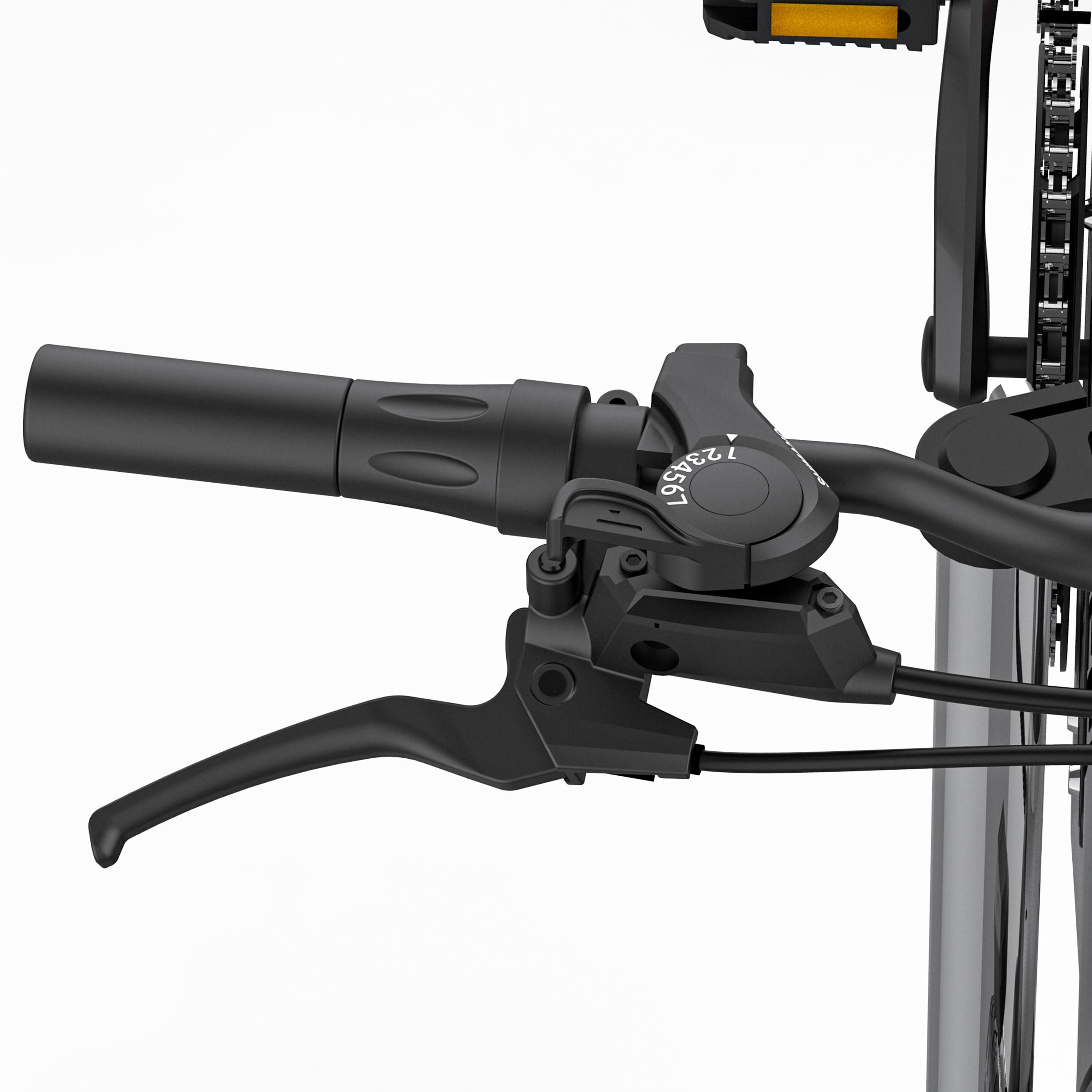

Throttle: Grip twist throttle
Electronics
-
Charger: 48 V 3 A charger
-
Charging Time: ~3.5–8.0 hours
-
Display: Easy-read LCD display
-
Controller: 48 V 24 A
-

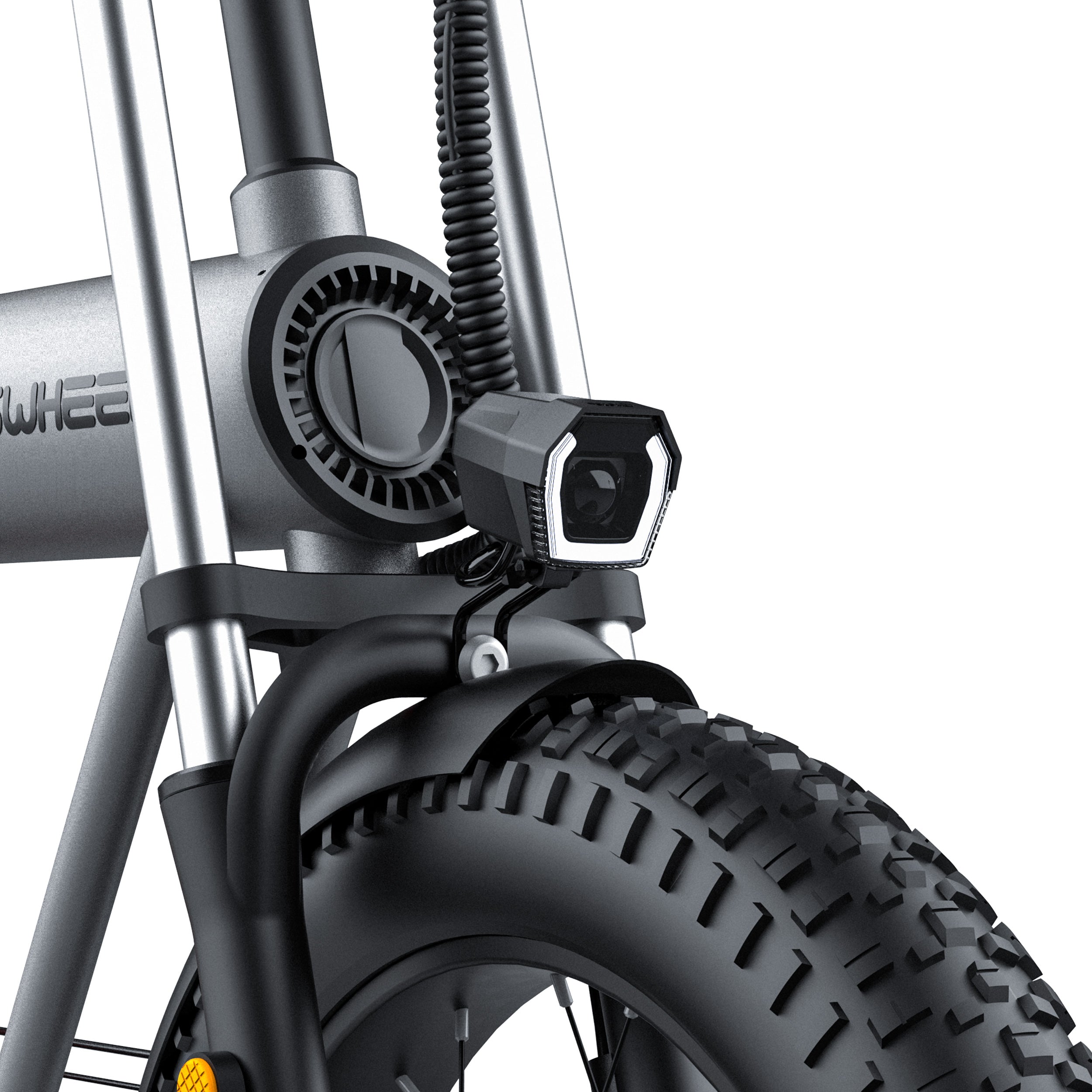

Front Light: LED
-

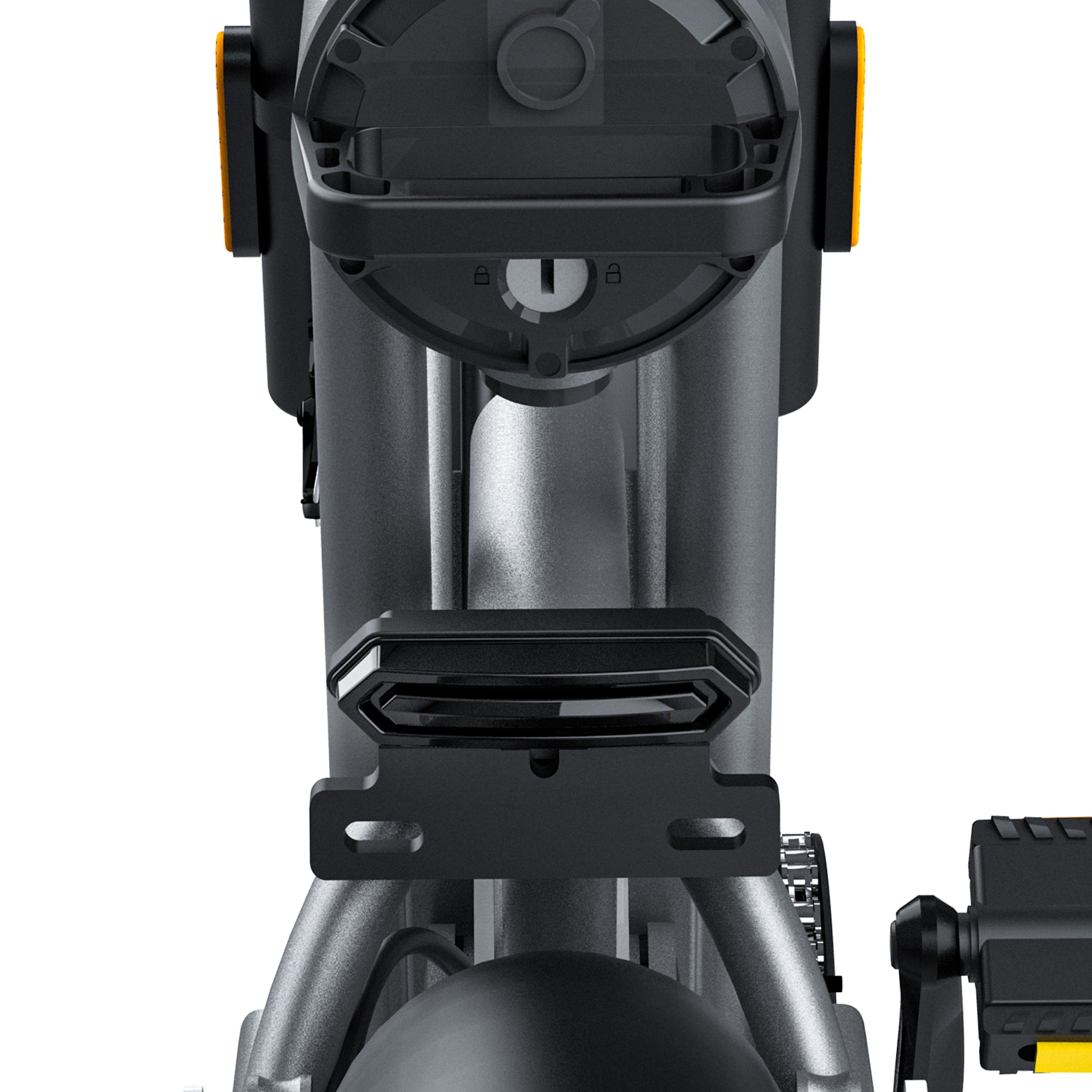

Rear Light: LED
-
Pedal Assist: 3 levels
-
Sensors: Speed sensor
Components
-
Frame: Hydroformed triple-butted 6061-T6 aluminum alloy
-
Pedals: Aluminum alloy pedals with reflectors
-

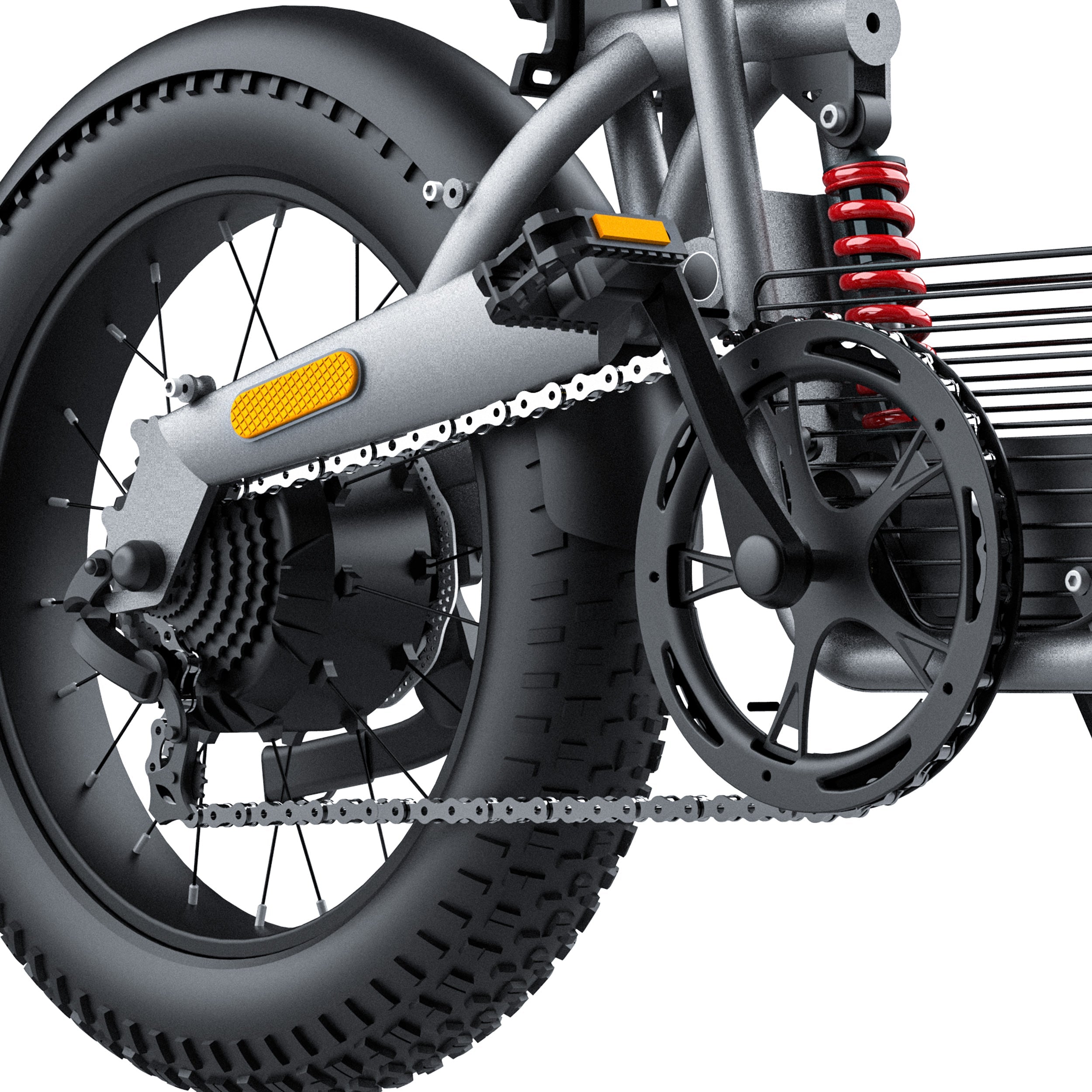

Crank: 1/2" × 3/32" × 46T 7-speed ED tooth plate
-
Rear Derailleur: Shimano 7-speed
-
Chain: 7-speed anti-rust chain
-
Handlebars: Curved iron matte black, 620 mm length
Geometry & Capacity
-
Suitable Rider Height: 5’7" – 6’8"
-
Seat Height: 35.8" (91 cm)
-
Bike Height: 45.3" (115 cm)
-
Wheelbase: 43.3" (110 cm)
-
Handlebar Width: 25.6" (65 cm)
-
Bike Weight (with battery): ≥88 lbs (≥40 kg)
-
Maximum Load: 330 lbs (150 kg)
-
Safe Load: 265 lbs (120 kg)
-
Overall Size: 70.9" × 25.6" × 45.3" (180 × 65 × 115 cm)
-
Package Size: 54.3" × 11.8" × 30.7" (138 × 30 × 78 cm)
