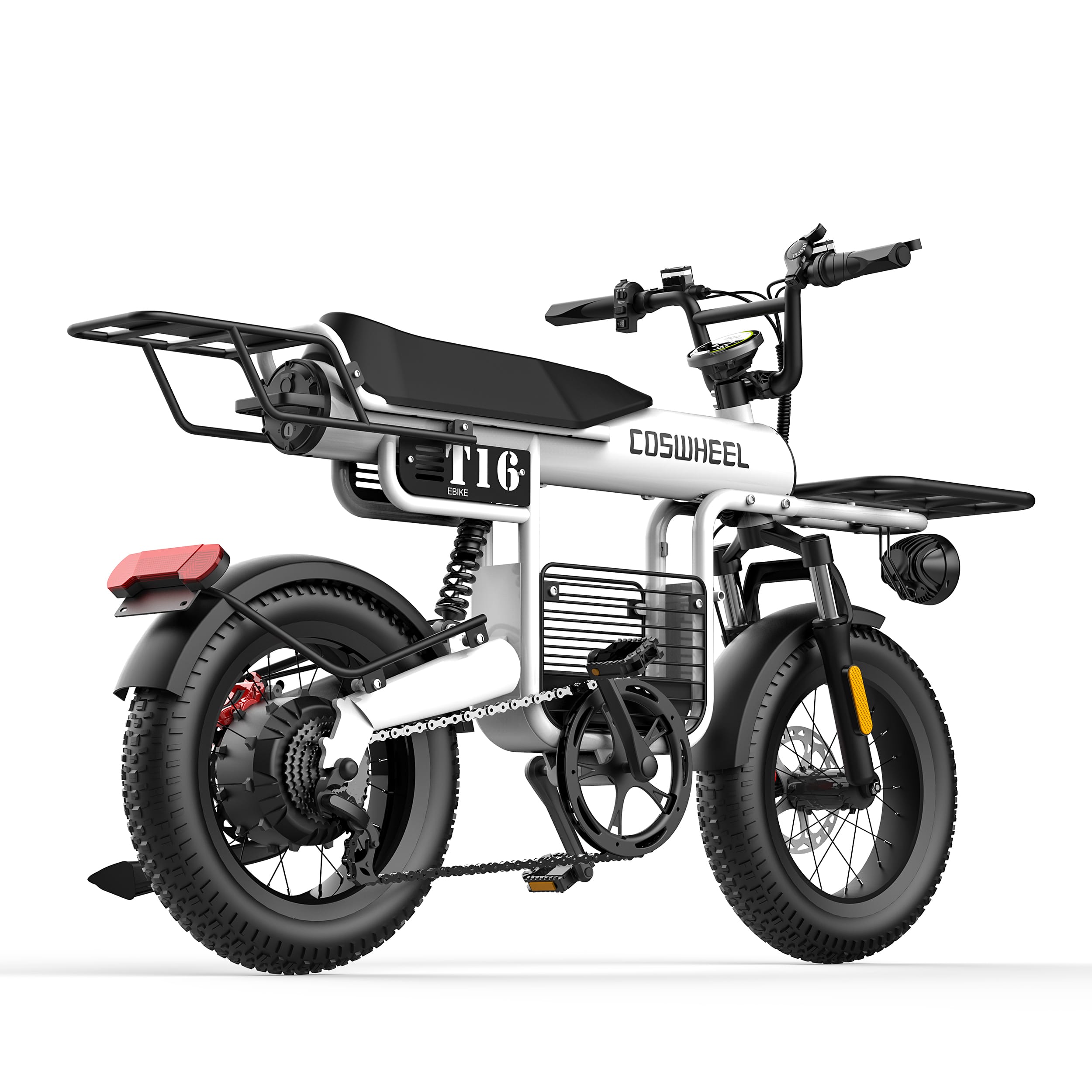

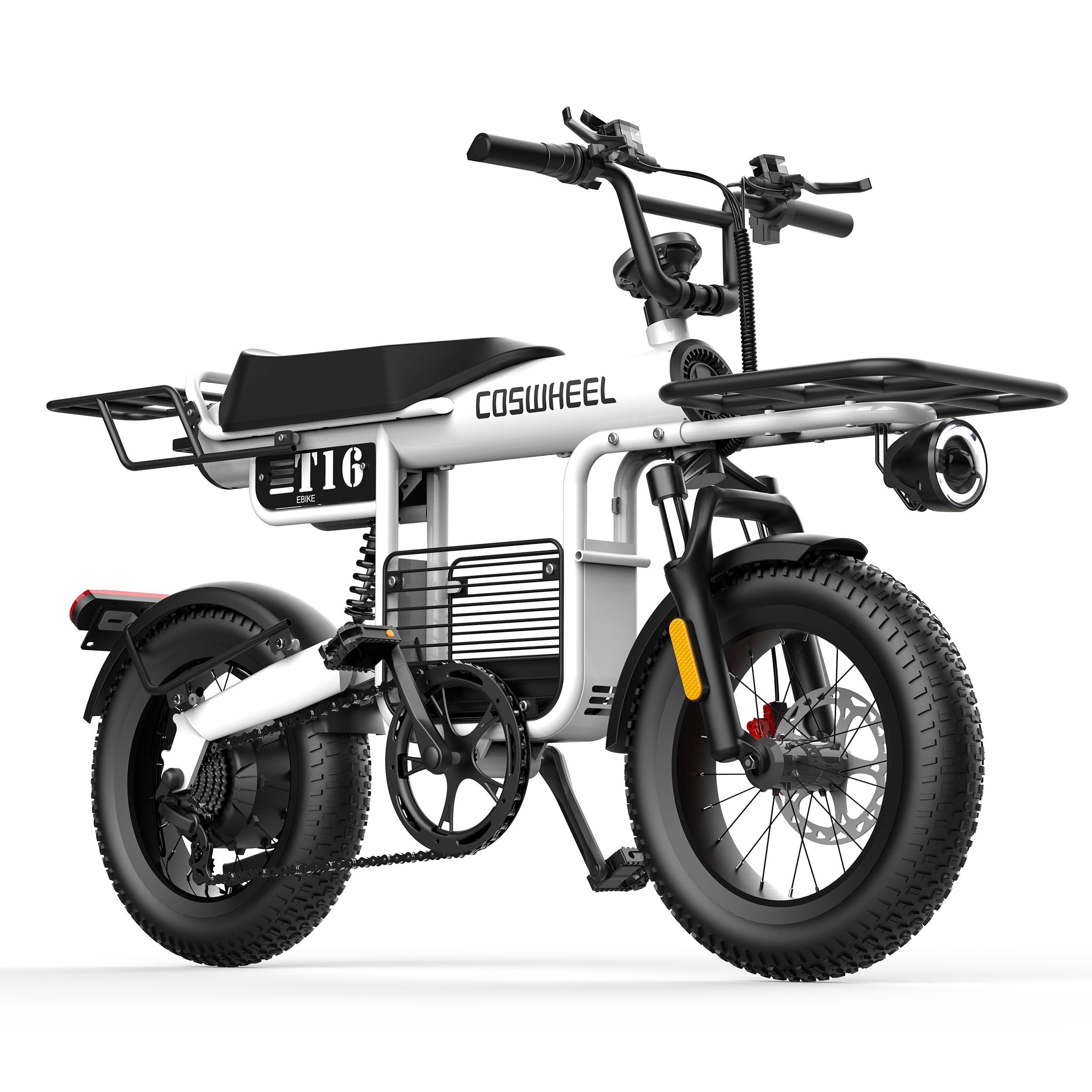

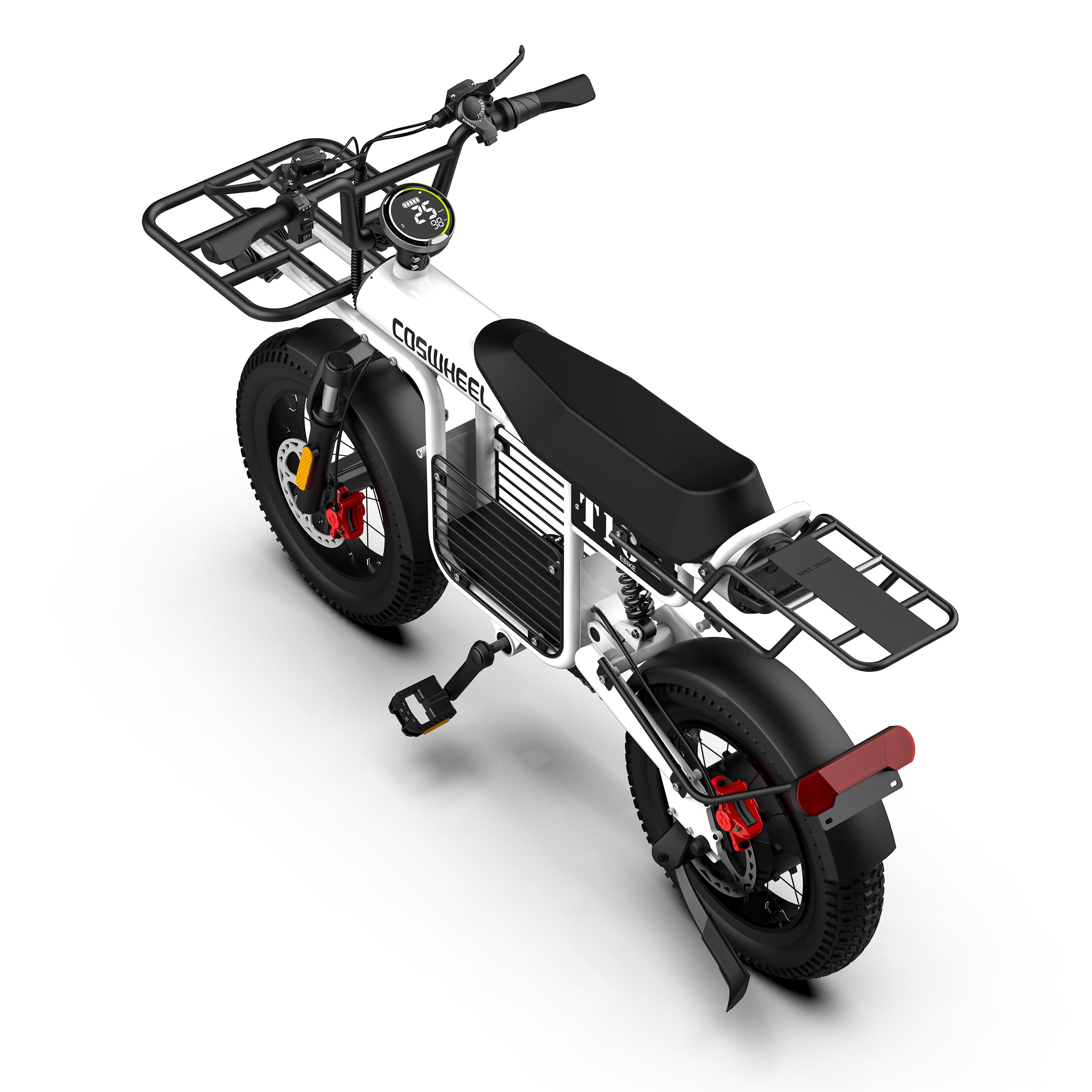

T16 EBIKE

The COSWHEEL T16 Ebike is a compact commuter electric bike designed with all-terrain capability and comfortable handling for adults and teenagers. It features rugged 16" × 4.0" all-terrain tires that lower the overall riding height, making it especially accessible for riders between approximately 4'11" and 5'11". The T16 includes front and rear racks for baskets and cargo, a long cushioned seat suitable for two riders, and modern electric assist features for an enjoyable riding experience.

---

Performance

• Top Speed: Class 2/3, up to 28 mph (45 km/h)

• Range:
  • ~40+ miles (64 km) on throttle-only mode
  • ~70+ miles (113 km) on pedal assist (PAS)

• Motor: 48 V Peak 1000 W (Rated 750 W) high-speed brushless rear hub with 50 N·m torque

• Battery: 48 V 20 Ah removable lithium battery (18650 cells) — 960 Wh energy capacity

---

Suspension & Brakes

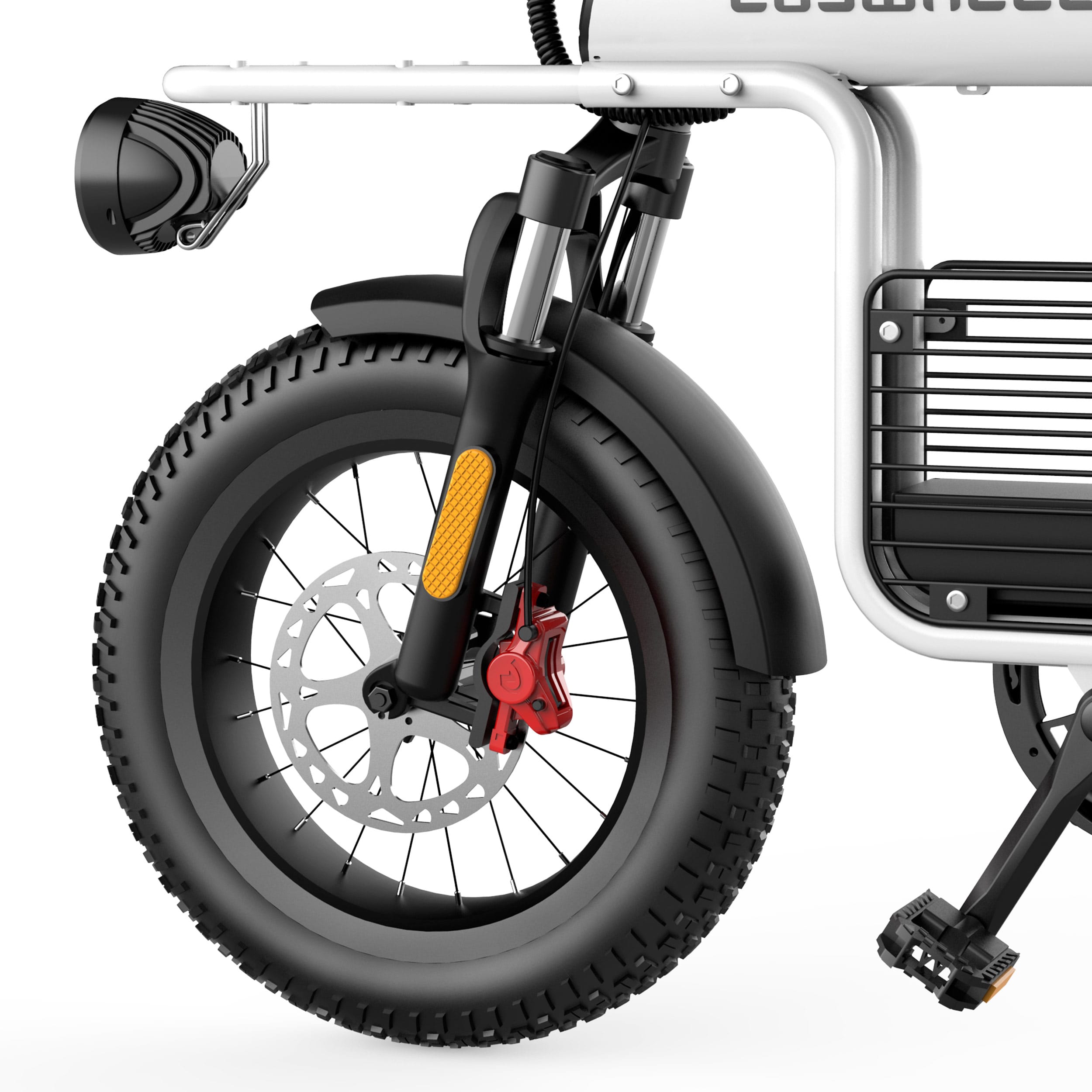

• Front Suspension: Single-shoulder shock-absorbing front fork with 80 mm travel

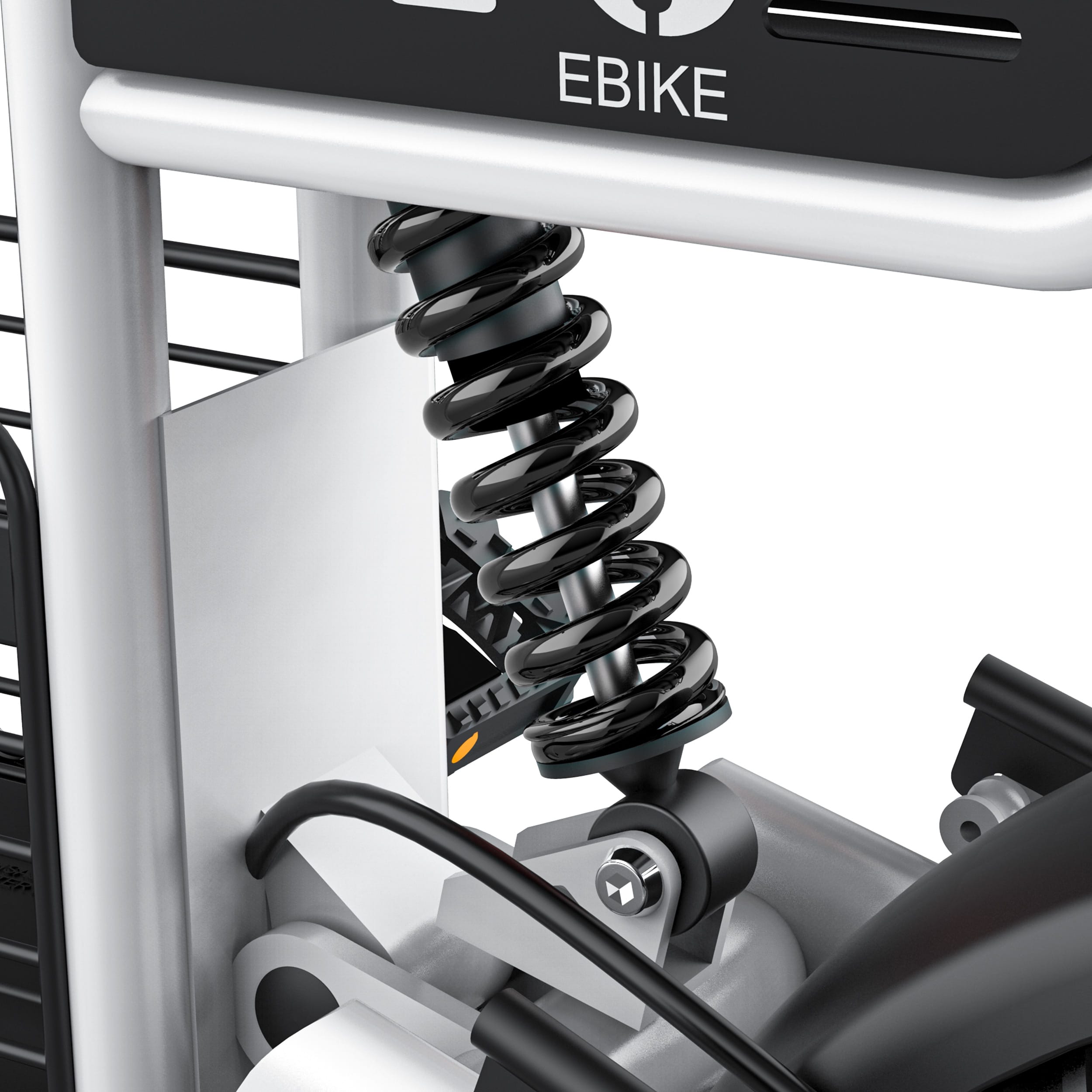

• Rear Suspension: Rear shock absorber with 170 mm travel

• Brakes: Double piston oil brakes with 180 mm stainless brake discs

---

Wheels & Tires

• Tires: Chaoyang 16" × 4.0" all-terrain tires (30 TPI)

• Throttle: Grip twist throttle

---

Electronics

• Charger: 48 V 3 A charger

• Charging Time: ~3.5–8 hours

• Display: Easy-read LCD display with UDE remote control and 2 NFC cards included

• Controller: 48 V 22 A

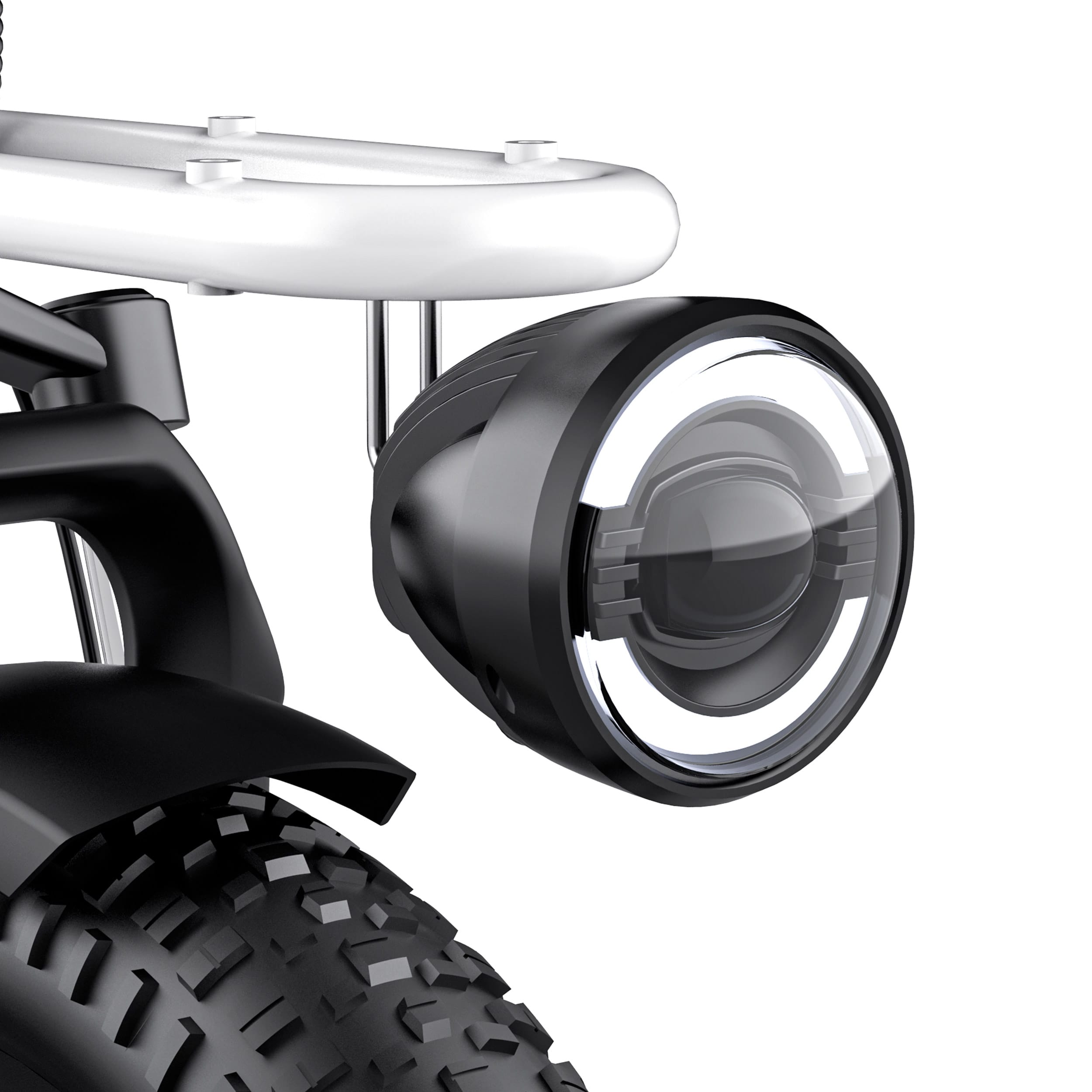

• Lights: Retro-style front headlight with daytime running lights and LED rear light

• Pedal Assist Levels: 3 levels

• Sensors: Speed sensor

---

Components & Build

• Frame: Hydroformed triple-butted 6061-T6 aluminum alloy

• Pedals: Aluminum alloy with reflectors

• Crank: 46T 7-speed ED tooth plate

• Rear Derailleur: Shimano 7-speed

• Chain: 7-speed anti-rust chain

• Handlebars: 25.4 mm width, 640 mm length with 17° rise

---

Geometry & Capacity

• Suitable Rider Height: 4’11” – 5’11” (approx.)

• Seat Height: 29.53" (75 cm)

• Bike Height: 39.37" (100 cm)

• Wheelbase: 38.58" (98 cm)

• Handlebar Width: 25.59" (65 cm)

• Bike Weight (with Battery): ≥97 lbs (≥44 kg)

• Maximum Load: ~330 lbs (150 kg)

• Safe Load: ~265 lbs (120 kg)

• Overall Size: 60.24" × 25.59" × 39.37" (153 × 65 × 100 cm)

• Package Size: 55.91" × 12.60" × 32.28" (142 × 32 × 82 cm)

---

Key Feature Highlights

• Lowered body design with 16" × 4.0" all-terrain tires for easy handling by shorter riders and commuters.

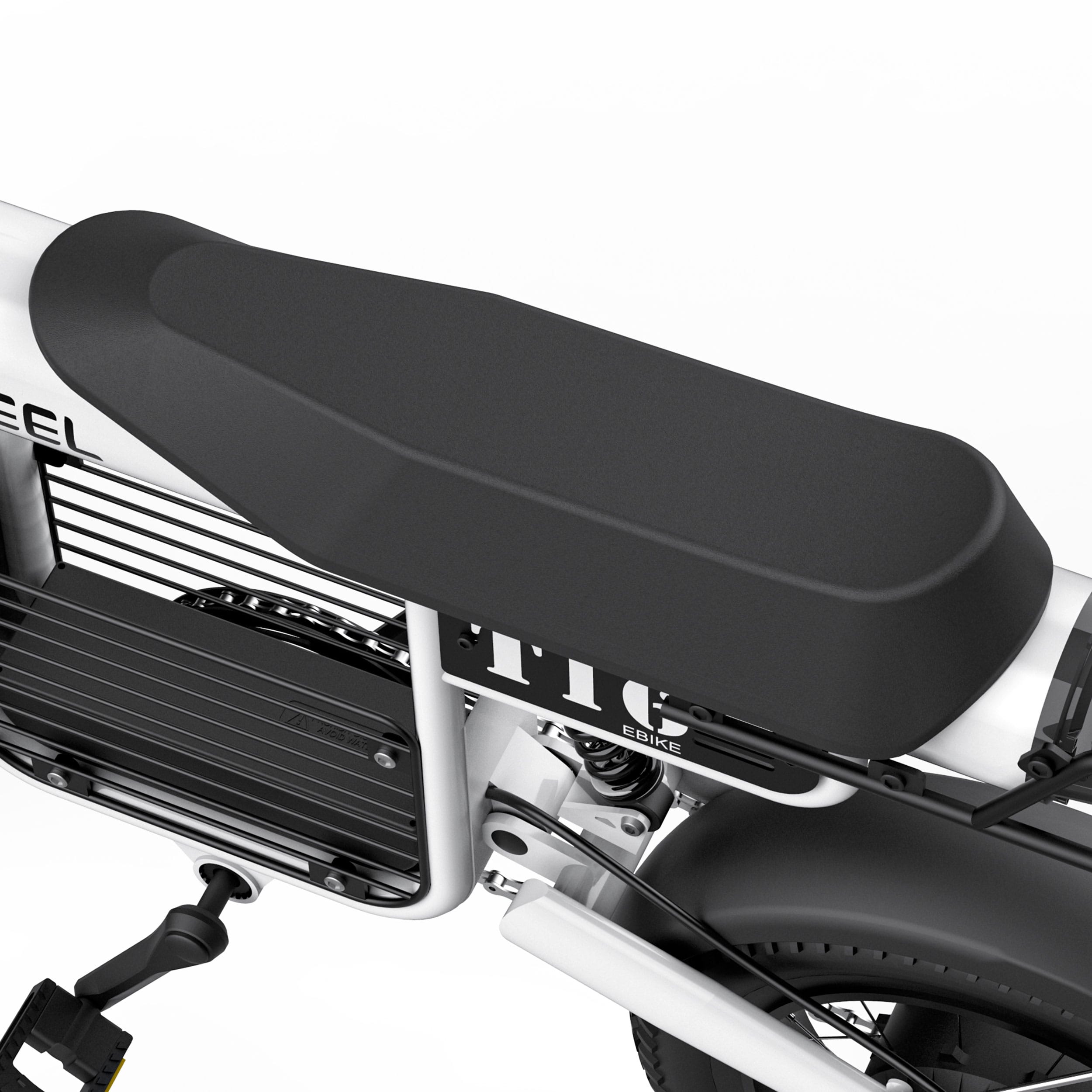

• Extended soft seat large enough for two riders (adult + child).

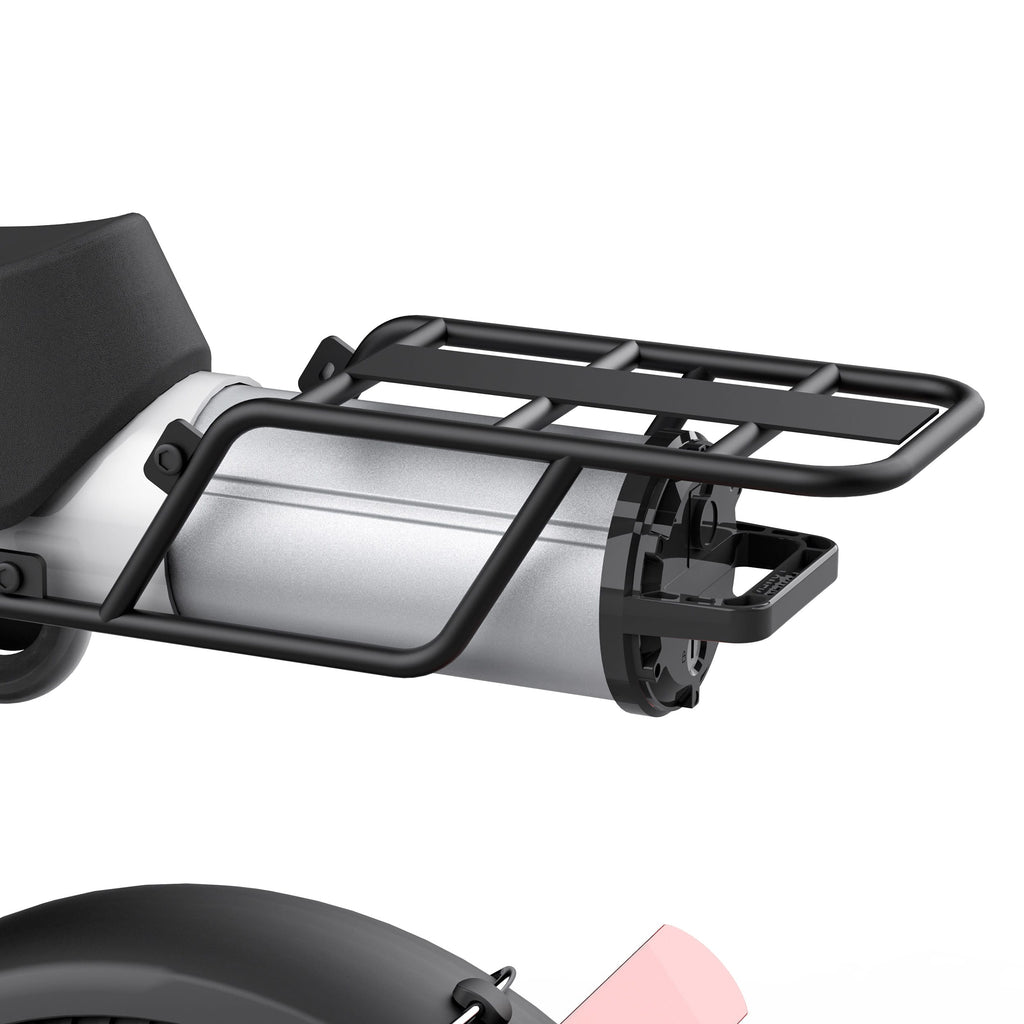

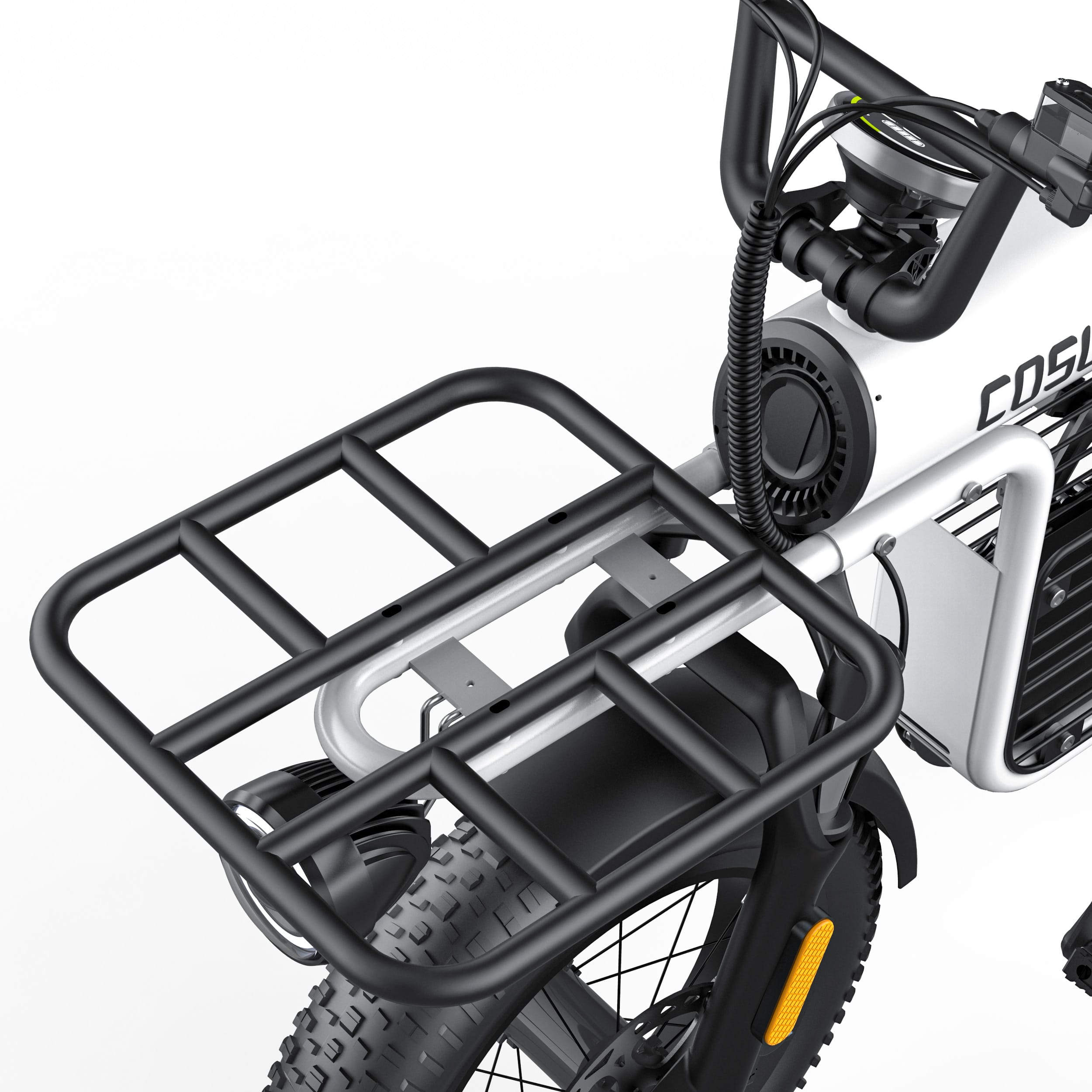

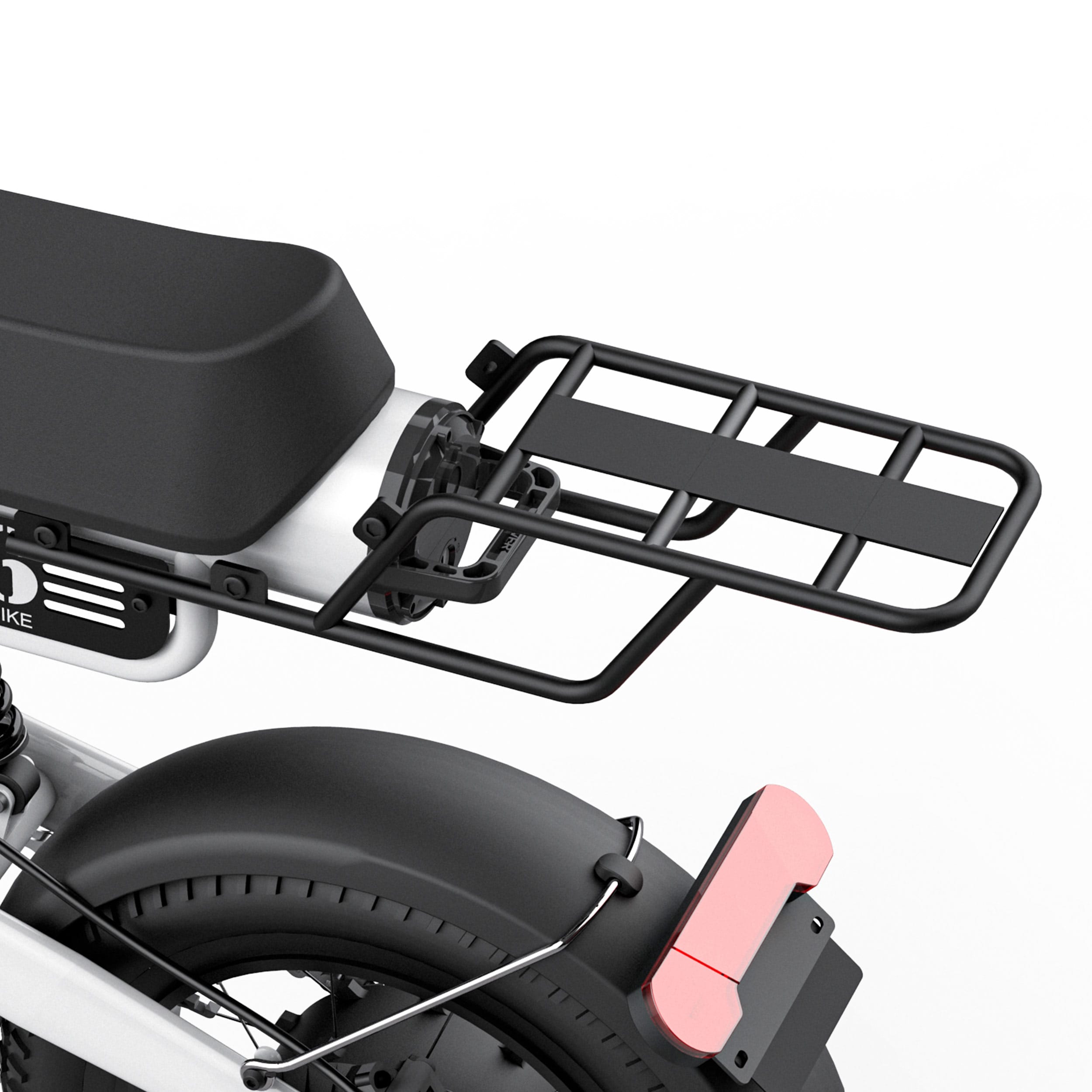

• Front and rear racks for baskets and cargo.

• Unlock via NFC cards and remote control (no traditional key).

• Waterproof, rust-proof double cover chain for enhanced safety.
