Description
Not Available In Stores

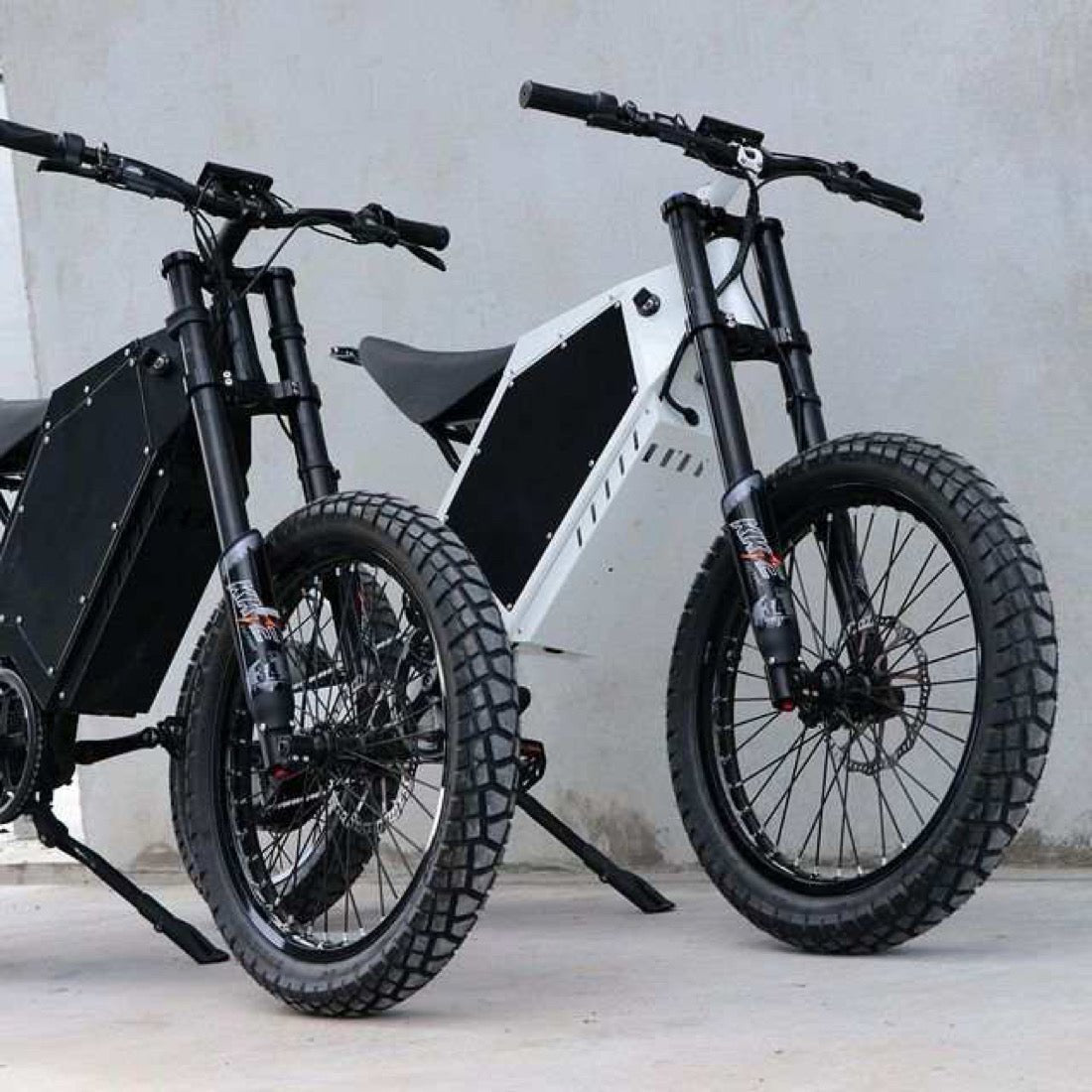

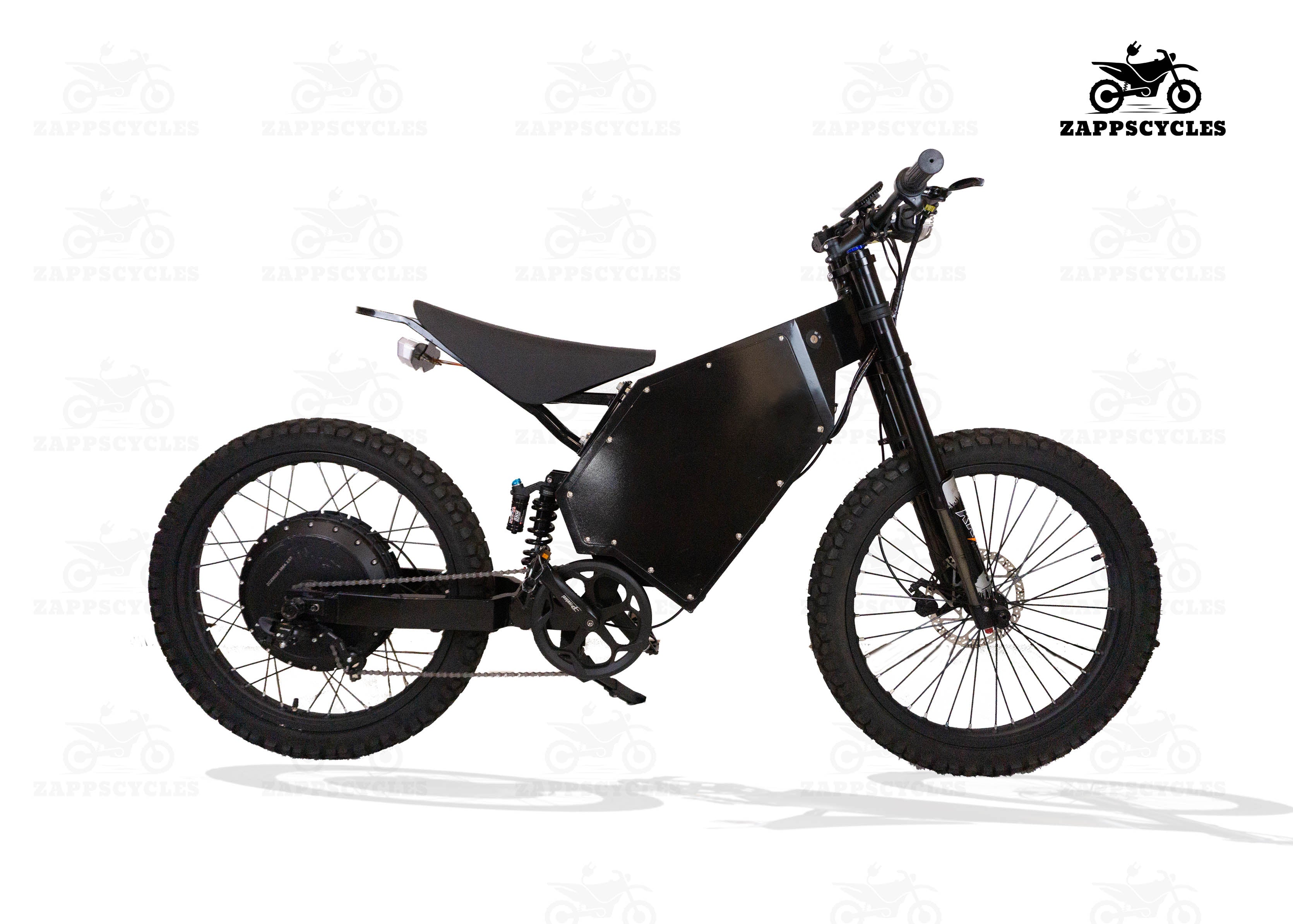

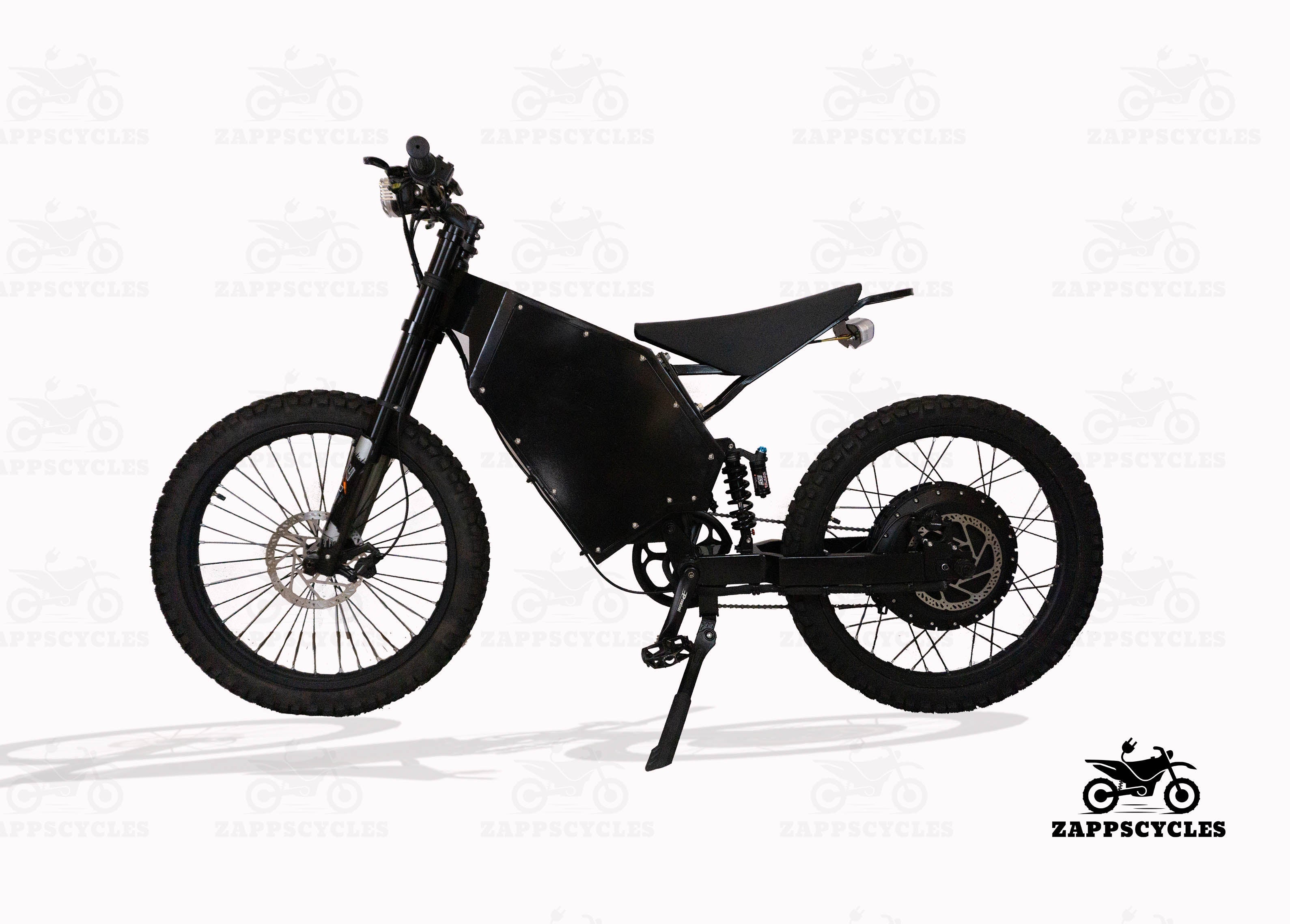

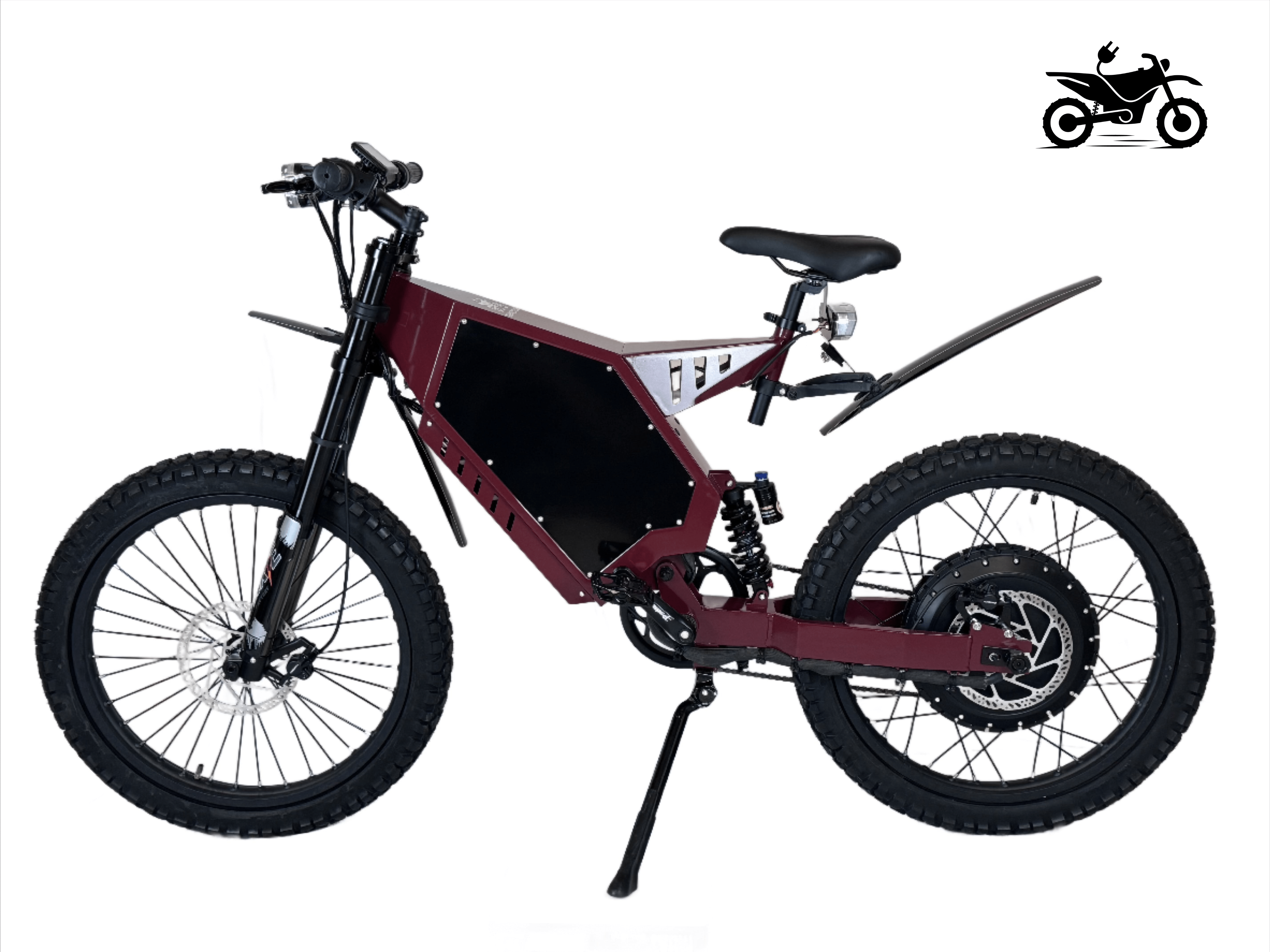

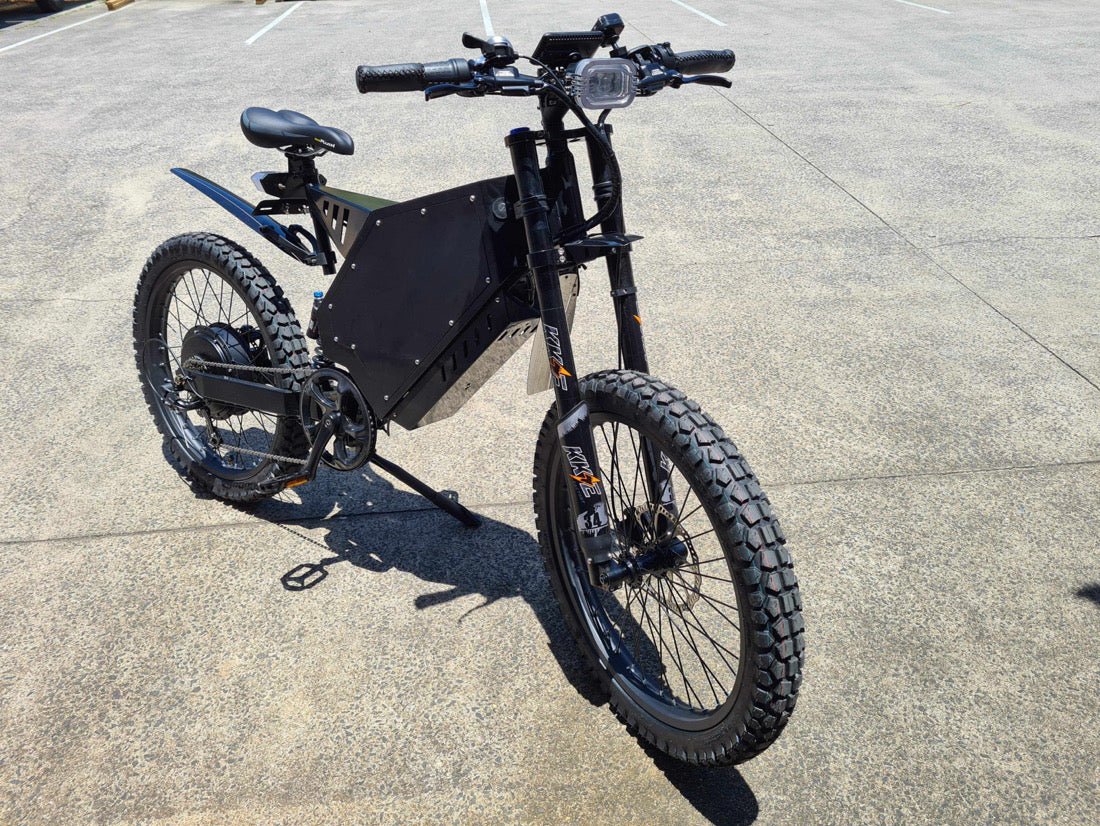

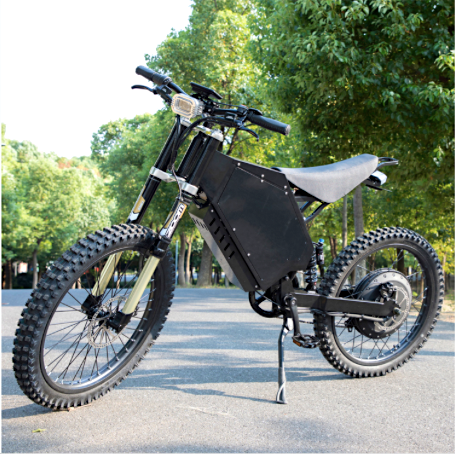

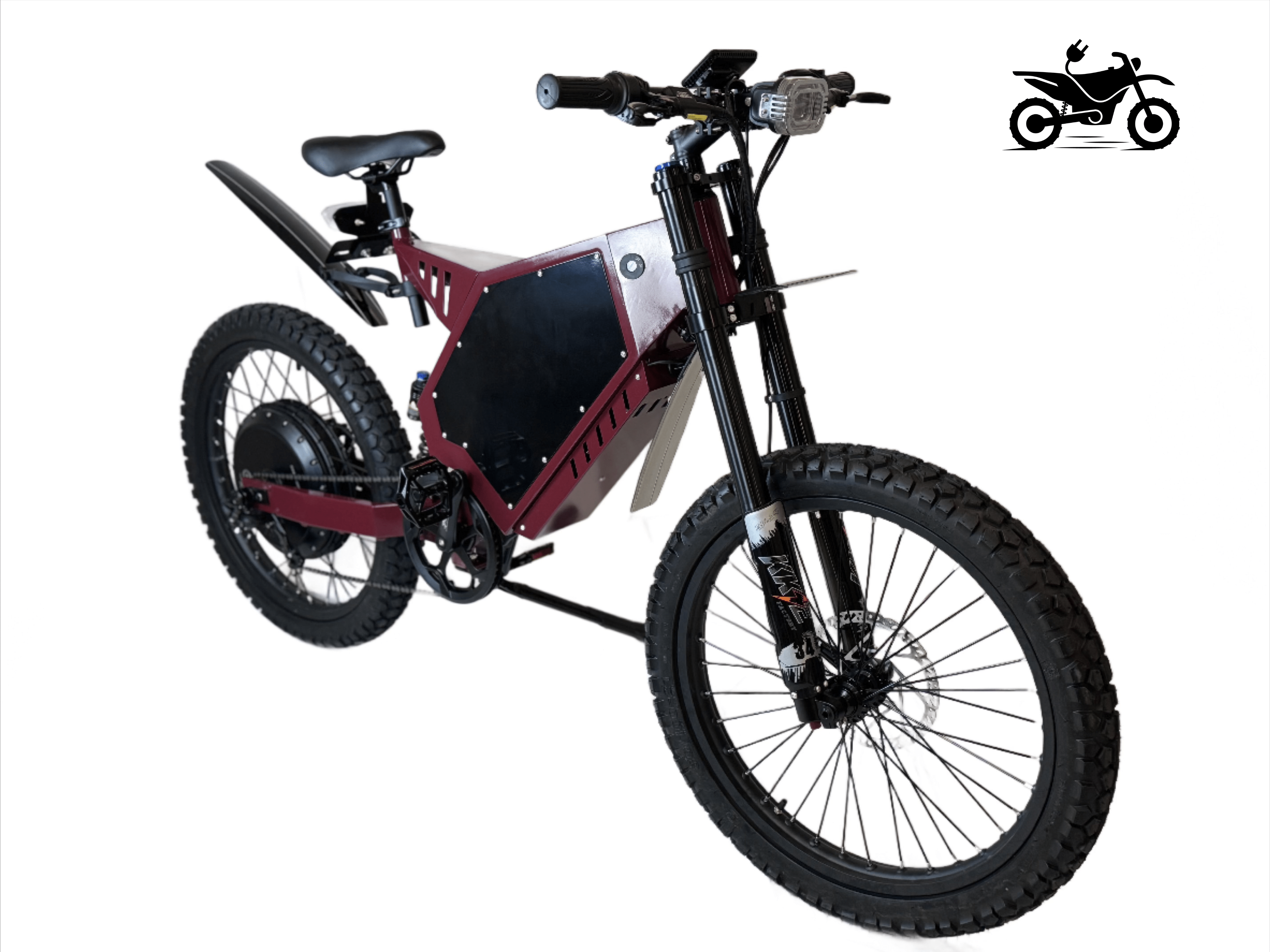

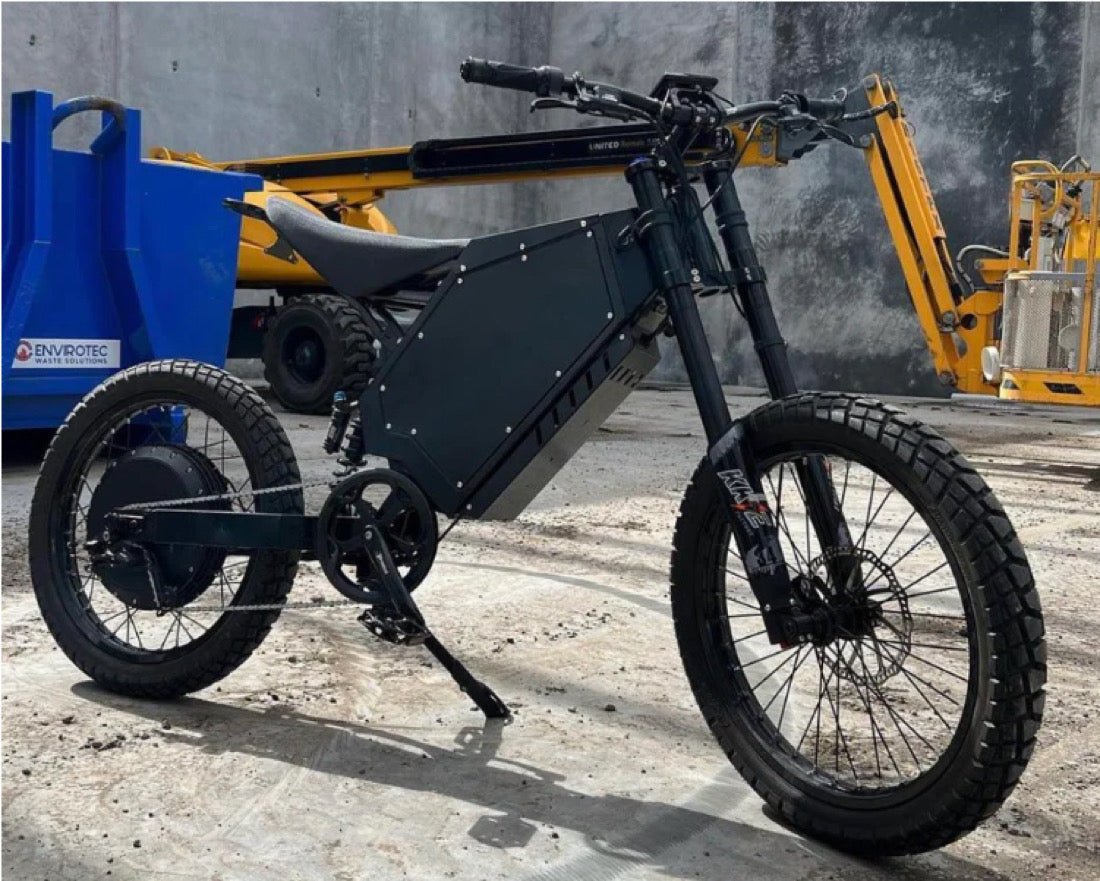

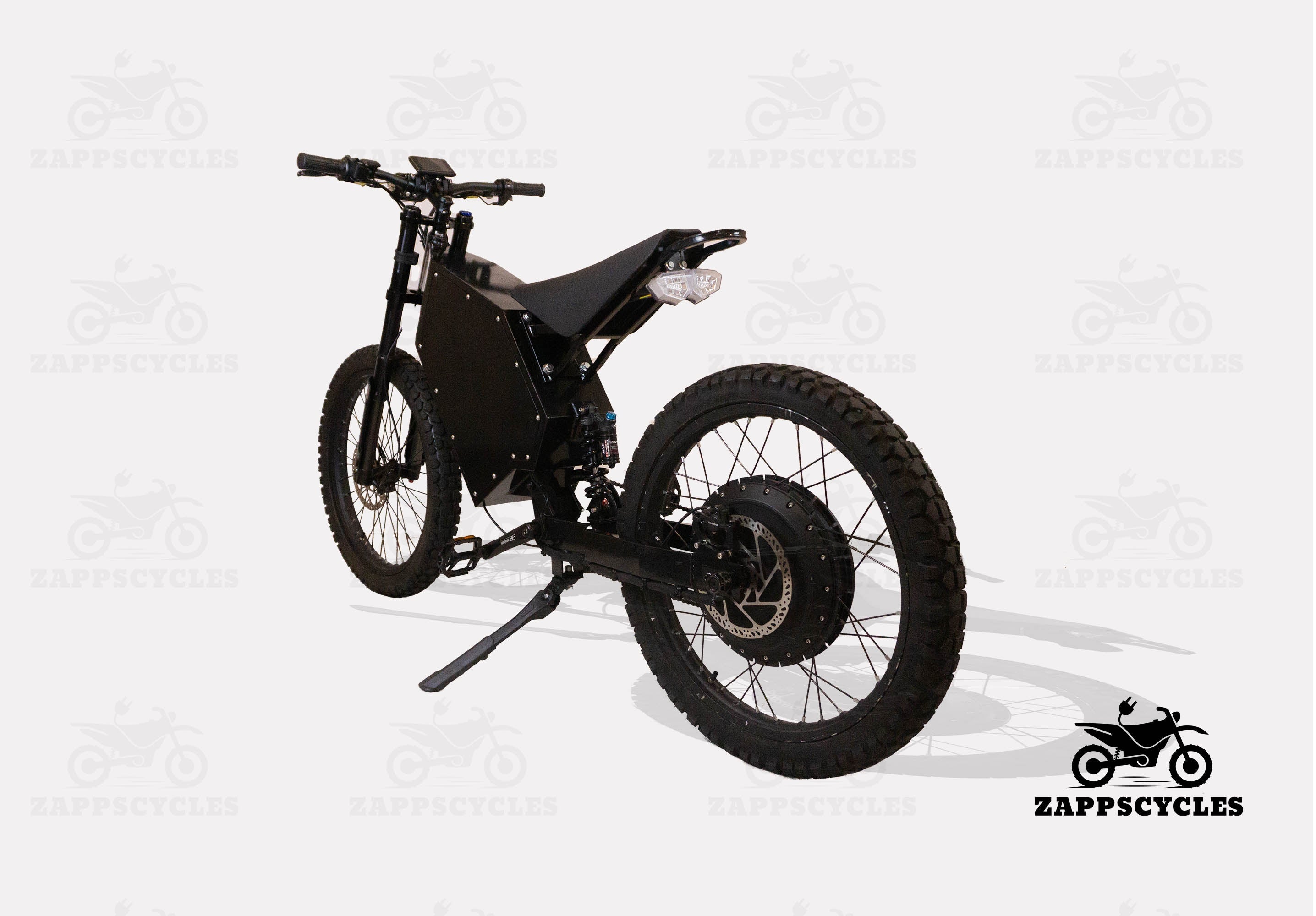

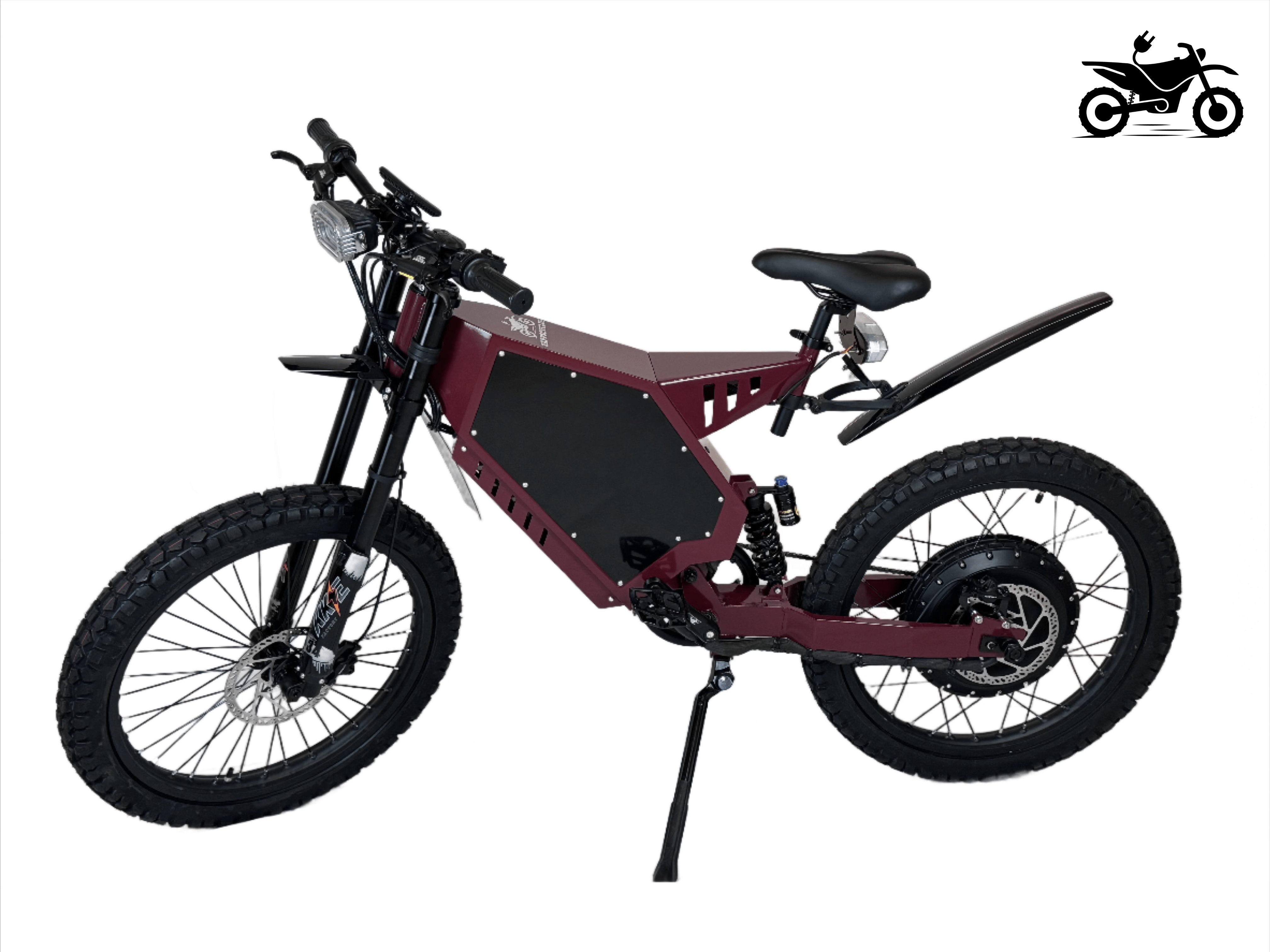

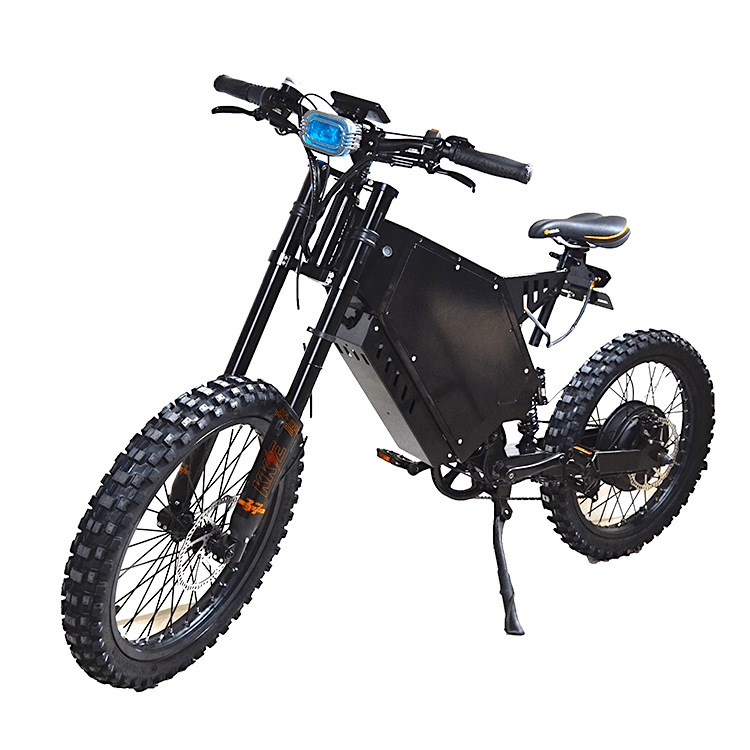

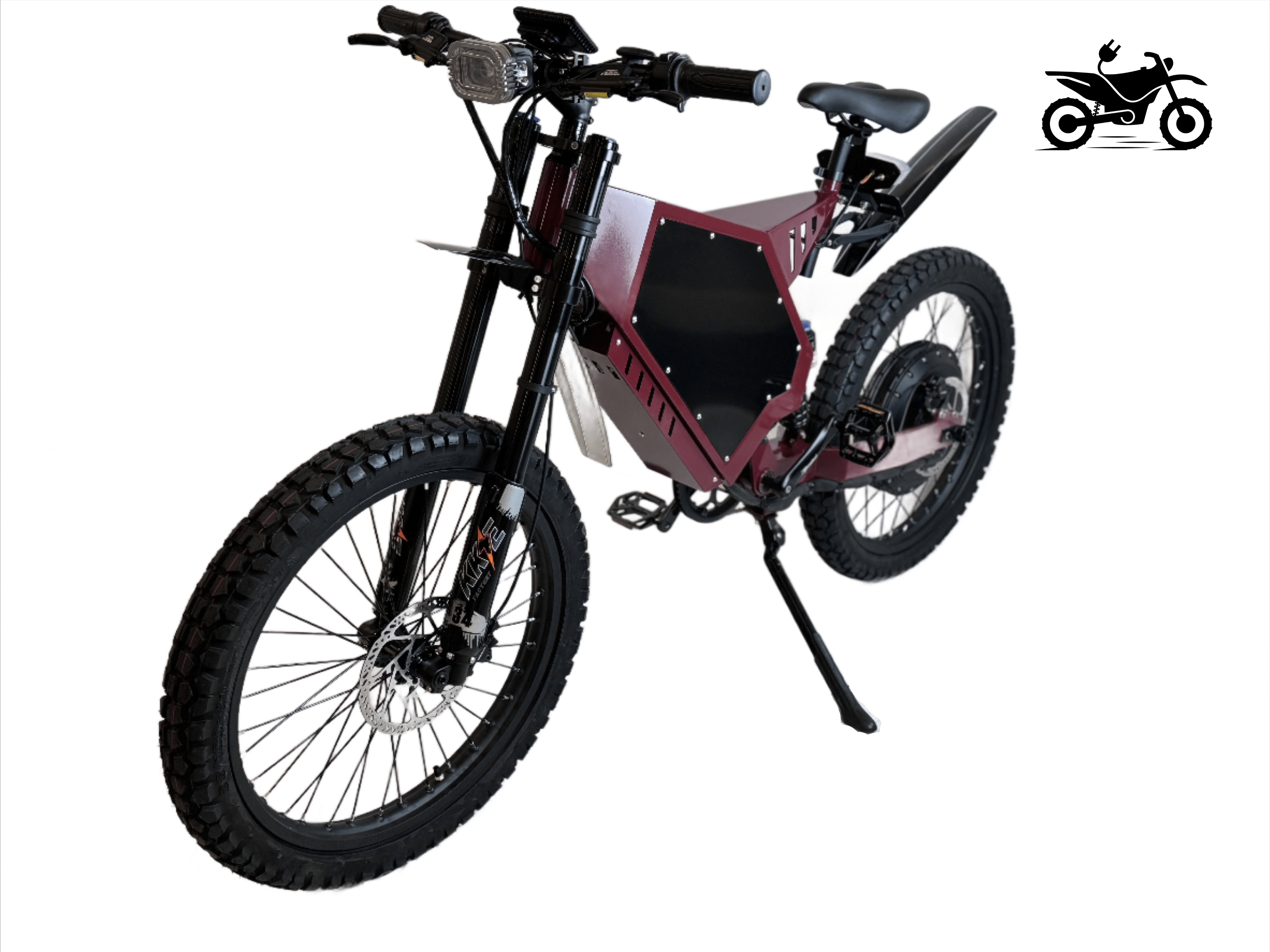

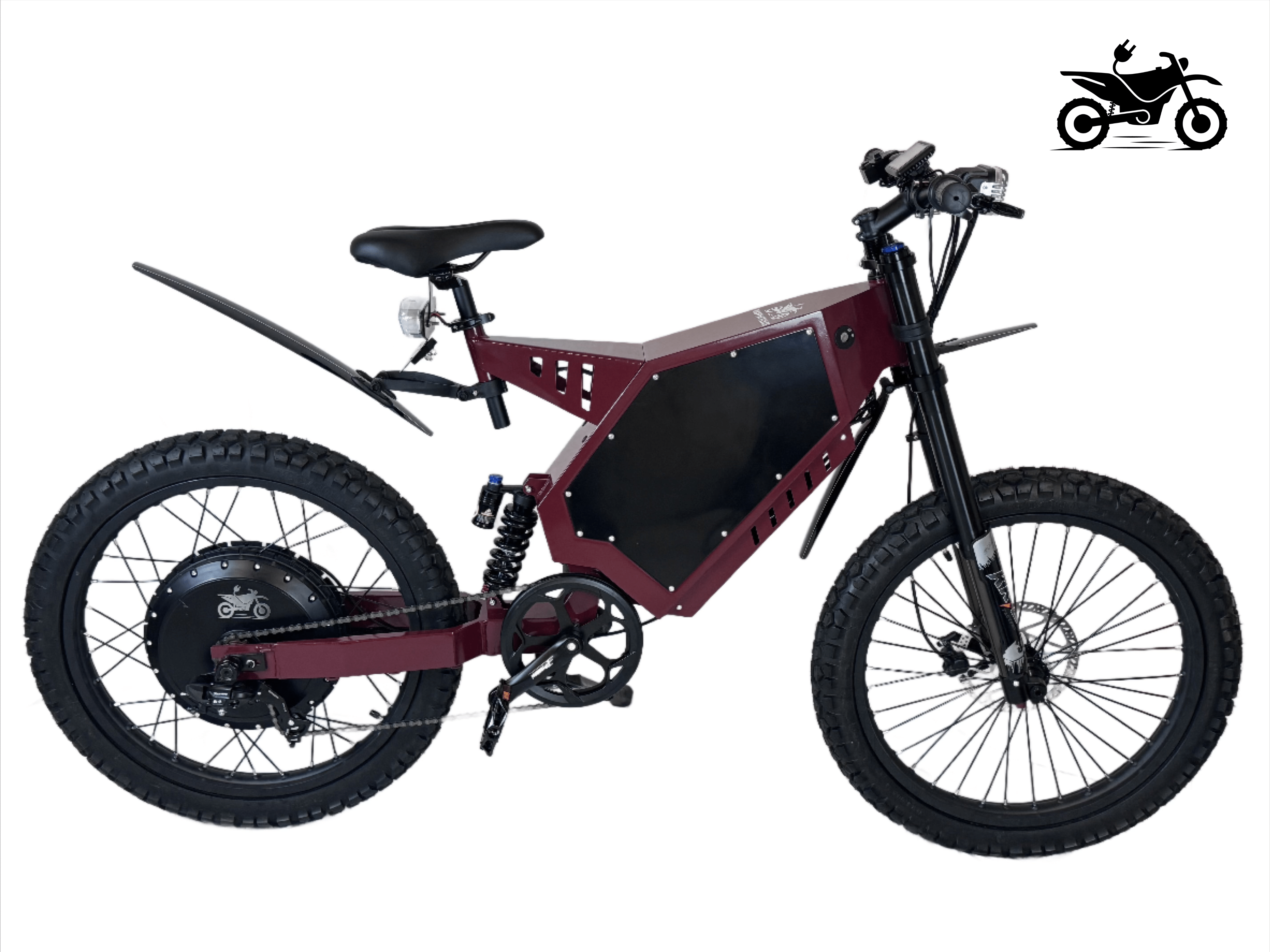

The 2024 Stealth Bomber Electric dirt bike is one of the newest hybrid eBikes. A huge advantage with a hybrid Electric dirt bike is you still have the speed and power of a full dirt bike, while retaining the usability of the manual pedal function to get you home. You will leave your gas powered friends behind at the fuel station and at the race track. Silently cruise down city streets, up rocky mountain slopes, or over jumps with the Stealth Bomber. Fully customize your bike with your choice of 21*3 turtle tires 21*3 motorcycle tires, 26*4 kinda fat tires, fenders, battery capacity, motor size, and even seat type.
Models available for warehouse pickup or 1-2 week shipping:

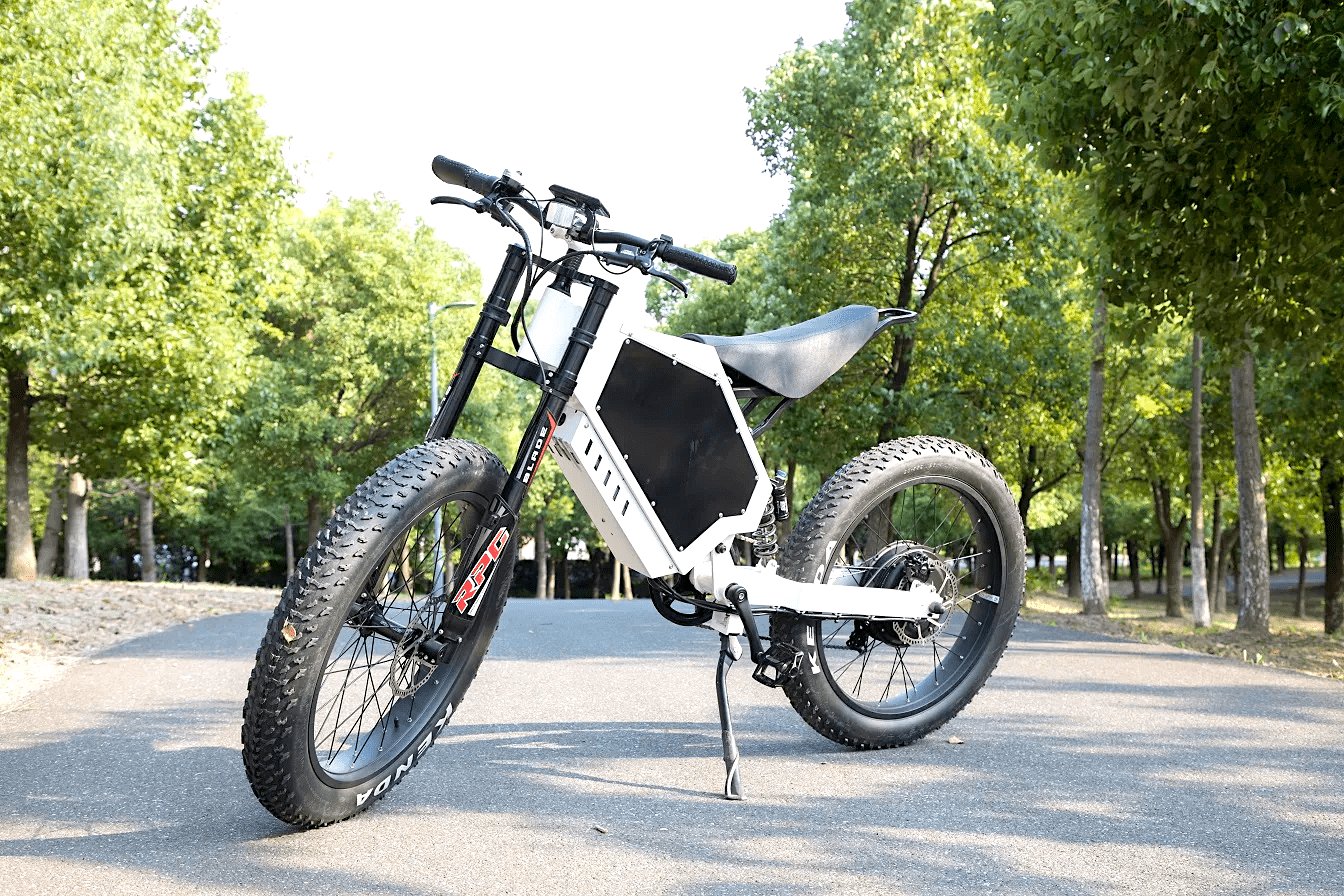

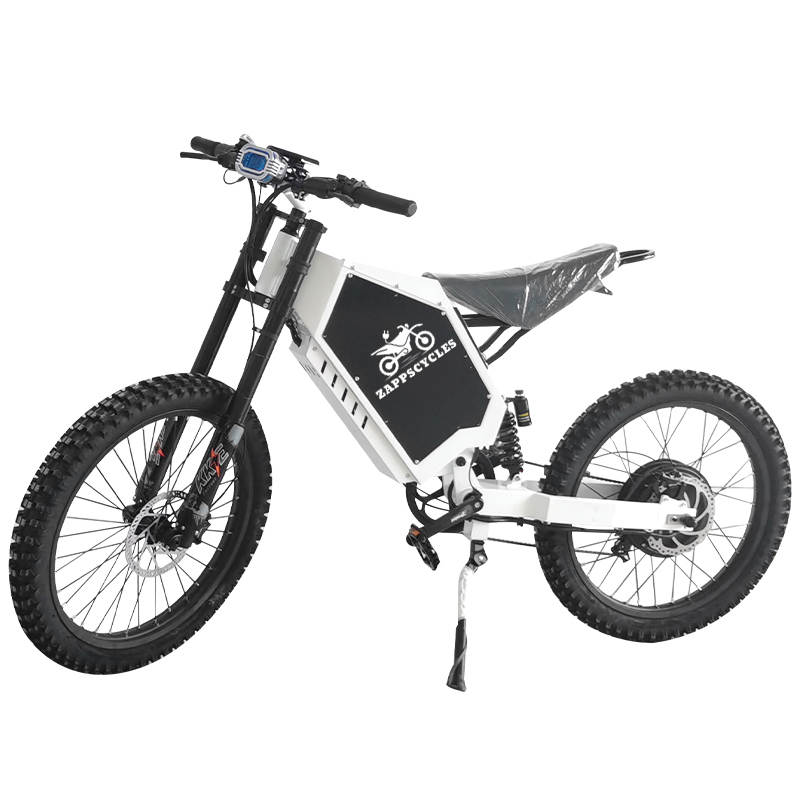

- 72V 15000w 70ah / White / 26*4in Kenda Fat Bike Tires - Bicycle seat
Please note: This product requires assembly!
The Stealth Bomber 72V 15000W
- Top Speed 70 mph
- 65 mile range

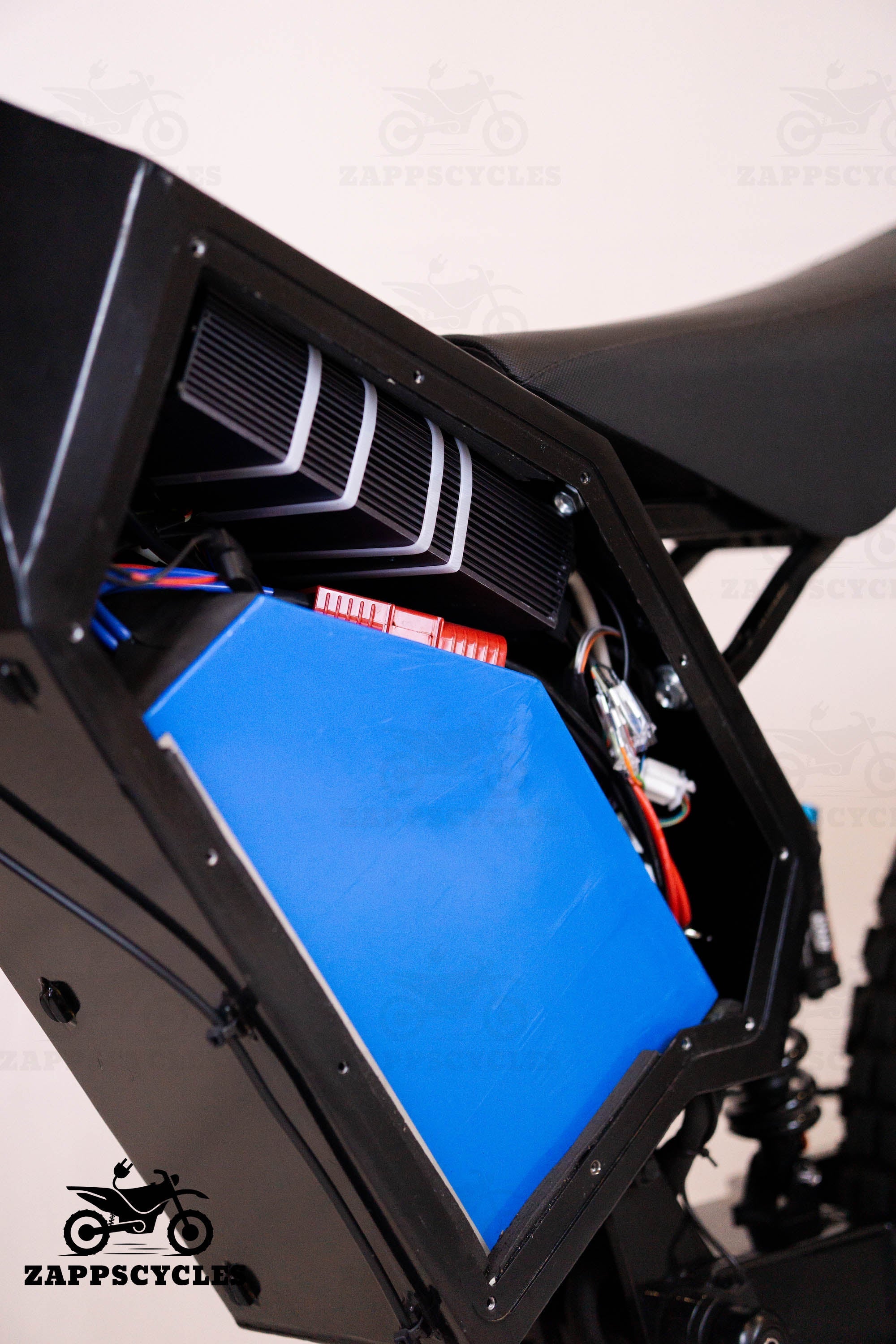

- 72V 56 Ah EVE cells lithium battery
- 72V 200A Sabvoton controller

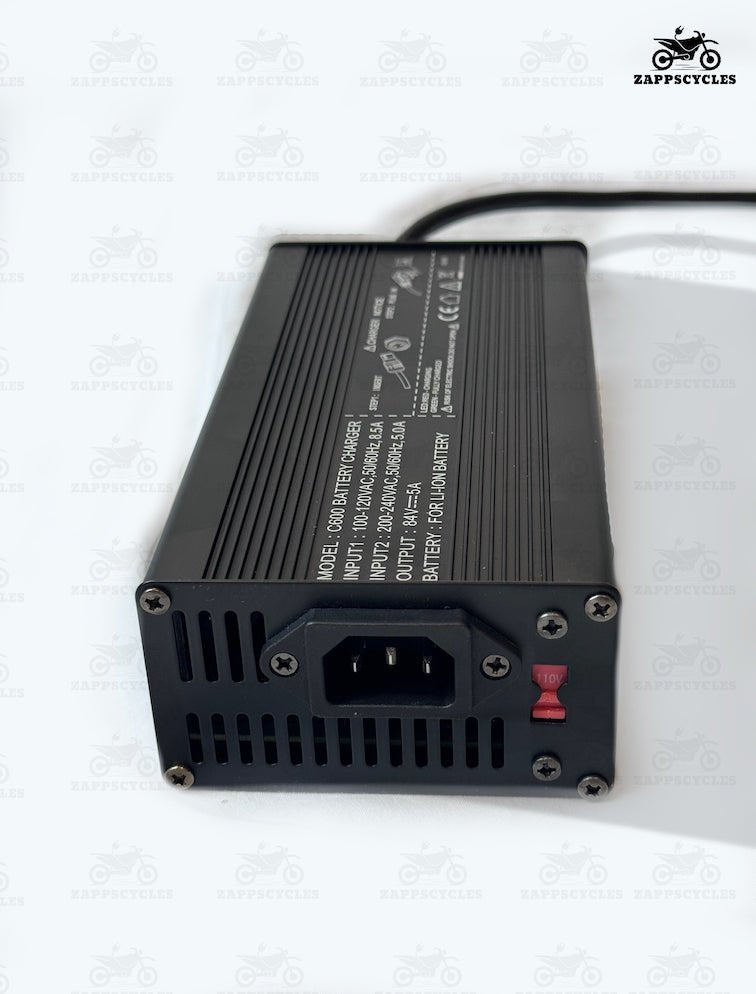

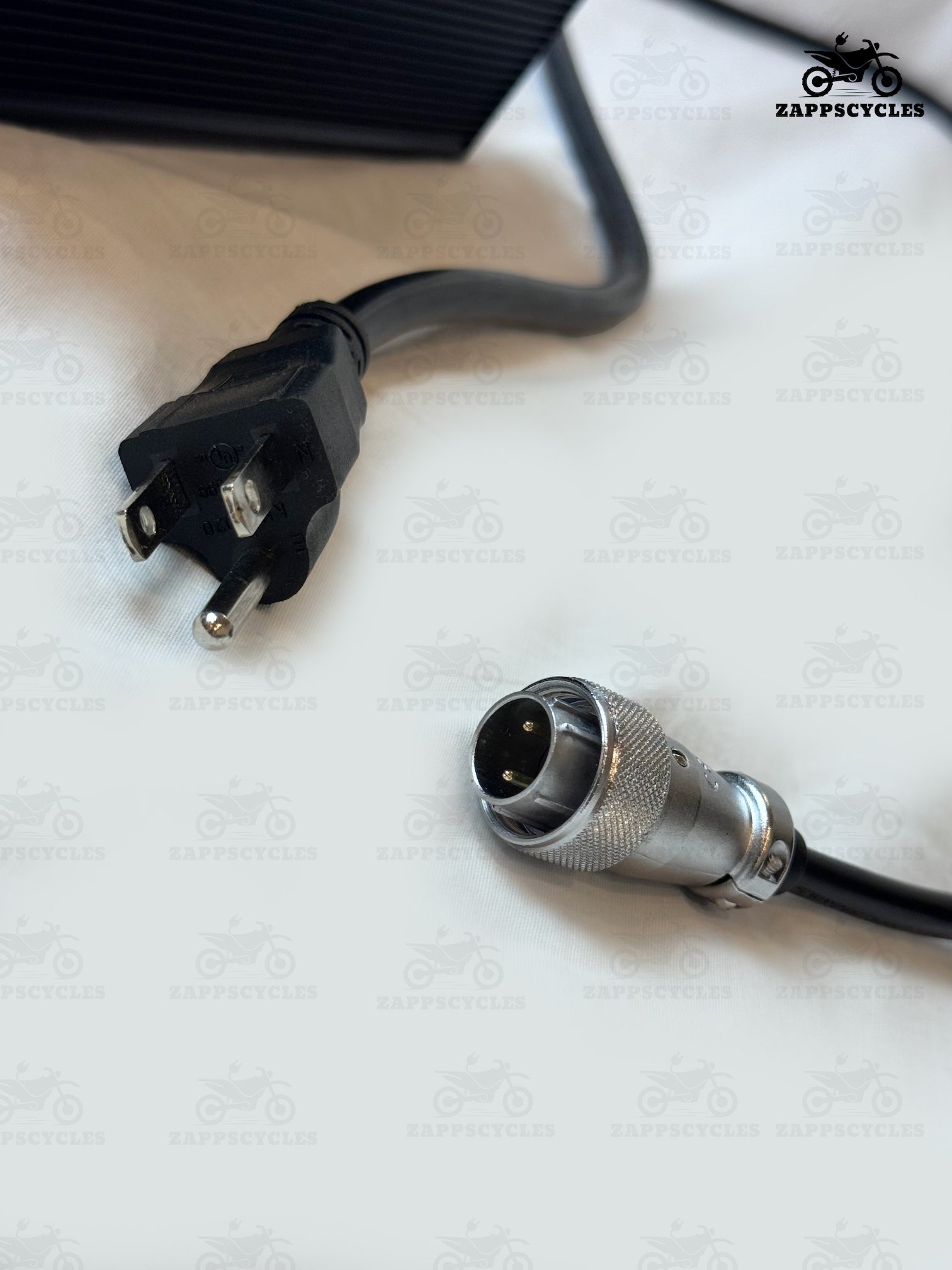

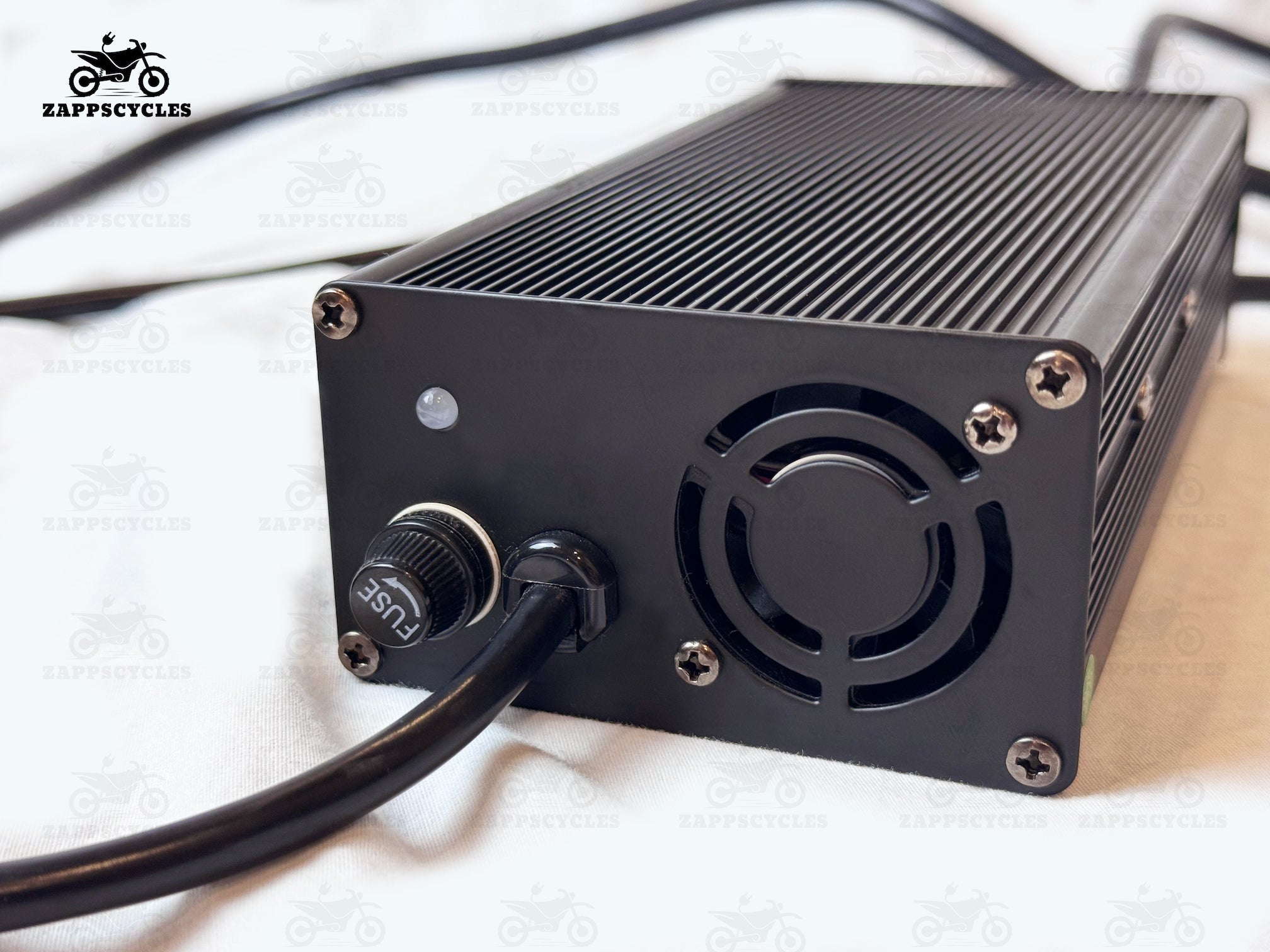

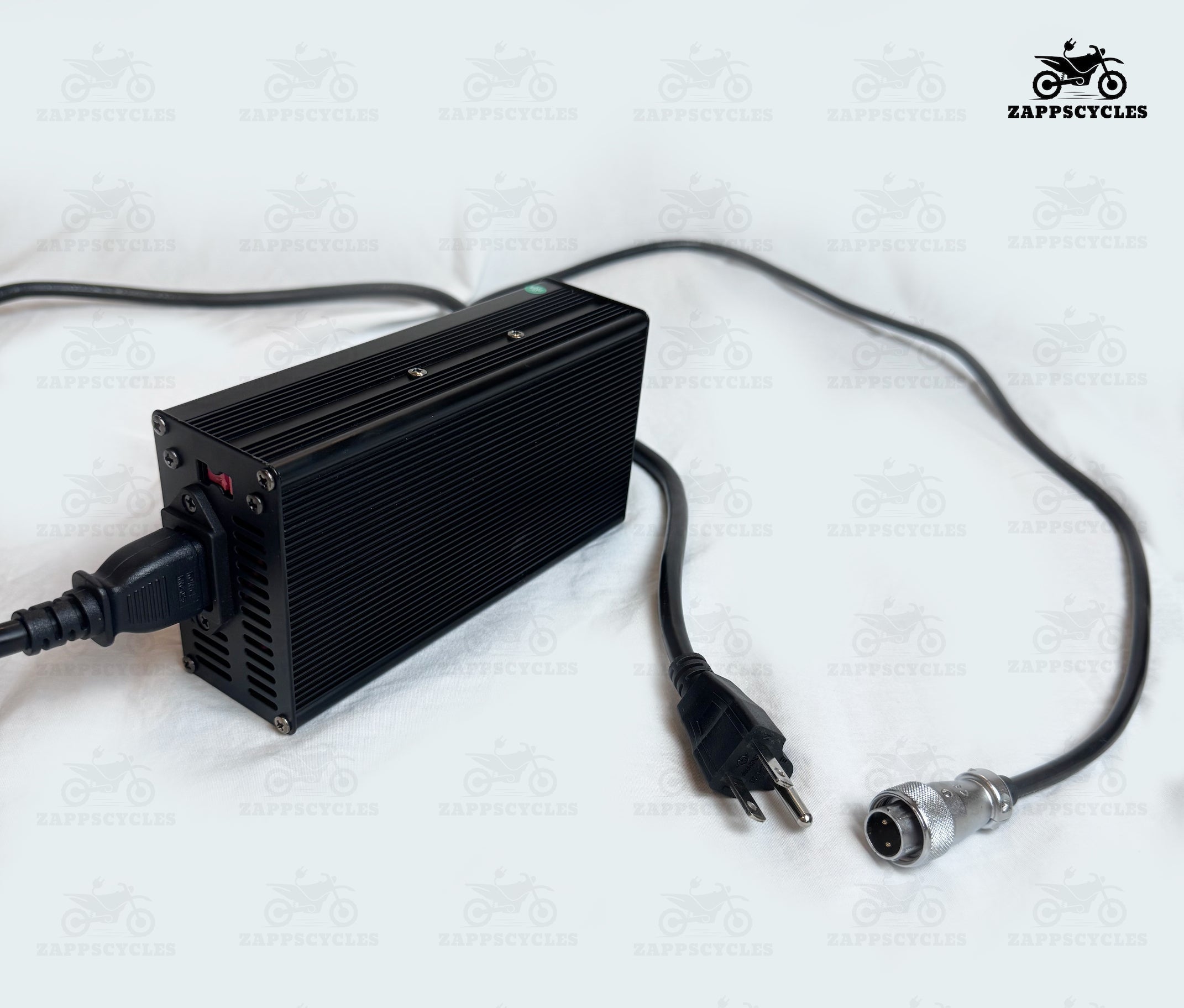

- 5A charger
- Tektrol Hydraulic Disk brakes with 203mm disks
- LCD Display

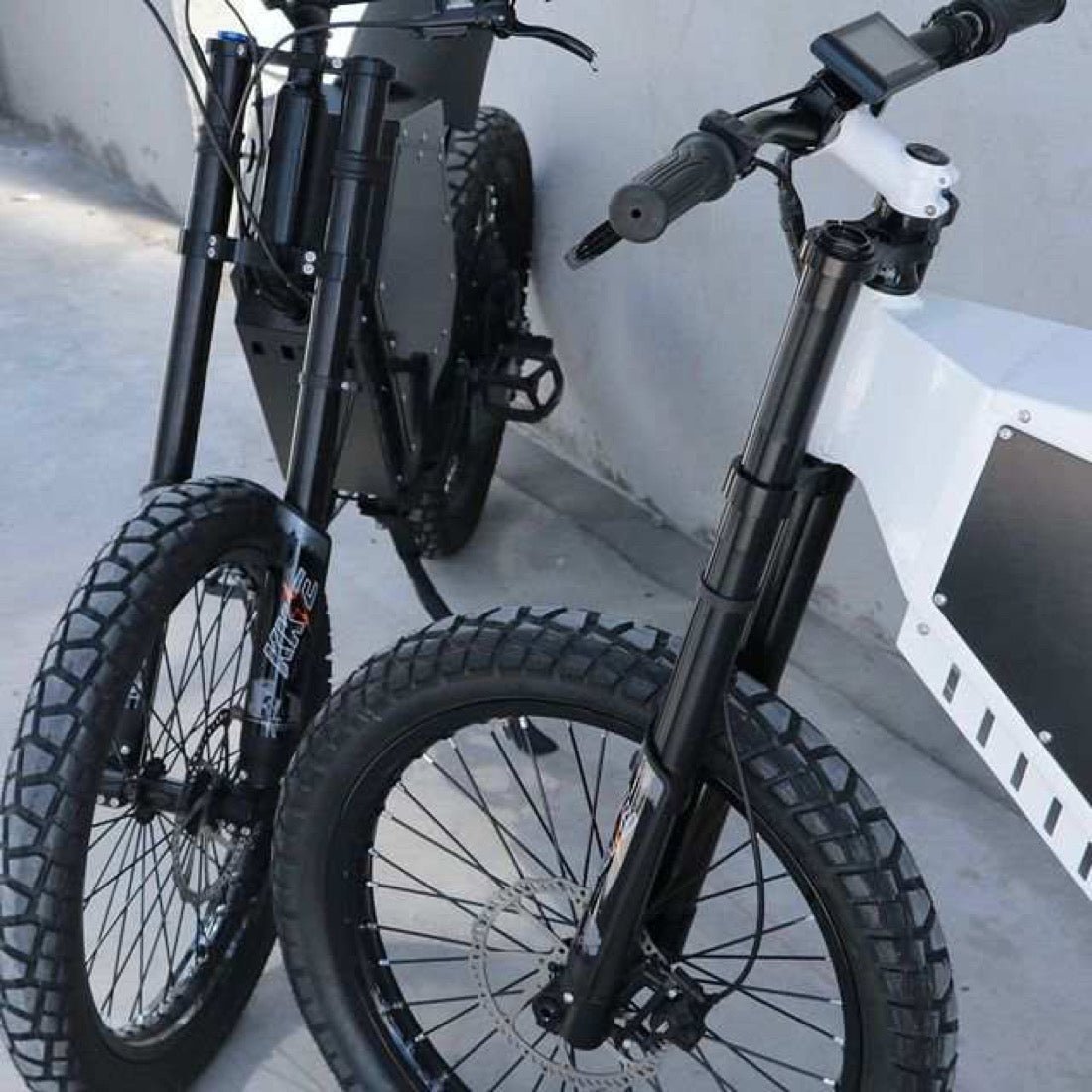

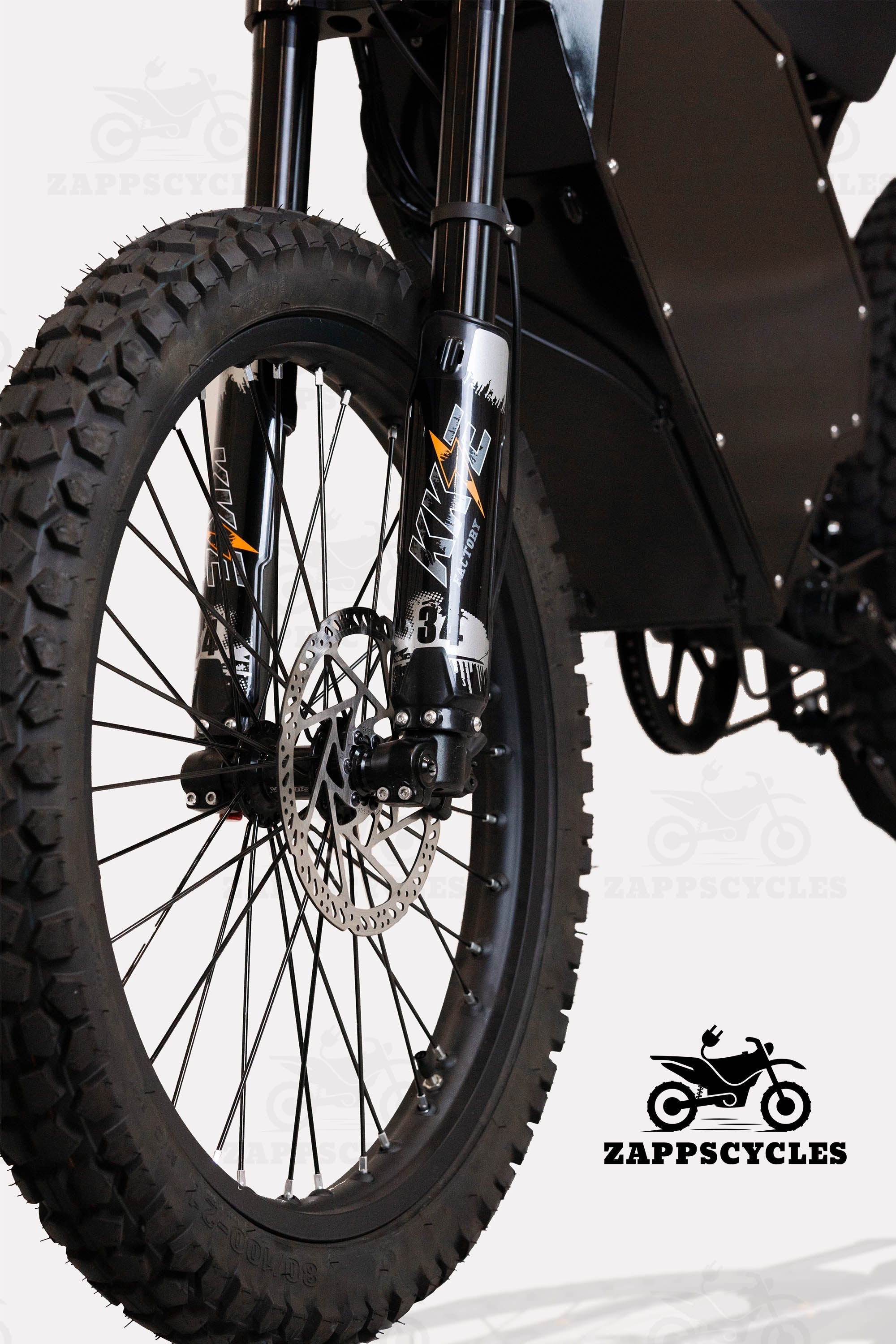

- KKE Front Fork

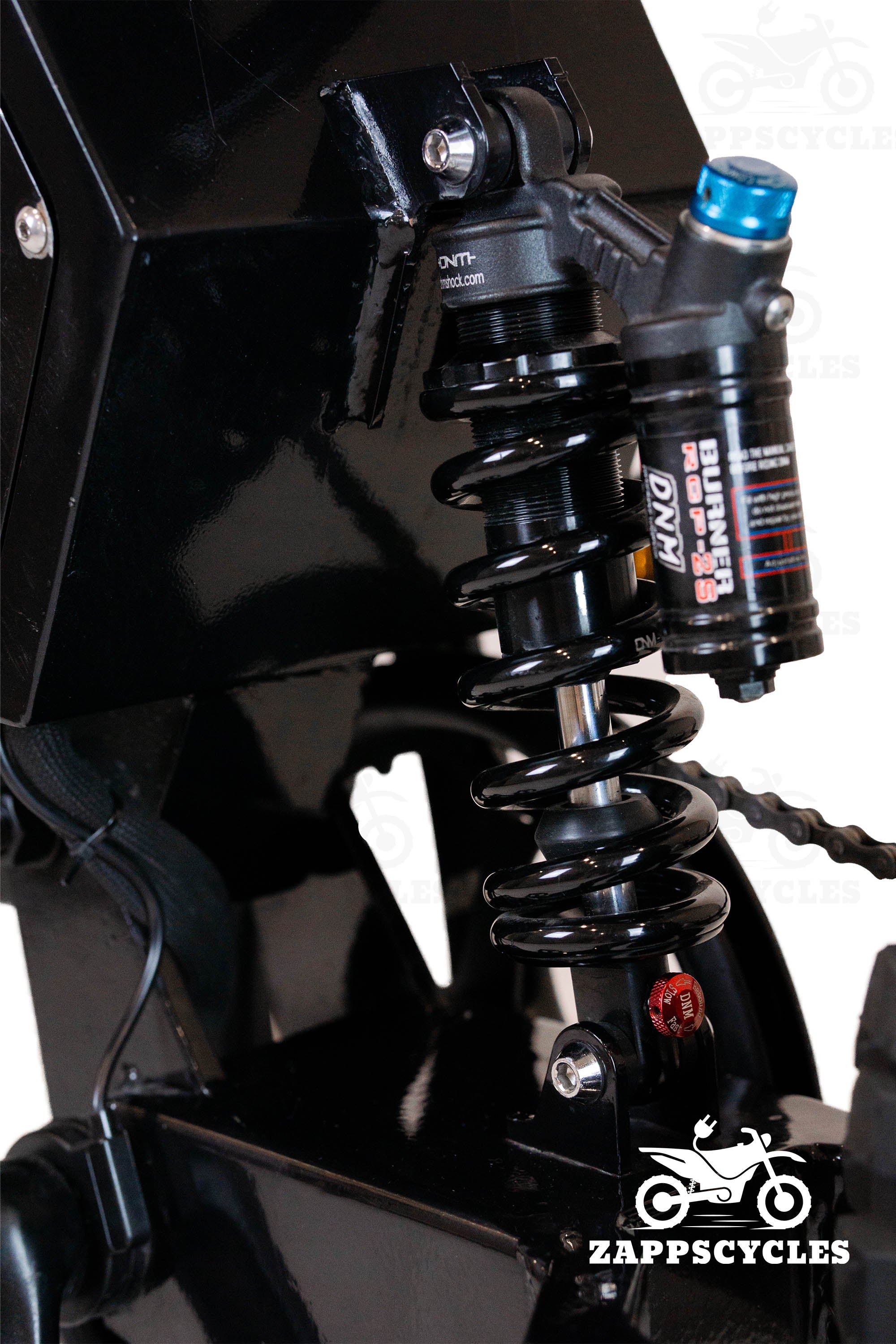

- DNM Rear Suspension

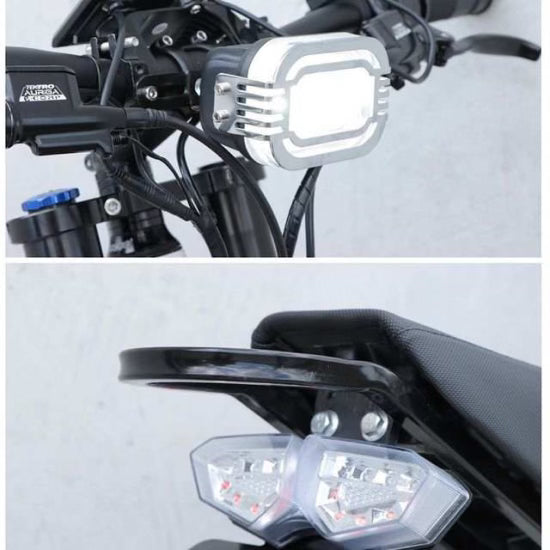

- LED Headlight and Taillight with rear blinkers

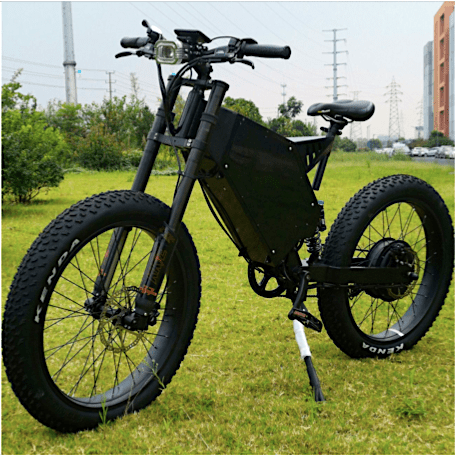

- Optional 26in 3in motorcycle tires or 26in 4in Kenda fat bike tires
- Key for security
- 5 electronic pedal assist modes
- Premium Full twist throttle
The Stealth Bomber 72V 12000W
- Top Speed 60 mph
- 55 mile range
- 72V 45 Ah EVE cells lithium battery
- 72V 200A Sabvoton controller
- Tektrol Hydraulic Disk brakes with 203mm disks
- LCD Display
- KKE Front Fork
- DNM Rear Suspension
- LED Headlight and Taillight with rear blinkers
- Optional 26in 3in motorcycle tires or 26in 4in Kenda fat bike tires
- Key for security
- 5 electronic pedal assist modes
- Premium Full twist throttle
The Stealth Bomber 72V 8000W
- Top Speed 50 mph
- 50 mile range
- 72V 40 Ah EVE cells lithium battery
- 72V 150A Sabvoton controller
- 5A charger
- Tektrol Hydraulic Disk brakes with 203mm disks
- LCD Display
- KKE Front Fork
- DNM Rear Suspension
- LED Headlight and Taillight with rear blinkers
- Optional 26in 3in motorcycle tires or 26in 4in Kenda fat bike tires
- Key for security
- 5 electronic pedal assist modes
- Premium Full twist throttle
The Stealth Bomber 72V 5000W
- Top speed 43 mph
- 40 mile range
- 72V 26 Ah EVE cells lithium battery
- 80A controller
- 3A charger
- Tektrol Hydraulic Disk brakes with 203mm disks
- LCD Display
- KKE Front Fork
- DNM Rear Suspension
- LED Headlight and Taillight with rear blinkers
- Optional 26in 3in motorcycle tires or 26in 4in Kenda fat bike tires
- Key for security
- 7 speed Shimano derailleur
- Premium Full twist throttle
NOTICE: THE STEALTH BOMBER IS SOLD FOR OFF-ROAD USE ONLY. IT IS SPEED AND POWER LIMITED TO COMPLY WITH FEDERAL, STATE AND LOCAL LAWS. DO NOT BYPASS THIS RESTRICTION OR MODIFY IT TO GO FASTER. THE BUYER TAKES FULL RESPONSIBILITY OF THE PROPER USE OF THIS PRODUCT WHICH MAY OR MAY NOT CONFORM TO ALL APPLICABLE LAWS IN THE REGION IT IS RIDDEN. WE DO NOT PROVIDE ANY DOCUMENT FOR THE BIKE, ANY CUSTOMS DOCUMENTS WILL NOT BE PROVIDED.
Product details:
- Charging time takes about 6-8 hours

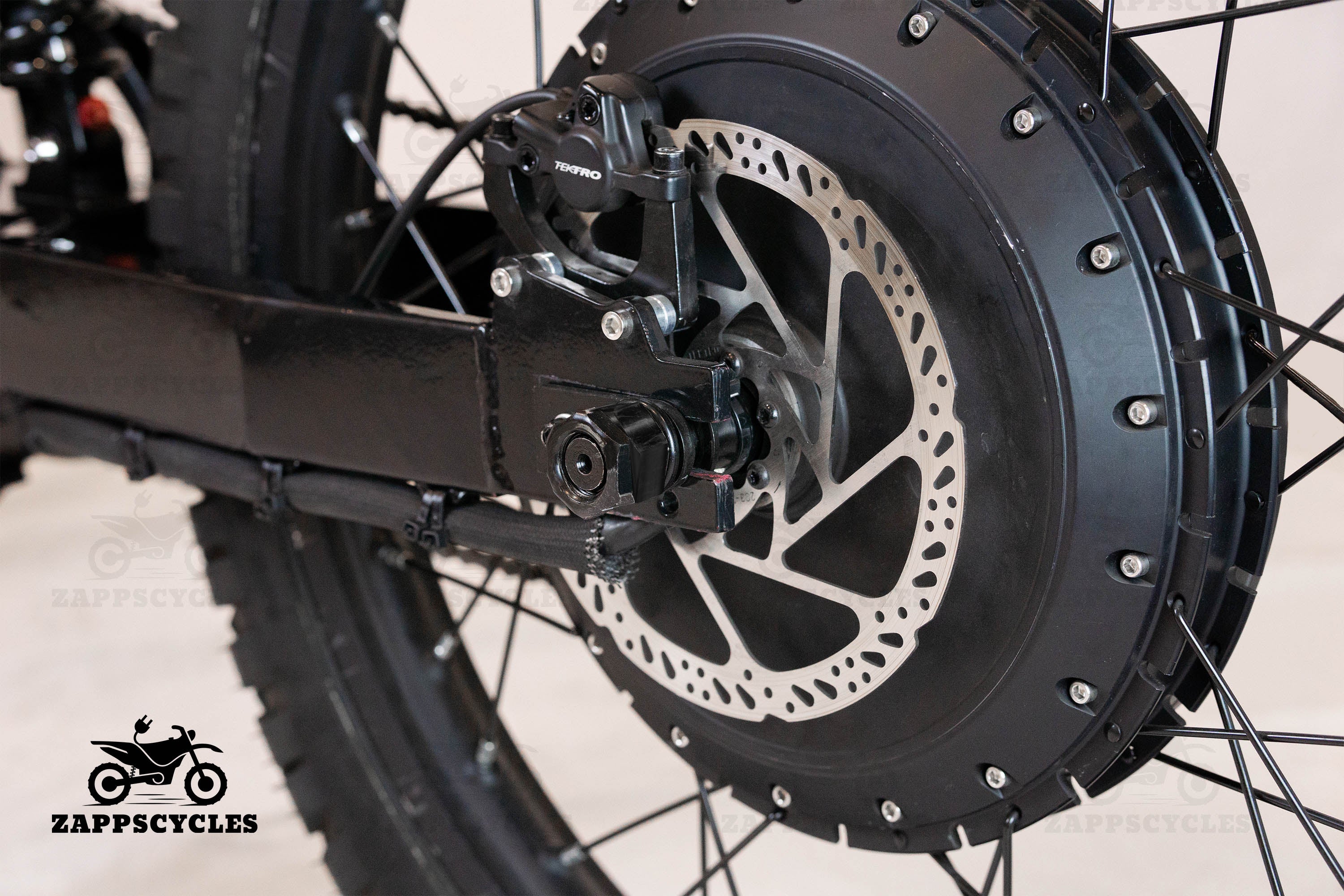

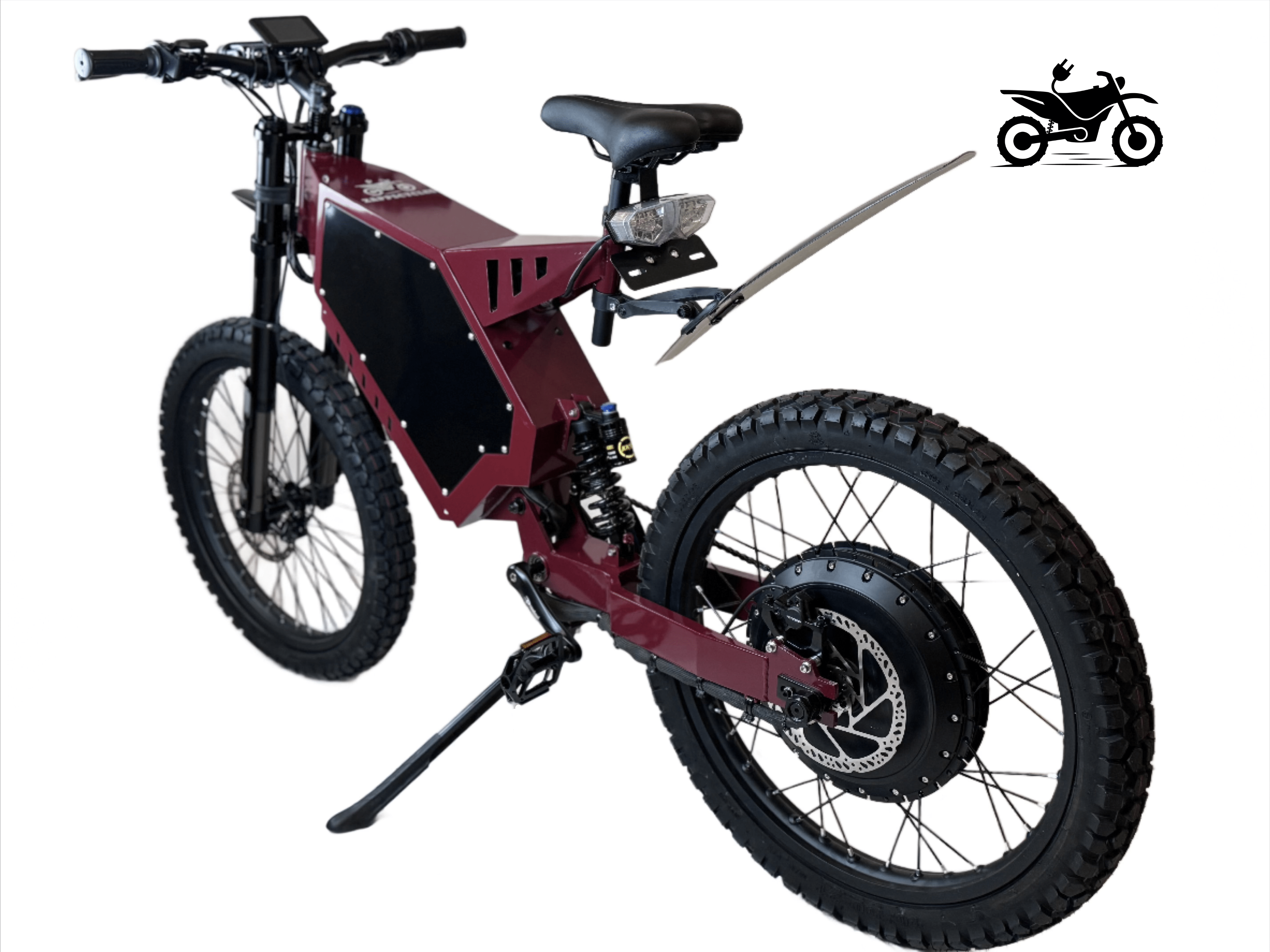

- All models feature a QS273 hub motor that can be customized from 5KW - 15KW. These can also be customized from 2.5T - 5T upon special request. This tuning will change the power ratio of the bike. 2.5T will have minimal torque and high top speed and 5T will have high torque and lower top speed.
- Smart Sabvoton controller 72V 150A to charge the battery.
- Worried about your kids going too fast? The Stealth features a top speed lock where you can adjust the speed to your preference. Double click the mode button and use code 1801 in the advanced setting portion to set the top speed to your needs!
- The advanced FOC vector algorithm is used to drive the DC brushless motor. Automatic matching of motor Hall angle in 2 minutes. Various built-in protections of the controller to ensure the safe and stable operation of the vehicle: anti runaway protection, over-voltage and under voltage protection, over-current protection, controller overheat protection.

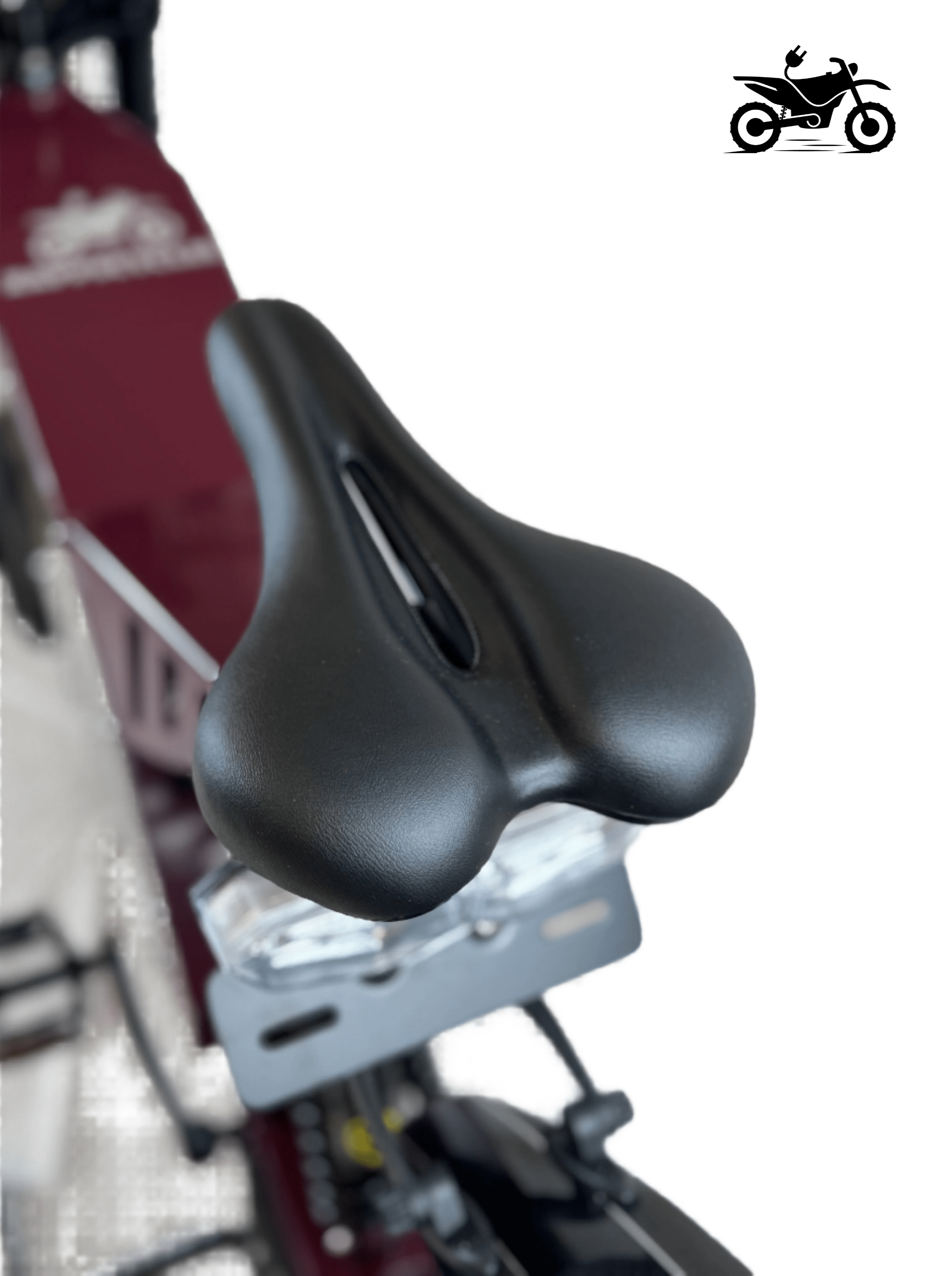

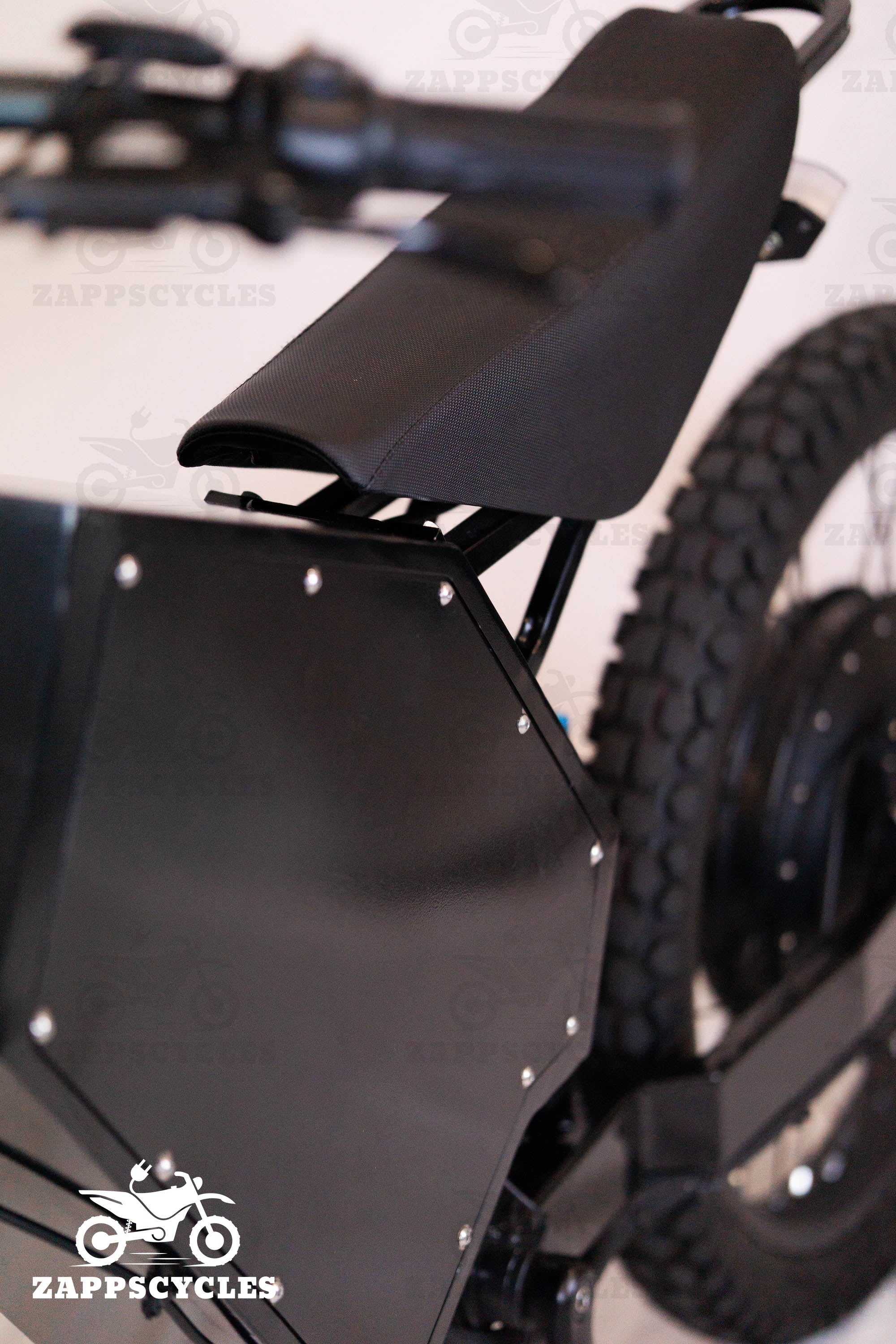

- optional bicycle seat or motorcycle seat.
- Electronic pedal assist modes for 8000W motors and above are split up into 5 different ratios of asset.
- Level 1 - 40% assist
- Level 2 - 60% assist
- Level 3 - 70% assist
- Level 4 - 80% assist
- Level 5 - 100% assist

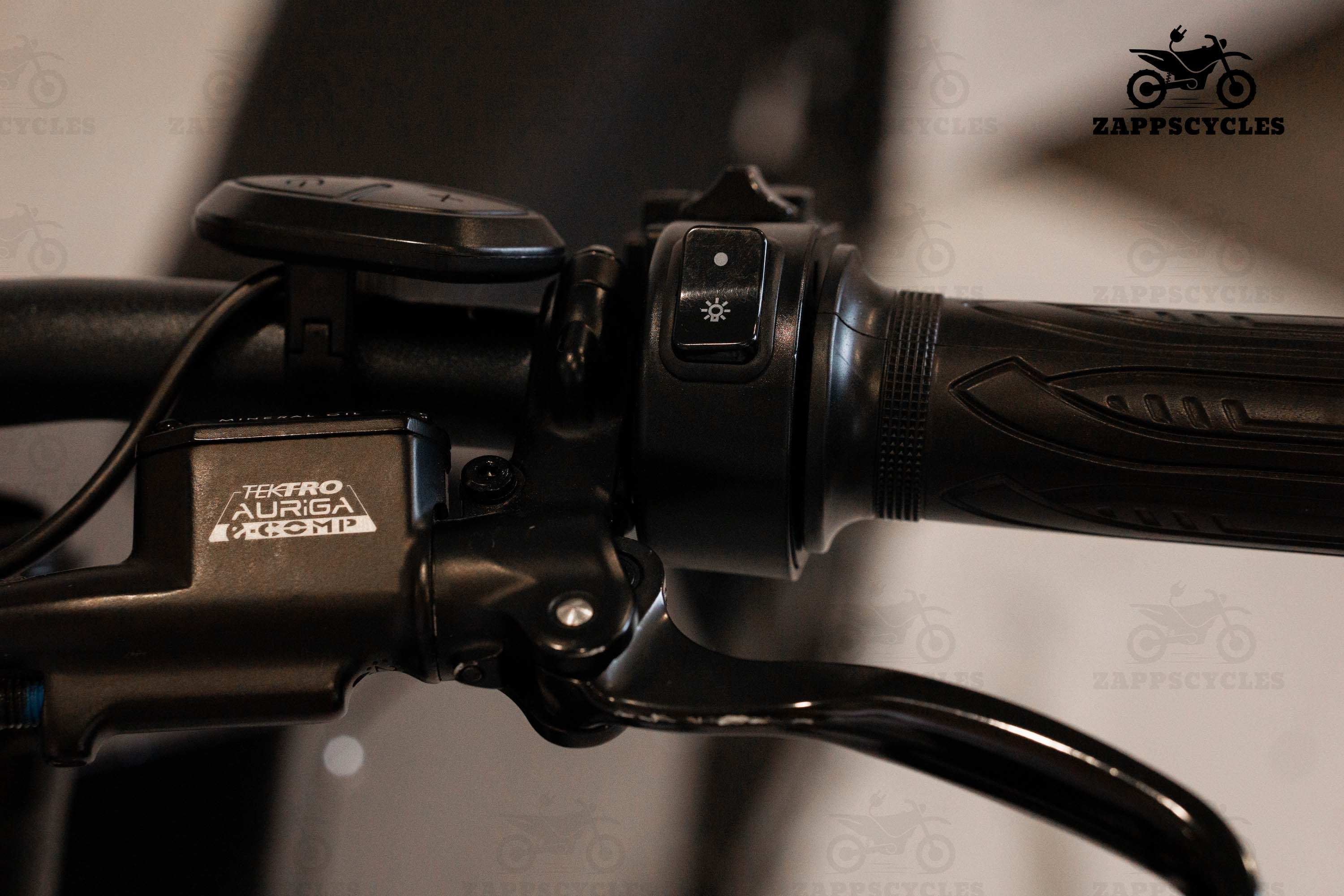

- Tektrol hydraulic E500 brake TEKTRO E725 Hydraulic Brake Standard Finish Barrel Lever / Black Bracket

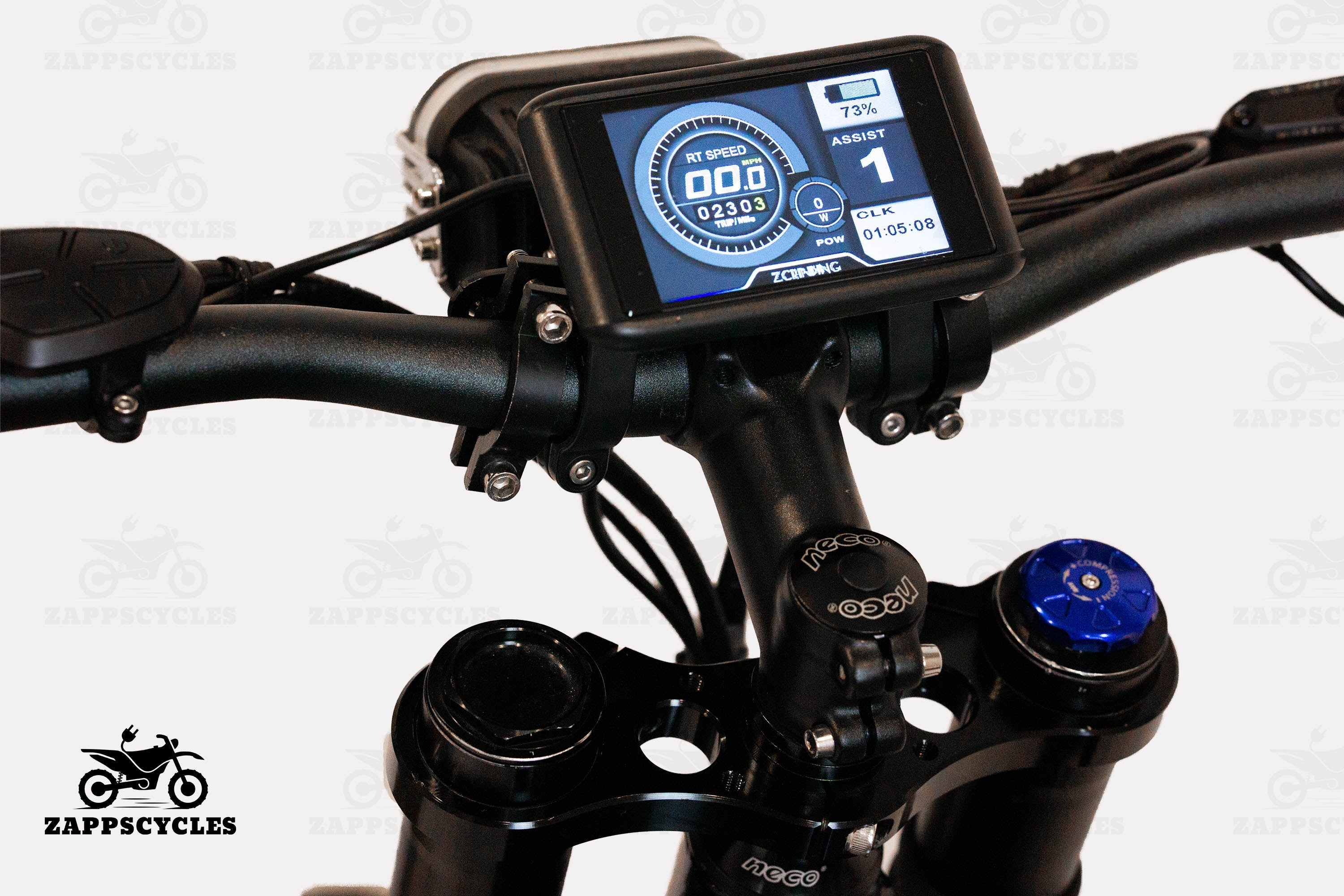

- UKC1 Colorful display 3.5 inch IPS screen for vivd readouts of speed, selected gear, battery percentage, and ride times.
- 72V battery supply rated operating power : 1W Max operating power: 5W USB charging port: 5V 500mA Off leakage current < 1uA Support current to controller : 100mA Operating temperature : -20～70℃, Storage temperature : -30～80℃

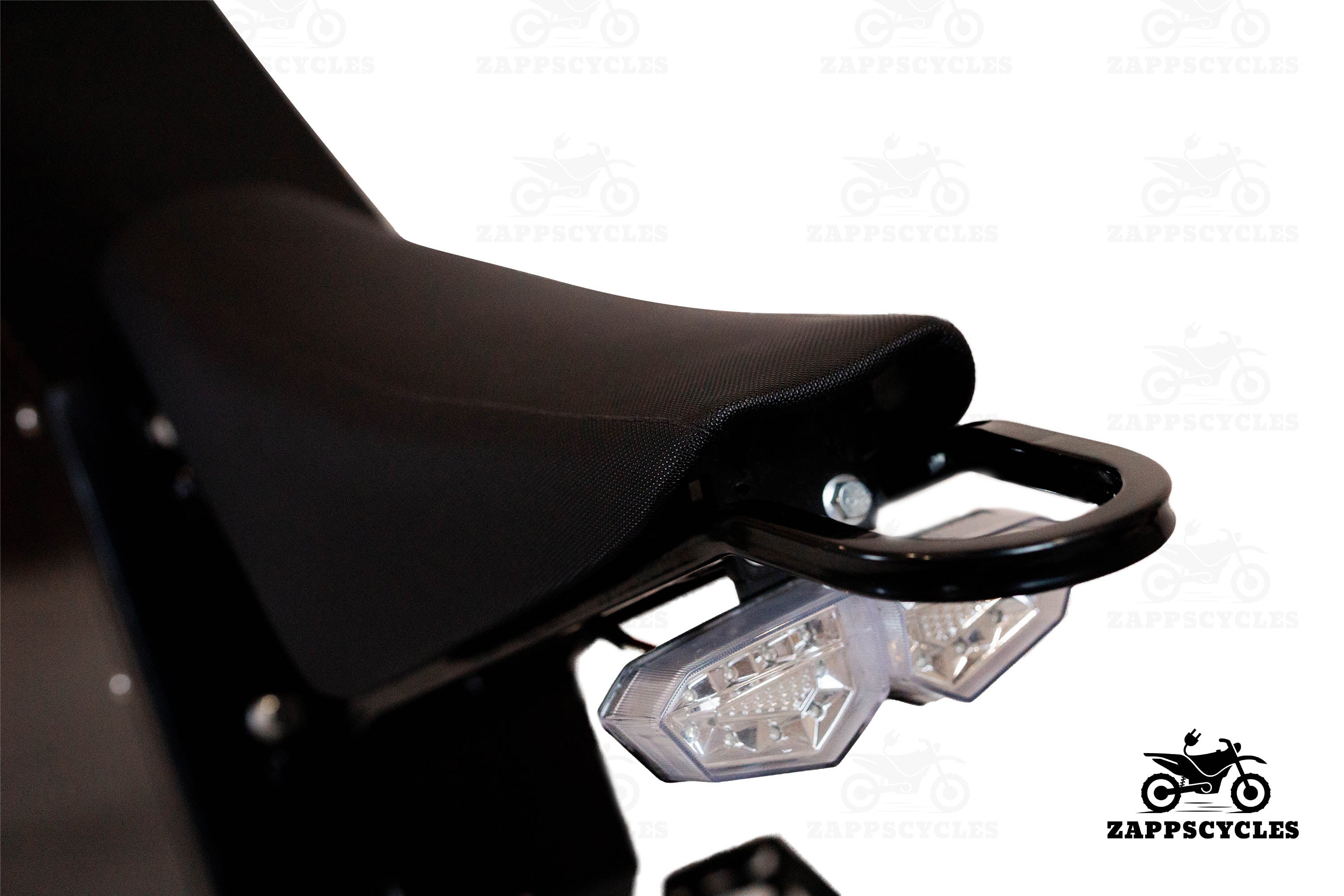

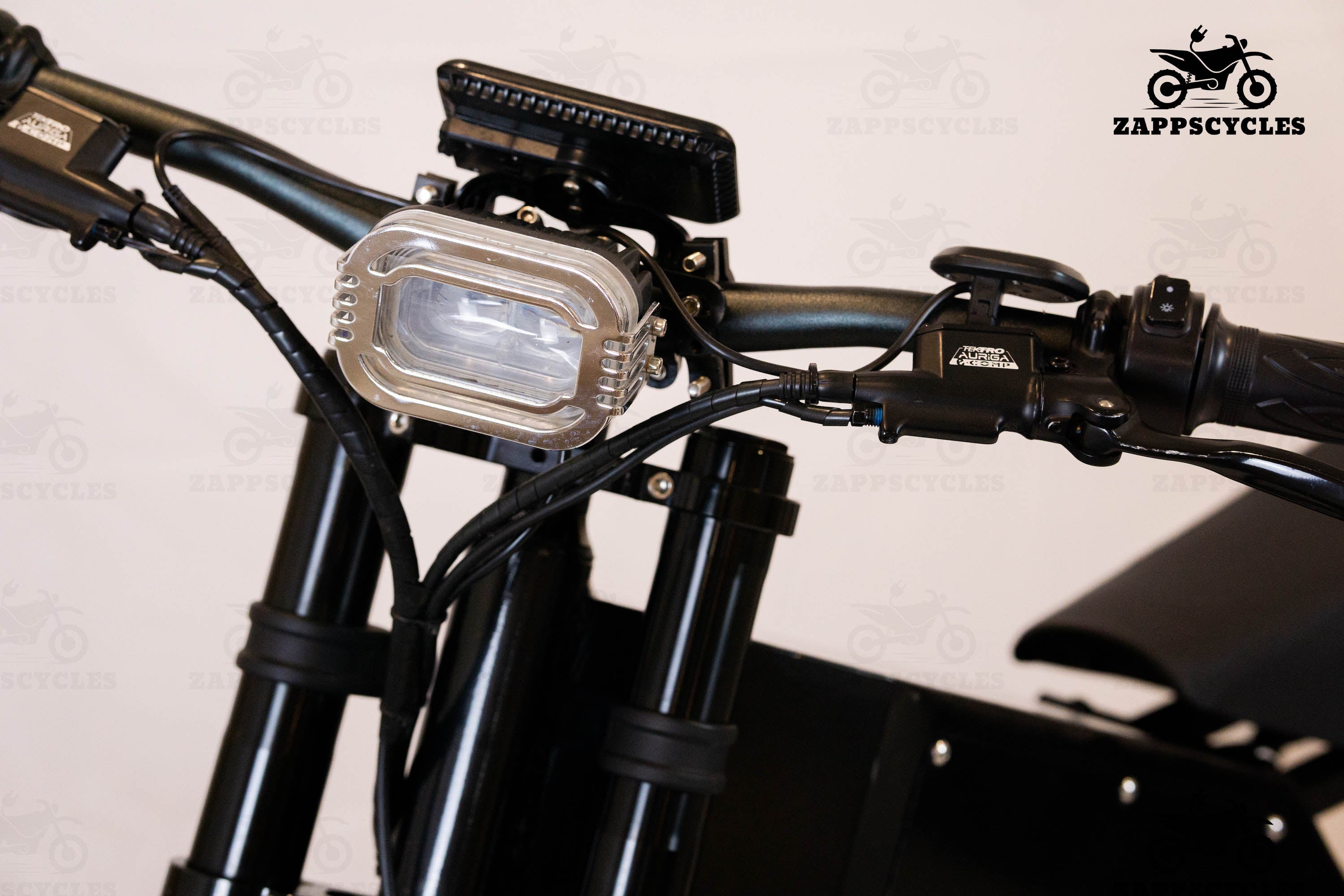

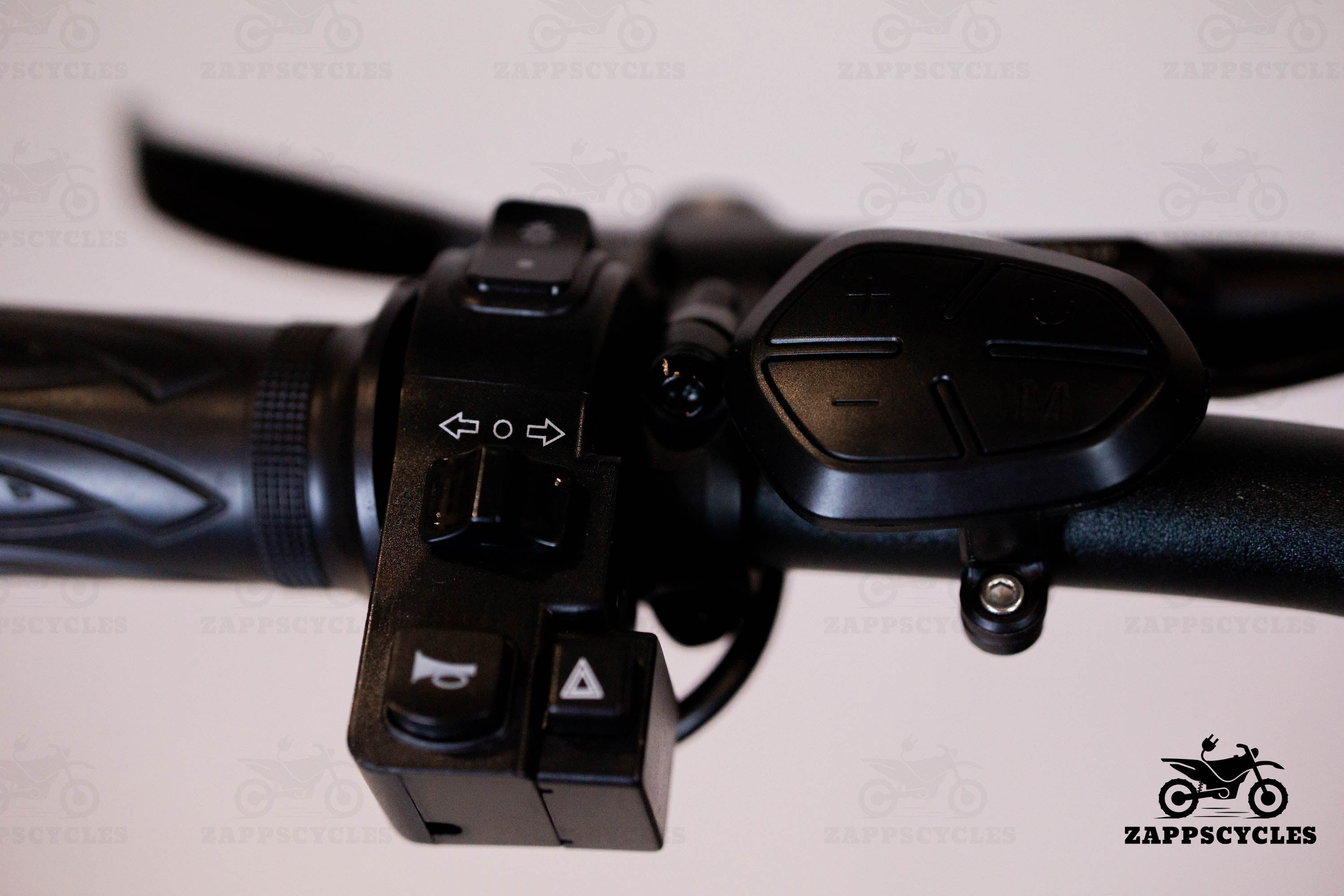

- Headlight beam, rear light with signal, and horn.
- This model ranges vary from 50-80 miles. Riding style and terrain conditions may affect your range.
- Shimano 7 speed for 5000W model
- The 70AH model of stealth bomber has a 75 mile range.
Set up Guide
Please keep in mind the Stealth Bomber does not have an assembly instruction Manuel. Our assembly walkthroughs are listed below.
Assembly tips:
- This bike has allows you to set the top speed to your needs, in order to adjust this speed you can use the code 1801 in the advanced settings. This can be accessed by double clicking the mode button.
- Keys are stored inside the frame during shipping
Our dedicated team is always available to assist you so do not hesitate to reach out if you have and questions on assembly. They can video call, or text message and help walk you through any hangups!
Please watch each assembly video before attempting to assemble your stealth bomber!
- https://go.screenpal.com/watch/cZ6jF8VWbyK
- https://go.screenpal.com/watch/cZ6jF8VWbys
- https://go.screenpal.com/watch/cZ6jF8VWbyM
- https://go.screenpal.com/watch/cZ6jF8VWbyL
https://go.screenpal.com/watch/cZ6jF8VWby7
- FREE SHIPPING - Please note, due to high demand shipping times can take up to 6-8 weeks.
At Zappscycles we've made a deliberate decision to build the Stealth Bomber to order rather than keeping pre build models readily available. This approach allows us to offer our customers the opportunity to create a truly custom ride, tailored to their specific preferences and needs.
By building bikes on demand, we have the flexibility to offer a wide range of customization options—from motor size and ride height to components, colors, and accessories. This level of personalization simply wouldn’t be possible if we were to maintain a large stock of pre-built bikes.
While we understand that waiting for a bike to be built may require some patience, we believe the result is well worth it.
