Description

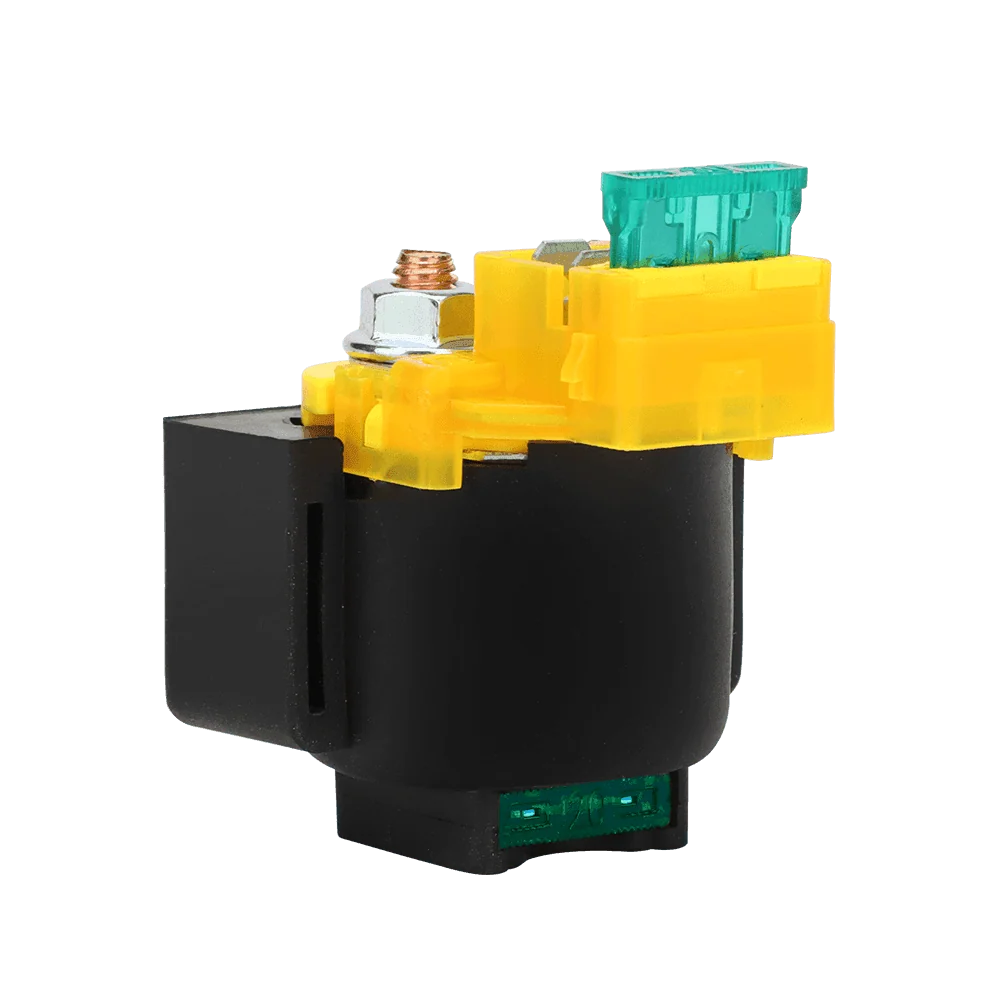

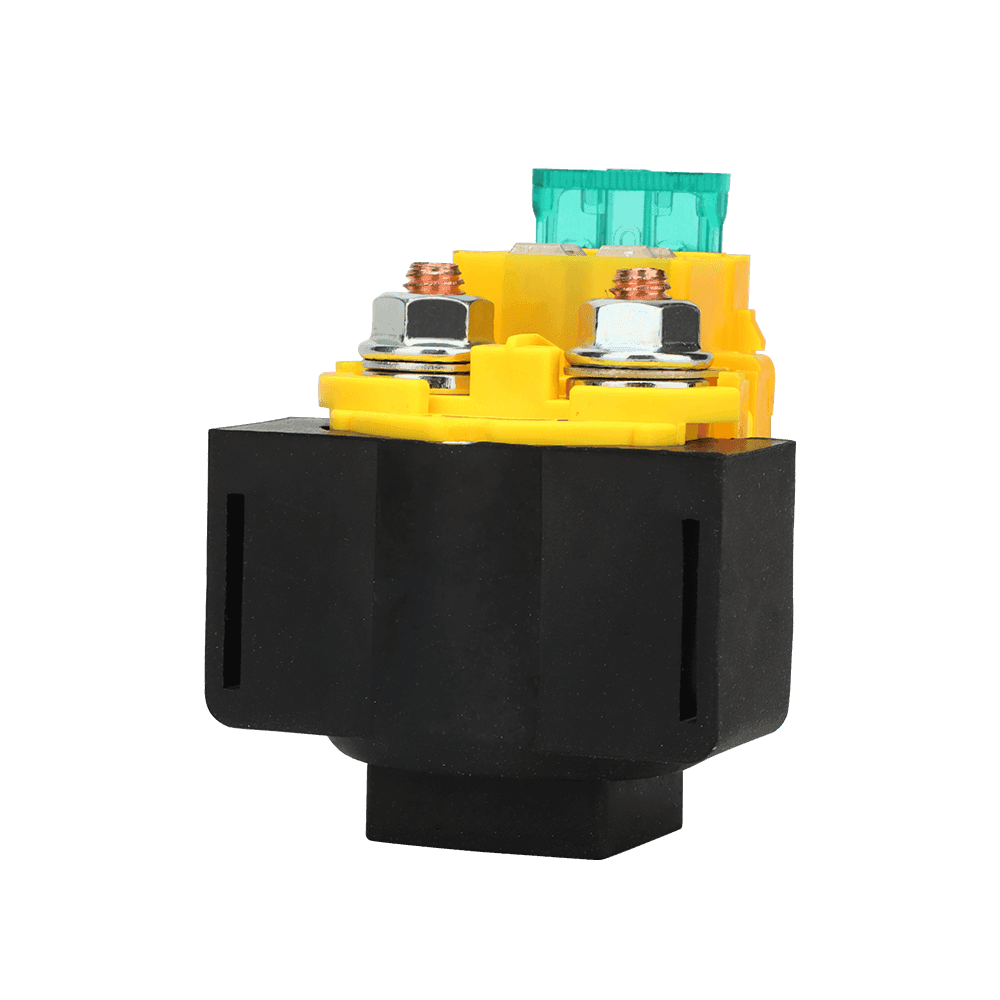

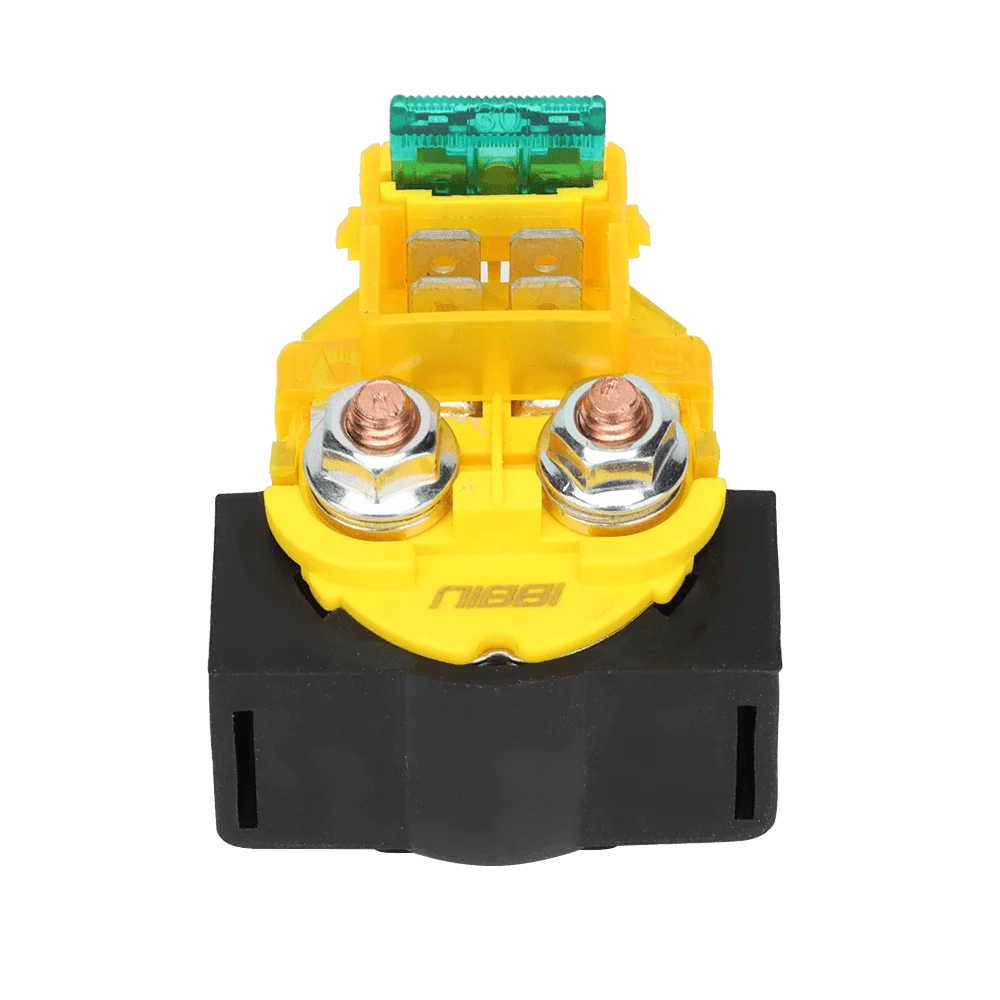

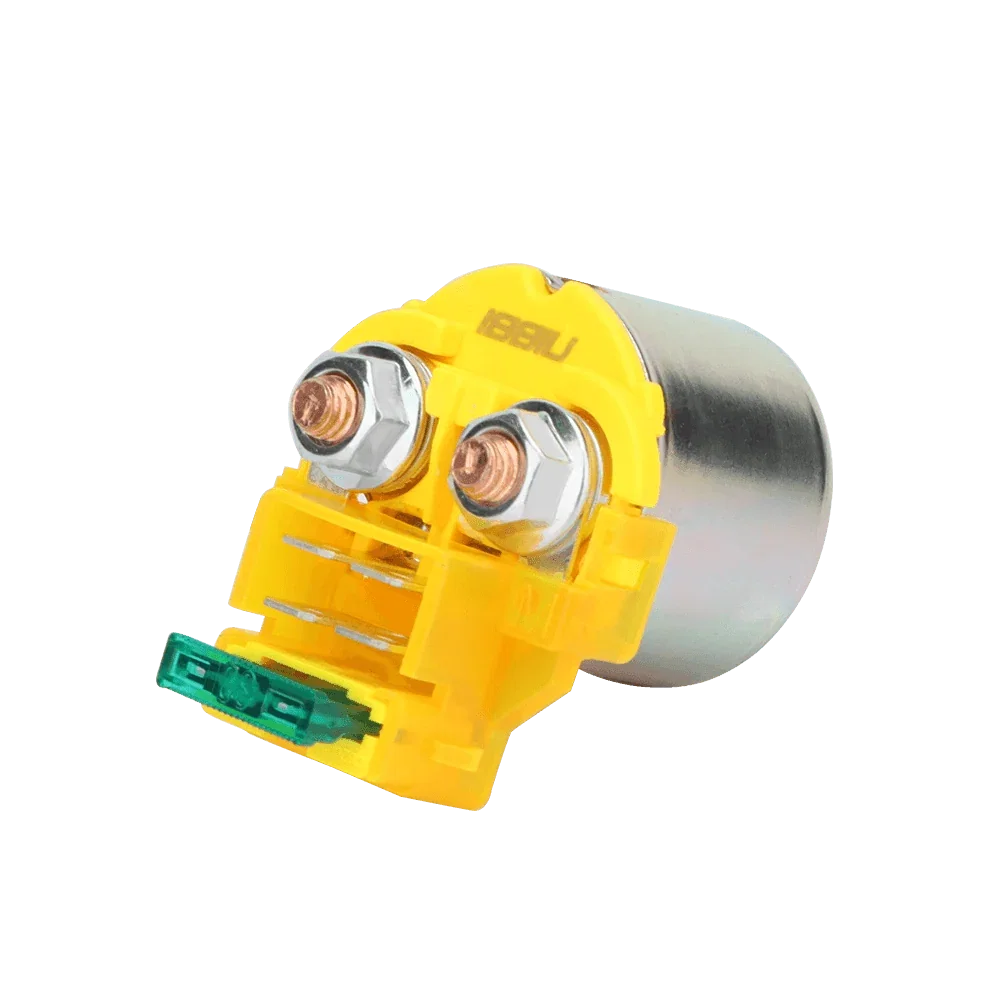

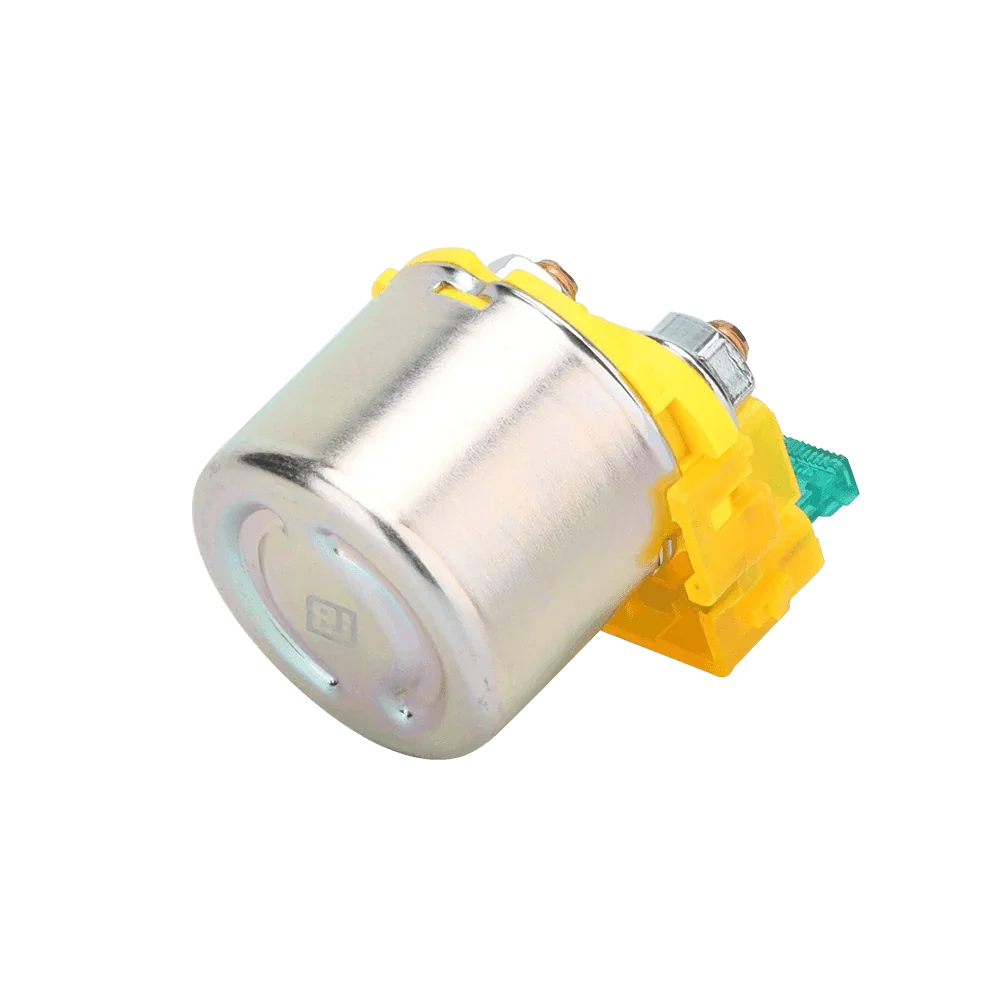

NIBBI Relays-D Motorcycle Starter Relay
The NIBBI Relays-D Motorcycle Starter Relay is engineered for stable high-current switching within motorcycle starting systems, helping transfer electrical power efficiently from the battery to the starter circuit.
Designed for dependable daily and off-road use, Relays-D supports a rated contact current of up to 150A for 60 seconds under specified test conditions, while maintaining a contact voltage drop of no more than 200mV.
Built for Reliable Starting
150A High-Current Capacity
Supports rated contact current up to 150A for 60 seconds under specified test conditions without visible deformation, smoke or contact sticking.
Low Contact Voltage Drop
Contact voltage drop is controlled within ≤200mV to help minimize electrical resistance and maintain efficient current delivery during engine starting.
Stable Relay Operation
Closing voltage of ≤7.5V and release voltage of ≤3.5V at 20°C help provide consistent switching performance.
Reliable Electrical Insulation
Insulation resistance of ≥5MΩ and dielectric testing at 550V for 1 minute help ensure dependable electrical isolation.
Technical Specifications
Compatible Models
KAYO
K6R 250 · K6R 300 · K6R 450
KOVE
500GY
Yamaha
YBR 125
Suzuki
GW250-A · GSX250R · DC250A
Motorcycle electrical components may vary by production year, market and model version. Before ordering, compare the original relay's connector type, terminal layout, mounting dimensions, voltage requirements and overall size with the product images and specifications.
