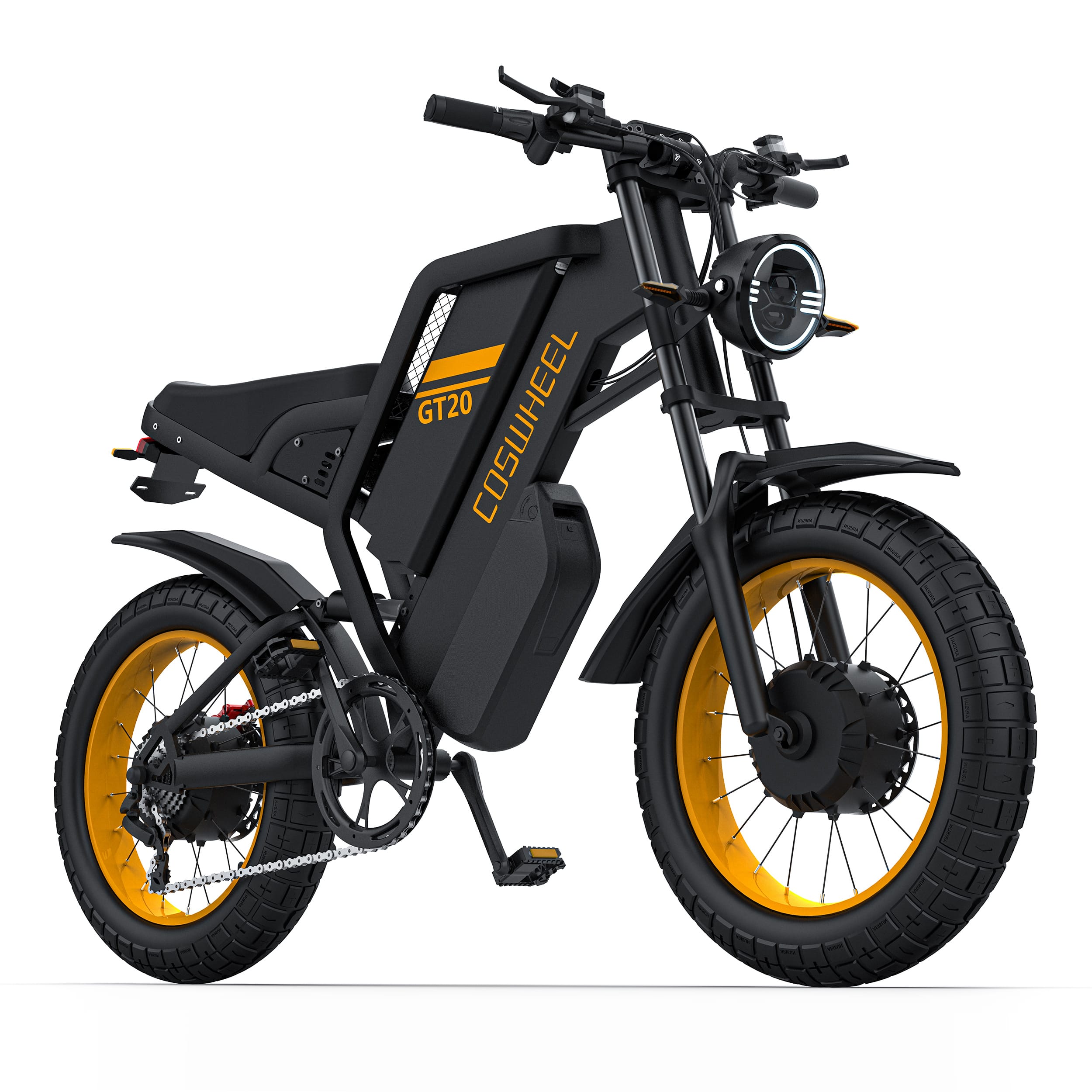

COSWHEEL GT20 PRO Ebike — Official Specifications
Performance
-
Top Speed: Class 2/3 — 31 mph (50 km/h)
-
Range: ~80+ miles (128 km) in throttle‑only mode; ~145 miles (233 km) with pedal assist
-
Motors: 48 V Dual Motors — Peak 3000 W (1500 W + 1500 W) with 160 N·m torque
-

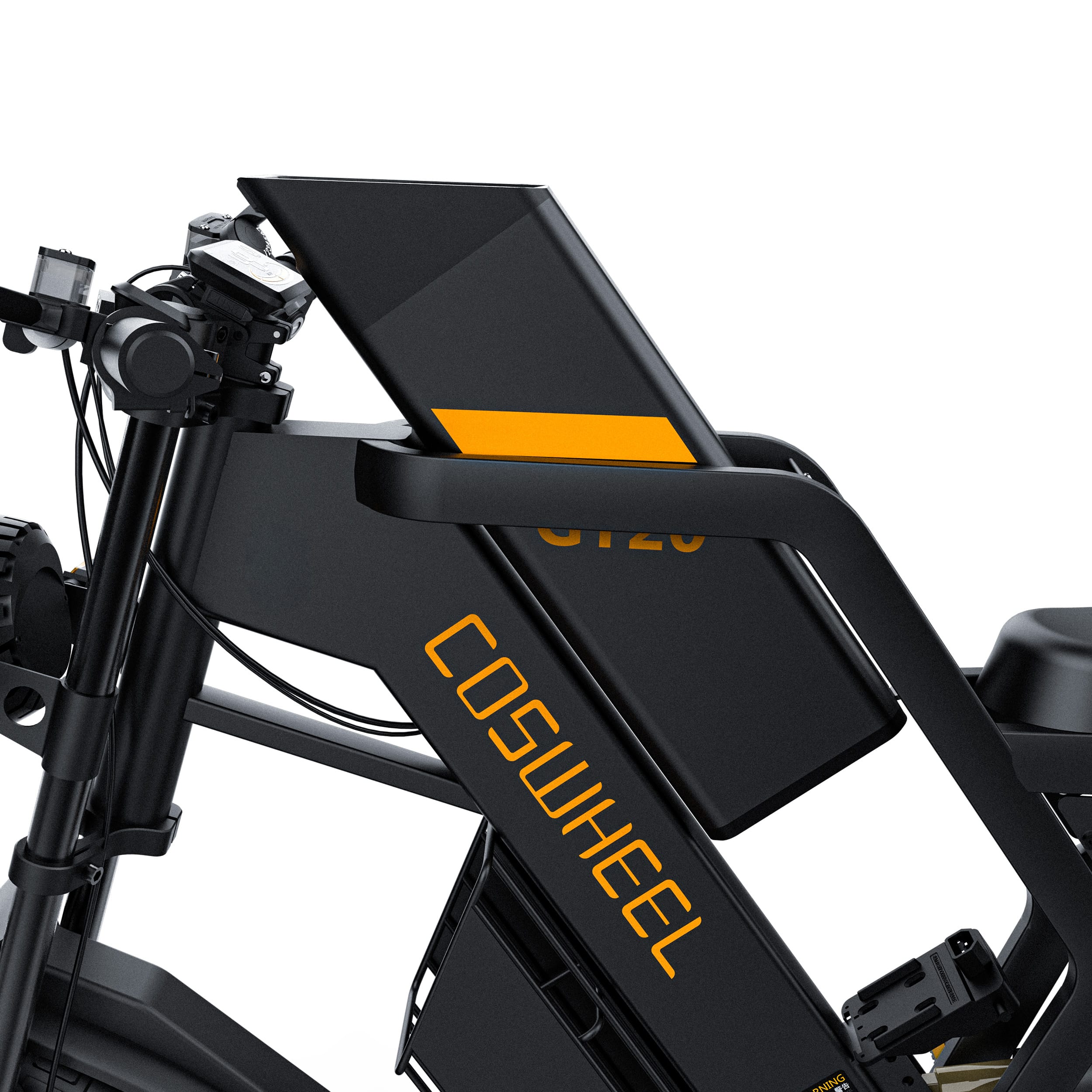

Battery: 48 V Dual Battery — 25 Ah + 15 Ah (40 Ah total), 1920 Wh (Lithium 18650 cells)
-
Climbing Capability: Up to 40° slope
Suspension, Brakes & Tires
-

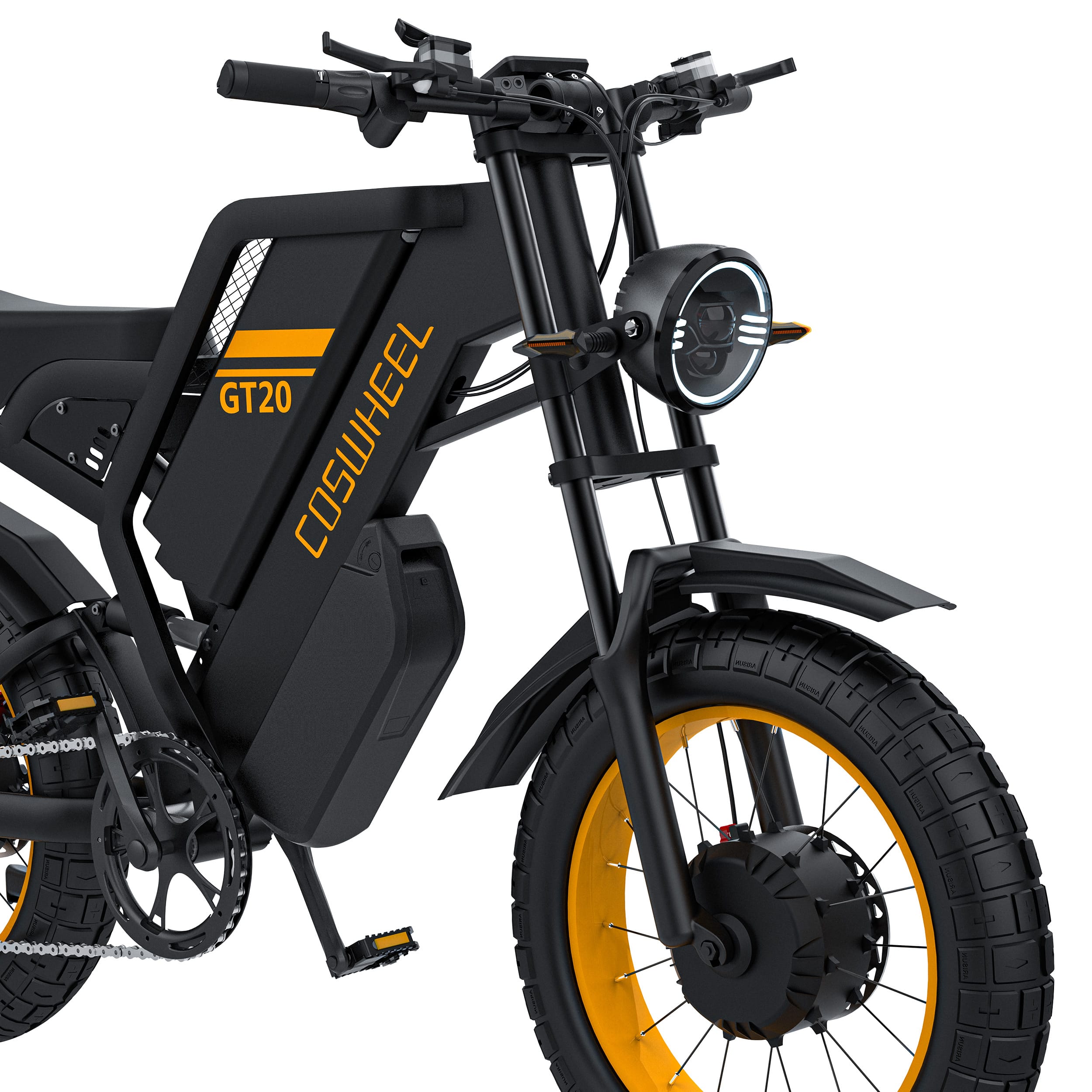

Front Suspension: 20" shoulder shock absorbing fork, 80 mm travel
-

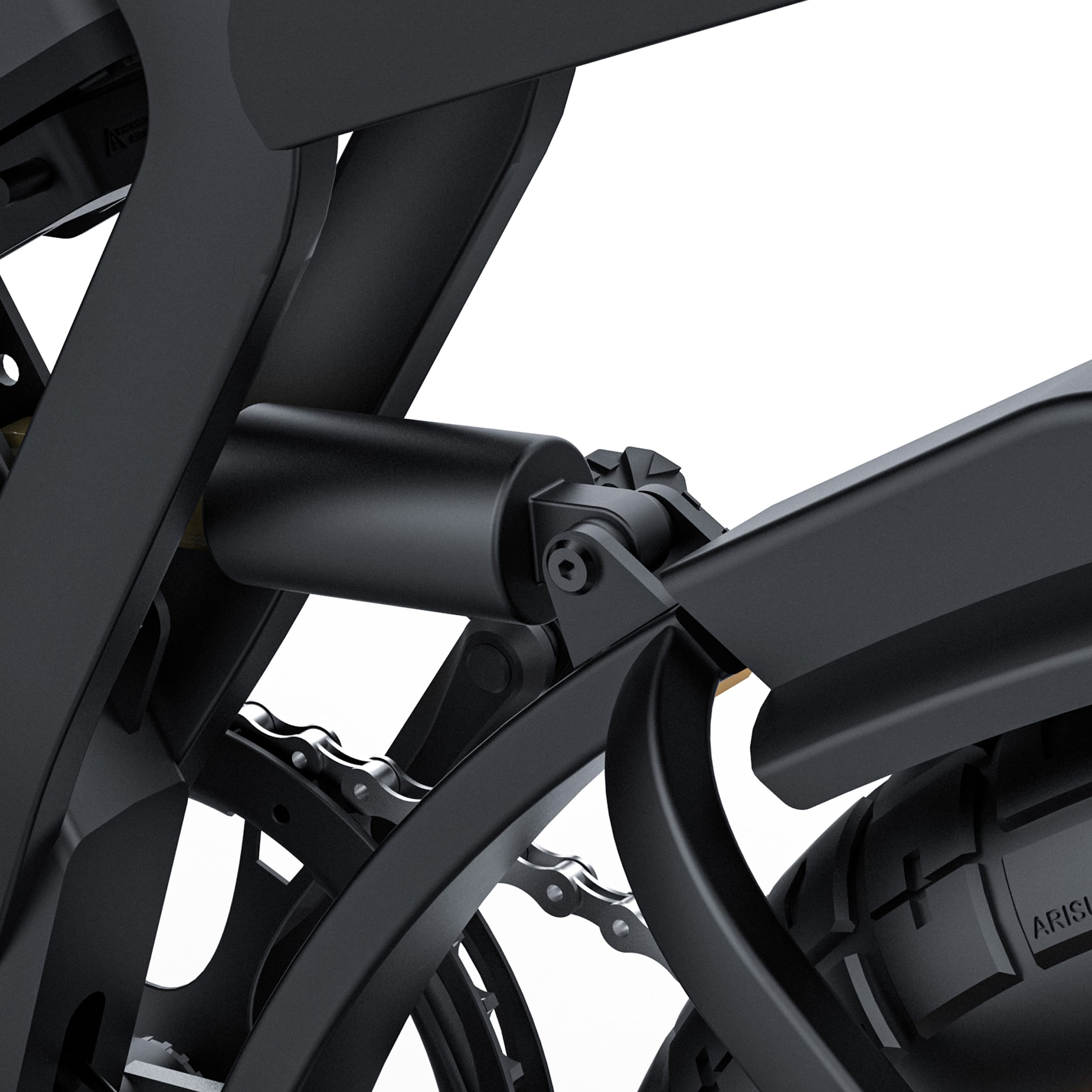

Rear Suspension: 850 lbs load, 180 mm travel
-

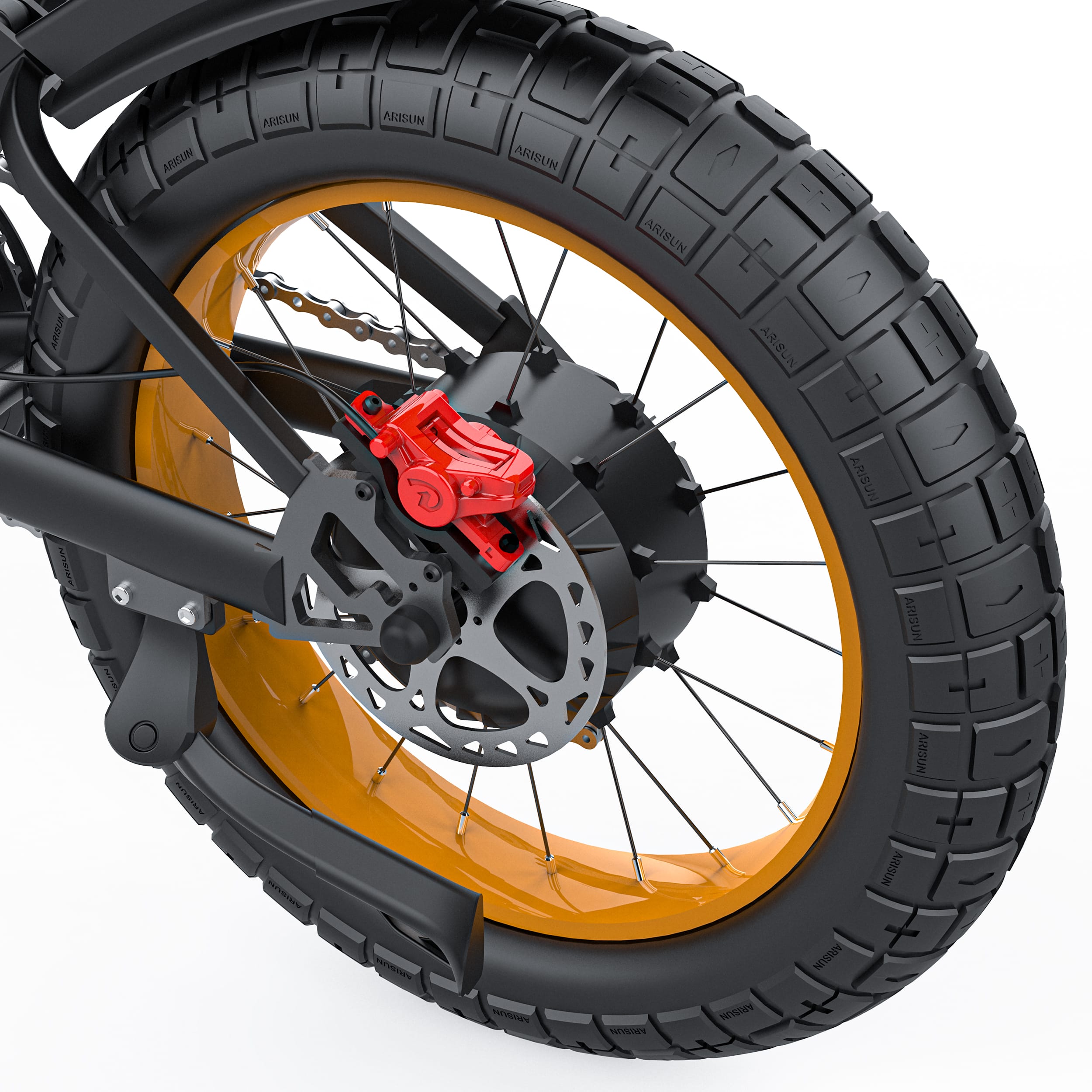

Brakes: Double piston oil brakes with 180 mm stainless brake discs
-
Tires: 20" × 4.0" off‑road tires
-

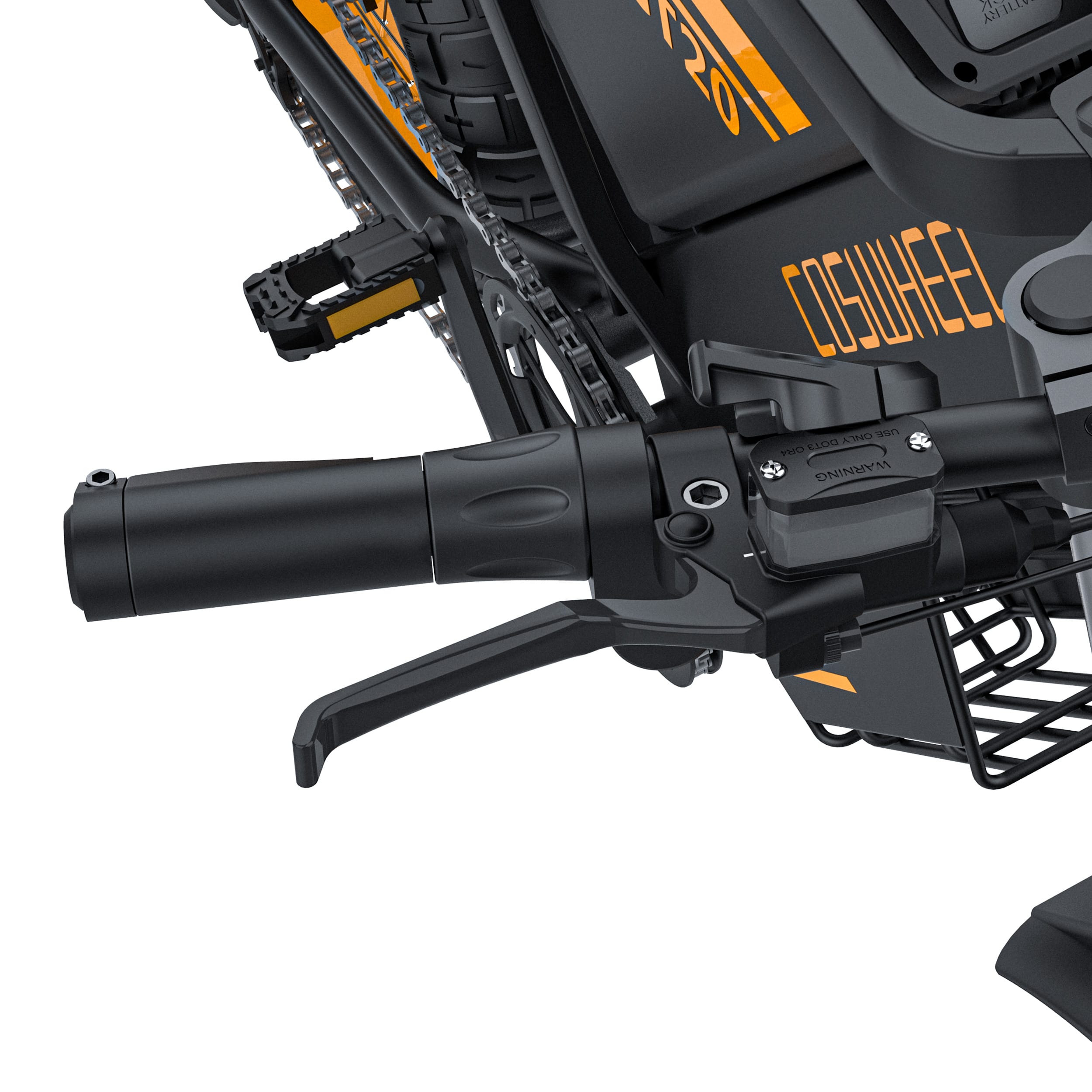

Throttle: Thumb throttle
Electronics
-
Charger: 48 V 3 A charger
-
Charging Time: Approx. 3.5–8.0 hours
-

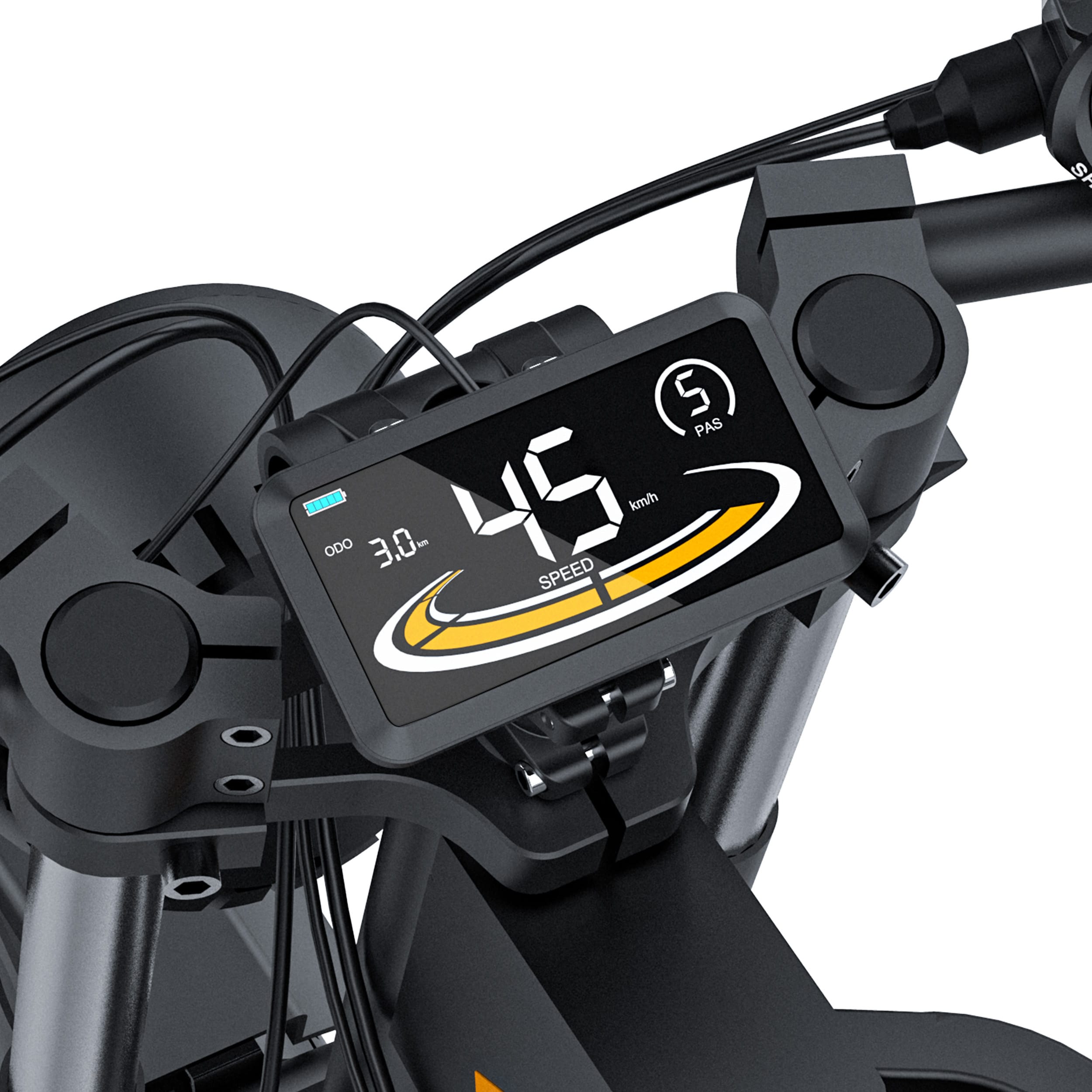

Display: Easy‑read LCD display
-
Controller: 48 V 28 A
-

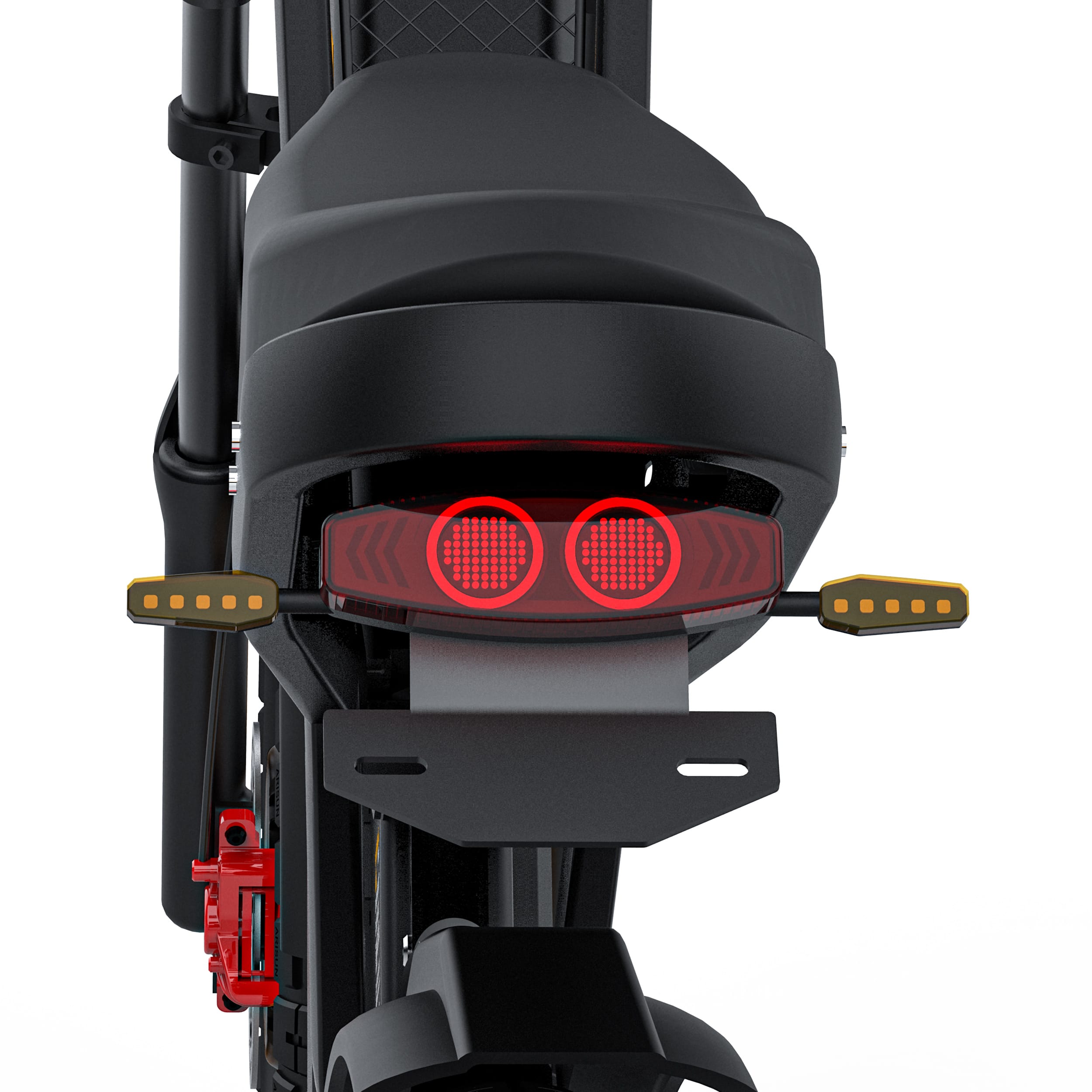

Lights: Front headlight and LED rear light
-
Pedal Assist: 3 levels
-
Sensors: Speed sensor
Frame & Components
-
Frame: Hydroformed triple‑butted 6061‑T6 aluminum alloy
-
Pedals: Aluminum alloy with reflectors
-
Crank: 1/2" × 3/32" × 46T 7‑speed ED tooth plate
-
Rear Derailleur: Shimano 7‑speed
-
Chain: 7‑speed anti‑rust
-
Handlebars: Split handlebar, sand black
Geometry & Capacity
-
Suitable Rider Height: 5’1" – 6’5"
-

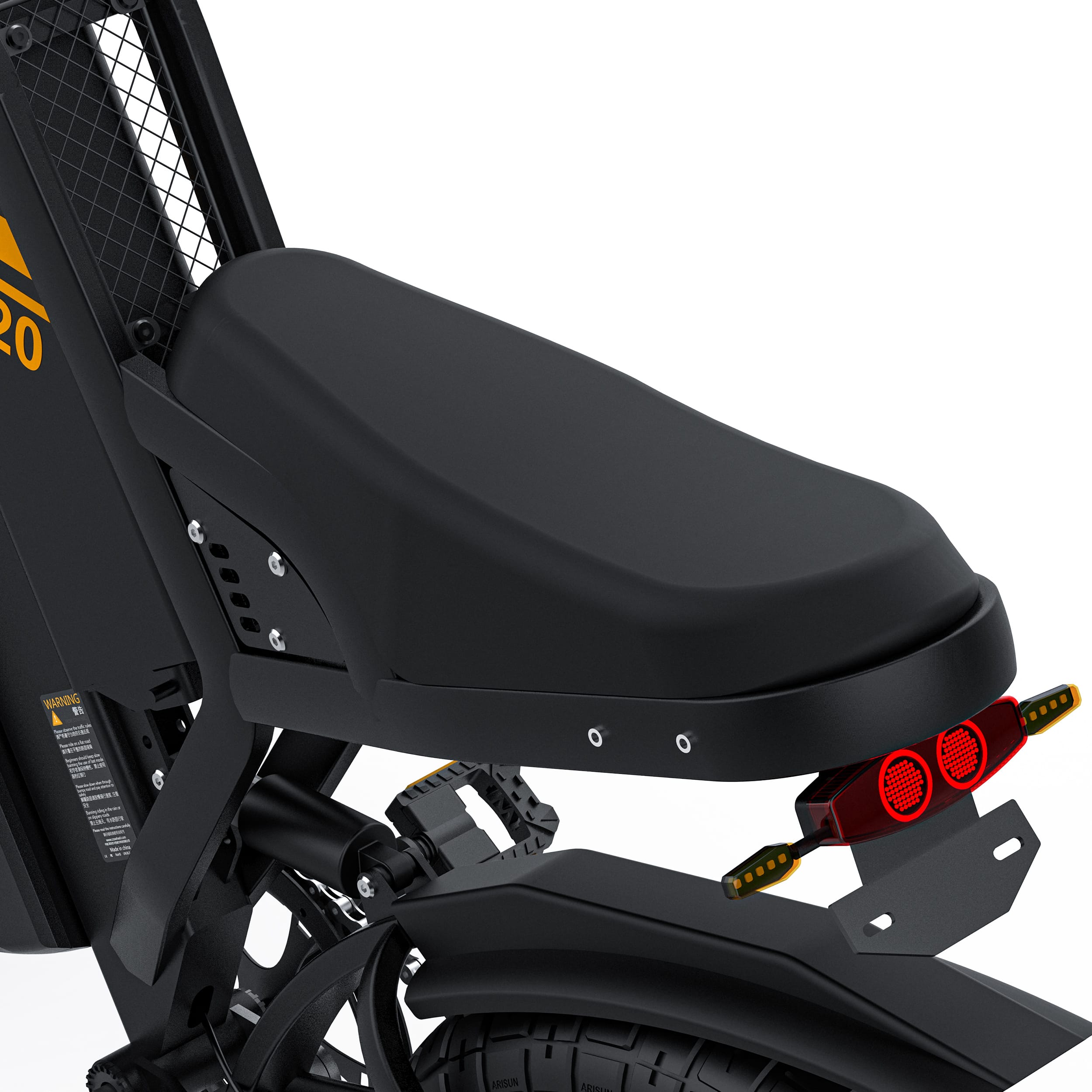

Seat Height: 32.6" (83 cm)
-
Bike Height: 41.7" (106 cm)
-
Wheelbase: 47.8" (121.5 cm)
-
Handlebar Width: 27.2" (69 cm)
-
Bike Weight: ≥99 lbs (≥45 kg) with battery
-
Maximum Load: ~330 lbs (150 kg)
-
Safe Load: ~265 lbs (120 kg)
-
Overall Size: 70.9" × 27.2" × 41.7" (180 × 69 × 106 cm)
-
Package Size: 59.4" × 13.8" × 36.2" (151 × 35 × 92 cm)
