Description
FCR carburetor designed for the specialized needs of the off-road racer.The NIBBI FCR carburetor has many new features to take motocross and ATV performance to the next level.
Specifications
- Color: Black
- Material: Aluminum alloy

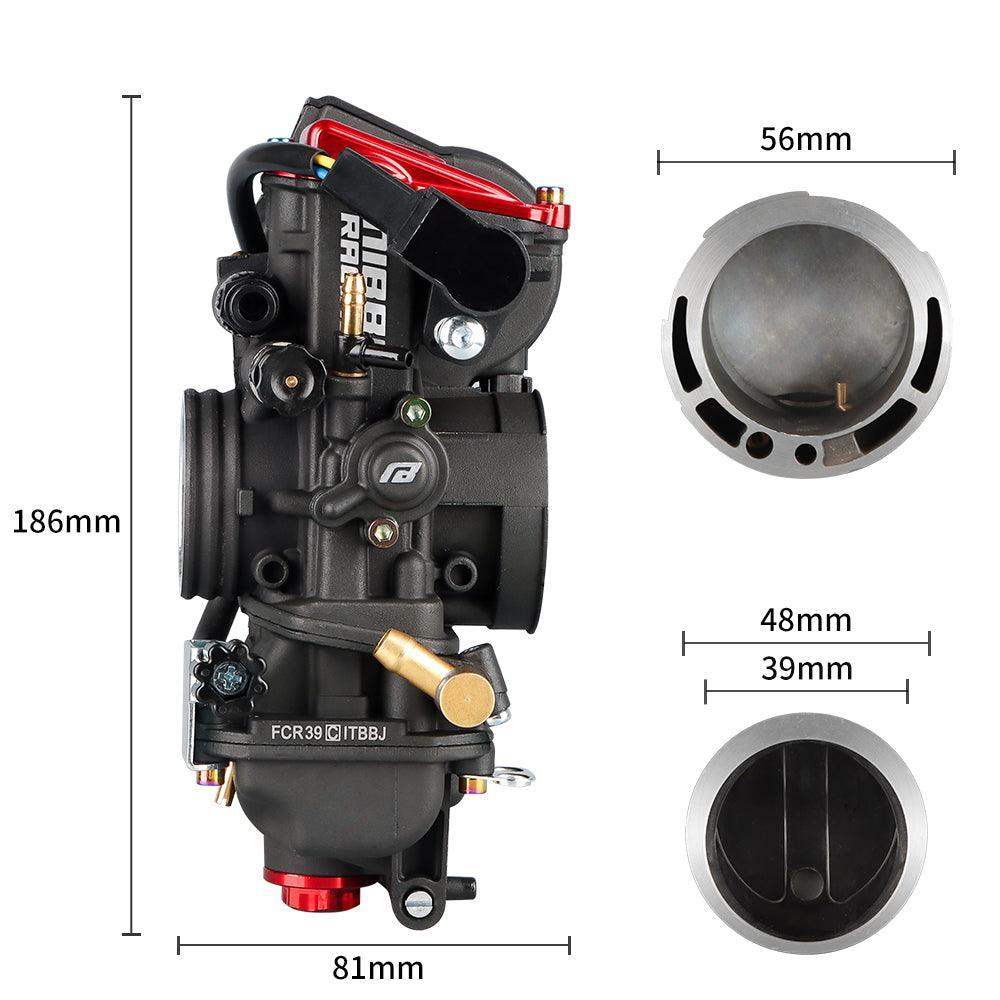

- Spigot: 48mm OD 39mm ID
- Intake: 56mm OD
- Height: 186mm
- Width: 81mm
- Suitable for 350cc~500cc engines
Features
- Over-flow drain joint and tube
- TPS (Trottle position sensor)
- ACV for enrichemnt in decelaration
- Hot re-start knob
- Quad vents
- Throttle cable enclosure
- High capacity float chamber
- Float chamber baffle for rough terrain
- Smooth bore for maximum air flow
- Flat slide with vacuum release plate for best throttle response and flow control
- Rollers on throttle valves and progressive linkage for smooth operation and control
- Equipped with accelerator pump to eliminate flat spots
- Designed for easy installations on popular motorcycles
- A full range of spigots/adapters/velocity stacks/ is available
- Easy jetting which can be done trackside

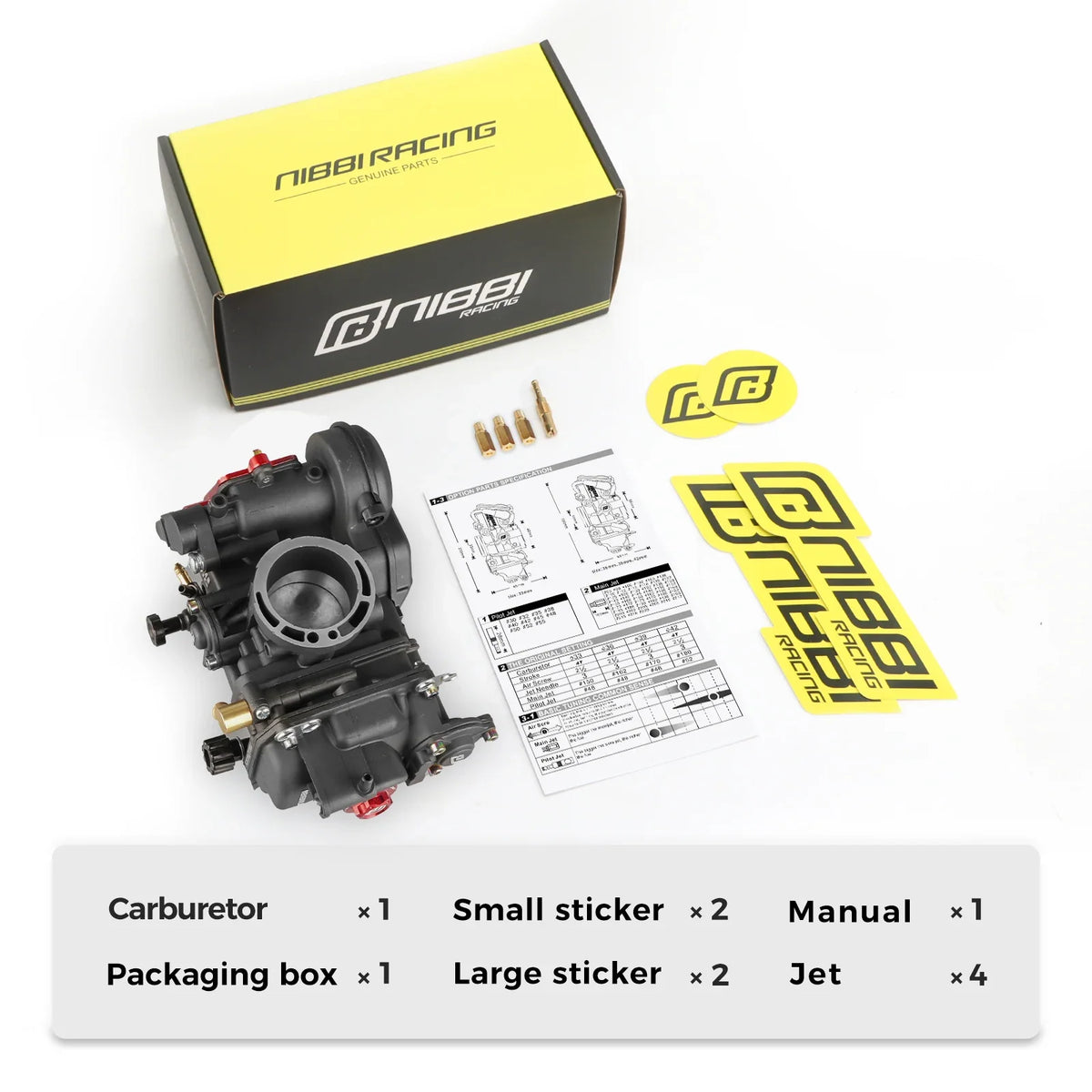

- FCR39 Carburetor *1
- Main Jet
- Pilot Jet
- Stickers *2
- Instructions *1
- Packaging Box *1
