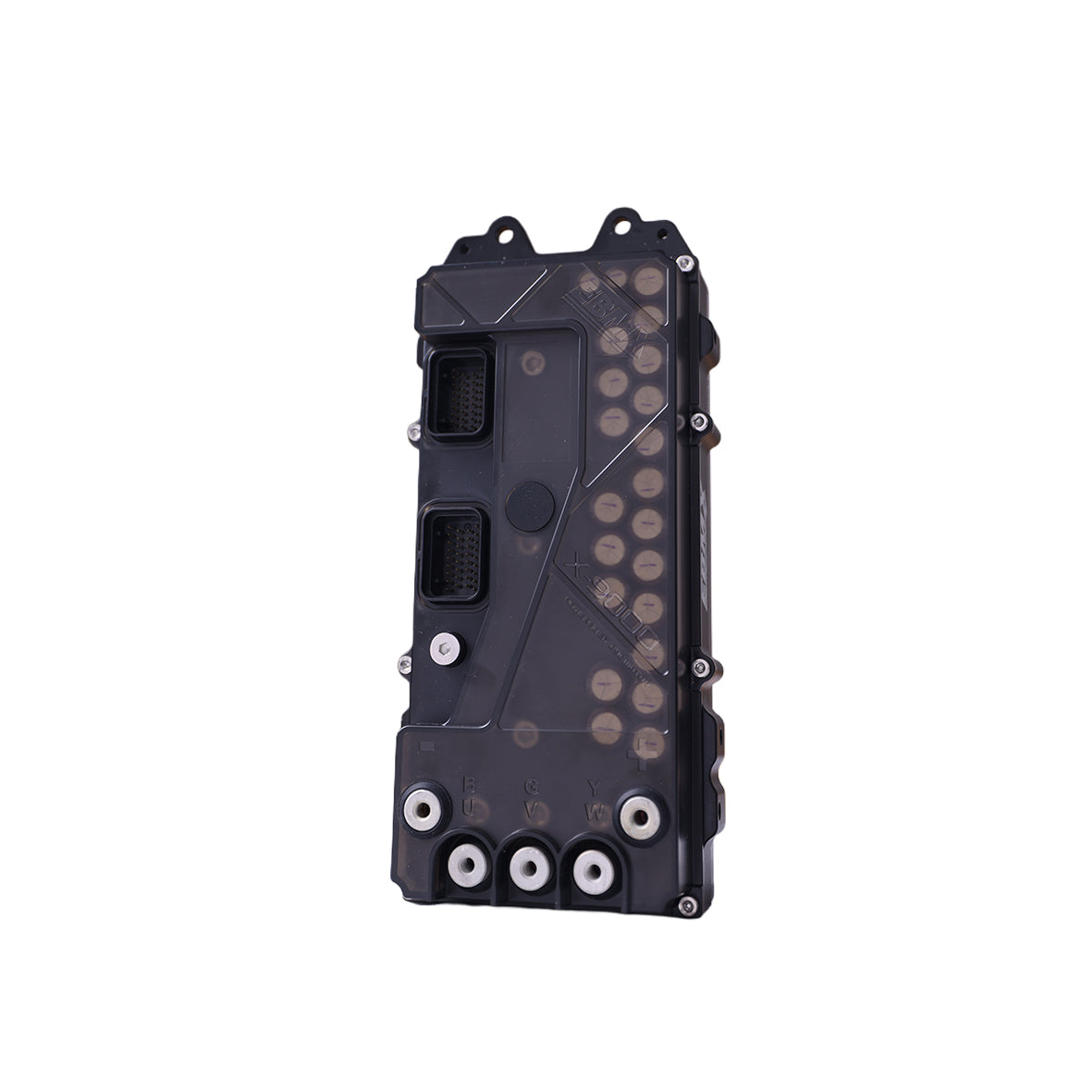

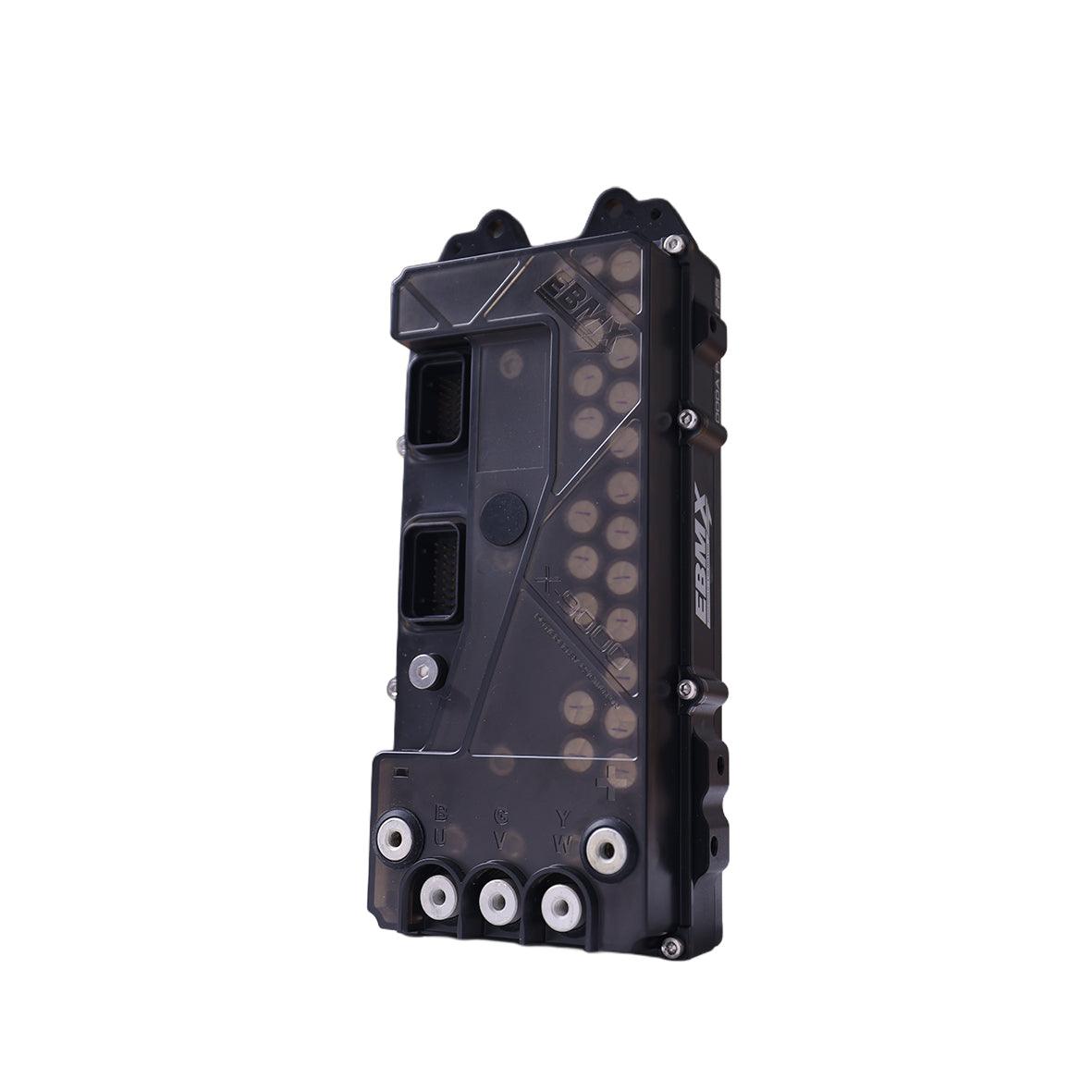

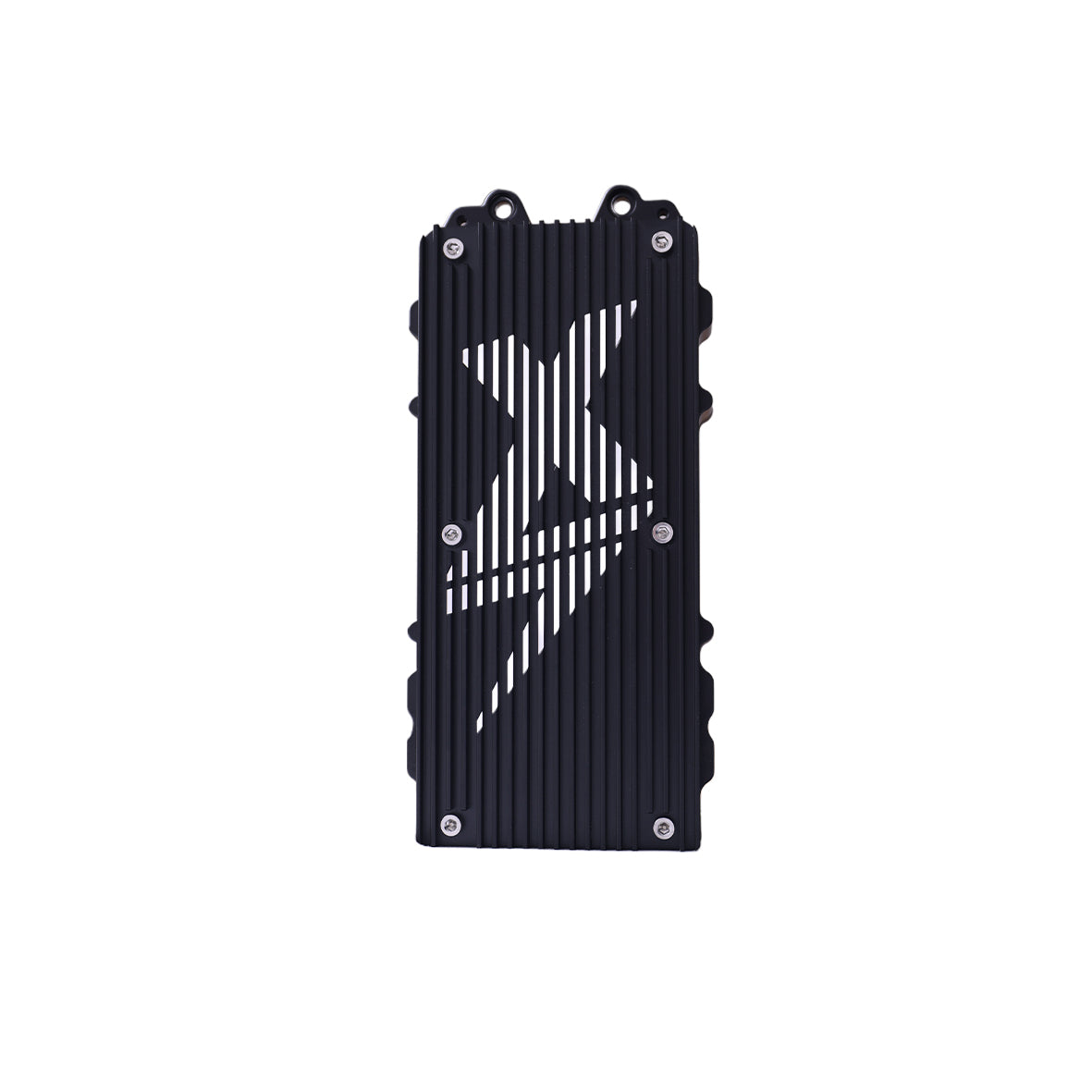

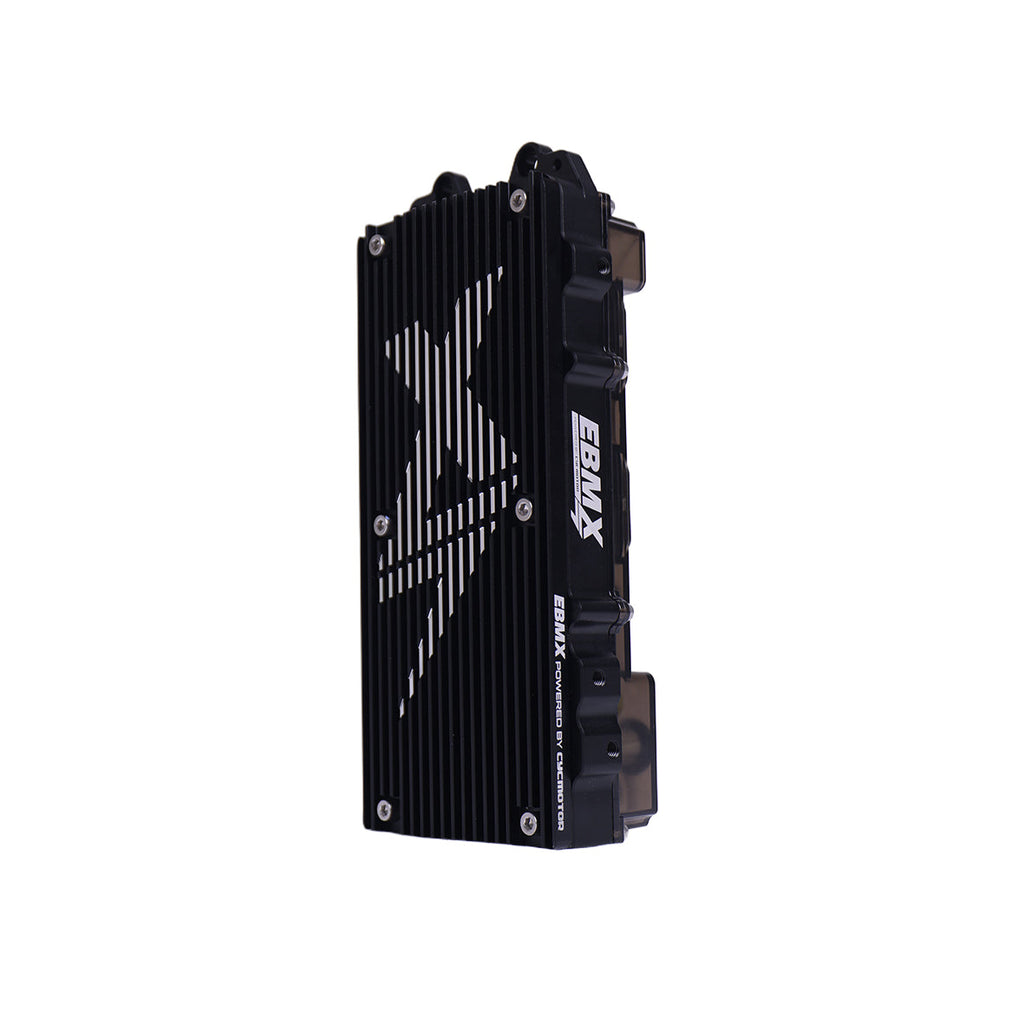

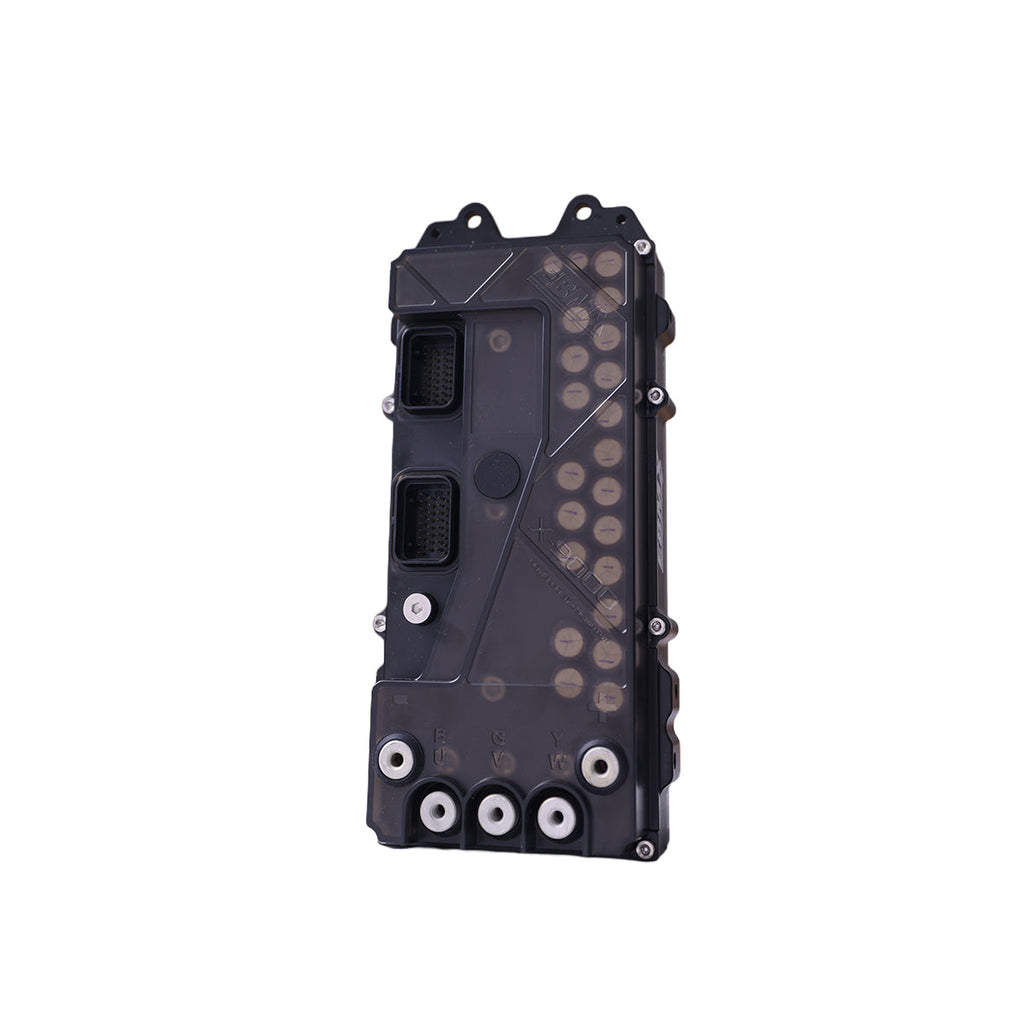

EBMX X-9000 V3 Controller
& Wiring Harness (Full Kit)
for Sur-Ron, Talaria, E-Ride Pro, Altis Sigma & More
The all-new EBMX X-9000 V3 Controller Kit is in stock, and shipping now! The EBMX X-9000 V3 controller is a complete redesign of the industry-leading V2 controller. After 18 months of testing and refinement, the X-9000 V3 electric dirt bike controller delivers unmatched performance, thermal efficiency, and plug-and-play compatibility with Sur Ron, Talaria, E-Ride Pro, Atlis Sigma, and other high-performance E-Moto platforms.
Built for serious riders and racers, this is more than the average aftermarket electric dirt bike controller — it’s a fully integrated, highly tunable, maximum performance ecosystem.
What's New with the EBMX X-9000 V3:
- 30x Infineon MOSFETs for 50kW continuous / 60kW peak power output
- 6-layer PCB and CNC copper busbars – 30% cooler operation than V2

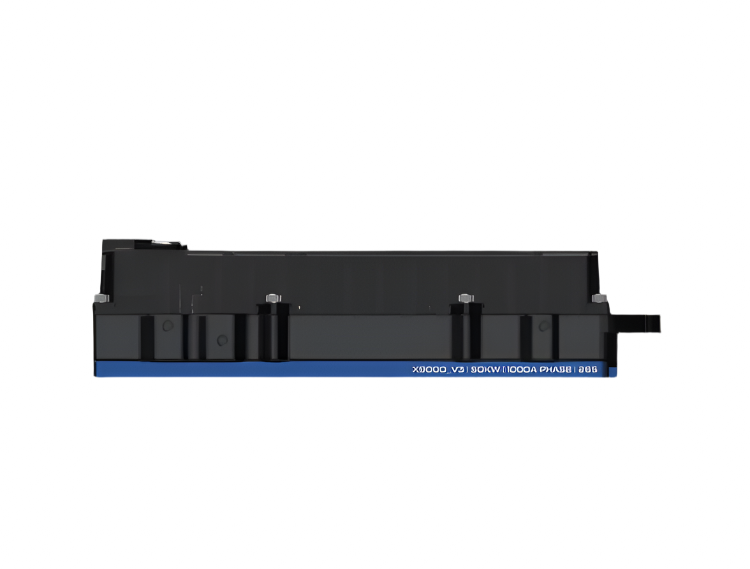

- Slimmer rear profile for better fitment
- New square-set plug system to prevent pin damage
- Removable harness for easier servicing
- Supports 120V builds (no longer limited to 72V)
- Integrated IMU with Wheel Lift Assist
- EBMX X-Series App: Full throttle, regen, and motor tuning via Bluetooth
- Updated SW102T Color Display with customizable metrics
App & Display Integration:
- Live tuning: Regen, throttle curve, max amps, motor settings
- Load-and-Go Profiles: Choose presets by bike or battery type
- Modes: Street / Race, plus 3-level assist & EBMX E-Clutch
- Live Metrics: Power output, RPM, temp, speed, distance, regen, etc.
X-9000 Fitment / Compatibility:
This controller is plug-and-play for:
- Sur Ron Light Bee / Ultra Bee
- Talaria MX3 / MX4 / MX5 / XXX
- E-Ride Pro SS 2.0 (V3 Battery)
- E-Ride Pro SS 3.0 (Breaker & Non-Breaker Versions)
- E-Ride Pro SR
- ReRode R1
- QS138 70H / 90H
- 79 Bike Falcon S / Pro
- Altis Sigma (coming soon)
* V2 harnesses are NOT compatible with V3.

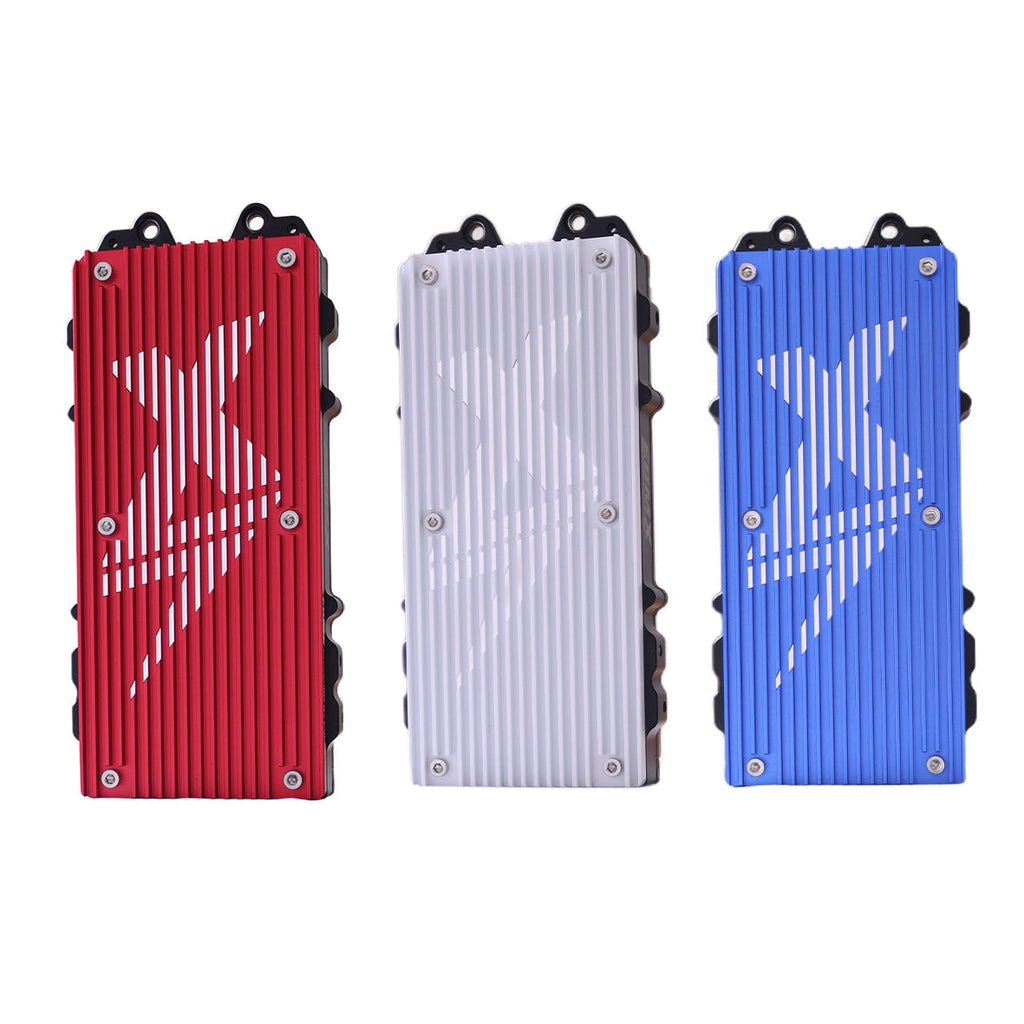

** Colored heatsinks available (Red, Blue, White, Purple, Gold)
*** Water-cooled upgrade option available for high-endurance race builds.
Compatible Motors (Preloaded Tunes):
- OEM Sur Ron / Talaria / E-Ride Pro motors
- EBMX XLB-60, XTA-60, XUB-80
- KO RS & KO F Spec
- QS138 70H / 90H
- 30+ supported motor profiles out of the box

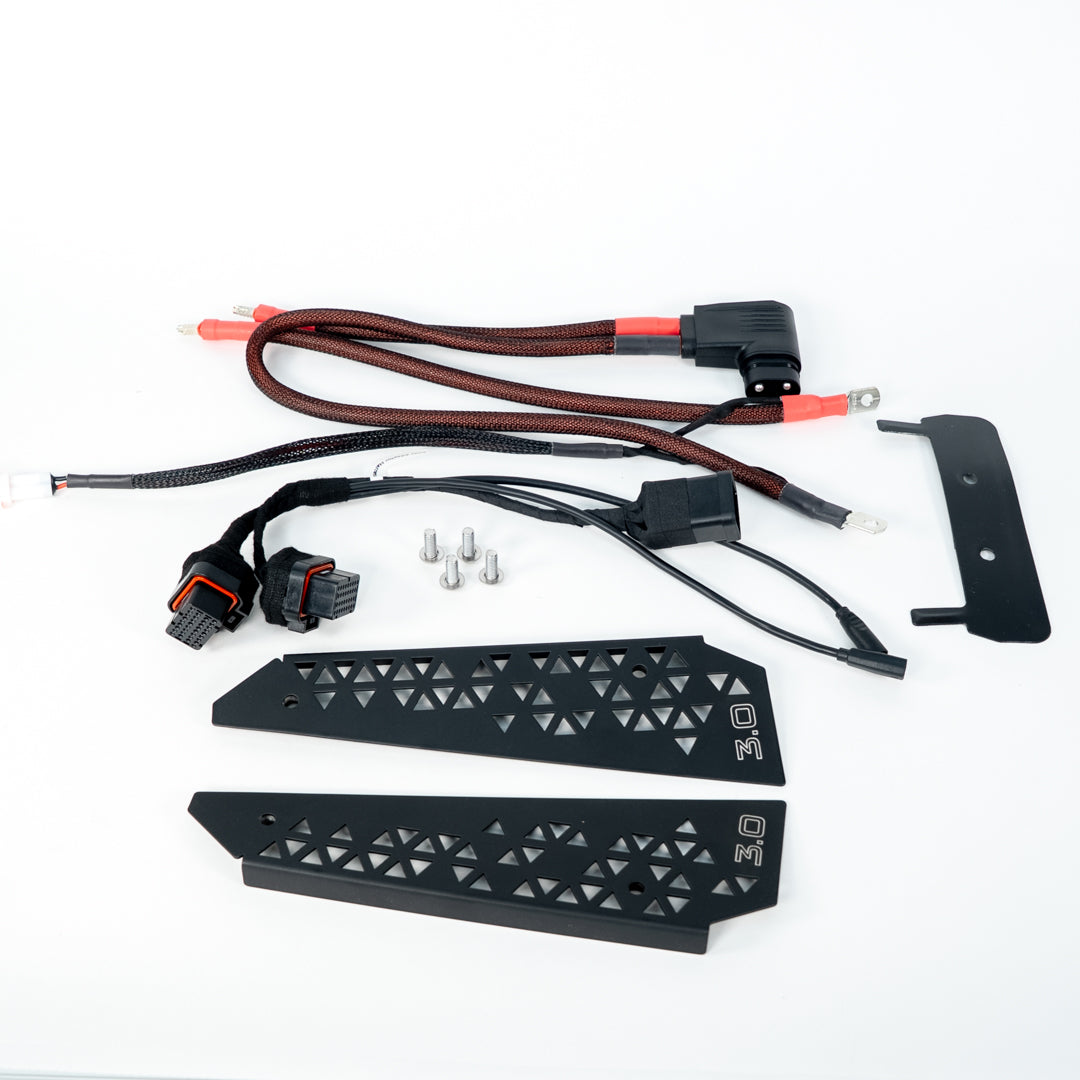

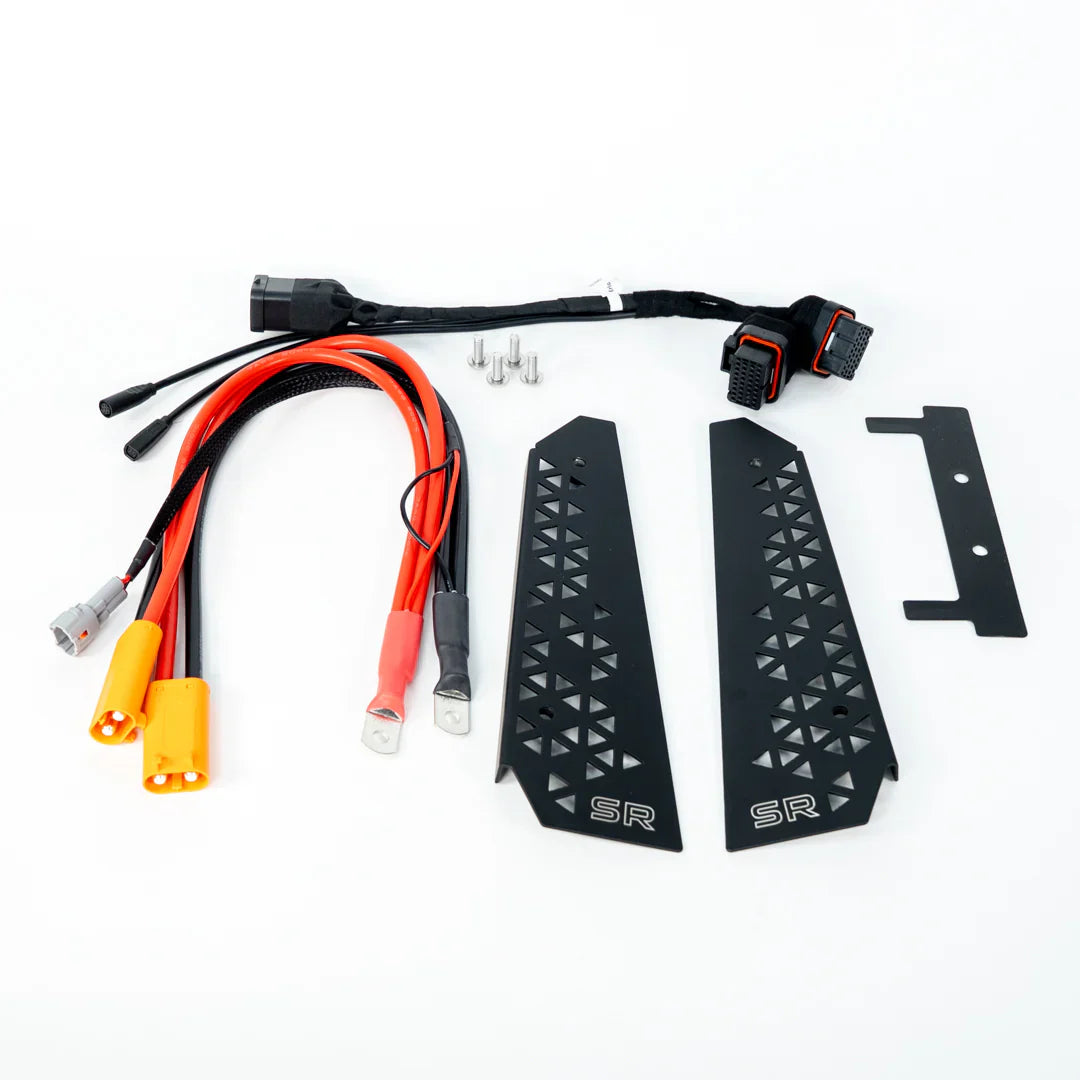

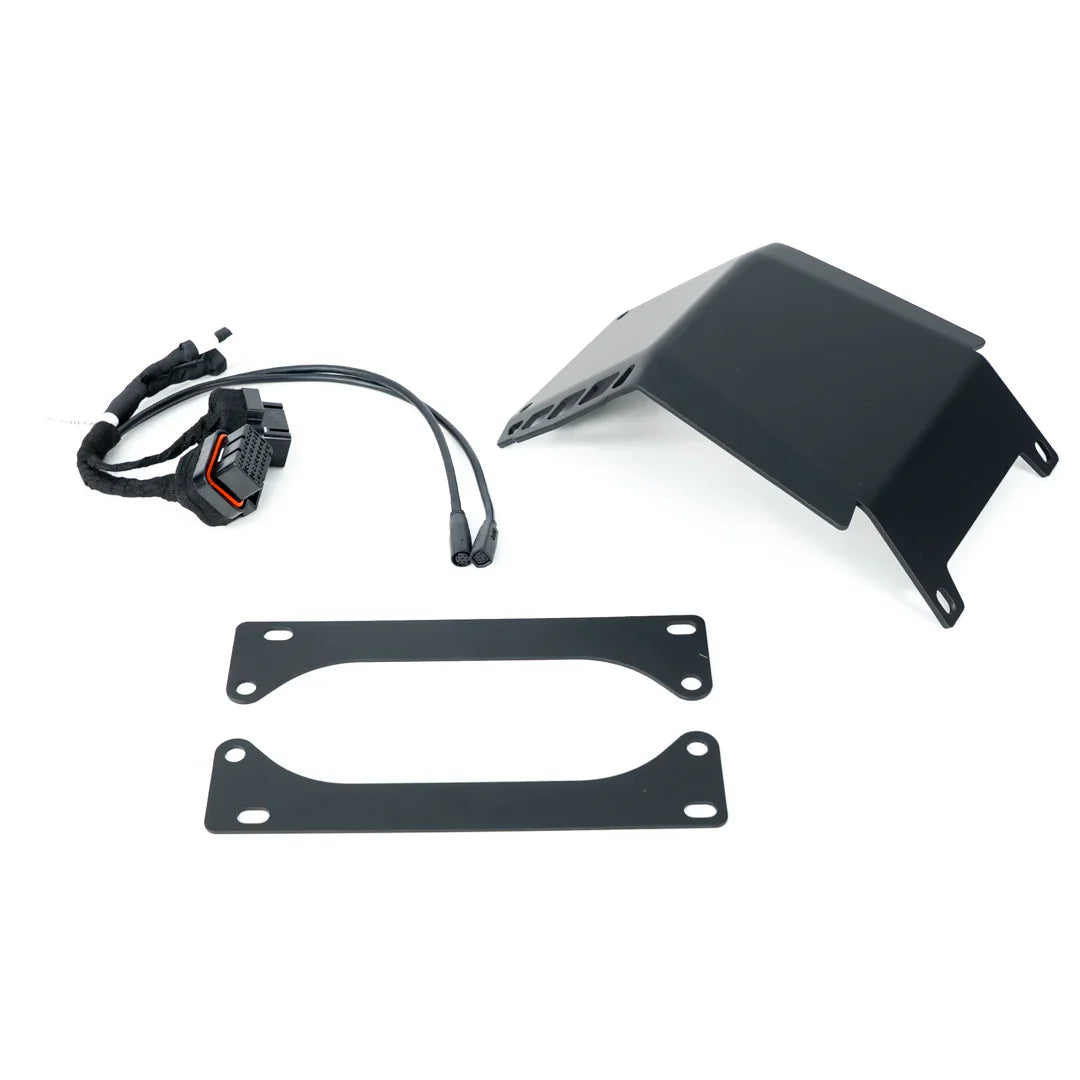

Full Kit Includes:
- EBMX X-9000 V3 Controller
- Air-Cooled Heatsink
- SW102T Full-Color Display
- Thumb Throttle
- Bluetooth Module

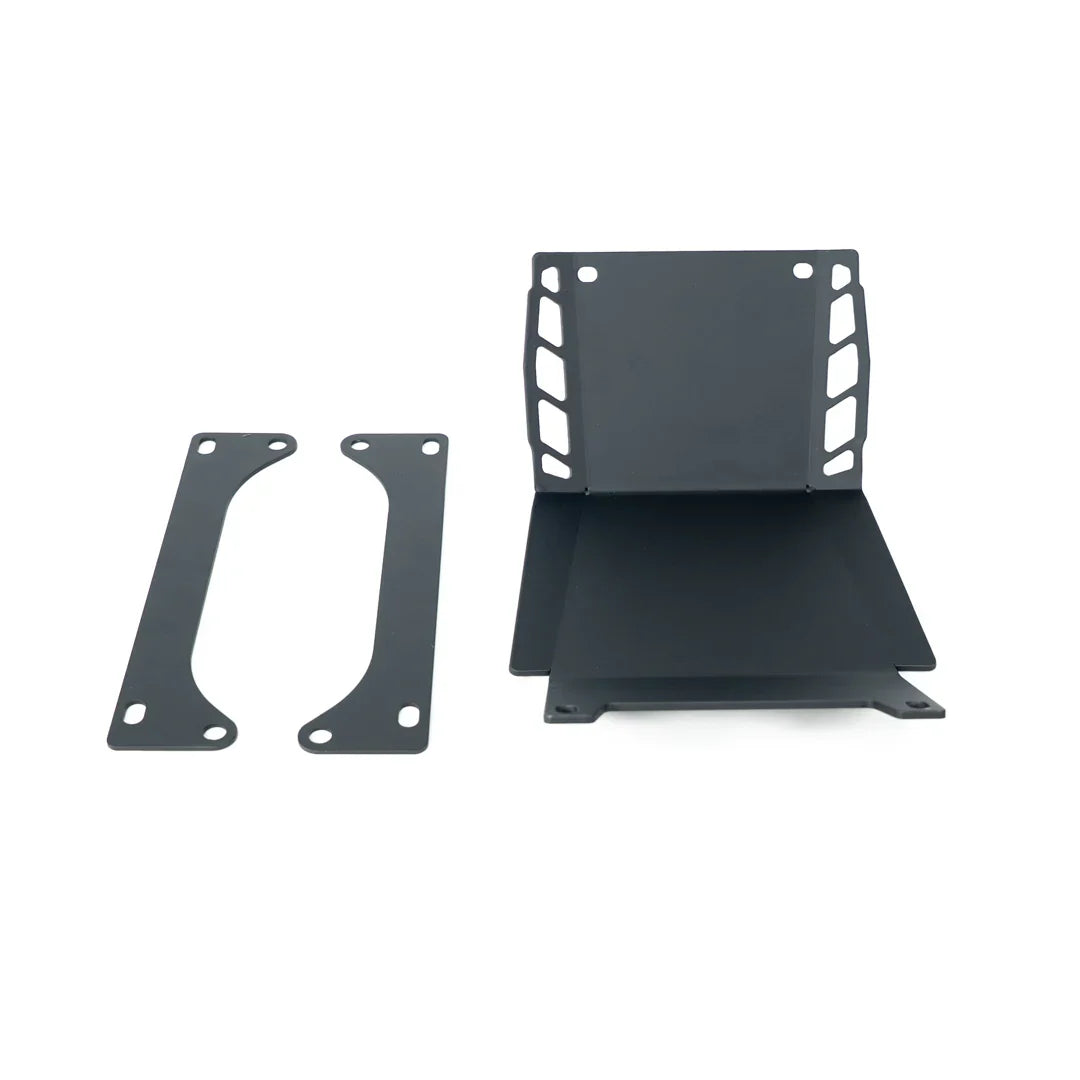

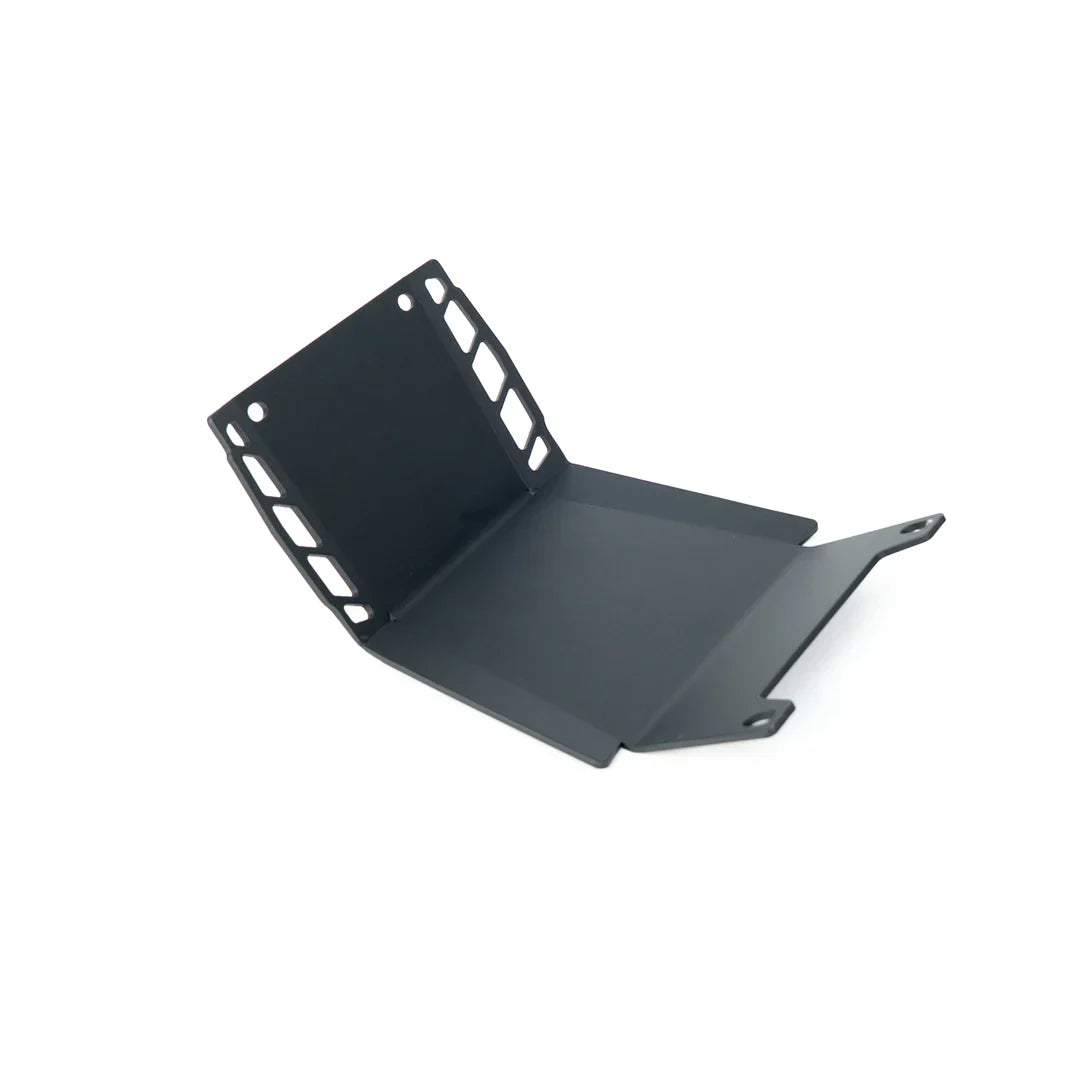

- Mounting Brackets

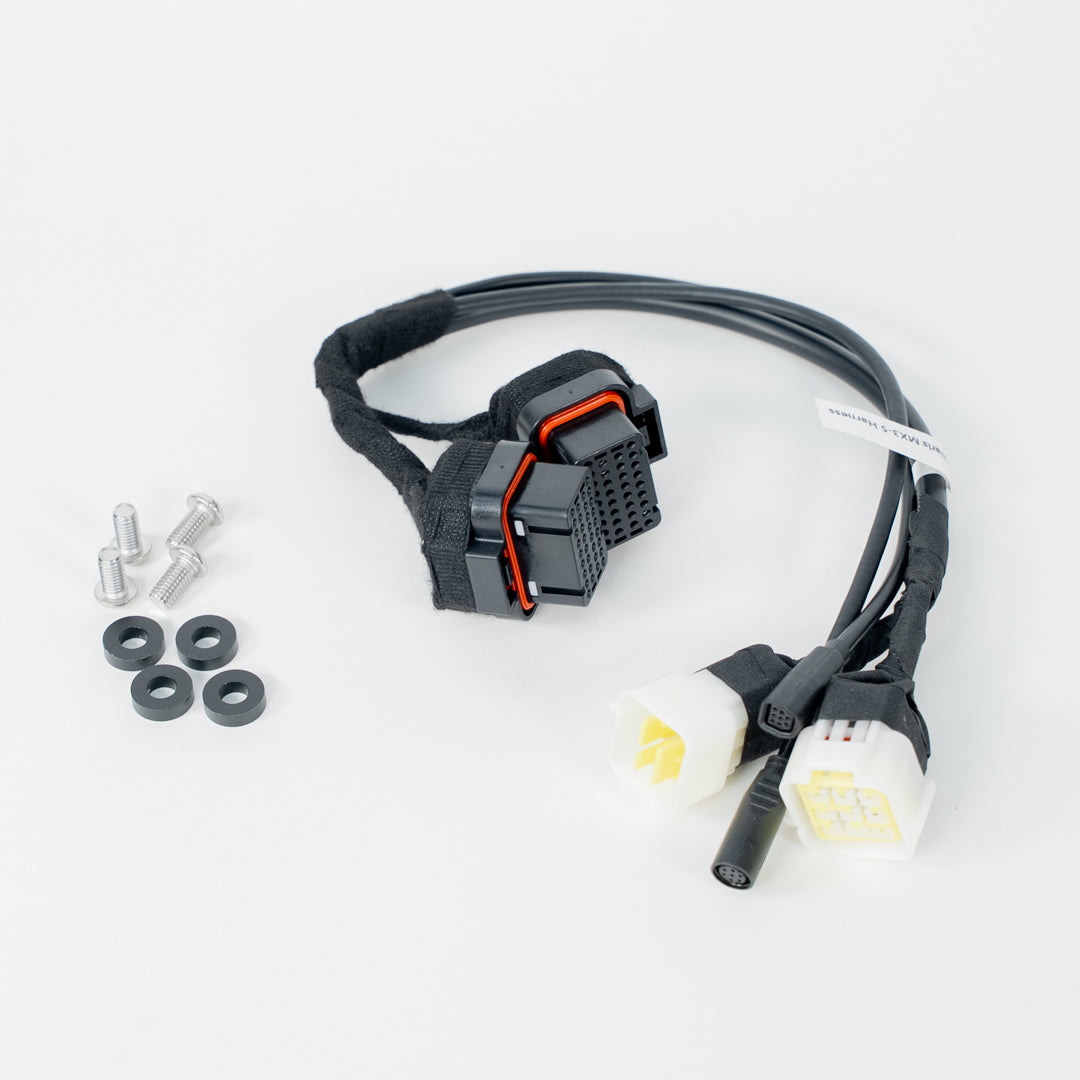

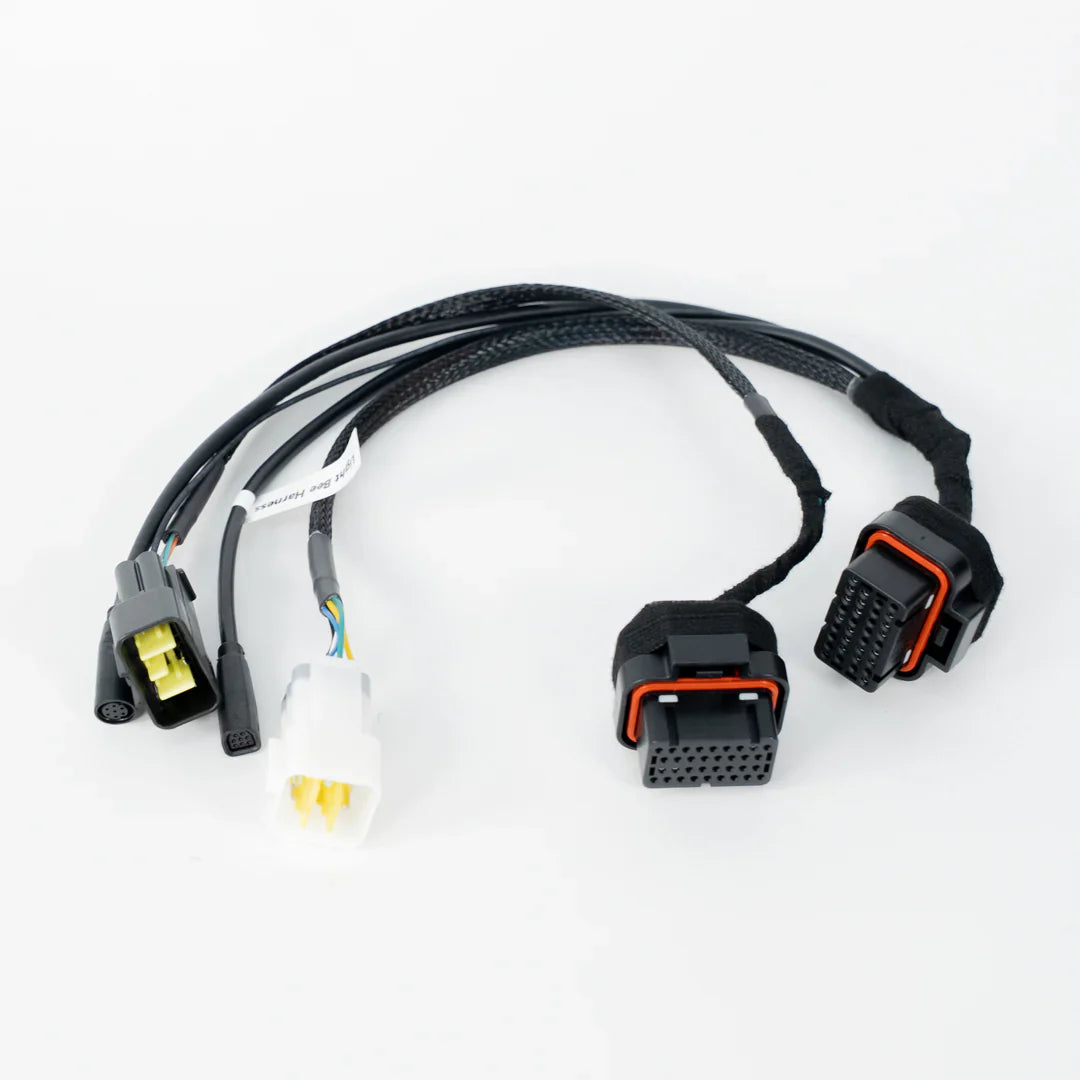

- 1–2 Wiring Harness Adapter
- IP67-Rated CNC Alloy Housing
X-9000 V3 Specifications:
| Spec | Detail |
|---|---|
| Rated Power | 50kW Continuous / 60kW Peak |
| Voltage | Up to 120V (48–110V Operating) |
| Phase Current | 1000A Continuous / 1600A Burst |
| Control Protocol | Field-Oriented Control (FOC) – VESC |
| Firmware | Custom EBMX VESC |
| IMU Support | Wheel Lift Assist & E-Clutch |
| Waterproofing | IP67 Rated |
| Operating Temp | -25°C to 80°C |
| Warranty | 2 Years |
| Heat Sink Colors | Black (included) / Red / White / Blue/ Purple / Gold |
Built for Riders Who Want:
- Maximum power + smooth throttle feel
- Full adjustability from their phone
- Reliable, thermally stable high-performance output
- Seamless tuning, no laptop required
- Safer wheel control with built-in IMU
