EBMX X-9000 V2 3.5" Full color display

EBMX Enhanced Display for X9000 V2 Controllers – Available at Rev Rides

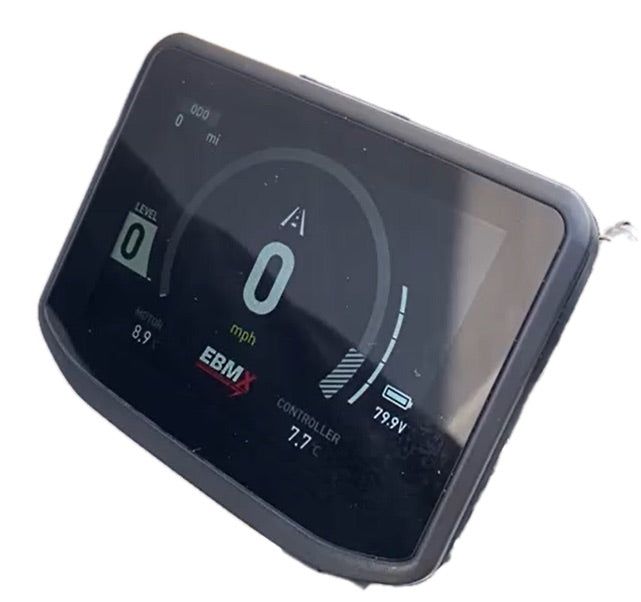

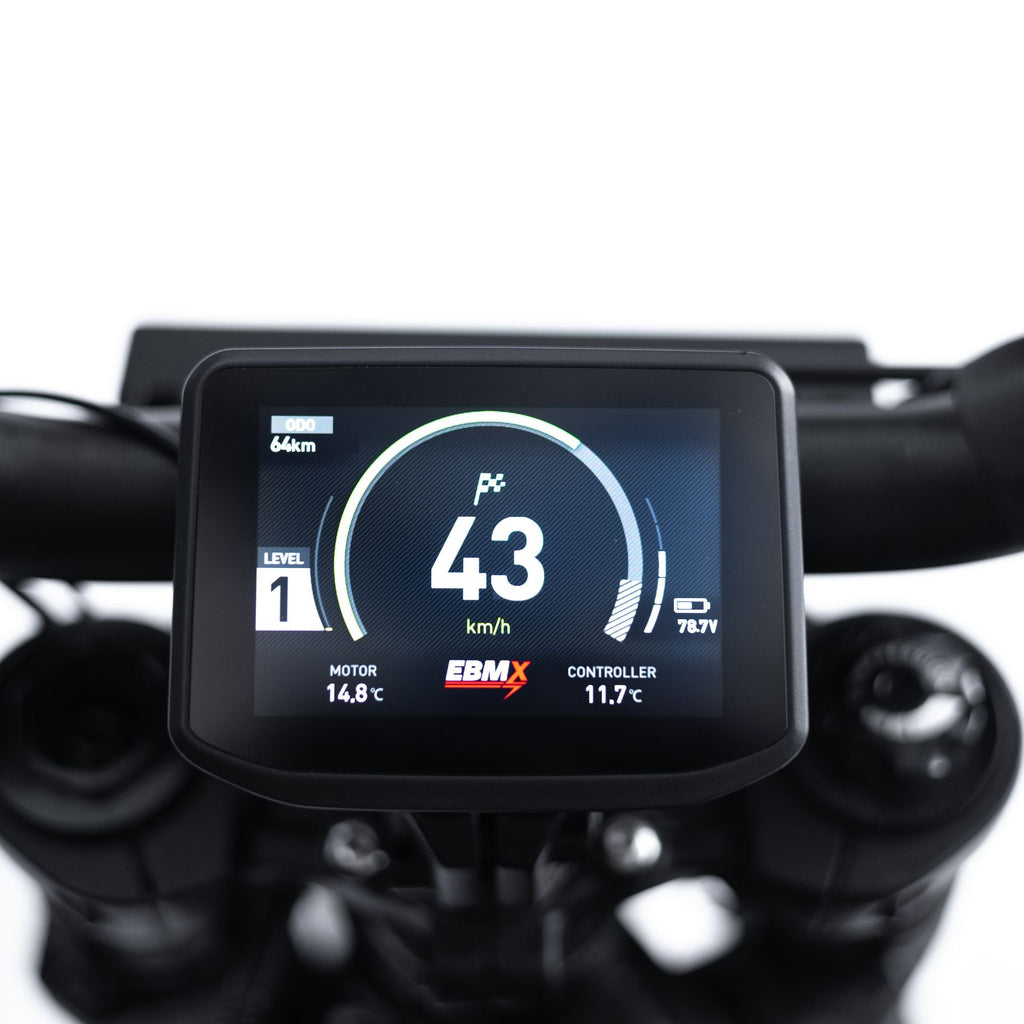

Elevate your riding experience with the EBMX 3.5" TFT Display, now available through Rev Rides. Designed specifically for EBMX X9000 V2 Controllers, this advanced display allows you to monitor motor and controller temperatures seamlessly, ensuring you're always informed during your ride.

CURRENTLY DOES NOT WORK OUT OF THE BOX FOR V3 CONTROLLERS

Key Features:

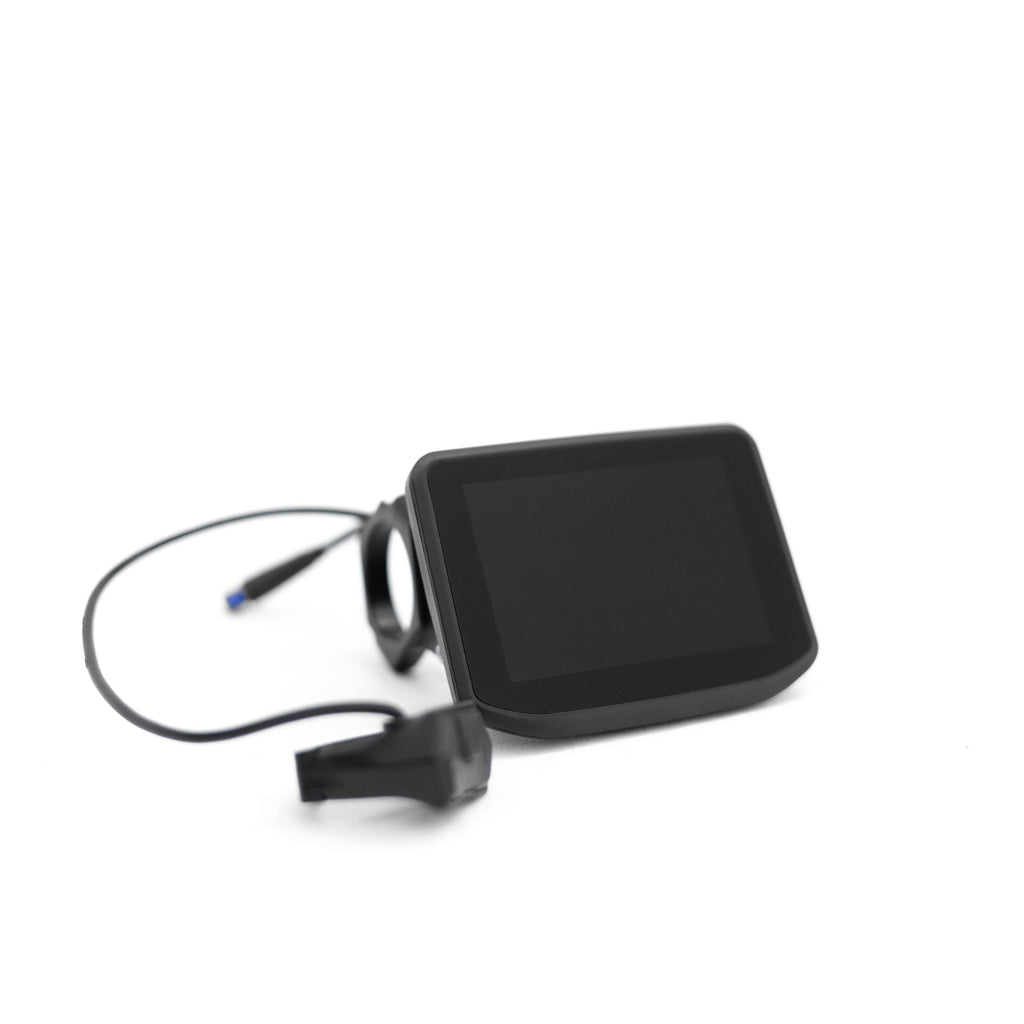

Base kit

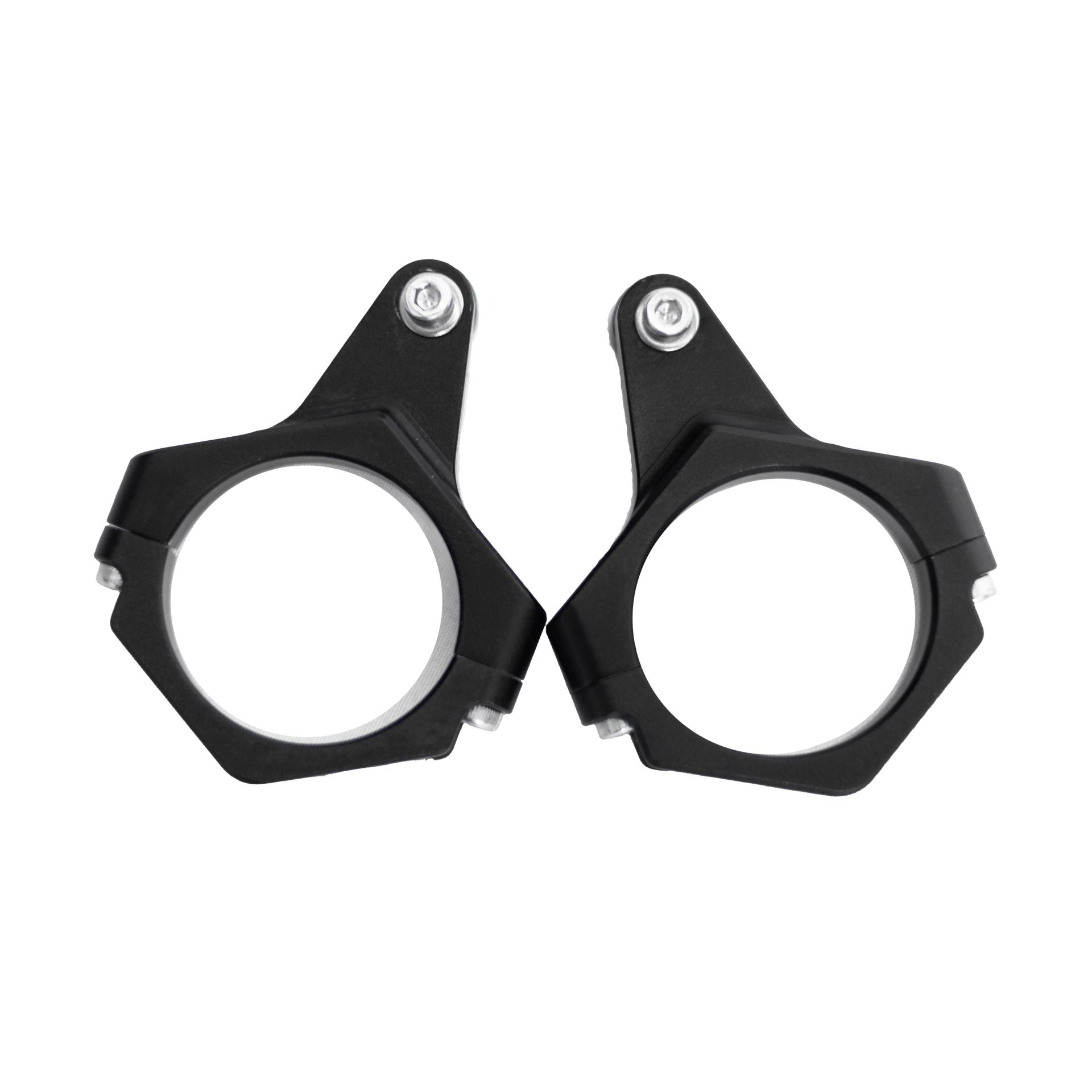

. CNC mounts for MTB and Moto Bars (31.8 and 28.6)
. New canbus 2-1 cable included
. No setup required just install (830 and up firmware required)

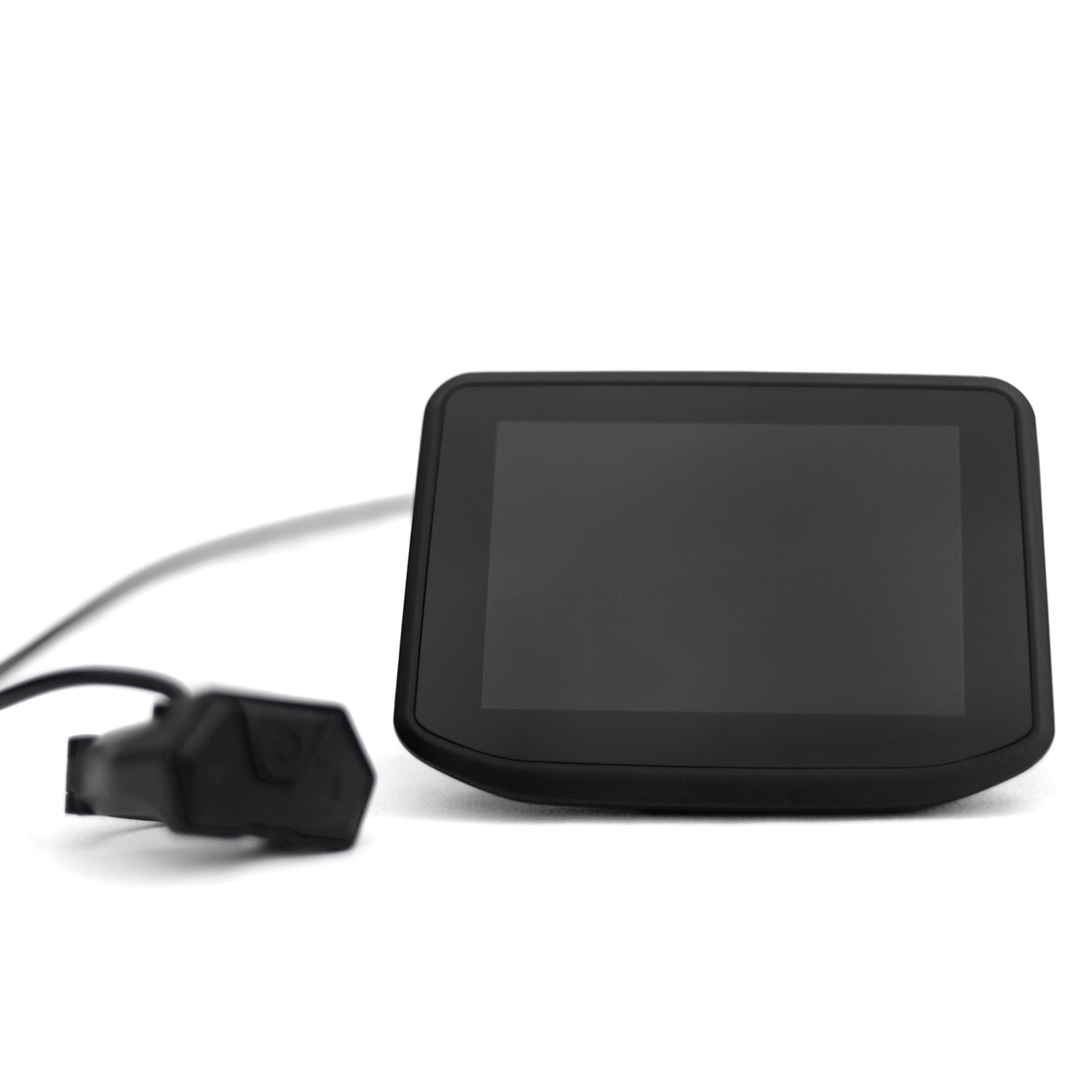

. 3.5 Inch TFT display
. IP67

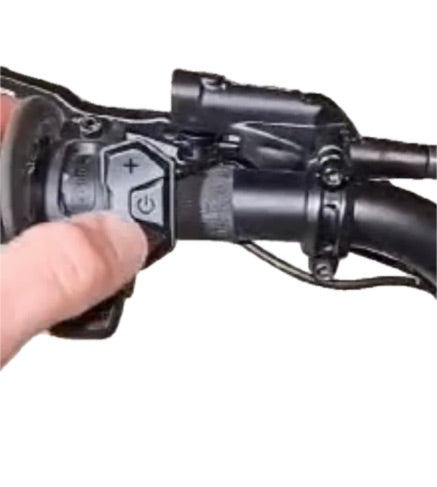

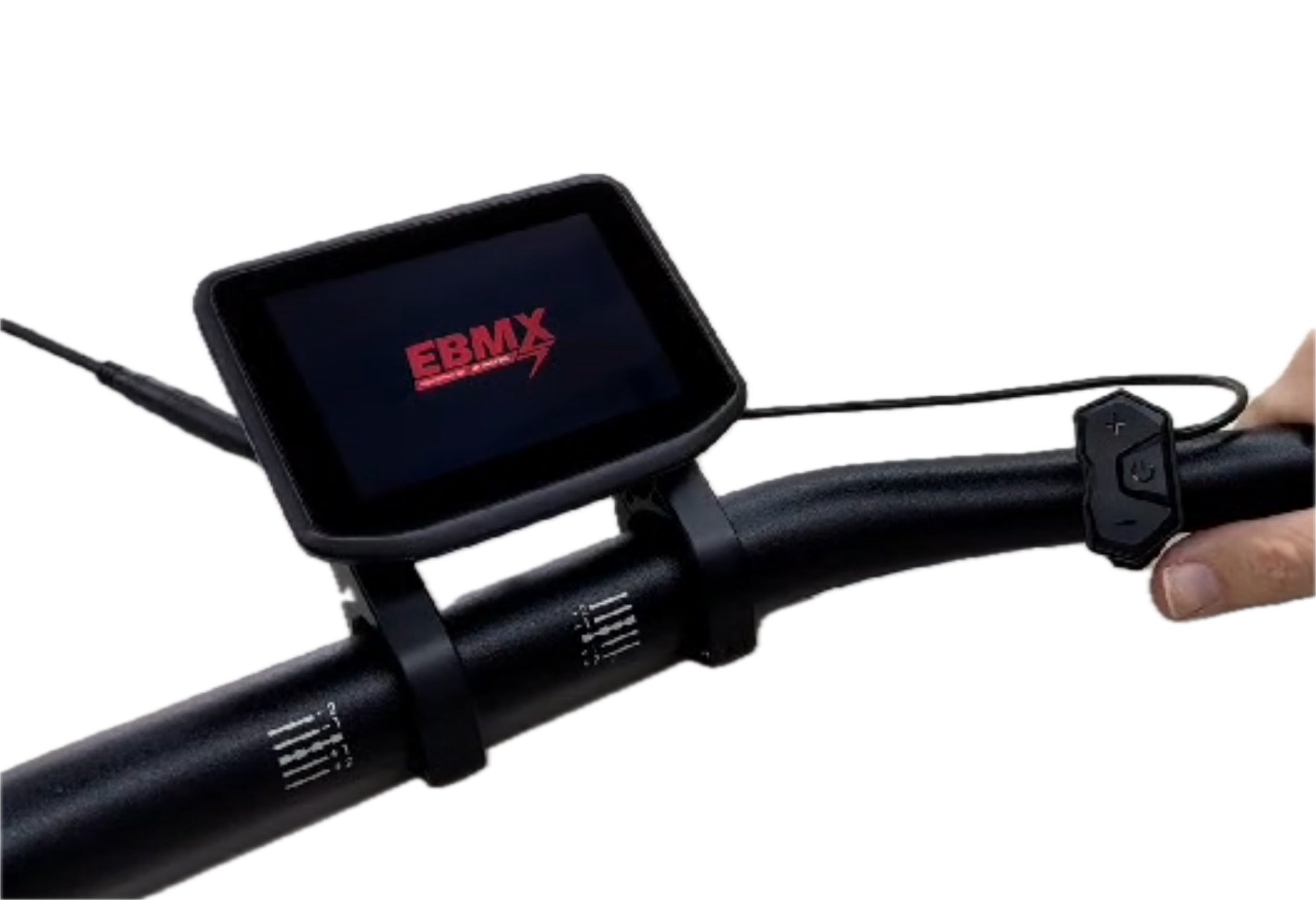

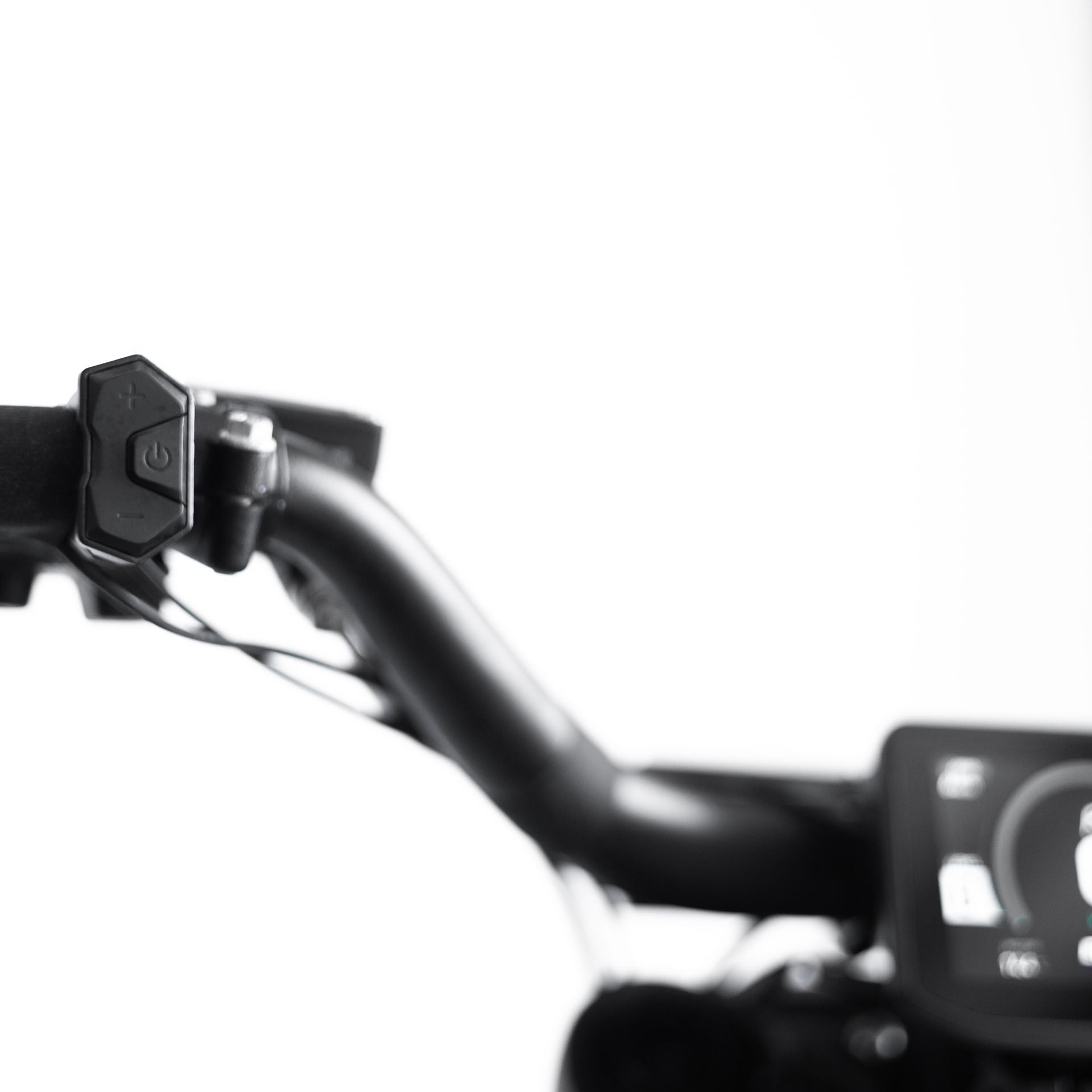

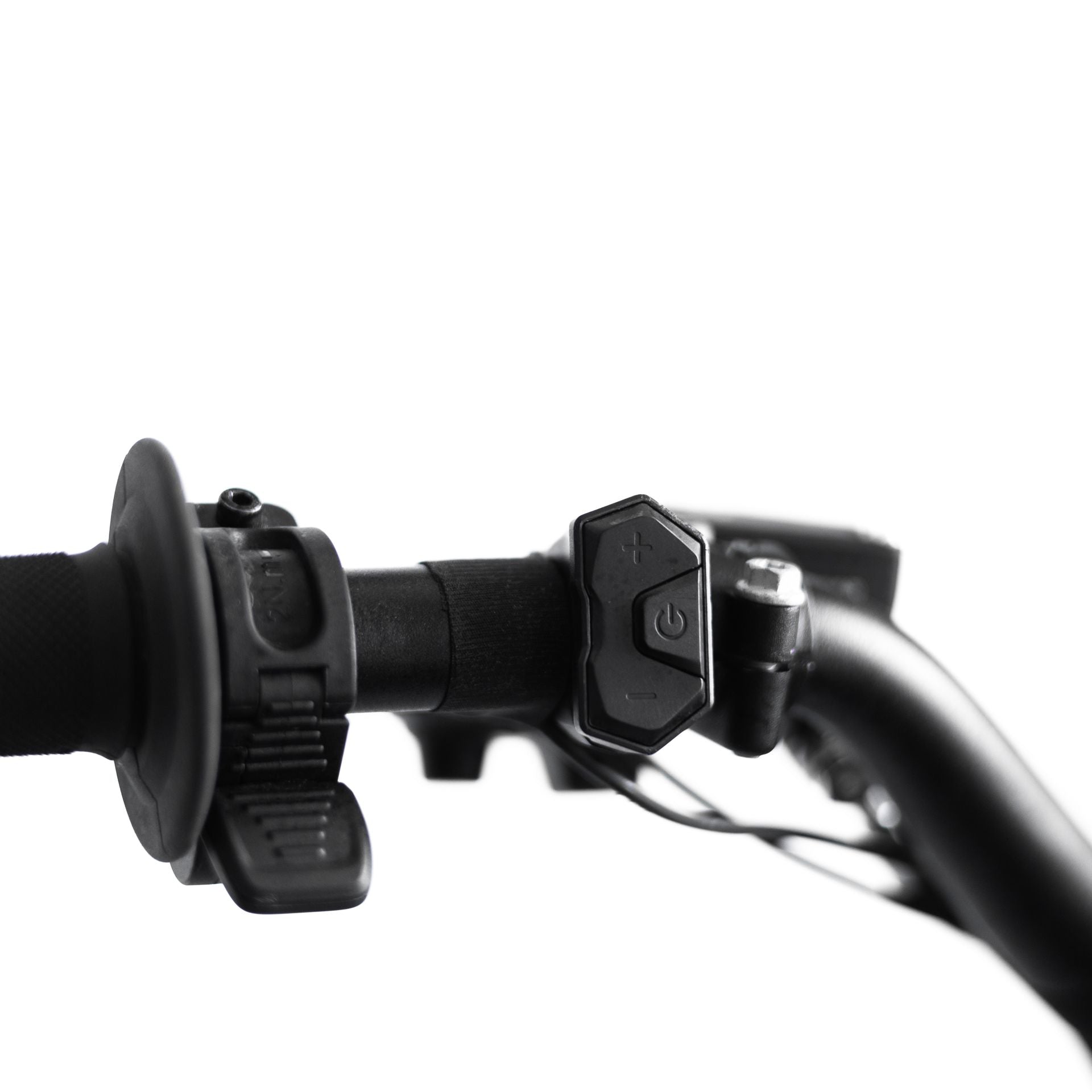

. New mode button included
. Display to button cable length 350mm
. Display to canbus connector length 250mm

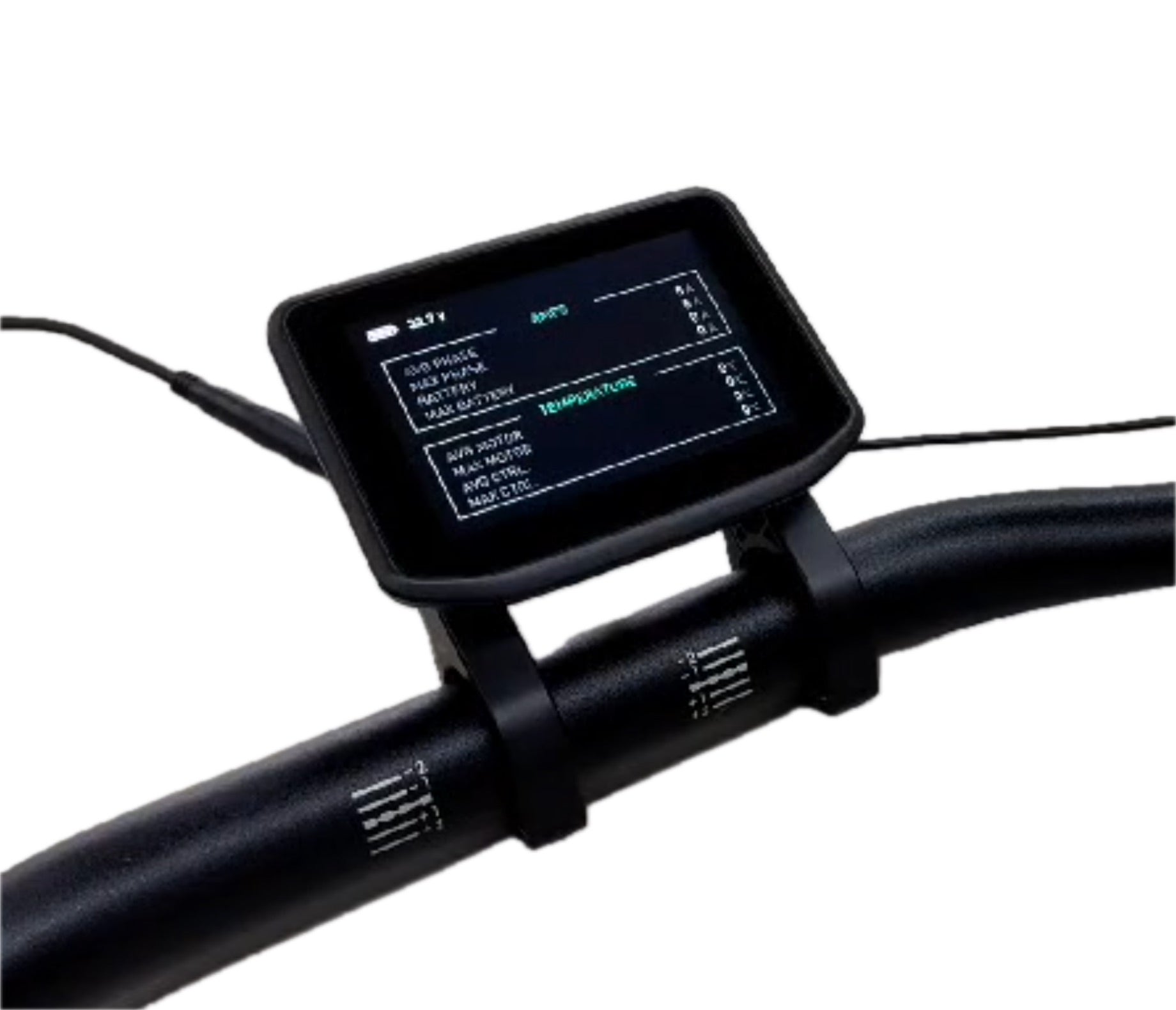

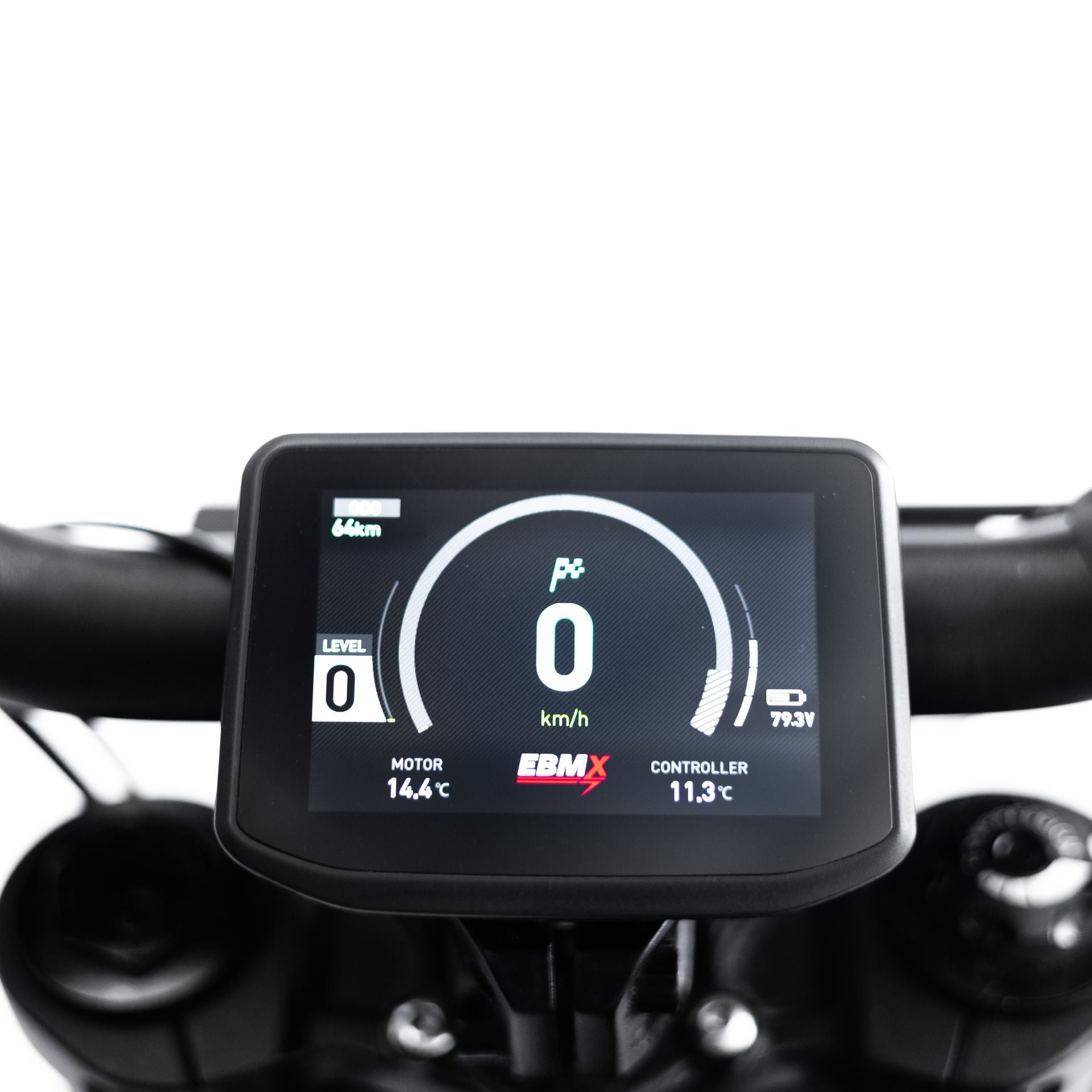

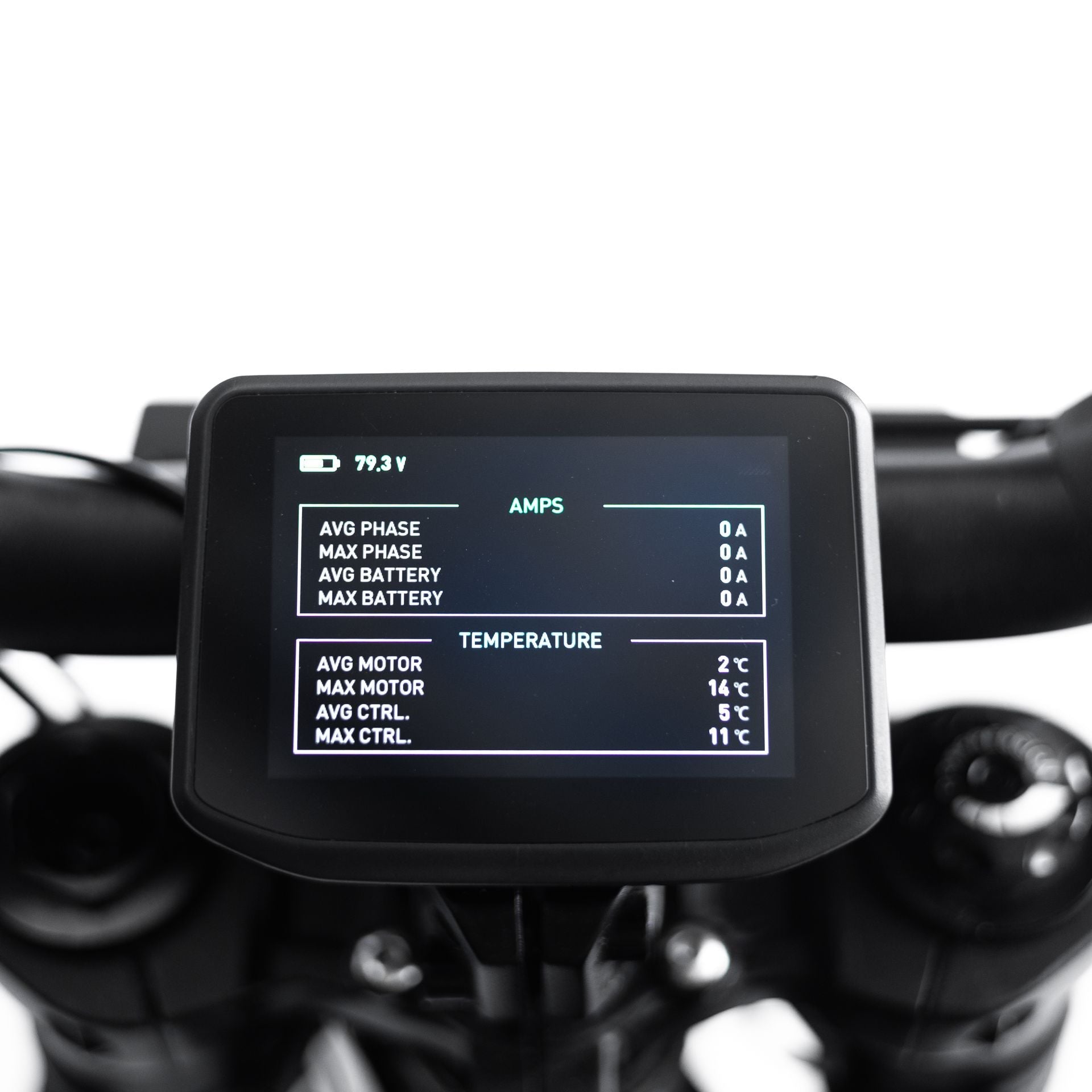

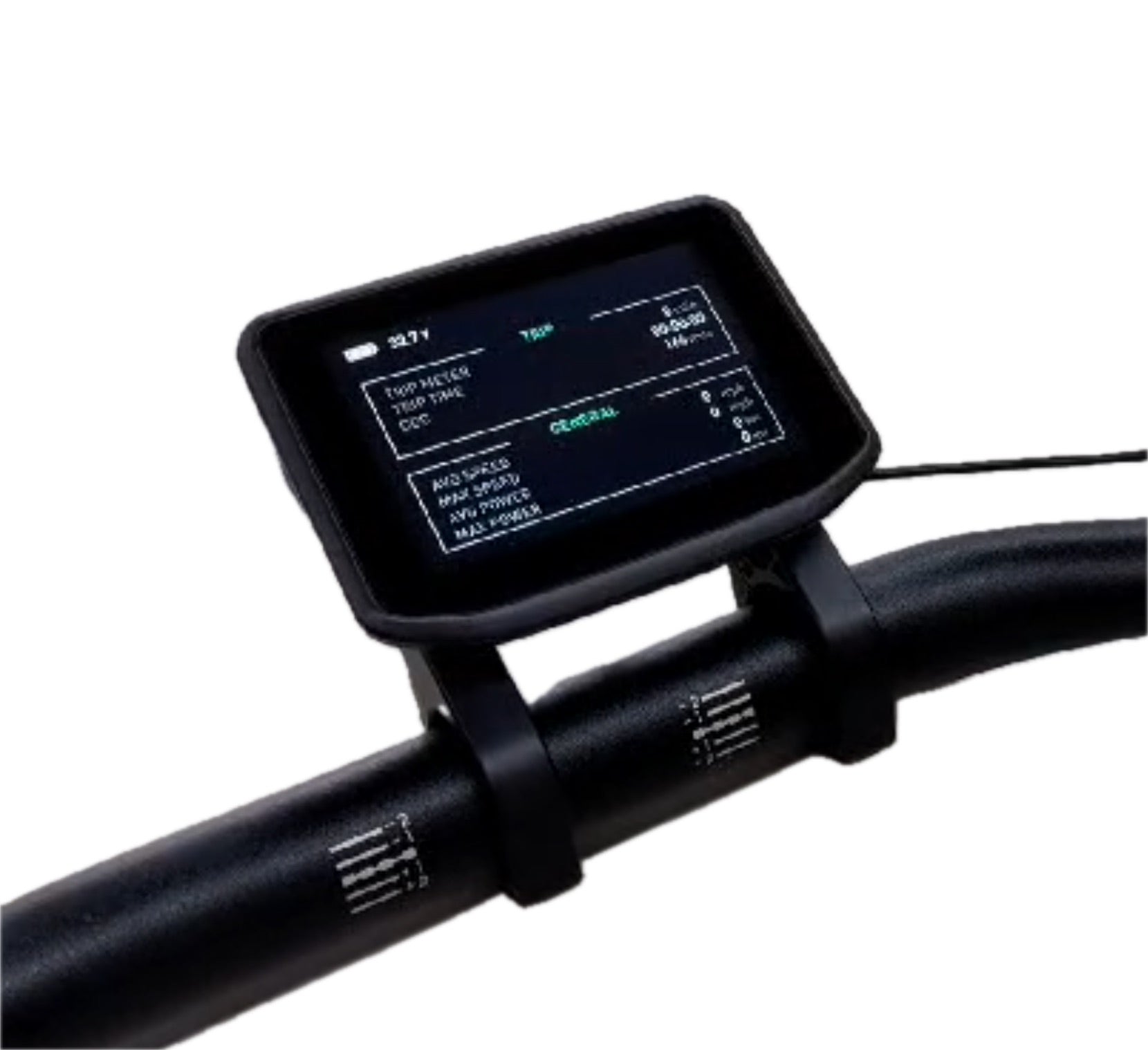

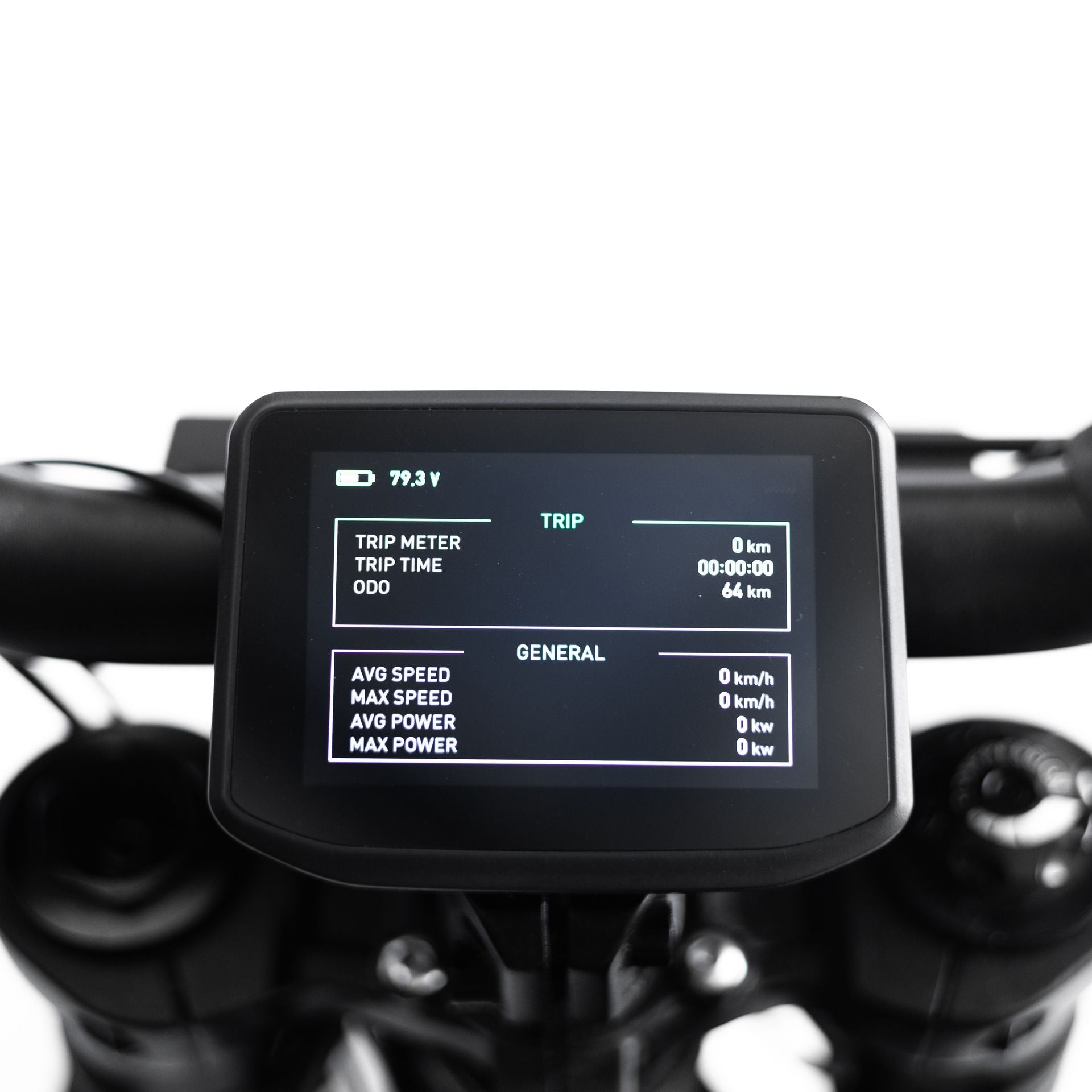

. All new EBMX UI with ride data


Install process

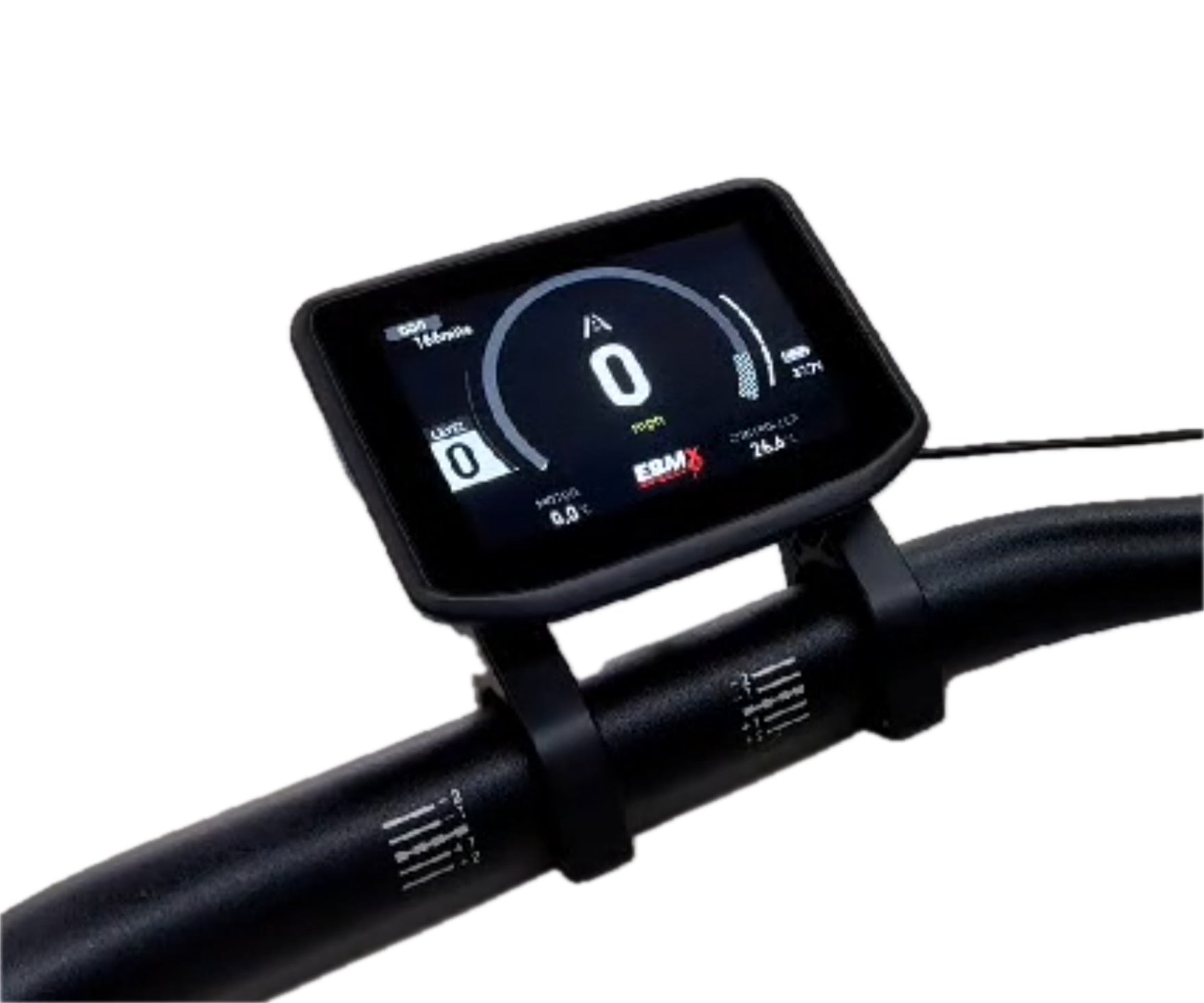

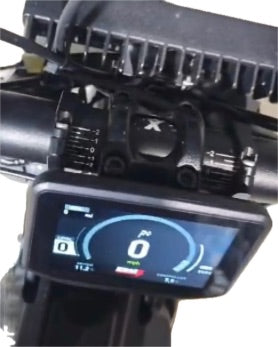

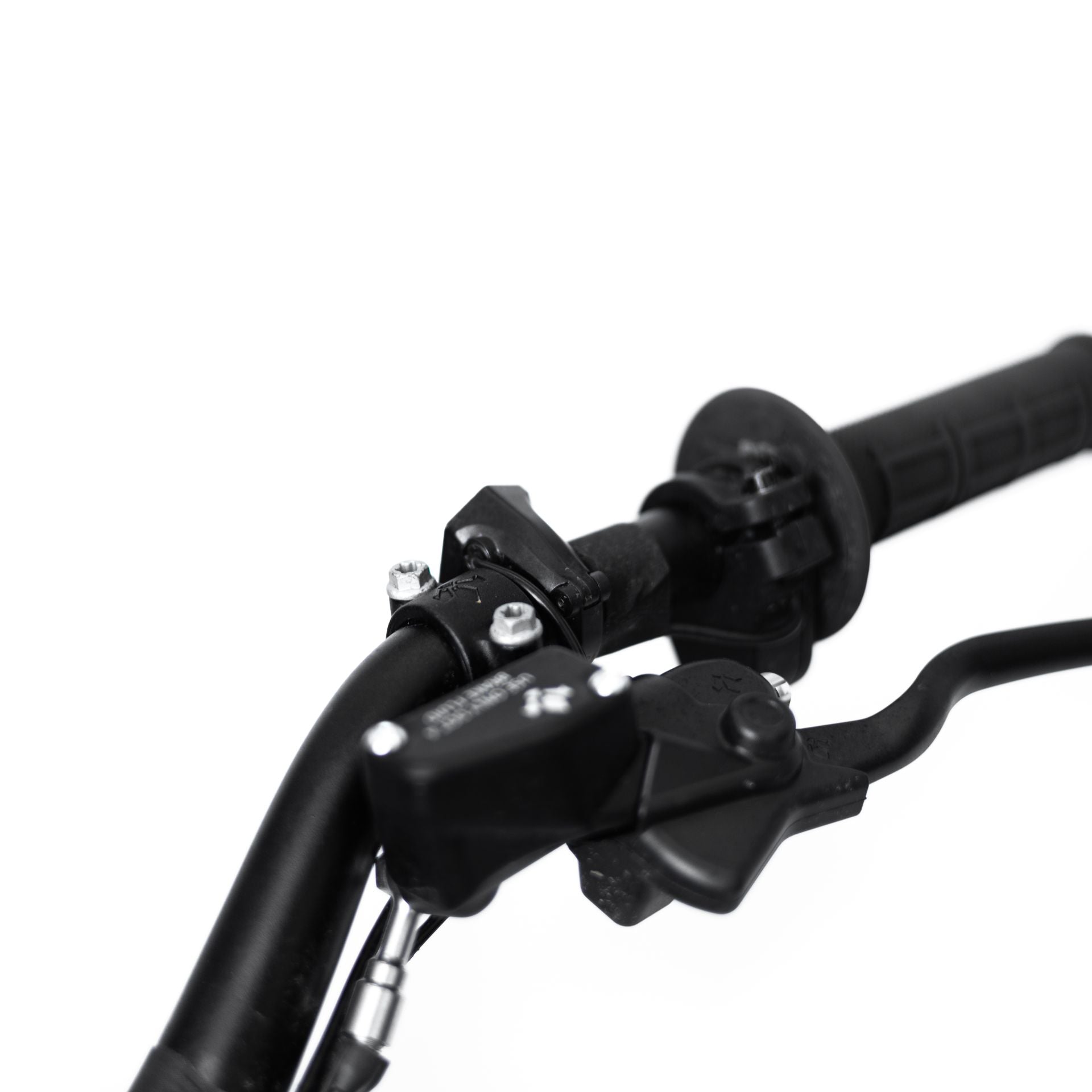

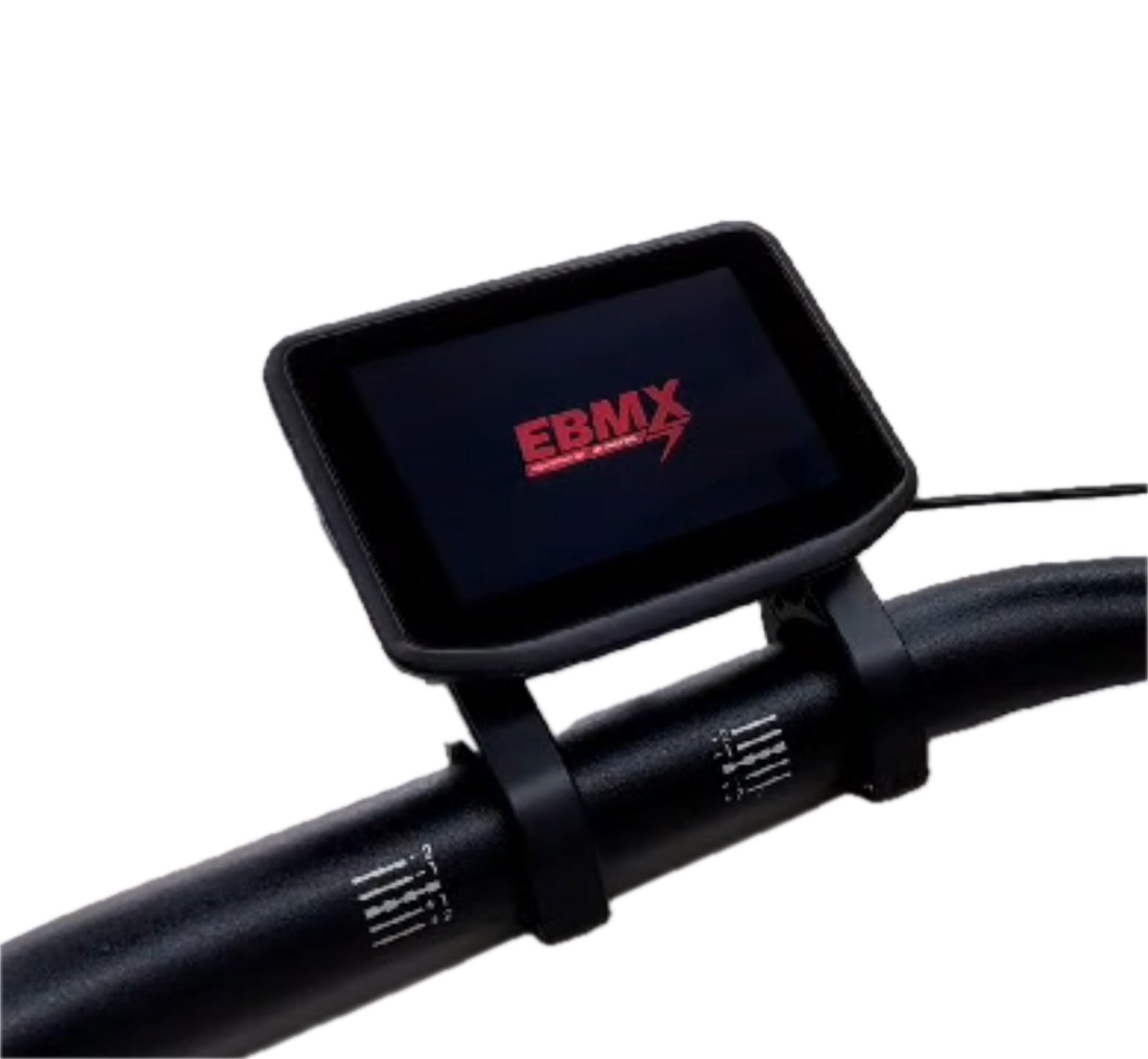

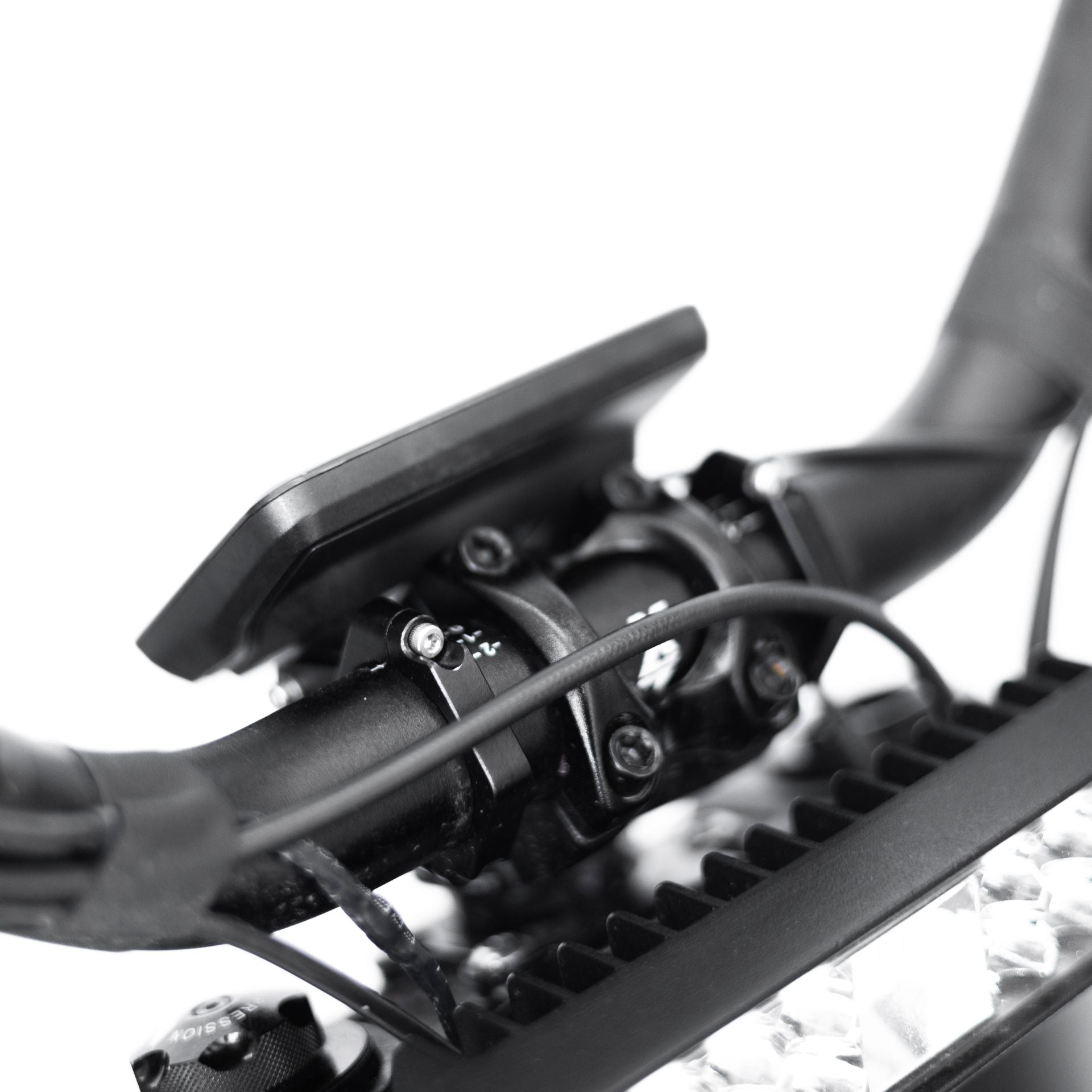

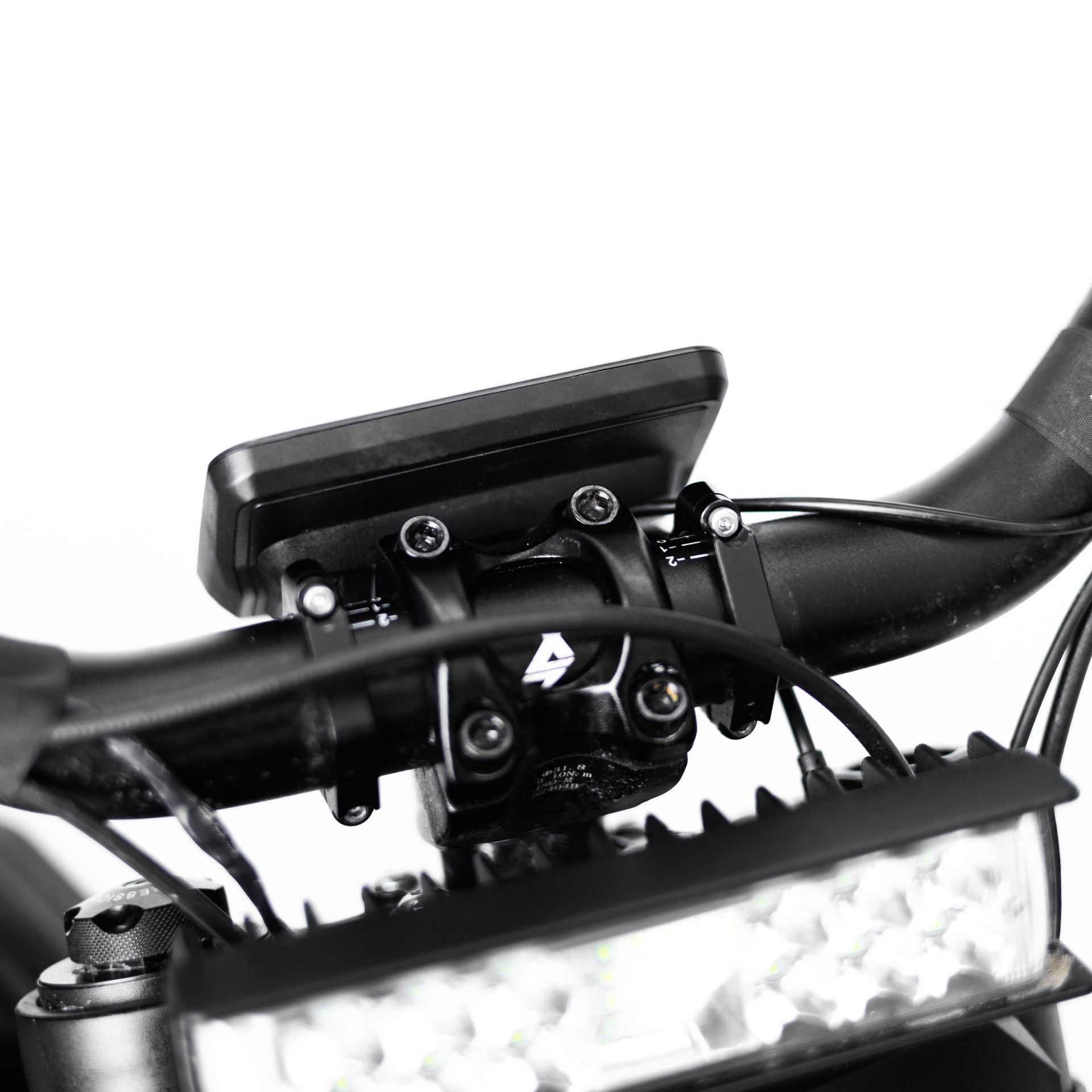

• Versatile Mounting Options: The display includes a single center post billet aluminum mount, making it compatible with a variety of stem mounts. With the included shims, you can easily fit it on MTB or Moto bars.

• Durable Construction: Crafted with CNC aluminum bar clamps, this display is built to handle the demands of both off-road and on-road riding, meeting EN ISO 13849-1 & EN15194:2017 standards.

• Easy Installation: The single center mount design allows for straightforward setup across different bar and riser configurations, so you can hit the trails with minimal fuss.

• Rapid Data Communication: Utilizing CAN bus technology, this display provides fast and accurate data transfer, ensuring real-time performance monitoring. Simply plug it in—no additional setup is required.

• Complete Kit: Your package includes a Canbus 2-1 cable and two CNC mounts designed for 28.6mm and 31.8mm bar clamps, providing everything you need for quick installation.

Important Note: This display is specifically engineered for the EBMX X9000 V2 Controller and is not plug-and-play compatible with Ultrabee R models equipped with indicators or headlights. For your safety and optimal performance, please use it as intended.

Videos for your EBMX controller

REV Rides' Detailed EBMX X9000 Installation Video with Tips & Tricks:

EBMX uses components sourced from reputable suppliers. Every part has been engineered for maximum performance. From the CNC machined internals, bus bars, and injection molded cover, to the fully waterproof construction.

• Custom EBMX App for tuning and full control (Available free in the App Store and Google Play Store)
  • Multiple power modes and full adjustment in each mode
  • Adjustable speed limits for different ride modes
  • Customizable dashboard to set the display up how you want
• Built-in and programmable DC/DC Converter with 4 programmable 12v outputs for running a coolant pump, headlights, and other 12v accessories as required and controllable through the app.
• Air-cooled heatsink as standard (comes in black, blue, red, gold or purple).
• Wiring harness connections are fully sealed and come straight out of the controller with fully waterproof IP67-rated connectors for the harnesses.
• Direct bolt-in for the Sur Ron Light Bee and Talaria Sting bikes with no extra brackets needed, no phase wire extensions or other additional parts (harness adapter included).
  • Integration with both Sur Ron hall-based motors and Talaria encoder motors
• SW102 (EggRider) Display included and custom firmware to allow monitoring of motor temp, controller temp along with all of the regular display info.
• Can be setup with a smart phone for the display or to check info as desired
• Super heavy-duty construction internally and externally to sustain hard riding and high-powered batteries and motors.
