Hyper Bee Specifications
Models
Hyper Bee 14/12 | Hyper Bee 12/10
Specifications
| Dimension | |
|---|---|
| Dimension | 59.06 in x 29.77 in x 34.84 in |
| Seat Height | 26.9 in (adjustable range 26 in - 27.8 in) |
| Curb Weight | 85.9 lbs |
| Ground Clearance | 9.4 in - 10.2 in (depending on the position adjusted by the shock absorption) |
| Max. Torque (on wheel) | 117 ft-lbs |
| Suspension System | |
|---|---|
| Front Suspension | 1.4 in inverted dual shoulder – oil spring type – adjustable rebound damping – adjustable compression damping pressure – total length 24.6 in, stroke 6.7 in |
| Rear Suspension | Airbag type adjustable 9 in single rear shock (2.3 in / 7.3 in) |
| Additional Specifications | |
|---|---|
| Wheel Base | 40.7 in |
| Carrying Capacity | 143.3 lbs |
Power System
| Power System | PMSM, MTPA/MTPV Controller |
| Maximum Power (Motor) | 5 kW |
| Riding Mode | 1 / 2 / 3 / Reverse (R) |
| Assistance Functions | Sliding energy recovery with three-level adjustable levels |
| Battery Type | 50.4 V / 25 AH Lithium-ion Battery pack |
| Throttle Curve | Three-stage Adjustable |
| Primary Belt System | Primary gear drive + second chain drive |
| Charging Parameter | Portable charger - magnetic charging - fully sealed |
Performance
| Speed | Will reach 28mph |
| WMTC Road | 31 miles @ 24.9 mph |
| Charge Time (20%-80%) | 2.5 hours |
Frame & Tire
| Tire Type |
Front - 60/100-14 Off-Road |
| Frame Material | Forged aluminium alloy |
Assistant Functions

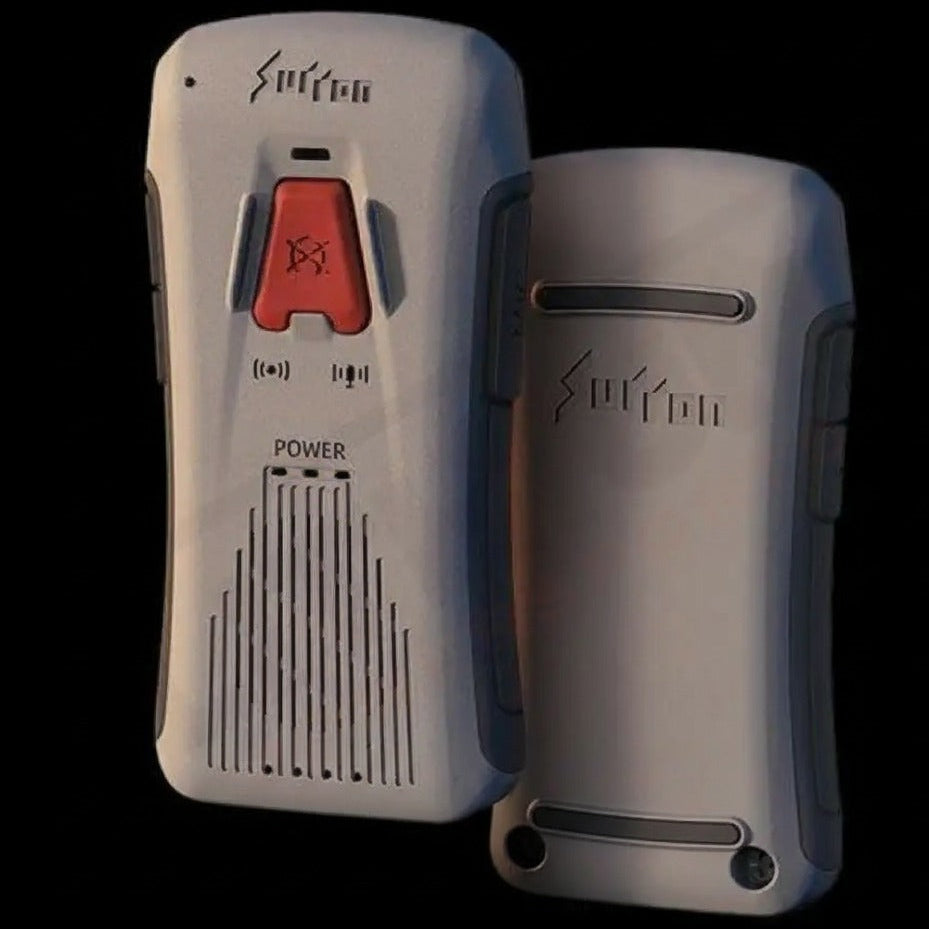

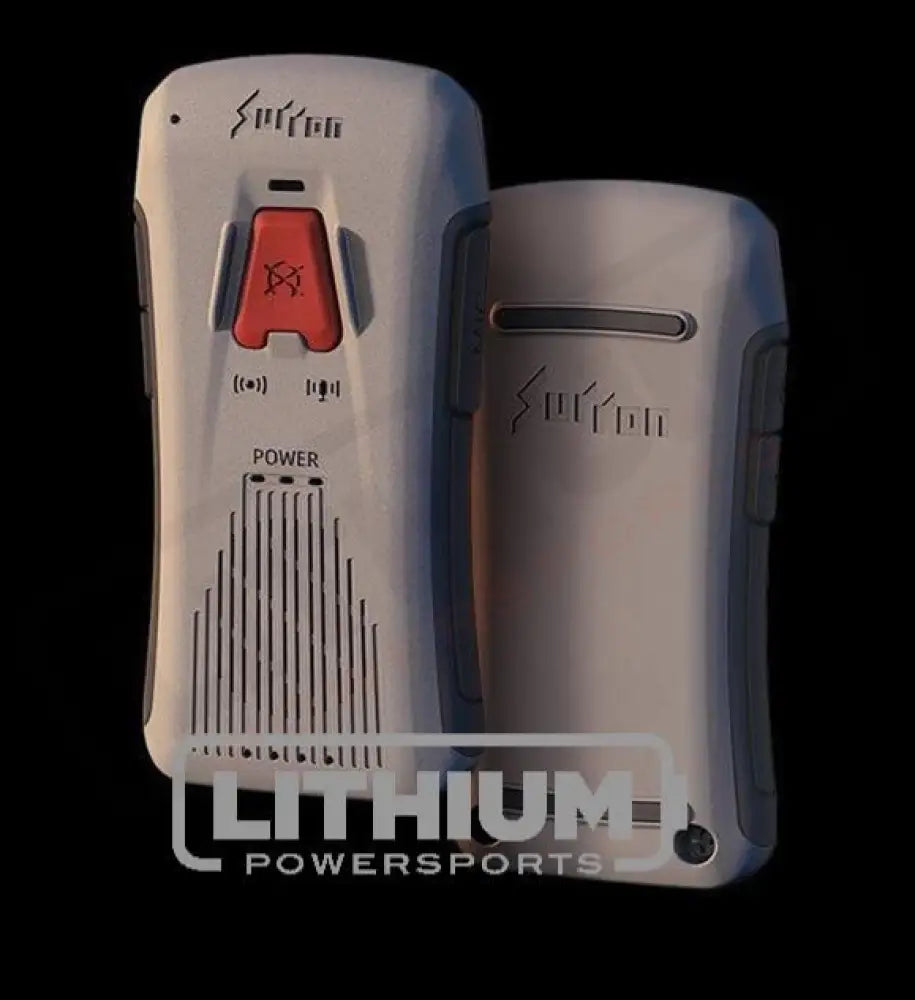

| Remote Control | Intercom function | Power mode setting |
| Safety Function | Magnetic emergency switch | Remote emergency power off function |
| Tilt Protection | Gyroscope sensor (can be turned off in feature setting mode) |
